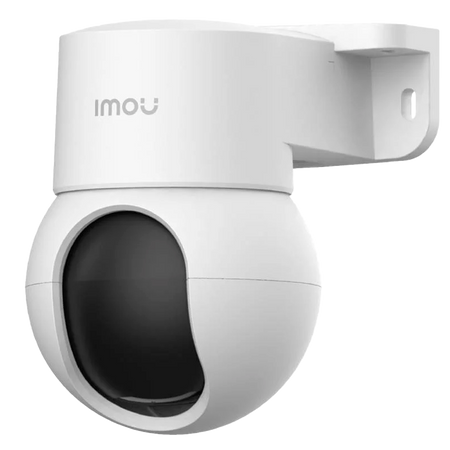

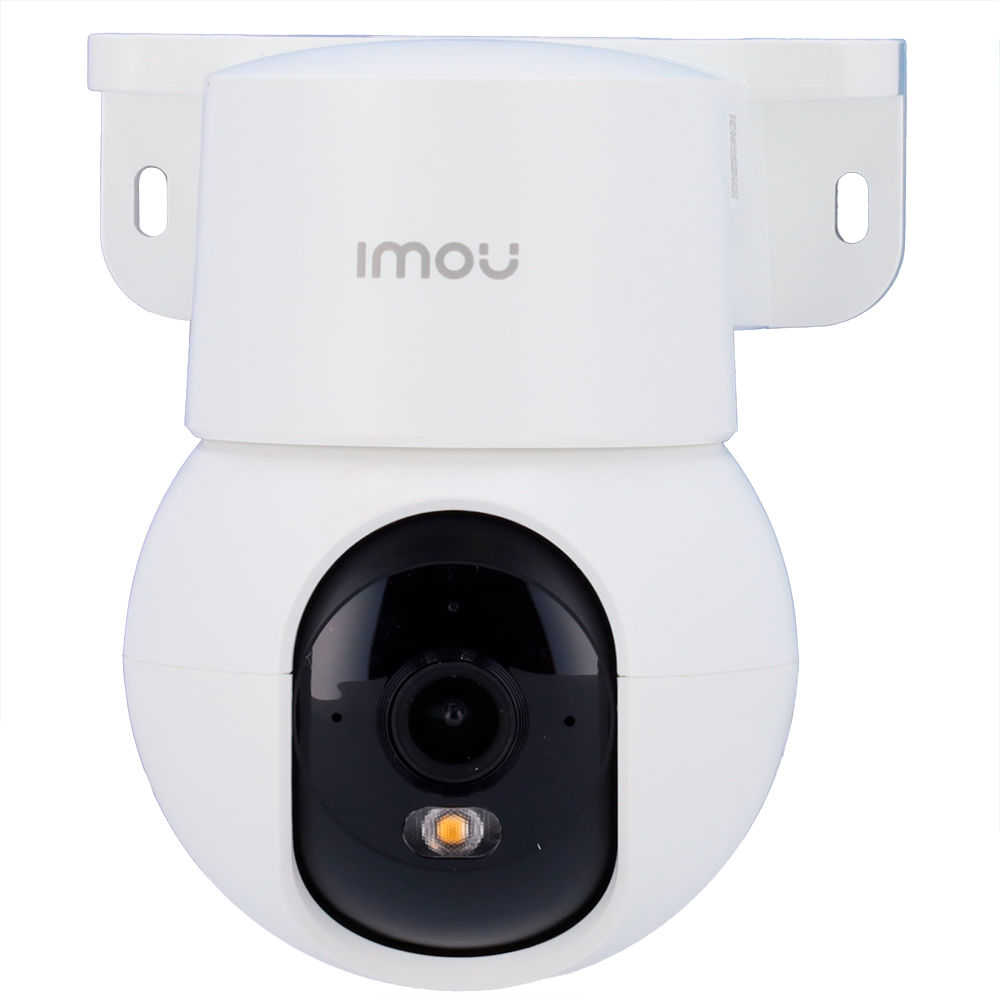

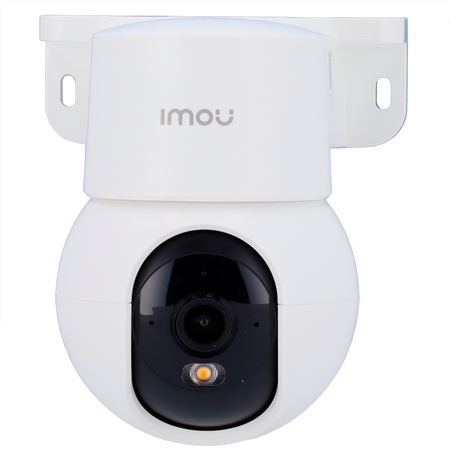

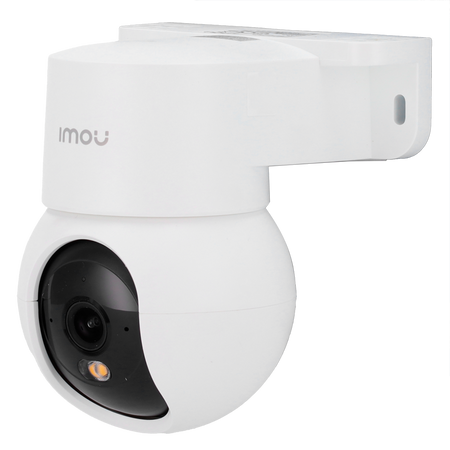

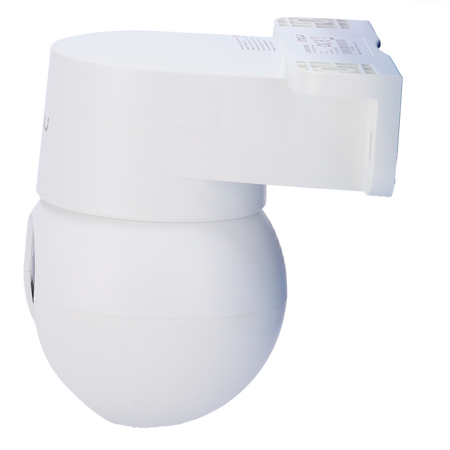

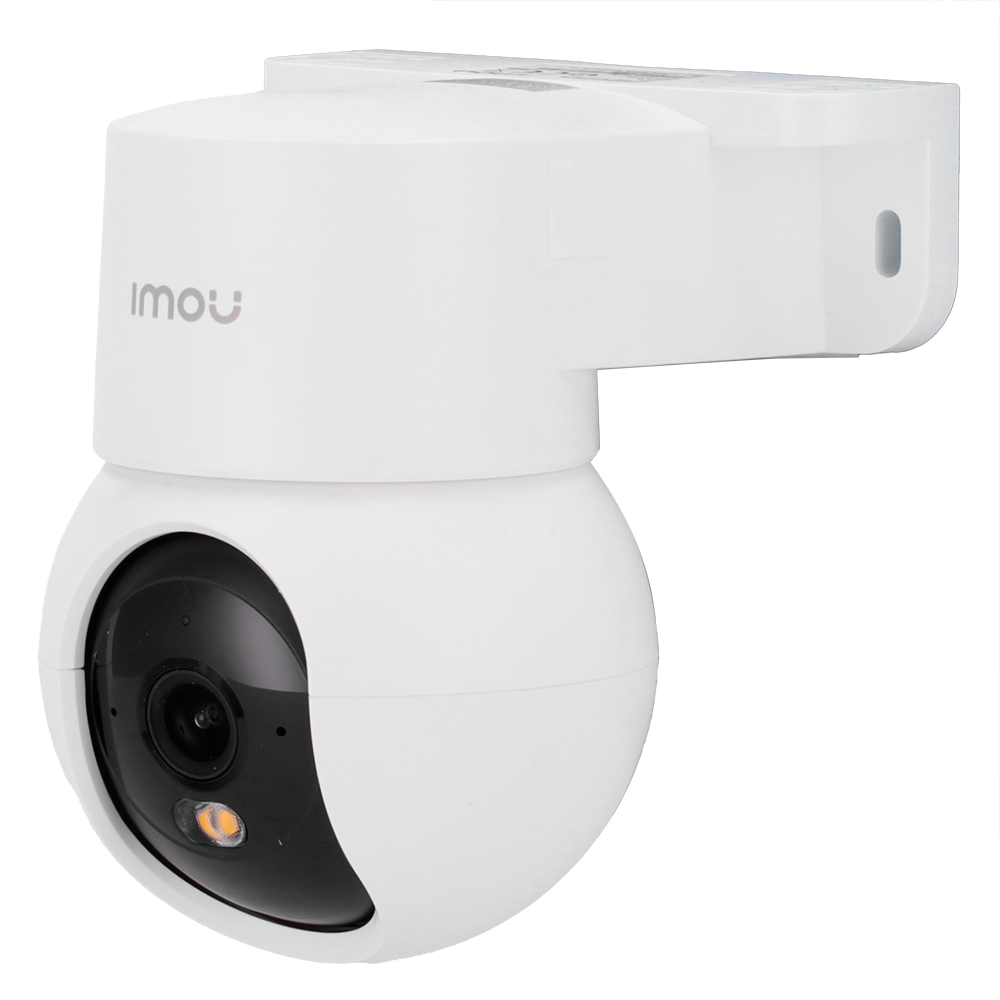

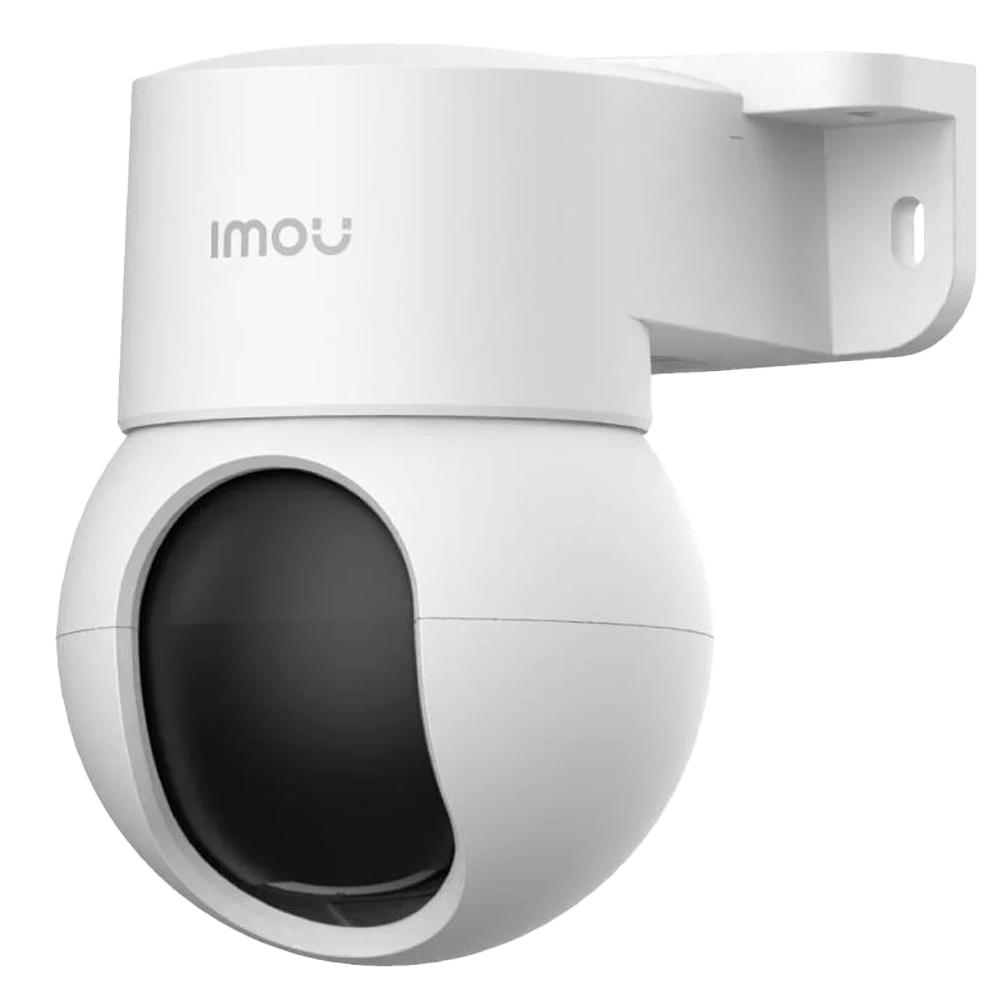

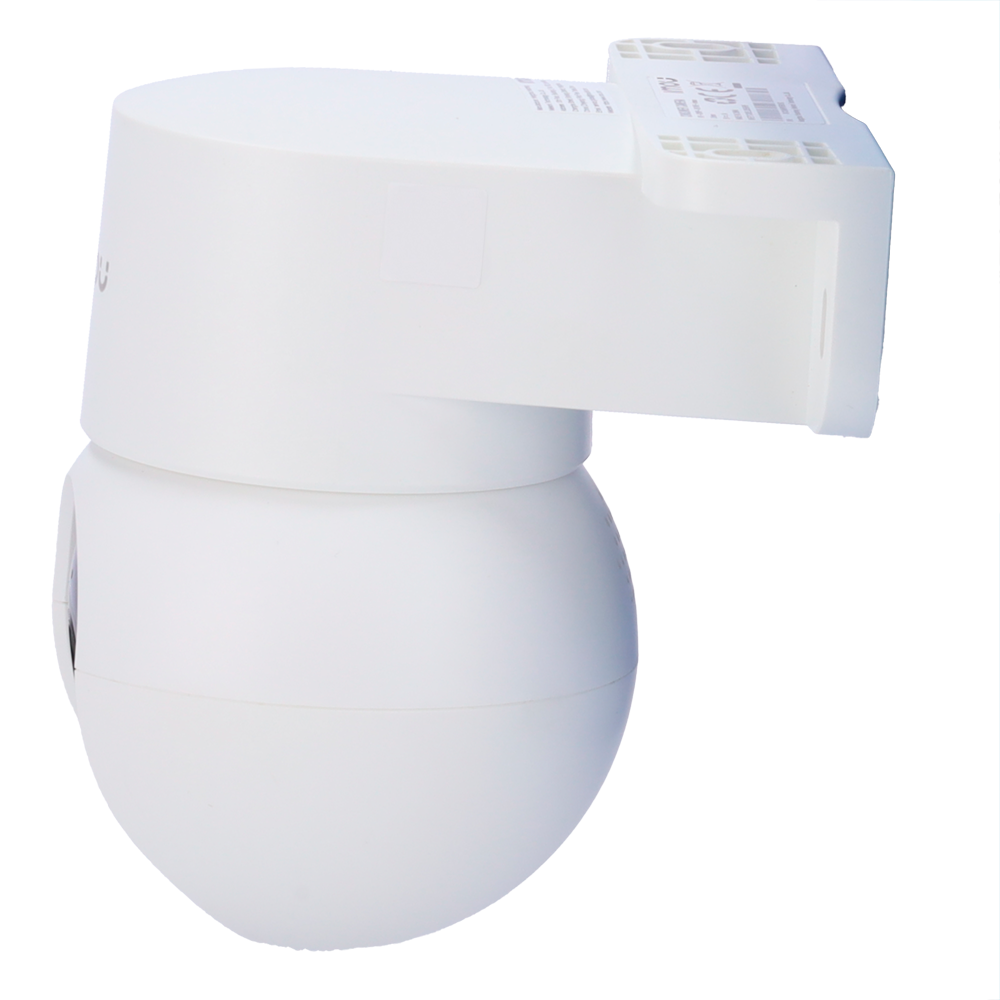

Imou Ranger Mini 3MP Pan-Tilt Camera
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Ranger Mini 3MP motorized camera - WiFi 6 - 3.6 mm / Autotracking / IR + Smart Color - Two-way audio / Siren - PIR sensor / Human detection - Mini indoor-outdoor format
📋 SPECIFICATIONS:
• Brand: Imou
• Model: IPC-K2MP-3H1WE-IMOU / Ranger Mini 3MP
• Optical sensor: 1/3” Progressive Scan CMOS
• Main stream encoding: 2304x1296 (3MP)
• Lens: 3.6 mm (79º diagonal field of view)
• Remote Pan/Tilt: Horizontal: 355°, Vertical: 5~50°
• Tracking mode: Motion-tracking
• Infrared illumination: 0 lux IR LED (10 m)
• Color illumination: Color Night Vision / Deterrent flash
• Audio: Two-way audio (microphone and speaker)
• Detection types: Motion detection; Intelligent human detection
• Internal memory: Supports microSD card (max. 512GB)
• External storage: Imou or Dahua NVR with private protocol; Third-party NVR via ONVIF protocol; Imou Protect cloud storage by subscription in the app

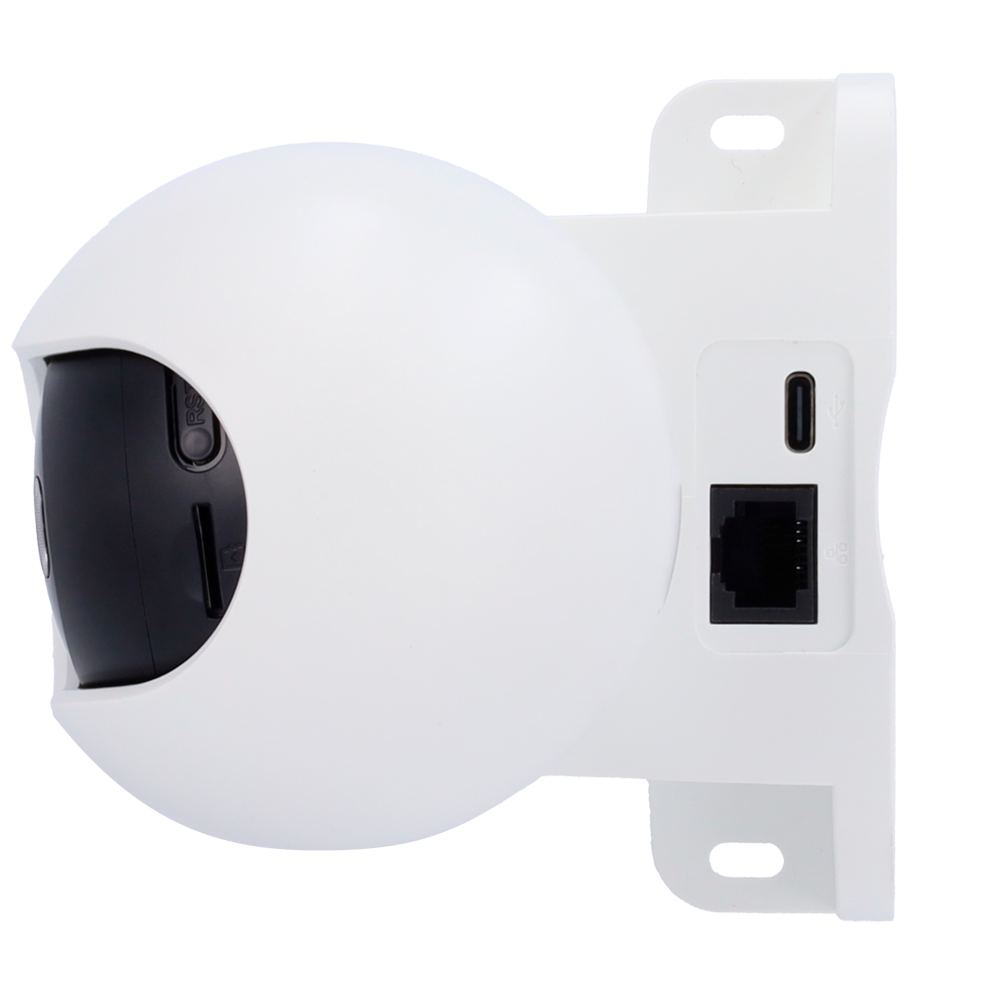

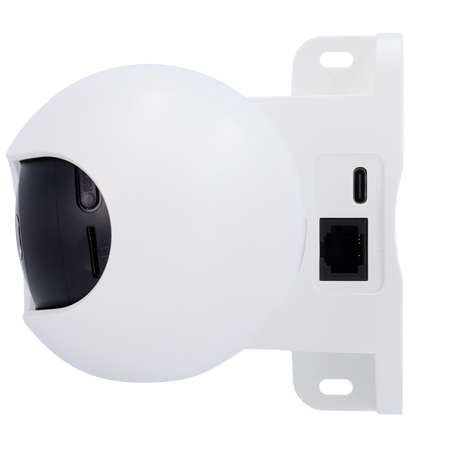

• Network interface: Wifi 6 2.4GHz IEEE 802.11 b/g/n; Ethernet 10/100 BaseT (RJ45)
• Remote access: Smartphone app: Imou Life; Software: Imou PC; No browser access available
• Power supply: DC 5V / 1000 mA Type-C
• Protection rating: Waterproof IP66
• Operating temp.: -30º C ~ +60º C
• Dimensions: 95mm x 96mm x 109mm
• Weight: 200 g
📦 INCLUDED:
• Wifi camera• Power adapter• Installation material• Quick start guide
| Model | IPC-K2MP-3H1WE-IMOU / Ranger Mini 3MP |
|---|---|
| Optical sensor | 1/3” Progressive Scan CMOS |
| Main stream encoding | 2304x1296 (3MP) |
| Lens | 3.6 mm (diagonal viewing angle 79º) |
| Remote Pan/Tilt movement | Horizontal: 355°, Vertical: 5~50° |
| Tracking mode | Motion-tracking |
| Infrared illumination | 0 lux IR LED (10 m) |
| Color illumination | Color Night Vision / Deterrent strobe |
| Audio | Two-way audio (microphone and speaker) |
| Detection types | Motion detection via video sensor, intelligent human detection |
| Internal memory | Supports microSD card (max. 512GB) |
| External storage | Imou or Dahua NVR with private protocol, third-party NVR via ONVIF protocol, Imou Protect cloud subscription via app |
| Network interface | Wifi 6 2.4GHz IEEE 802.11 b/g/n, Ethernet 10/100 BaseT (RJ45) |
| Remote access | Smartphone app: Imou Life, Software: Imou PC, no browser access available |
| Power supply | DC5 V / 1000 mA Type-C |
| Protection rating | Waterproof IP66 |
| Operating temp. | -30º C ~ +60º C |
| Dimensions | 95mm x 96mm x 109mm |
| Weight | 200 g |
