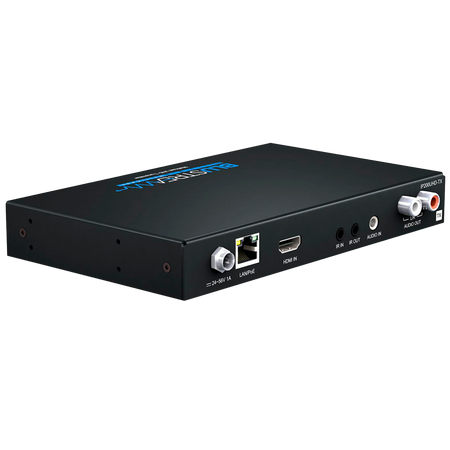

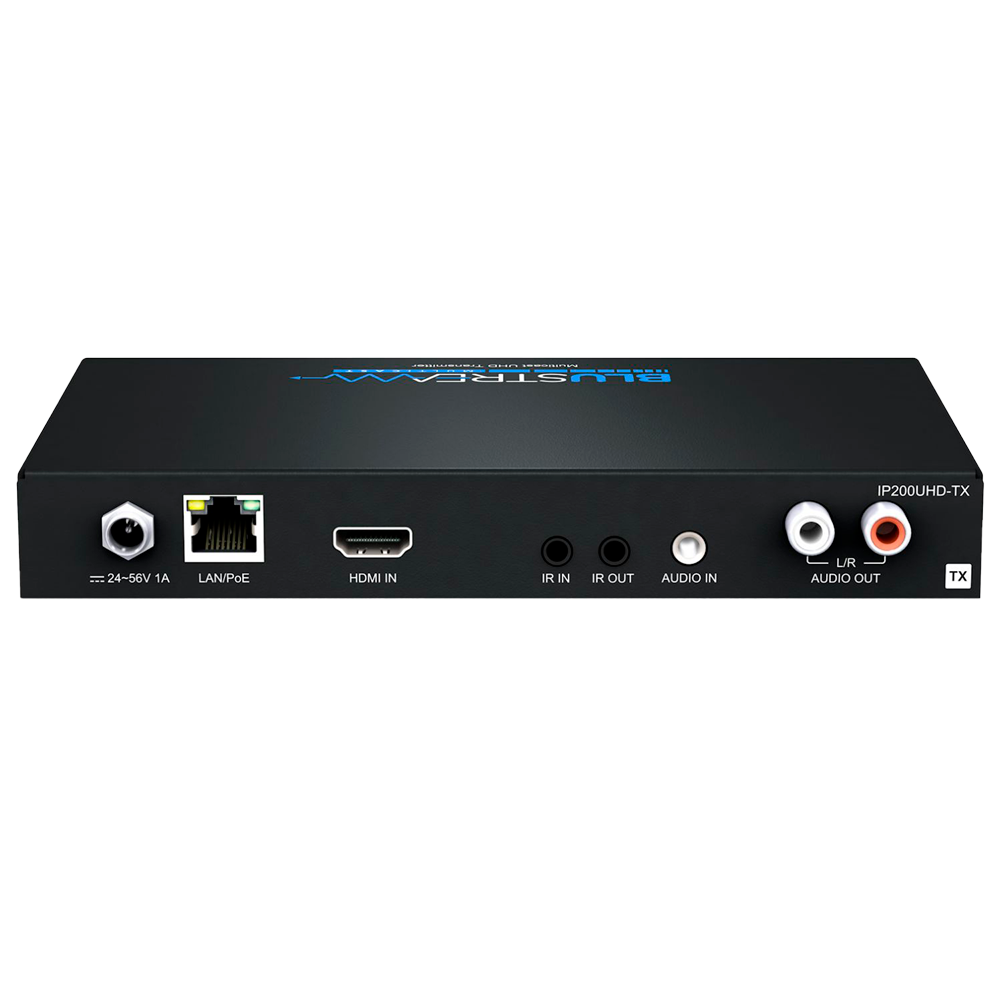

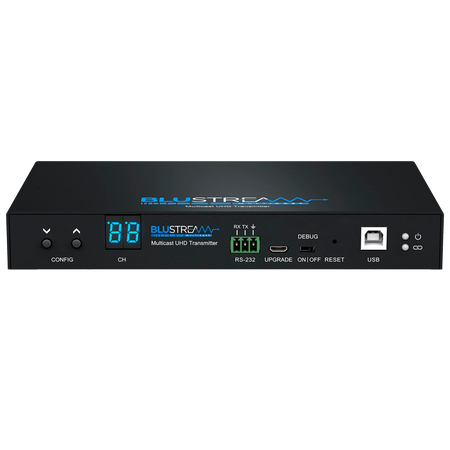

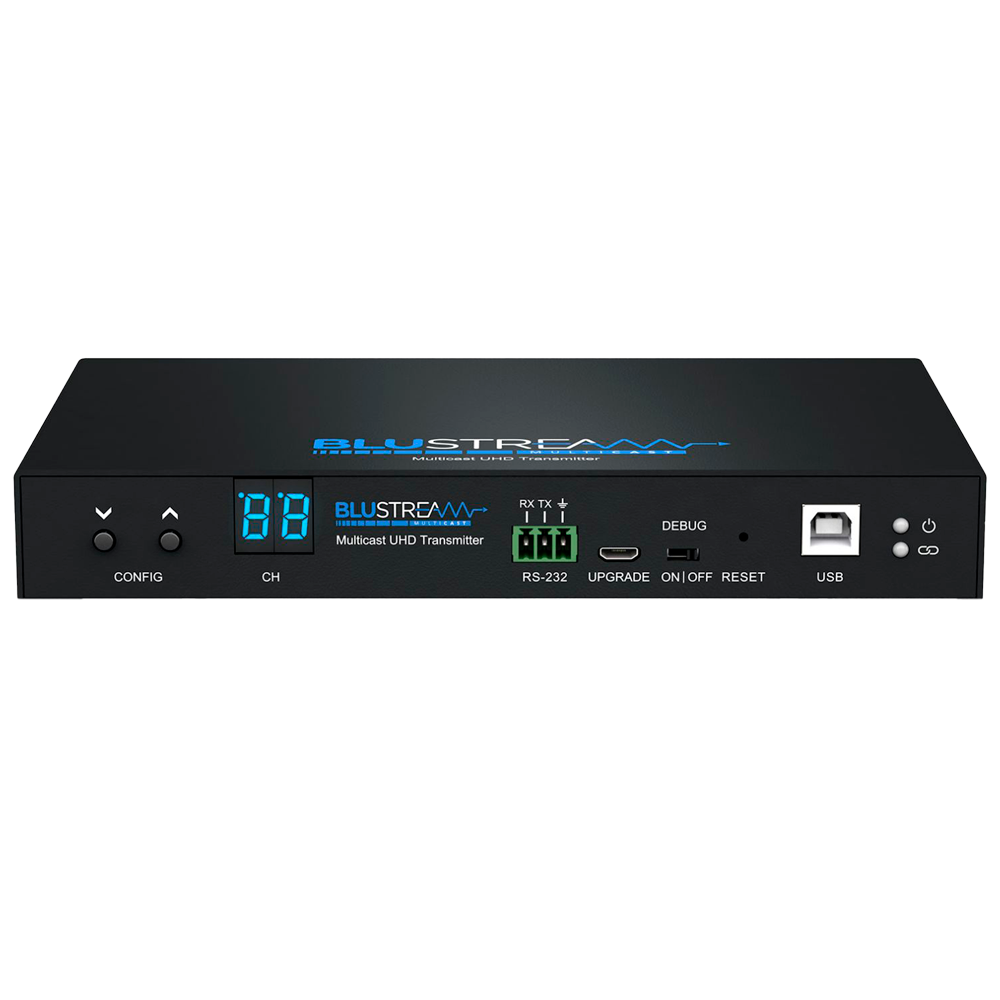

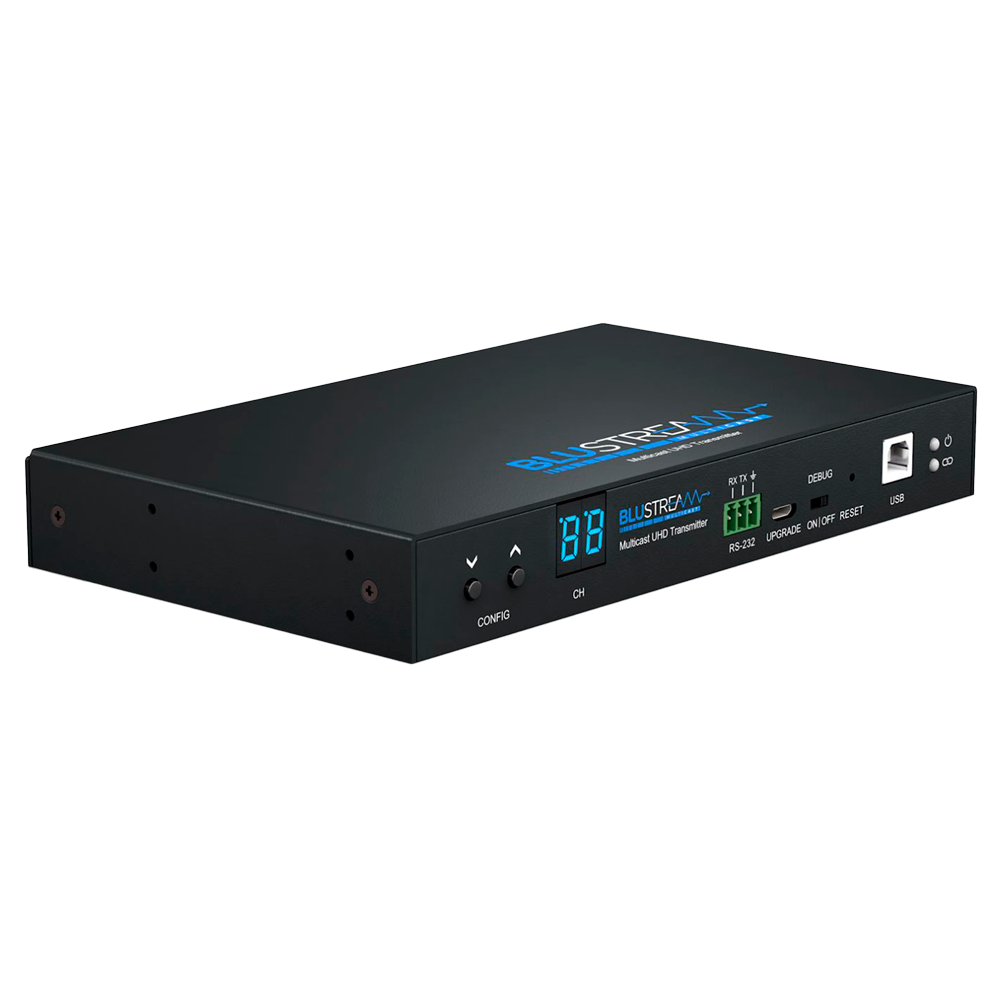

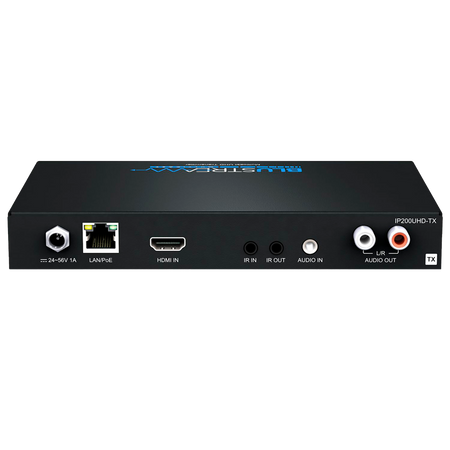

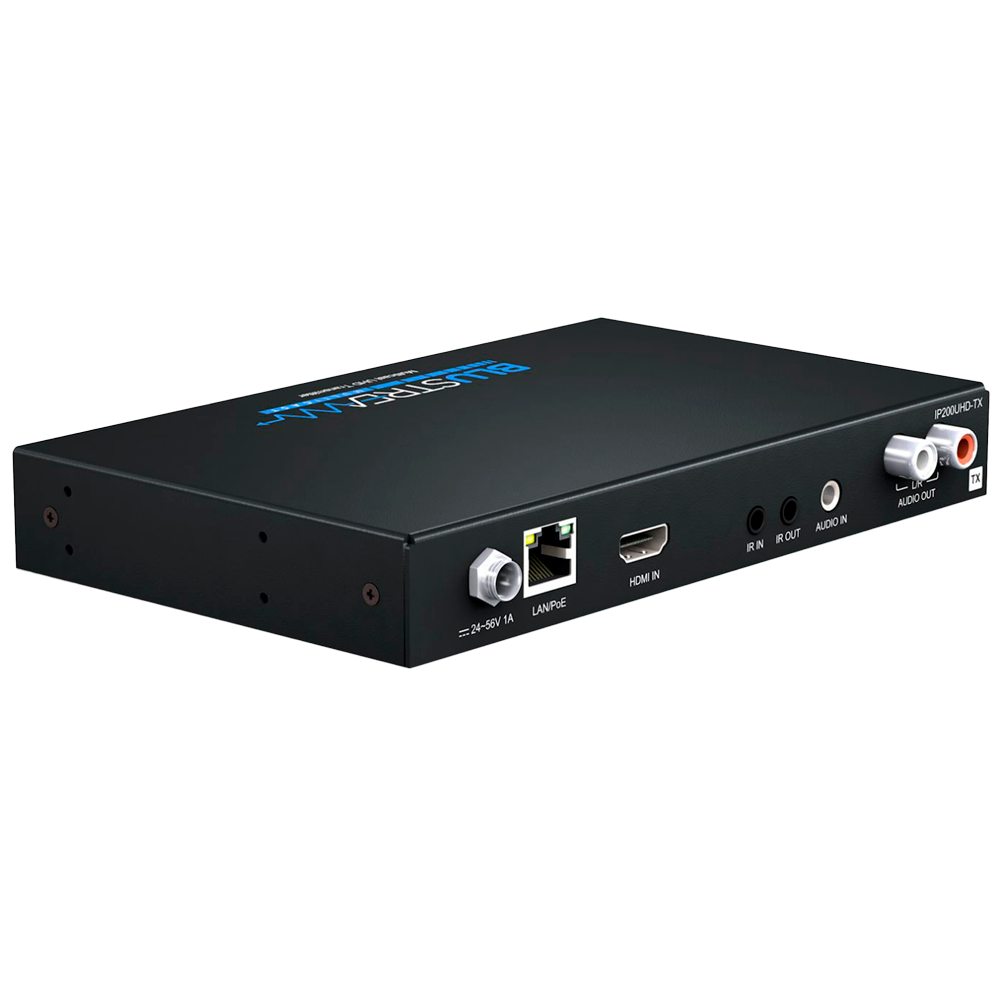

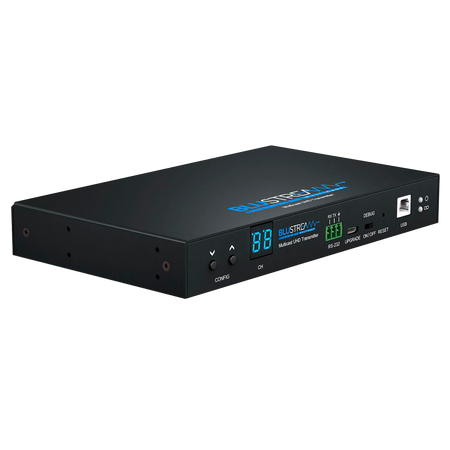

Blustream HDMI signal transmitter
Regular price
€897,52
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
HDMI Signal Transmitter - UHD Resolution - 1 HDMI input - 1 LAN output (RJ45) - KVM function
📋 SPECIFICATIONS:
• Functionality: -; Distribution matrix (requires a 1GB network switch); Video Wall (requires a 1GB network switch); HDMI Extender 1:1 (network switch not required); HDMI Extender 1:N (network switch not required)
• Video input: 1x HDMI
• Video output: 1x LAN (RJ45)
• Latency: 1 frame (16-33ms)
• Distance: 100m over CAT cable
• Resolution: 3840x2160@30Hz 4:4:4; 4096x2160@24Hz 4:4:4; 4K@60Hz 4:2:0
• EDID: HDCP 2.2
• Audio input: 1x 3.5mm (Analog L/R audio)
• Audio outputs: 2x RCA (analog L/R audio)
• Audio formats: Dolby TrueHD; Dolby Digital Plus; DTS-HD Master Audio
• Ethernet port: 1x LAN (RJ45)
• RS232 serial port: 1x 3-pin Phoenix serial connector
• KVM/USB port: 1x USB-B
• IR input: 1x 3.5mm stereo jack
• IR output: 1x 3.5mm mono jack
• PoE: 6.0W (typical); 7.2W (maximum load)
• Power supply: 24V ~56V
• System updates: 1x Micro-USB
• Dimensions: 190mm (H) x 114mm (W) x 25mm (D)
• Weight: 0.8kg
• Operating temperature: 0ºC ~40ºC
📦 INCLUDED:
• IP200UHD-TX HDMI Signal Transmitter• 1x HDMI Signal Receiver• 1x IR Transmitter• 1x 3-pin Phoenix serial connector• 1x Mounting kit
| Functionality | - Distribution Matrix (requires a 1GB network switch) - Video Wall (requires a 1GB network switch) - 1:1 HDMI Extender (no network switch required) - 1:N HDMI Extender (no network switch required) |
|---|---|
| Video input | 1x HDMI |
| Video output | 1x LAN (RJ45) |
| Latency | 1 frame (16-33ms) |
| Distance | 100m over CAT cable |
| Resolution | - 3840x2160@30Hz 4:4:4 - 4096x2160@24Hz 4:4:4 - 4K@60Hz 4:2:0 |
| EDID | HDCP 2.2 |
| Audio input | 1x 3.5mm (Analog L/R audio) |
| Audio outputs | 2x RCA (Analog L/R audio) |
| Audio formats | - Dolby TrueHD - Dolby Digital Plus - DTS-HD Master Audio |
| Ethernet port | 1x LAN (RJ45) |
| RS232 serial port | 1x 3-pin Phoenix serial connector |
| KVM/USB port | 1x USB-B |
| IR input | 1x 3.5mm stereo jack |
| IR output | 1x 3.5mm mono jack |
| PoE | - 6.0W (typical) - 7.2W (maximum load) |
| Power supply | 24V ~56V |
| System updates | 1x Micro-USB |
| Dimensions | 190mm (H) x 114mm (W) x 25mm (D) |
| Weight | 0.8kg |
| Operating temperature | 0ºC ~40ºC |
