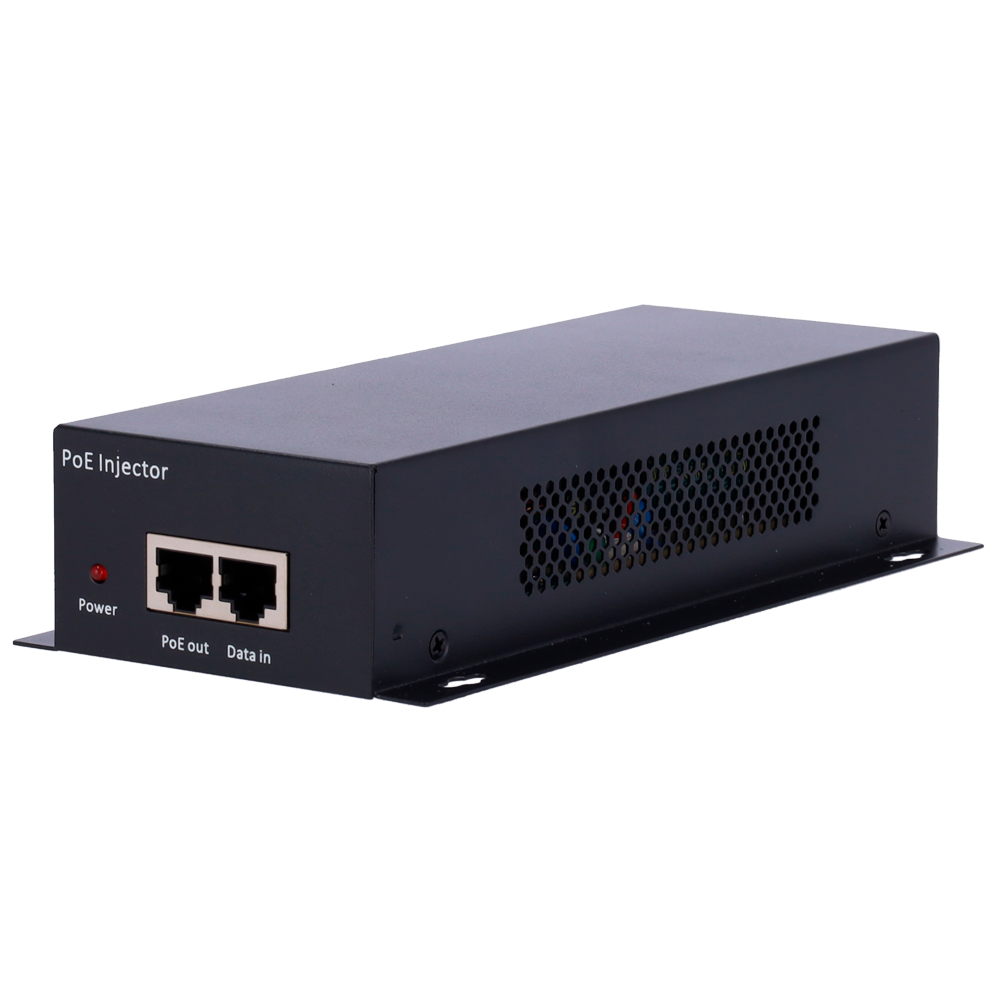

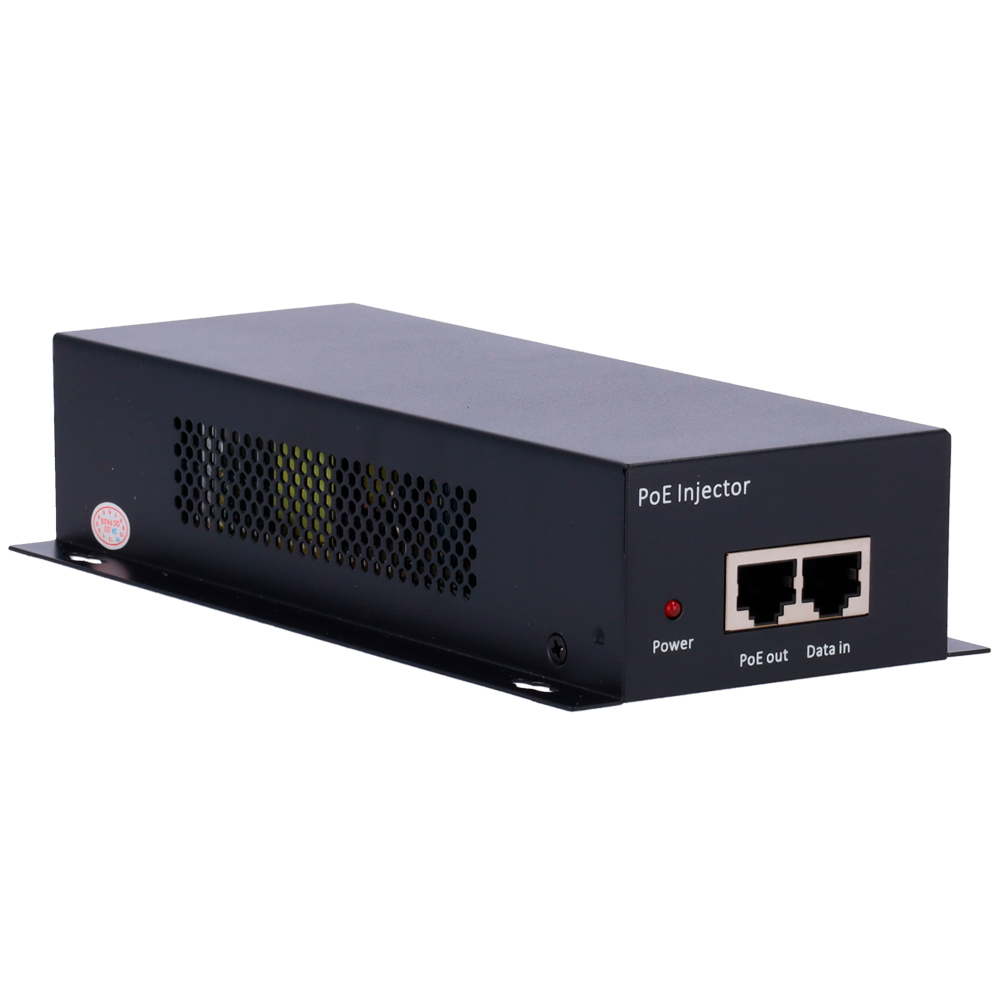

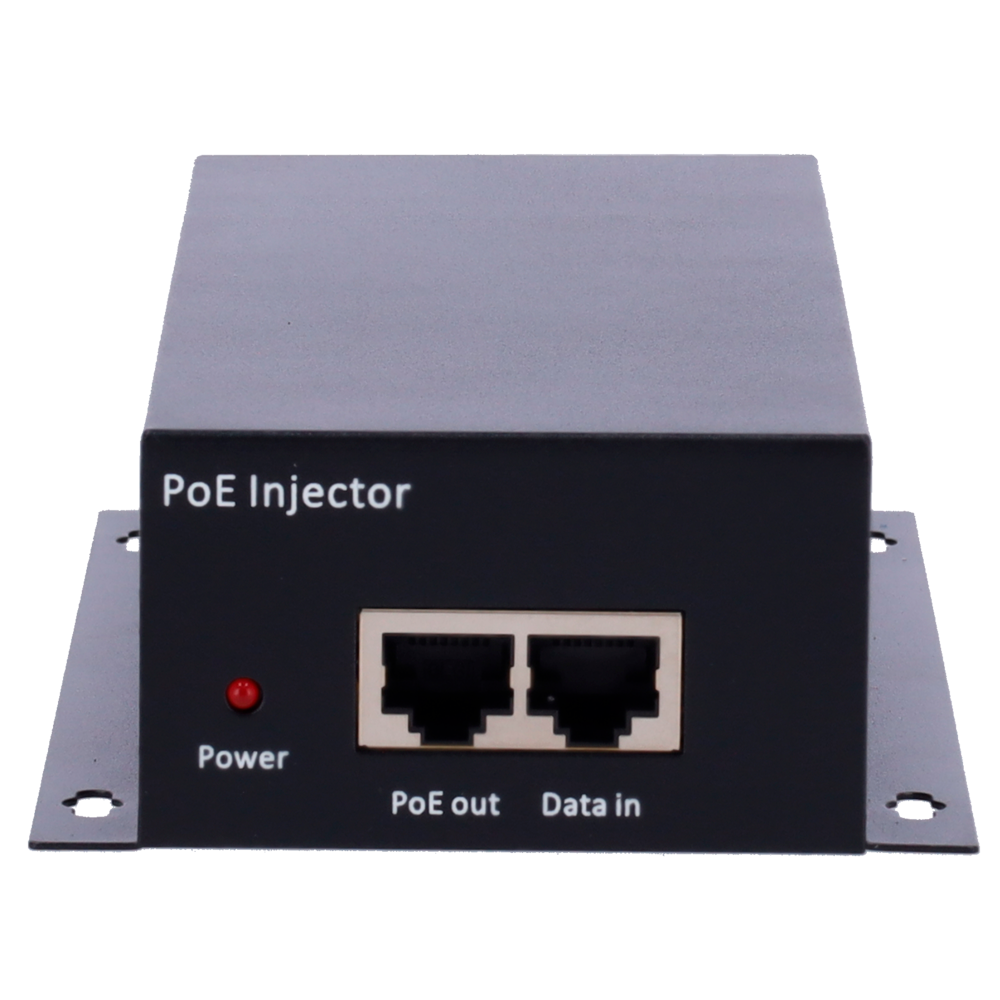

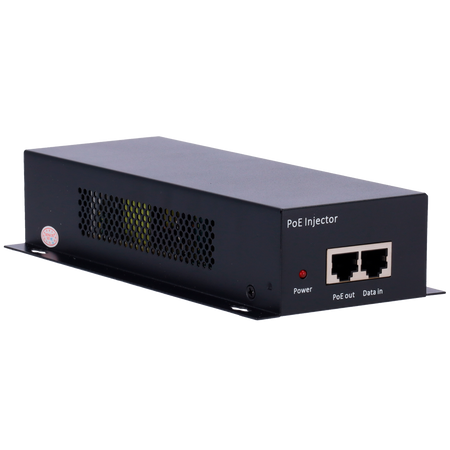

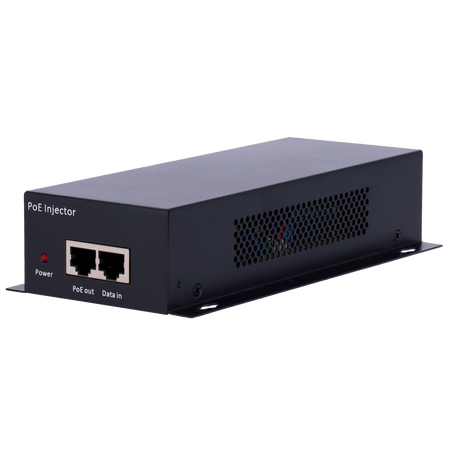

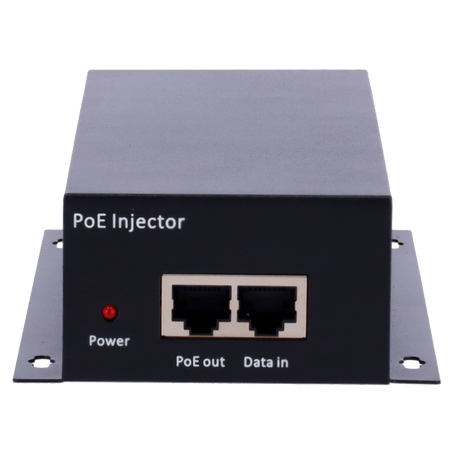

10G ultra-high-speed PoE injector
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
10G ultra-high-speed PoE injector. - Supports IEEE 802.3af/at/bt standards. - Features 2 RJ45 ports (input/output). - High power delivery up to 60 W. - Data transfer up to 10 Gbps. - Robust metal housing with IP20 protection.
📋 SPECIFICATIONS:
• Device type: 10G Multi-Gigabit PoE Injector
• Network interface: 1x 10G Ethernet RJ45 port + 1x 10G PoE port
• Transfer speed: Up to 10 Gbps (Ethernet)
• Supported PoE standards: IEEE 802.3af (15.4 W) / IEEE 802.3at (30 W) / IEEE 802.3bt (60 W)
• Maximum output power: 60 W
• PoE output voltage: DC 44 - 57 V
• Internal power supply voltage: DC 52 V / 1.15 A

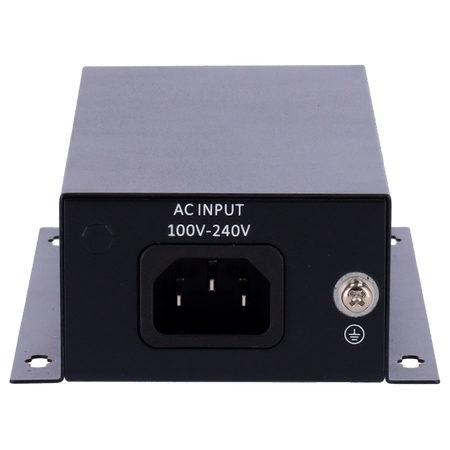

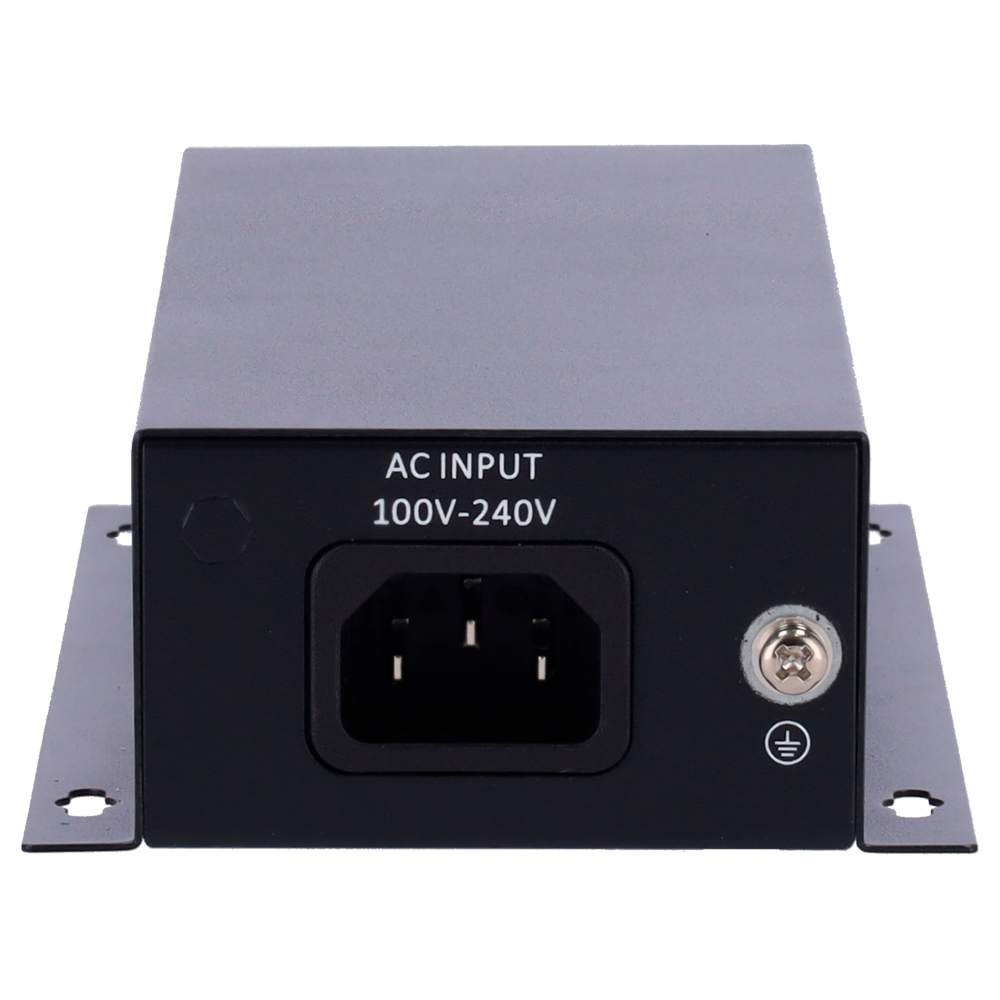

• AC input voltage: 100 - 240 Vac (50/60 Hz)
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x
• Surge protection: Differential mode 2KV / Common mode 6KV
• ESD electrostatic protection: Contact 6KV / Air 8KV
• Chassis material: Metal housing with IP20 protection rating
• LED indicators: Power (PWR) status
• Installation mode: Indoor / wall mount installation
• Operating temperature: -20°C to ~ 50°C
• Storage temperature: -40°C to ~ 85°C
• Operating humidity: 5% to 90% RH (non-condensing)
• Storage humidity: 5% to 95% RH (non-condensing)
• Physical dimensions: 187 x 95 x 40 mm
• Net product weight: 0.486 kg
📦 INCLUDED:
• 1x 10G PoE Injector INJ-POE-10G-60W• 1x Power cable• 1x Manuals and instructions
| Device type | 10G Multi-Gigabit PoE Injector |
|---|---|
| Network interface | 1x 10G Ethernet RJ45 port + 1x 10G PoE port |
| Transfer speed | Up to 10 Gbps (Ethernet) |
| Supported PoE standards | IEEE 802.3af (15.4 W) / IEEE 802.3at (30 W) / IEEE 802.3bt (60 W) |
| Maximum output power | 60 W |
| PoE output voltage | DC 44 - 57 V |
| Internal power supply voltage | DC 52 V / 1.15 A |
| AC input voltage | 100 - 240 Vac (50/60 Hz) |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x |
| Surge protection | 2KV differential mode / 6KV common mode |
| ESD protection | 6KV contact / 8KV air |
| Chassis material | IP20-rated metal housing |
| LED indicators | Power (PWR) status |
| Installation mode | Indoor / wall-mount installation |
| Operating temperature | -20°C to ~ 50°C |
| Storage temperature | -40°C to ~ 85°C |
| Operating humidity | 5% to 90% RH (non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Physical dimensions | 187 x 95 x 40 mm |
| Net product weight | 0.486 kg |
