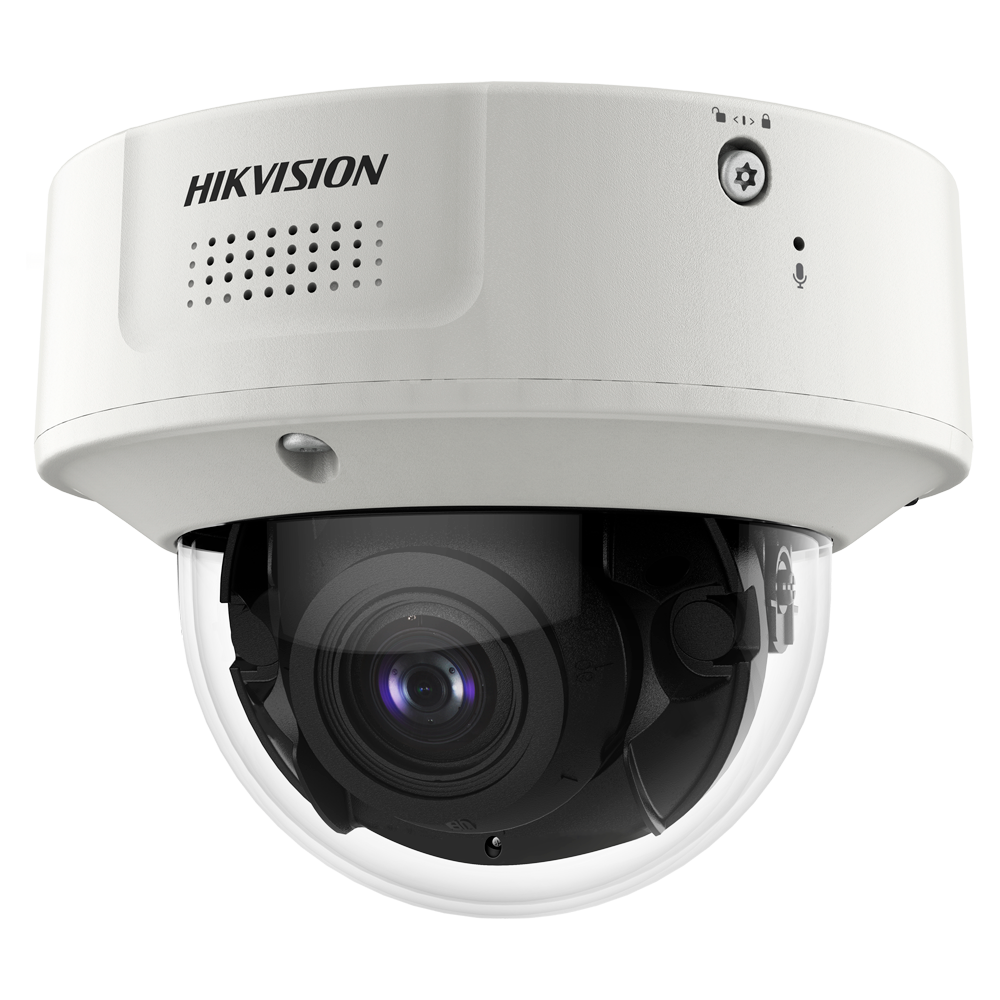

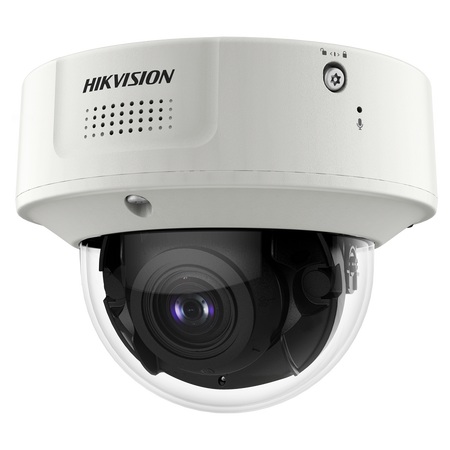

Hikvision SOLUTIONS series IP dome camera

Hikvision - SOLUTIONS series IP Dome Camera - 4K (3840x2160) | Alarms | Audio | 5 streams - 2.8~12 mm lens | H.265+ compression - 40 m IR | Multiple intelligent functions - IP67 | IK10 | NEMA 4X anti-corrosion

📋 SPECIFICATIONS:
• Brand: HIKVISION
• Series: SOLUTIONS
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Maximum resolution: 4K (3840x2160)
• Main Stream frame rate: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream frame rate: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream rating: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream rate: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
• Compression: H.265+ / H.264+ / H.265 / H.264
• Bitrate: 32 Kbps ~ 16 Mbps
• Video output: Composite video output (debug only)
• Lens: Varifocal 2.8~12 mm
• Field of view (FOV): H: 98~38.1°, V: 51.4~21.6°, D: 118~44°
• Iris: P-Iris
• DORI: 89.2~220 m (D), 35.4~87.3 m (O), 17.8~44m (R), 8.9~58 m (I)
• Minimum illumination: Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON); 0 Lux with IR
• Infrared illumination: IR LED up to 40 m range
• Shutter time: 1 s to 1/100,000 s
• Day / Night: Removable ICR mechanical filter
• Image enhancements: WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI (4 areas per stream), Mirror function, Privacy masking, EIS
• ANR: Yes
• Motion detection: Motion detection 2.0 with human and vehicle classification applied to motion detection; Available on all channels.
• Intelligent events: AcuSense; DeepLearning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entrance, Area Exit
• Multi-target detection: Supports simultaneous detection and capture of people, faces, and vehicles.; Obtains 7 face features.; Obtains 13 human features.; Obtains 2 vehicle features.
• Face Capture: Detects up to 120 faces simultaneously, 40 faces per frame simultaneously.; Supports left/right tilt from -60° to 60°, up/down tilt from -30° to 30°.; Captures face images in background and foreground.; Face comparison up to 10 libraries with 30,000 faces per library, 150,000 faces in total.
• People counting: Supports people counting in line crossing.; Performs counting and display of the number of people entering and leaving, with exportable data.; Real-time counting is displayed on screen.; Supports left/right tilt from -60° to 60°, up/down tilt from -30° to 30°.; Face upload with background and close-up face photo.; Supports real-time and statistical cycle uploading.
• People counting per area: Supports up to 8 detection areas and independent activation/linkage scheduling; Supports 3 detection modes: people density detection, people counting, exception detection based on waiting time.; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay.; Supports real-time people counting search.; People density detection: supports uploading of schedules, number of people, congestion level; People number exception detection: supports 6 alarm activation conditions, including greater than threshold A, less than threshold A, equal to threshold A, different from threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A must be less than threshold B).; Waiting time exception detection: supports 3 alarm activation conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A must be less than threshold B).
• Metadata: Intrusion detection, line crossing, area entry/exit, face detection, multi-target detection
• Perimeter protection: Line crossing, intrusion, area entry/exit.; Supports alarm activation based on specific targets (humans and vehicles); Combined event alarm
• Queue management: Supports up to 8 detection areas and independent activation/linkage scheduling.; Supports 2 detection modes: people queues per area and waiting time monitoring.; Generates reports to compare the efficiency of different queues and shows the evolution of a queue status.; Supports raw data export for subsequent analysis.; Supports real-time data uploading and scheduled data uploading.; People queue per area: supports 4 alarm activation conditions, such as greater than threshold, less than threshold, equal to threshold, different from threshold.; Timeout detection: supports 1 alarm activation condition, including exceeding the threshold limit.
• Heat Map: Graphic description of visits (calculated based on number of people or time spent) in a configured area.; Two types of reports are available, the spatial heat map and the temporal heat map line chart.
• Helmet detection: Detects up to 30 people simultaneously.; Supports up to 4 areas.
• Absenteeism monitoring: Supports up to 8 detection areas and independent activation/linkage scheduling.; Supports 2 detection modes: absence detection (absenteeism), work interruption or resumption detection.; Supports parameter settings: worker on duty, duration of absence.
• Reset button: Supported
• Alarms: 2 Input / 2 Output
• Audio: 1 input / 1 output; 2 built-in microphones / 1 built-in speaker
• Audio type: Mono
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Internal storage: Micro SD card slot up to 1 TB
• Network interface: 10/100/1000M BaseT Ethernet
• Communication: 1 x RS-485 (half duplex)
• Remote access: Web Browser, Hik-Connect Smartphone App, iVMS-4200 and Hik-Central PC Software
• Interoperability: ONVIF, ISAPI
• Power supply: DC 12 V / 970 mA / 11.43 W max. / PoE+ IEEE802.3at; AC 24 V / 730 mA / 10.67 W max.
• Protection rating: Waterproof IP67, vandal-proof IK10, NEMA 4X
• Material: Metal
• Operating temp.: -30º C ~ +60º C
• Dimensions: Ø 144.3 mm x 114.1 mm (H)
• Base dimensions: Ø base 144.3 mm / Ø between screws 123.4 mm / 3 screws
• Weight: 990 g

📦 INCLUDED:
• Hikvision IP Dome camera
• Installation material
• User manual
