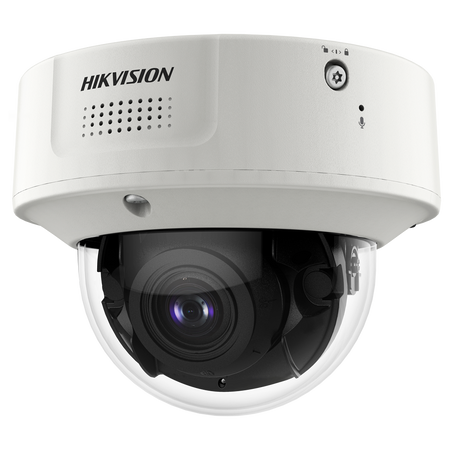

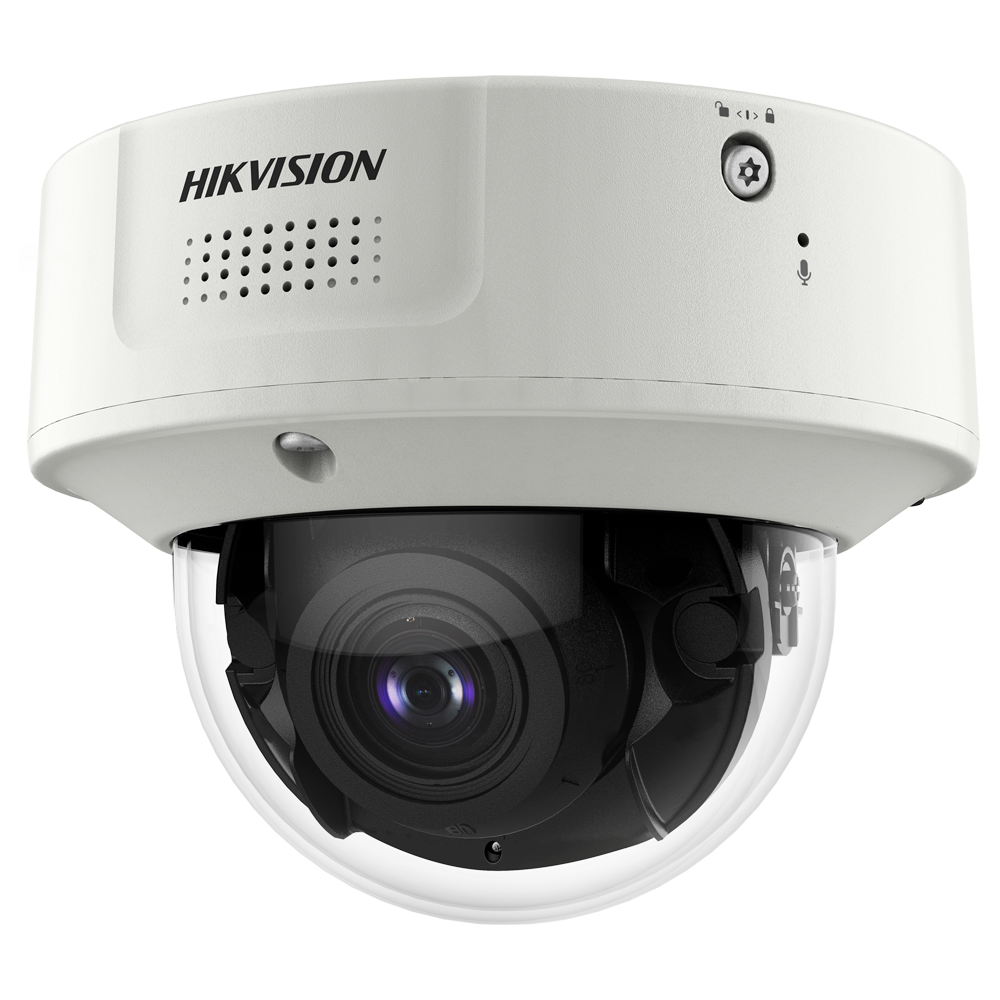

Hikvision SOLUTIONS series IP Dome camera

Hikvision SOLUTIONS series IP Dome camera - 4 Mpx resolution (2688x1520) | 100 fps - 2.8~12mm lens | MD2.0 | AcuSense | Face Capture - Alarm | Audio | Microphone and speaker | 5 streams - IR 40 m | Multiple intelligent functions - MicroSD | IP67 | IK10 | NEMA 4X anti-corrosion

📋 SPECIFICATIONS:
• Brand: HIKVISION
• Series: SOLUTIONS
• Optical sensor: 1/1.8" Progressive Scan CMOS
• Maximum resolution: 4 Megapixels (2688x1520)
• Main Stream frame rate: 50 fps (2688x1520, 1280×720); 100 fps (1920x1080); * High frame rate is only supported in monitoring mode.; 25 fps (2688x1520, 1920x1080, 1280x720)
• Sub Stream frame rate: 25 fps (1280x720, 704×576, 640×480)
• Third Stream: 25 fps (1920×1080, 1280×720, 704×576, 640×480)
• Fourth Stream rate: 25 fps (704×576, 640×480)
• Fifth Stream rate: 25 fps (704×576, 640×480)
• Compression: Main stream: H.265+/H.264+/H.265/H.264; Extra stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG; Fifth stream: H.265/H.264/MJPEG
• Bitrate: 32 Kbps ~ 8 Mbps
• Video output: Composite video output (debug only)
• Lens: Varifocal 2.8~12 mm
• Field of View (FOV): H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3°~48.1°
• DORI: 60.~149m (D), 23.8~59.1 m (O), 12~29.8 m (R), 6~14.9 m (I)
• Minimum illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); Black and White: 0 Lux with IR
• Infrared illumination: IR LED, up to 40 m
• Shutter time: 1 s to 1/100,000 s
• Day / Night: Removable ICR mechanical filter
• Image enhancements: WDR (150 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI (4 areas per stream), Mirror function, Privacy masking
• ANR: Yes
• Image stabilizer (EIS): Yes
• Vibration sensor: Yes
• e-PTZ: Supports patrol and auto-tracking configurations
• Motion detection: Motion Detection 2.0 with human and vehicle classification applied to motion detection; Available on all channels.
• Intelligent events: AcuSense; DeepLearning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Region Entrance, Region Exiting
• Multi-target detection: Supports simultaneous detection and capture of people, faces, and vehicles.; Obtains 7 face characteristics.; Obtains 13 human characteristics.; Obtains 2 vehicle characteristics.; Supports line crossing target counting by type, including people, non-motorized vehicles, and motorized vehicles.; Supports dynamic mosaic mask.
• Face Capture: Detects up to 120 faces simultaneously.; Supports left and right rotation from -60° to 60°, upward and downward tilt from -30° to 30°.; Captures face images in the background and foreground.; Supports best shot and fastest shot acquisition modes.; Supports dynamic mosaic mask.; Captures 7 face traits.
• People counting: Supports people counting in line crossing.; Performs counting and display of the number of people entering and exiting, with exportable data.; Real-time counting is displayed on screen.; Supports left and right rotation from -60° to 60°, upward and downward tilt from -30° to 30°.; Uploads face with background and close-up face photo.; Supports real-time and statistical cycle upload.; Daily, weekly, monthly, or annual reports can be generated.; Supports dynamic deduplication based on face image comparison and can filter targets with the same customized face images, same characteristics, or filter repeated invalid targets within the set time interval.; Supports face trait deduplication.; Supports people flow data collection.
• People counting by area: Supports up to 8 detection areas and independent activation/linking scheduling; Supports 3 detection modes: people density detection, people counting, and exception detection based on waiting time.; Supports parameter settings: alarm times for exceptions, alarm interval, first alarm delay.; Supports real-time people counting search.; People density detection: supports uploading schedules, number of people, congestion level; People counting exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, different from threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A must be lower than threshold B).; Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A must be lower than threshold B).
• Queue management: Supports up to 8 detection areas and independent activation/linking scheduling.; Supports 2 detection modes: people queues by area and waiting time monitoring.; Generates reports to compare the efficiency of different queues and shows the evolution of a queue's status.; Supports raw data export for further analysis.; Supports real-time data upload and scheduled data upload.; People queues by area: supports 4 alarm trigger conditions, such as greater than threshold, less than threshold, equal to threshold, different from threshold.; Timeout detection: supports 1 alarm trigger condition, including exceeding the threshold limit.
• Heat Map: Graphical description of visits (calculated based on number of people or time spent) in a configured area.; Two types of reports are available: spatial heat map and temporal heat map line chart.
• Helmet detection: Detects up to 30 people simultaneously.; Supports up to 4 areas.
• Absenteeism monitoring: Supports up to 8 detection areas and independent activation/linking scheduling.; Supports 2 detection modes: absence detection (absenteeism), work interruption or resumption detection.; Supports parameter settings: worker on duty, duration of absence.
• Alarms: 2 inputs / 2 outputs
• Audio: 1 input / 1 output; 2 built-in microphones / 1 built-in speaker
• Audio type: Mono
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Internal storage: Micro SD card slot up to 1 TB
• Network interface: Ethernet 10/100/1000M BaseT
• Communication: 1 x RS-485 (half duplex)
• Remote access: Web Browser, Hik-Connect Smartphone App, iVMS-4200 and Hik-Central PC Software
• Interoperability: ONVIF (Profile S, G, T, M), ISAPI, SDK
• Power supply: DC 12 V / 1280 mA / 15.3 W max.; AC 24 V / 910 mA / 13.7 W max.; PoE+ IEEE802.3at
• Power output: DC 12 V / 100 mA
• Protection rating: Waterproof IP67; Vandal-proof IK10
• Anti-corrosion protection: NEMA 4X (NEMA 250-2018)
• Material: Metal
• Operating temp.: -40º C ~ +65º C
• Heating: Yes
• Dimensions: Ø 144.3 mm x 114.1 mm (H)
• Base dimensions: Base Ø 144.3 mm / Ø between screws 123.4 mm / 3 screws
• Cable length: 0.25 m
• Weight: 970 g

📦 INCLUDED:
• Hikvision IP Dome Camera
• Installation material
• User manual
