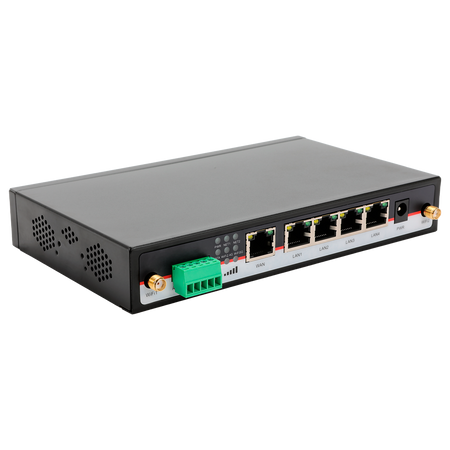

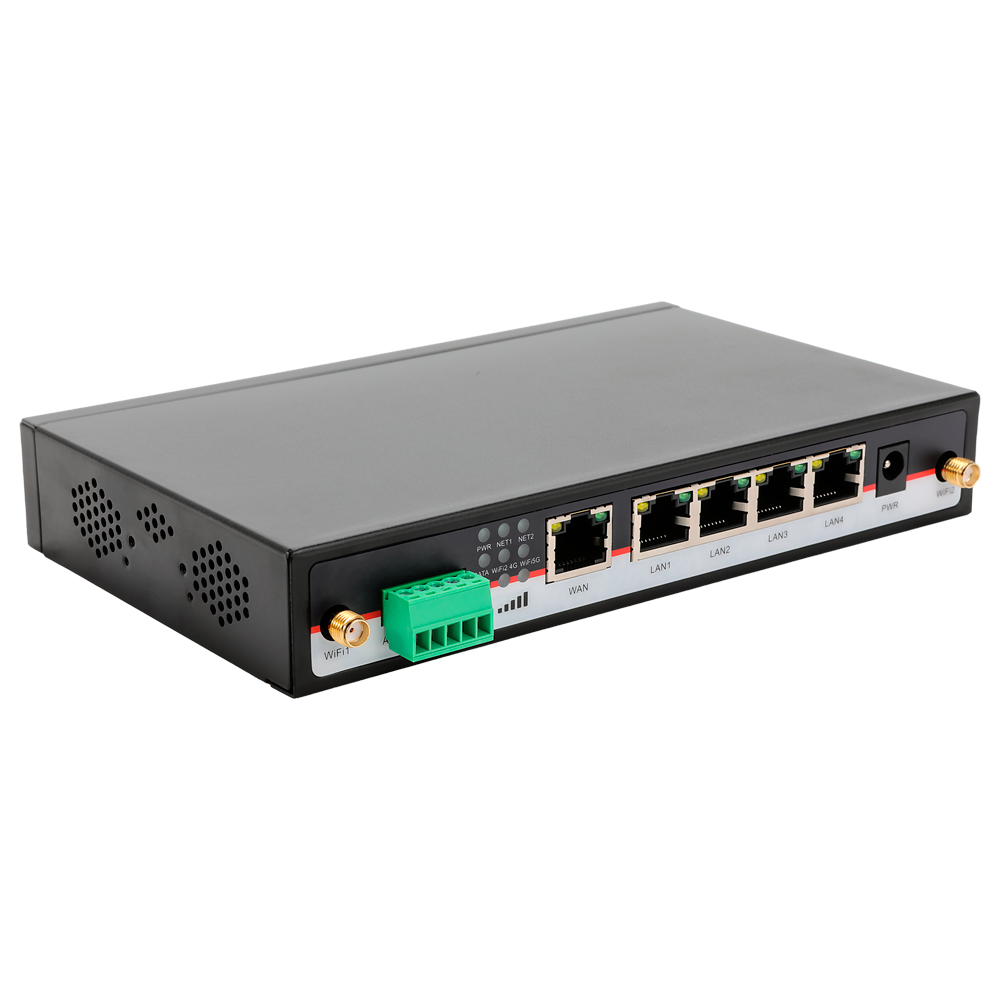

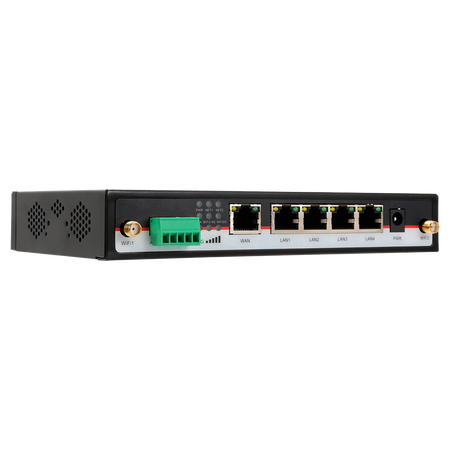

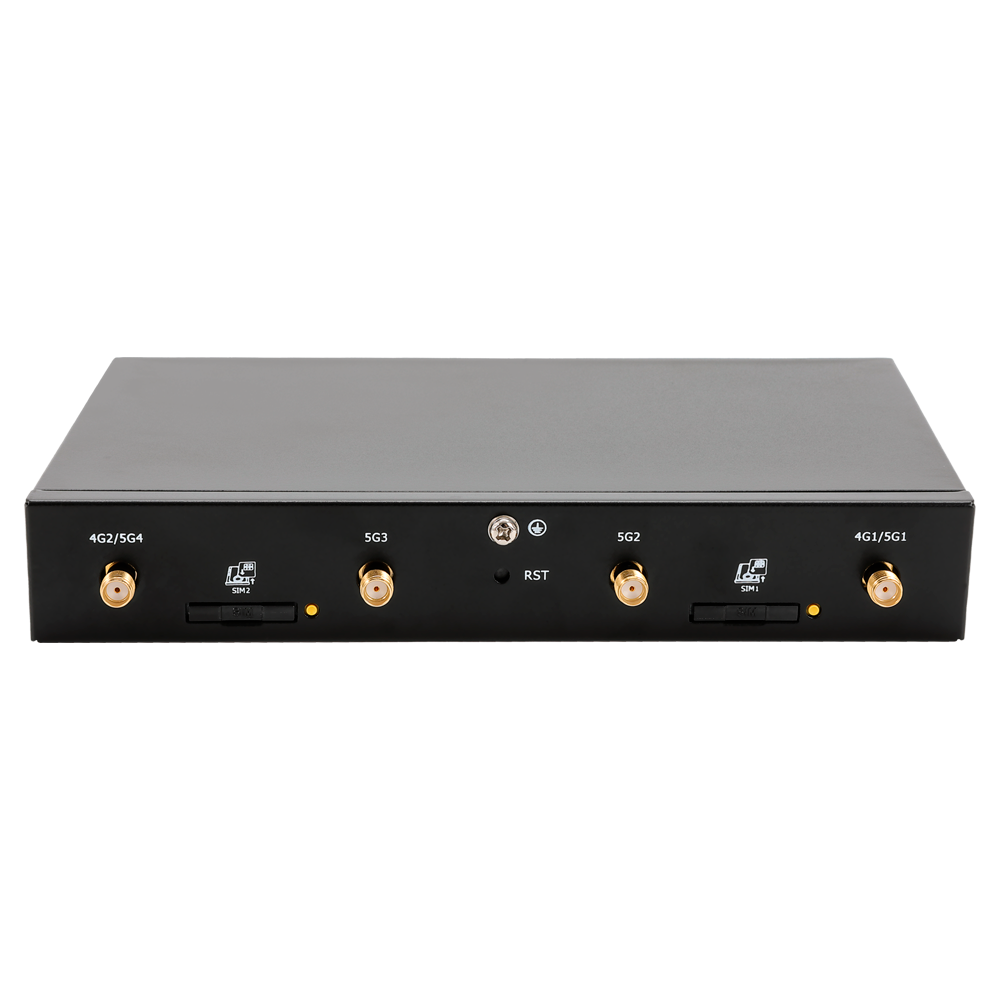

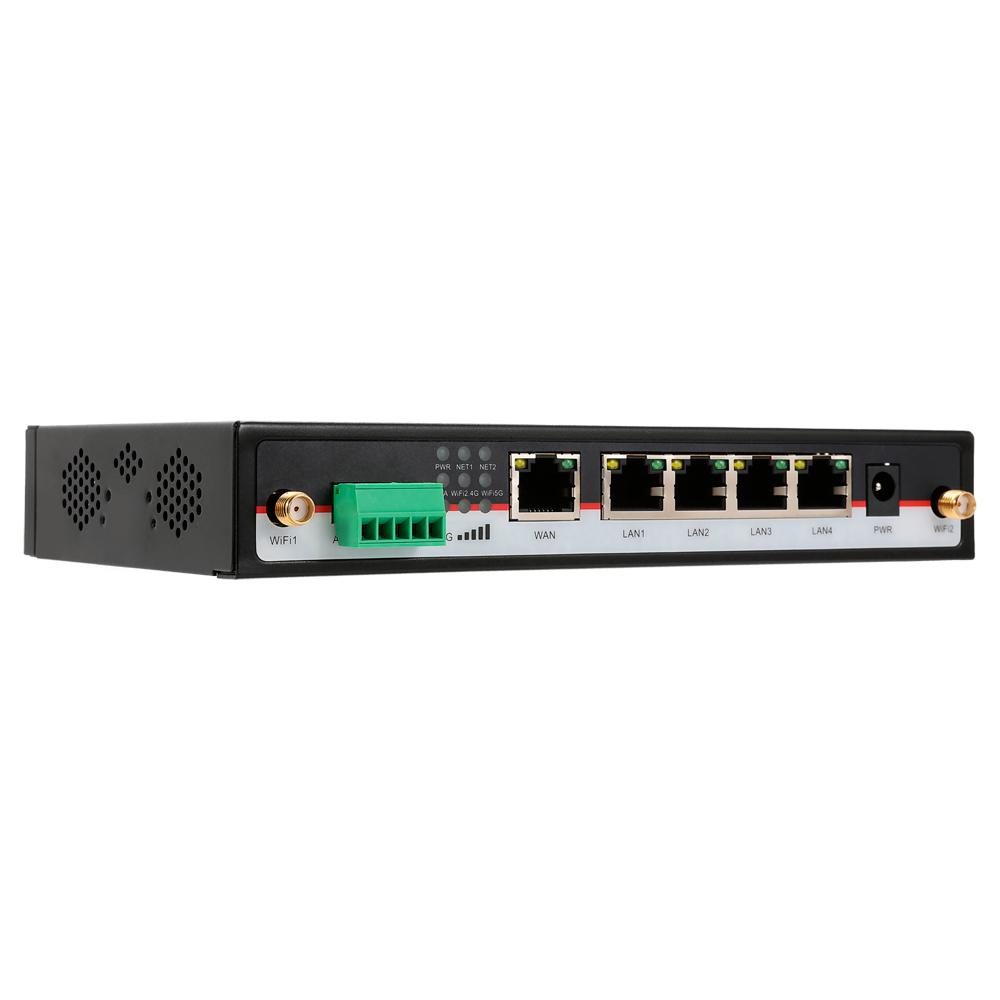

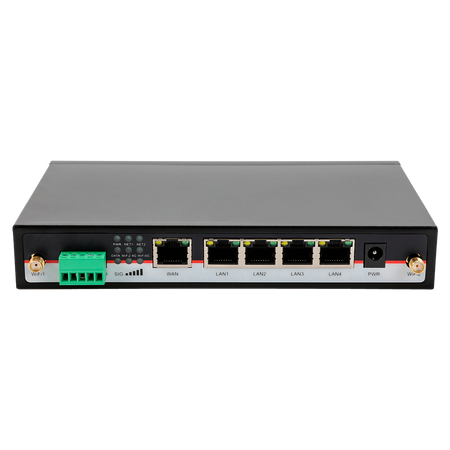

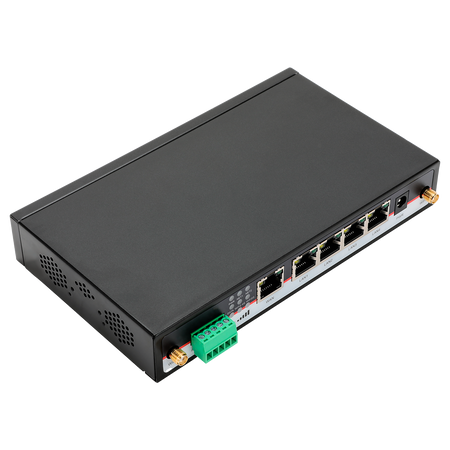

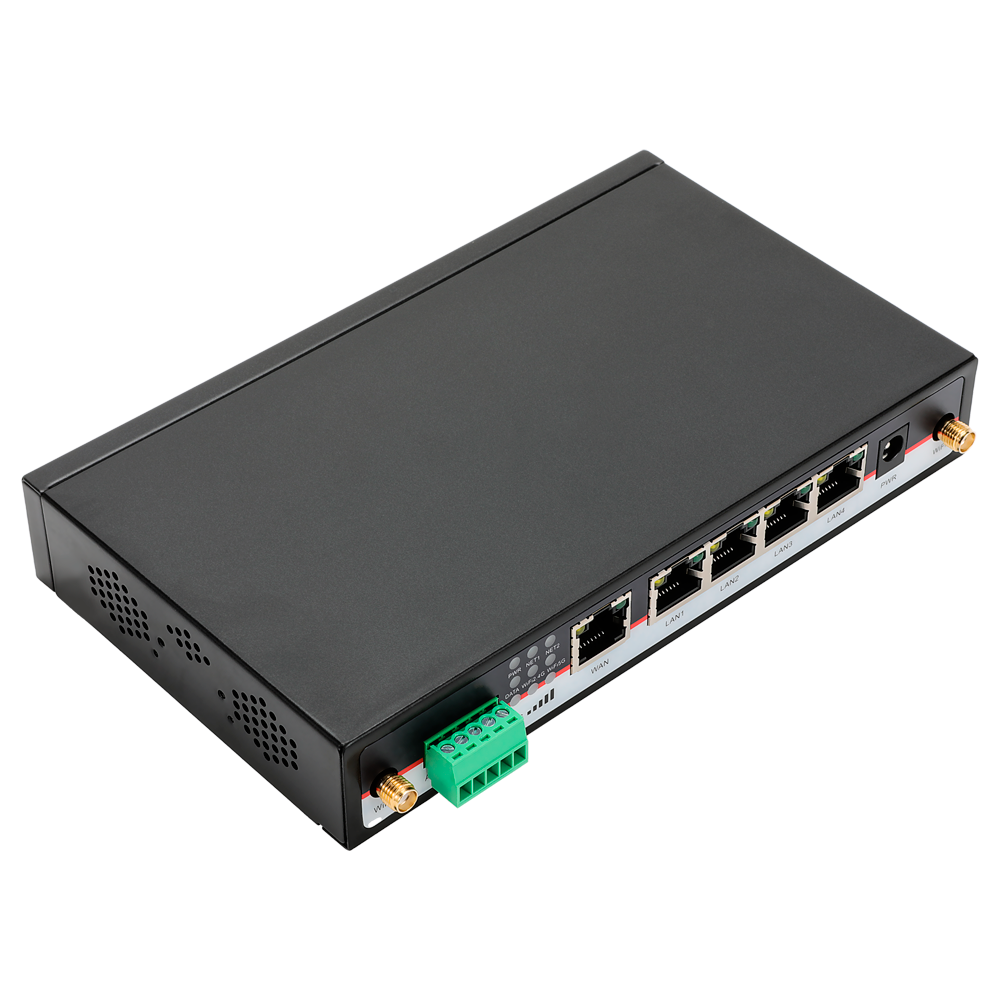

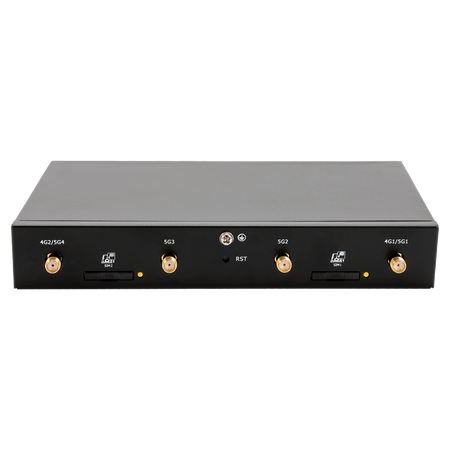

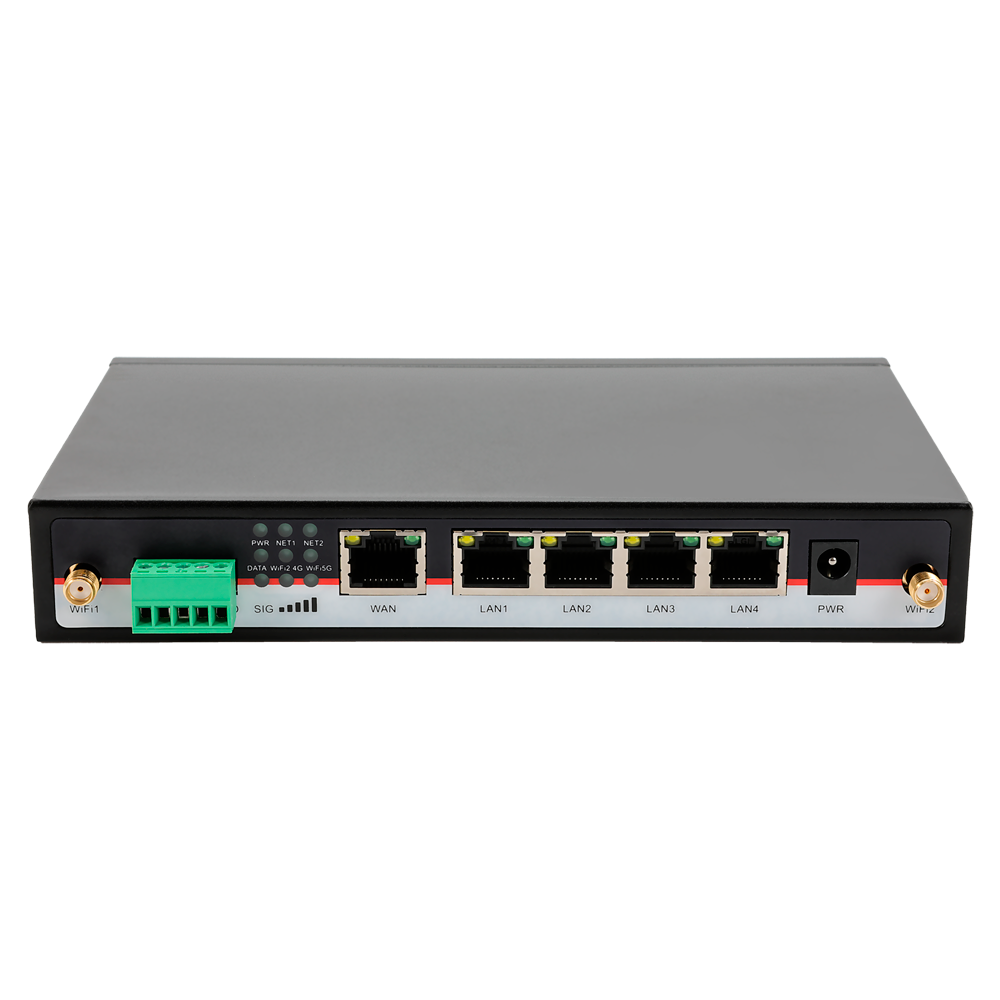

Hongdian Industrial 4G LTE Cat 6 Router. - Dual SIM slot for automatic failover. - 5 Gigabit Ethernet ports (1 WAN + 4 LAN). - Dual-band AC1200 Wi-Fi connection. - Industrial RS232 and RS485 serial interfaces. - Reinforced metal chassis with IP30 protection.
📋 SPECIFICATIONS:
• Brand: Hongdian
• Processor: MIPS1004Kc, 880 MHz
• RAM: 256 MB
• Flash Memory: 32 MB
• Mobile communication module: 2 x LTE Cat 6 modules (DL 300 Mbps / UL 50 Mbps)
• 4G FDD LTE Bands: B1, B3, B5, B7, B8, B20
• 4G TDD LTE Bands: B38, B40, B41
• 3G WCDMA Bands: B1, B5, B8
• 2G GSM Bands: B3, B8
• SIM slot: 2 x Mini SIM (2FF) with automatic failover
• Cellular antennas: 4 x SMA-K connector
• Ethernet: 5 x 10/100/1000 Mbps (4 LAN + 1 WAN)
• WiFi standard: 802.11b/g/n/ac (WiFi 5)
• WiFi frequency: Dual Band 2.4 GHz & 5 GHz
• WiFi speed: Up to 1167 Mbps (AC1200)
• WiFi antennas: MIMO 2x2, SMA-K connector
• Serial interface: 1 x RS-232 + 1 x RS-485 (5-pin 3.5mm socket)
• Signal definition: RX, TX, GND (RS-232) / A+, B-, GND (RS-485)
• Serial baud rate: 300 bps to 115,200 bps
• Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP/S, DNS, ARP, SNMP
• Routing: Static, Policy, RIP, OSPF, BGP
• Firewall security: NAT, PAT, DMZ, Port Forward, IP/MAC/Domain filter, ACL
• VPN: PPTP, L2TP, GRE, IPSec, OpenVPN, DMVPN, WireGuard
• Remote management: WebUI, Telnet, SSH, SMS, SNMP, Wedora Cloud RMS
• Special features: Hardware watchdog, Transparent serial mode, Modbus RTU
• Power supply: DC +9V to +36V (DC connector)
• Consumption: Standby: 350mA @ 12V / Transmission: 900mA @ 12V
• Housing material: Industrial Metal
• IP protection: IP30
• Operating temperature: -30 °C to +75 °C
• Operating humidity: 95% (non-condensing)
• Dimensions: 177.8 x 105.2 x 28.5 mm
• Weight: 550 g
📦 INCLUDED:
• 1x Industrial Router HG-H8923-D6EA-CS-W2 • 1x Quick start guide and installation kit • 1x Power adapter (EU type) • 4x High-gain 4G/LTE antennas • 2x WiFi antennas • 1x RJ45 Ethernet network cable
| Processor | MIPS1004Kc, 880 MHz |
|---|---|
| RAM | 256 MB |
| Flash memory | 32 MB |
| Mobile communication module | 2 x LTE Cat 6 modules (DL 300 Mbps / UL 50 Mbps) |
| 4G FDD LTE bands | B1, B3, B5, B7, B8, B20 |
| 4G TDD LTE bands | B38, B40, B41 |
| 3G WCDMA bands | B1, B5, B8 |
| 2G GSM bands | B3, B8 |
| SIM slots | 2 x Mini SIM (2FF) with automatic failover |
| Cellular antennas | 4 x SMA-K connector |
| Ethernet | 5 x 10/100/1000 Mbps (4 LAN + 1 WAN) |
| WiFi standard | 802.11b/g/n/ac (WiFi 5) |
| WiFi frequency | Dual Band 2.4 GHz & 5 GHz |
| WiFi speed | Up to 1167 Mbps (AC1200) |
| WiFi antennas | MIMO 2x2, SMA-K connector |
| Serial interface | 1 x RS-232 + 1 x RS-485 (5-pin 3.5mm socket) |
| Signal definition | RX, TX, GND (RS-232) / A+, B-, GND (RS-485) |
| Serial baud rate | 300 bps to 115,200 bps |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP/S, DNS, ARP, SNMP |
| Routing | Static, Policy, RIP, OSPF, BGP |
| Firewall security | NAT, PAT, DMZ, Port Forward, IP/MAC/Domain filter, ACL |
| VPN | PPTP, L2TP, GRE, IPSec, OpenVPN, DMVPN, WireGuard |
| Remote management | WebUI, Telnet, SSH, SMS, SNMP, Wedora Cloud RMS |
| Special functions | Hardware watchdog, Transparent serial mode, Modbus RTU |
| Power supply | DC +9V to +36V (DC connector) |
| Power consumption | Standby: 350mA @ 12V / Transmission: 900mA @ 12V |
| Housing material | Industrial metal |
| IP protection | IP30 |
| Operating temperature | -30 °C to +75 °C |
| Operating humidity | 95% (non-condensing) |
| Dimensions | 177.8 x 105.2 x 28.5 mm |
| Weight | 550 g |
