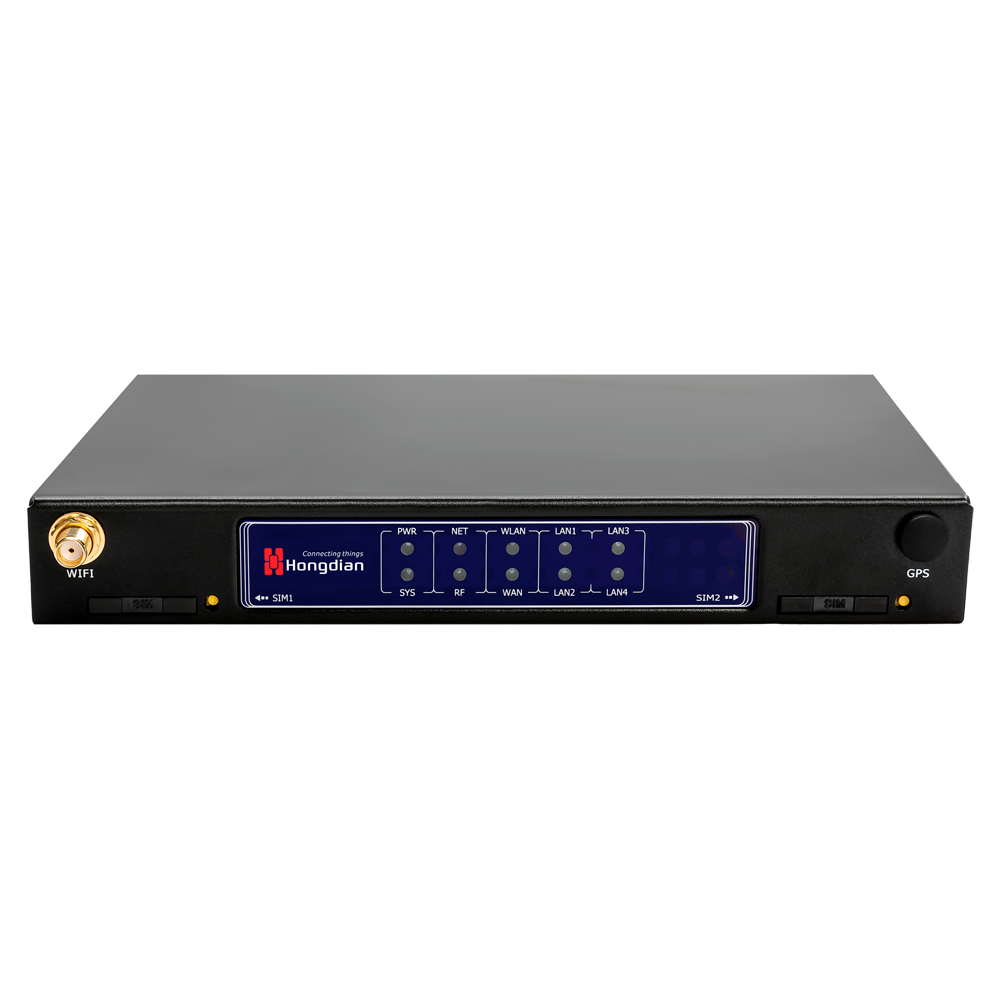

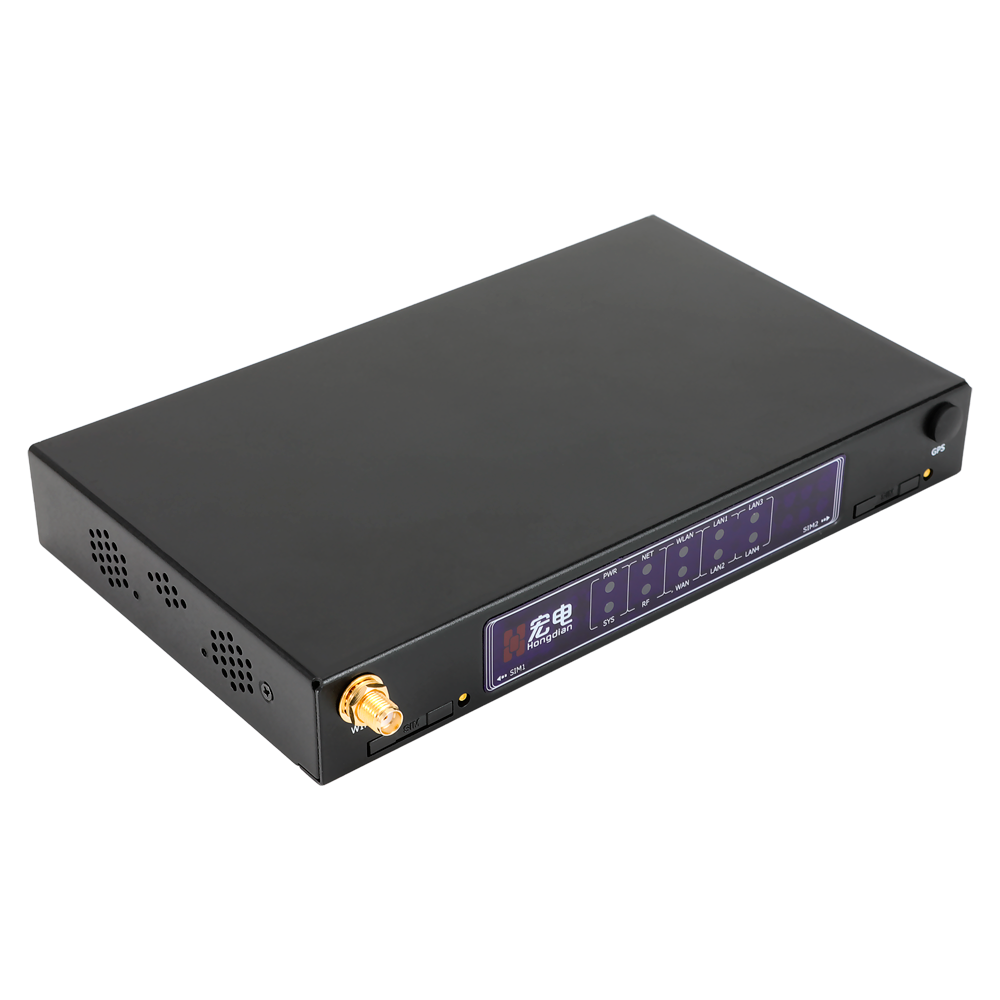

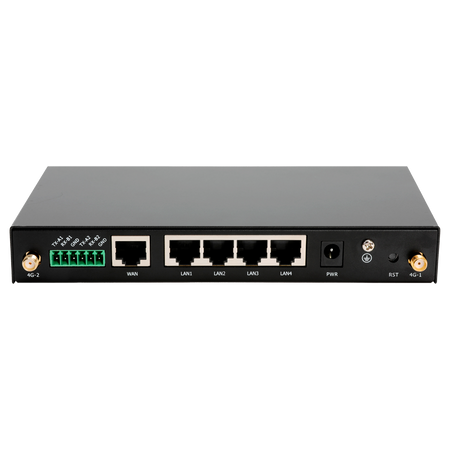

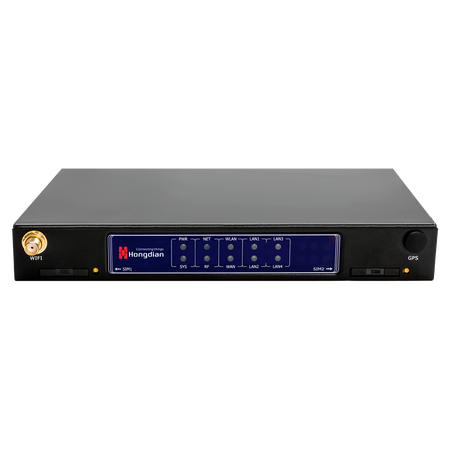

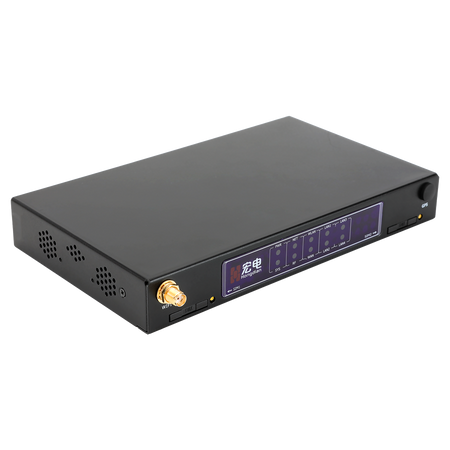

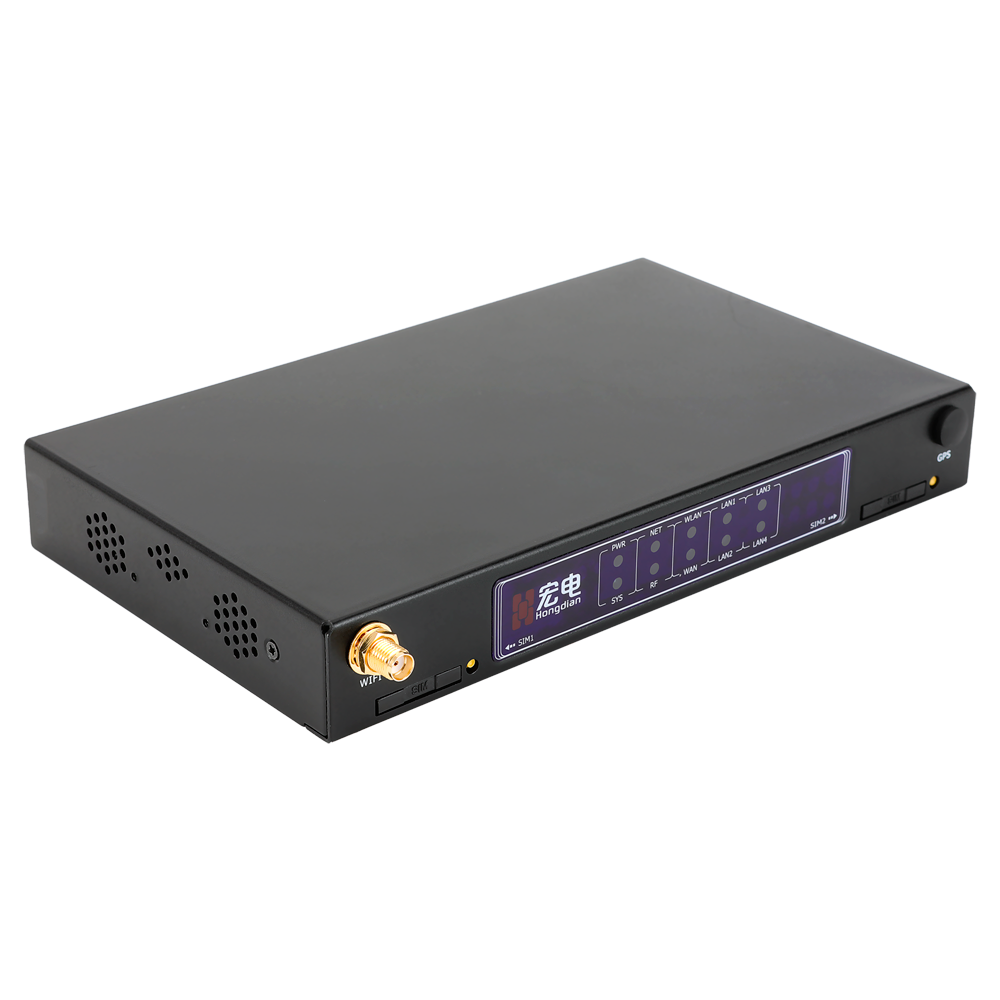

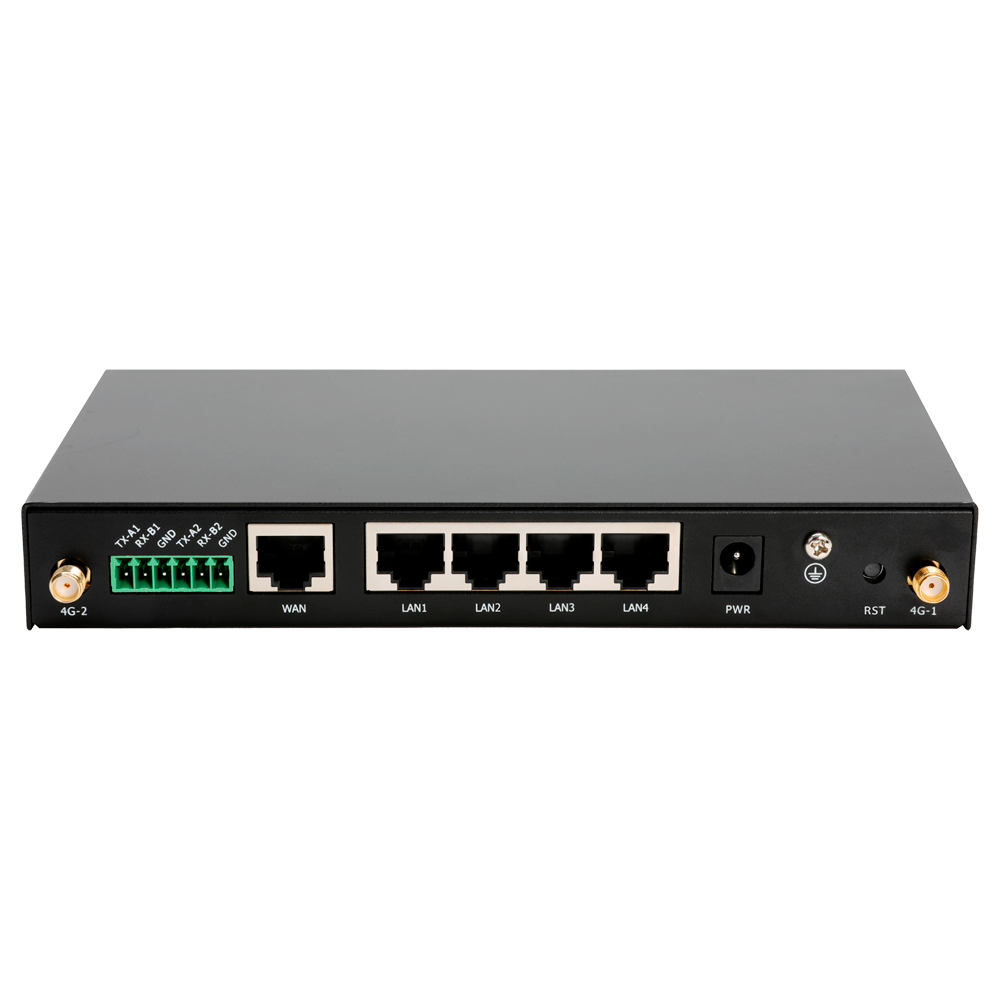

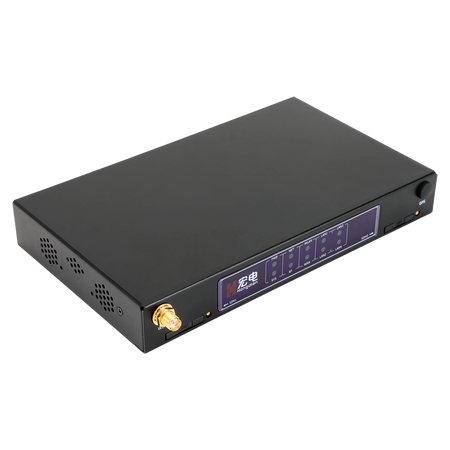

Hongdian 4G LTE Cat 4 Industrial Router - 802.11n Wi-Fi connection up to 300 Mbps
Hongdian 4G LTE Cat 4 Industrial Router - 802.11n Wi-Fi connection up to 300 Mbps
Regular price
€290,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Hongdian 4G LTE Cat 4 Industrial Router - 802.11n Wi-Fi connection up to 300 Mbps - 5 configurable 10/100 Mbps Ethernet ports - Advanced VPN support: IPSec, OpenVPN and more - Integrated RS232 and RS485 serial interfaces - Reinforced metal housing with IP30 protection rating
📋 SPECIFICATIONS:
• Brand: Hongdian
• Processor: MIPS 24Kc, 580 MHz
• RAM Memory: 128 MB
• Flash Memory: 16 MB
• Mobile communication module: 4G LTE Cat 4 / WCDMA / GSM
• Mobile speed: DL 150 Mbps / UL 50 Mbps (per module)
• SIM slot: 2 x Mini SIM (2FF)
• Cellular antennas: 2 x SMA-K connector (50 ohm)
• Ethernet: 5 x 10/100 Mbps (5 LAN or 1 WAN + 4 LAN configuration)
• 4G FDD LTE bands: B1, B3, B5, B7, B8, B20, B28
• 4G TDD LTE bands: B38, B40, B41
• 3G WCDMA bands: B1, B5, B8
• 2G GSM bands: B3, B8
• WiFi standard: 802.11b/g/n (MIMO 2x2)
• WiFi frequency: 2.4 GHz
• WiFi speed: Up to 300 Mbps (N300 mode)
• WiFi antennas: 1 x RP SMA-K connector
• GNSS/GPS: Not included in this version (Optional on WG models)
• Serial interface: 1 x RS-232 + 1 x RS-485 (3.5mm 6-pin socket)
• Signal definition: RX, TX, GND (RS-232) / A+, B-, GND (RS-485)
• Serial baud rate: 300 bps to 115,200 bps
• Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPS, DNS, ARP, NTP, SMTP, SSH, DDNS
• Routing: Static, Policy, RIP, OSPF, BGP
• Firewall security: NAT, PAT, DMZ, Port Forward, IP/MAC/Domain filter, ACL
• Attack prevention: DDoS protection, Anti-port scan
• VPN: PPTP, L2TP, GRE, IPSec, OpenVPN, DMVPN, WireGuard
• IPSec encryption: DES, 3DES, AES128, AES192, AES256
• Remote management: WebUI, Telnet, SSH, SMS, SNMP V1/V2/V3, Wedora Cloud
• Special features: Hardware watchdog, Transparent serial mode, Modbus RTU
• Power supply: DC +5V to +36V (DC connector)
• Consumption: Standby: 200mA @ 12V / Transmission: 550mA @ 12V
• Housing material: Reinforced metal
• Operating humidity: 95% (non-condensing)
• Operating temperature: -30 °C to +70 °C
• IP rating: IP30
• Dimensions: 176 x 105 x 25 mm
• Weight: 540 g
📦 INCLUDED:
• 1x Industrial Router HG-H8922-D4EA-CS-W2• 1x Power adapter (EU Type)• 2x 4G LTE mobile antennas• 1x High-gain WiFi antenna• 1x Ethernet RJ45 network cable• 1x Installation accessory kit
| Processor | MIPS 24Kc, 580 MHz |
|---|---|
| RAM | 128 MB |
| Flash memory | 16 MB |
| Mobile communication module | 4G LTE Cat 4 / WCDMA / GSM |
| Mobile speed | DL 150 Mbps / UL 50 Mbps (per module) |
| SIM slot | 2 x Mini SIM (2FF) |
| Cellular antennas | 2 x SMA-K connector (50 ohm) |
| Ethernet | 5 x 10/100 Mbps (5 LAN or 1 WAN + 4 LAN configuration) |
| 4G FDD LTE bands | B1, B3, B5, B7, B8, B20, B28 |
| 4G TDD LTE bands | B38, B40, B41 |
| 3G WCDMA bands | B1, B5, B8 |
| 2G GSM bands | B3, B8 |
| WiFi standard | 802.11b/g/n (MIMO 2x2) |
| WiFi frequency | 2.4 GHz |
| WiFi speed | Up to 300 Mbps (N300 mode) |
| WiFi antennas | 1 x RP SMA-K connector |
| GNSS/GPS | Not included in this version (Optional on WG models) |
| Serial interface | 1 x RS-232 + 1 x RS-485 (6-pin 3.5mm socket) |
| Signal definition | RX, TX, GND (RS-232) / A+, B-, GND (RS-485) |
| Serial baudrate | 300 bps to 115,200 bps |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPS, DNS, ARP, NTP, SMTP, SSH, DDNS |
| Routing | Static, Policy, RIP, OSPF, BGP |
| Firewall security | NAT, PAT, DMZ, Port Forward, IP/MAC/Domain filter, ACL |
| Attack prevention | DDoS protection, Anti-port scan |
| VPN | PPTP, L2TP, GRE, IPSec, OpenVPN, DMVPN, WireGuard |
| IPSec encryption | DES, 3DES, AES128, AES192, AES256 |
| Remote management | WebUI, Telnet, SSH, SMS, SNMP V1/V2/V3, Cloud Wedora |
| Special features | Hardware watchdog, Transparent serial mode, Modbus RTU |
| Power supply | DC +5V to +36V (DC connector) |
| Consumption | Standby: 200mA @ 12V / Transmission: 550mA @ 12V |
| Housing material | Reinforced metal |
| Operating humidity | 95% (non-condensing) |
| Operating temperature | -30 °C to +70 °C |
| IP protection | IP30 |
| Dimensions | 176 x 105 x 25 mm |
| Weight | 540 g |
