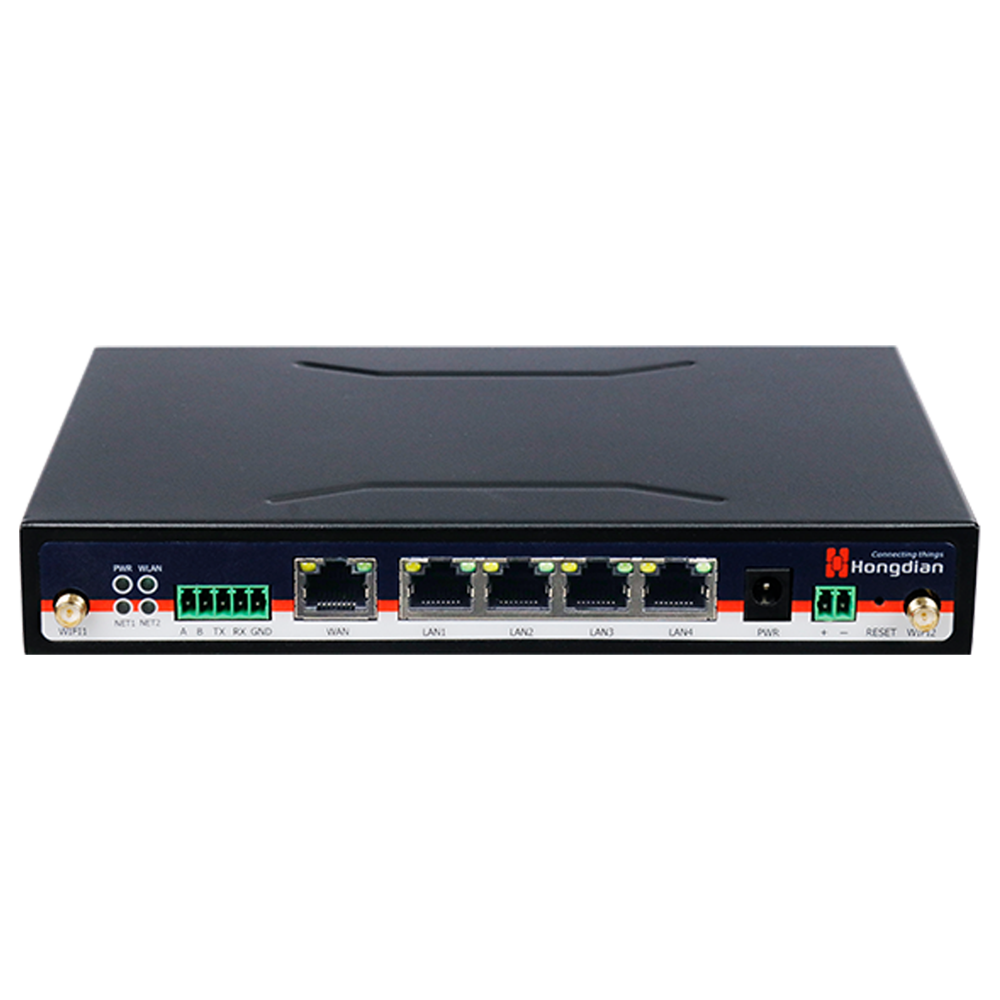

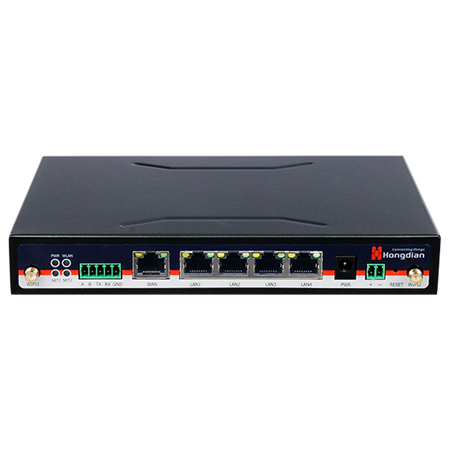

Hongdian Industrial 5G Router - 5G Sub-6Ghz SA/NSA - 5 Gigabit RJ45 ports (4 x 30W POE) - Dual SIM Dual Modem - RS232/RS485 ports - Wi-Fi 802.11b/g/n/ac 2.4GHz-5GHz
📋 SPECIFICATIONS:
• Brand: Hongdian
• Device: Industrial 5G Router
• SIM: 2 slots for 4G / 3G 2FF SIM cards (not included)
• Dual SIM: Auto Failover in case of low signal / data limit / roaming / network loss
• Serial Ports: Transparent, Modbus RTU; Port definition: RX, TX, GND (RS-232), A+, B-, GND (RS-485); 3.5 mm 5-pin female connector; RS-232 baud rate (300-115200bps), RS-485 (300-115200bps)
• Wi-Fi: Wi-Fi 5 802.11ac Dual Band 2.4GHz+ 5GHz 2x2 MIMO
• LTE: 5G Sub-6Ghz SA/NSA or 2 LTE-A or 1 LTE-A & 1 5G NR SA/NSA
• 5G and LTE Frequencies: NSA/SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/; n75/n76/n77/n78; LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32; LTE TDD: B38/B40/B41/B42/B43; WCDMA: B1/B5/B8
• Ethernet: 5 RJ45 10/100/1000Mbps Ethernet ports (1 WAN + 4 LAN)
• POE: 4 30W POE ports
• Antenna connectors: WiFi and LTE (antennas included)
• CPU: MIPS1004Kc 880 MHZ
• RAM: 256MB DDR3
• Flash: 32MB
• Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF and BGP, Failover.
• VPN protocols: PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
• Monitoring and Management: HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP
• Security: NAT, PAT, DMZ, Port Forward, IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning
• Power supply: 5-pin industrial DC connector 9~36V, power supply included
• Power consumption: Idle: 350mA@12vDC; Data connection: 900mA@12vDC
• Material: Metal
• Protection rating: IP30
• Operating temp.: -30º C ~ +75º C
• Operating humidity: ≤ 95% (non-condensing)
• Installation: Wall or desktop mount
• Dimensions: 28.5 (H) x 177.8 (W) × 105.22 (D) mm
• Weight: 550 g
• Regions: Europe, Middle East, Africa, Korea, Thailand, India, Malaysia
📦 INCLUDED:
• Industrial router• 2x Wi-Fi antennas• 4x 5G antennas• 1x GPS• DC power supply• 1m Ethernet cable• Wall mounting kit
| Device | Industrial 5G Router |
|---|---|
| SIM | 2 x 4G / 3G 2FF SIM card slots (not included) |
| Dual SIM | Auto Failover in case of low signal / data limit / roaming / no network |
| Serial Ports | Transparent, Modbus RTU Port definition: RX, TX, GND (RS-232), A+, B-, GND (RS-485) 3.5 mm 5-pin female connector RS-232 baud rate (300-115200bps), RS-485 (300-115200bps) |
| Wi-Fi | Wi-Fi 5 802.11ac Dual Band 2.4GHz + 5GHz 2x2 MIMO |
| LTE | 5G Sub-6Ghz SA/NSA or 2 LTE-A or 1 LTE-A & 1 5G NR SA/NSA |
| 5G and LTE Frequencies | NSA/SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ n75/n76/n77/n78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8 |
| Ethernet | 5 x RJ45 10/100/1000Mbps Ethernet ports (1 WAN + 4 LAN) |
| POE | 4 x 30W POE ports |
| Antenna connectors | WiFi and LTE (antennas included) |
| CPU | MIPS1004Kc 880 MHZ |
| RAM | 256MB DDR3 |
| Flash | 32MB |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF and BGP, Failover. |
| VPN Protocols | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard |
| Monitoring and Management | HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP |
| Security | NAT, PAT, DMZ, Port Forward, IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning |
| Power Supply | 5-pin industrial DC connector 9~36V, power adapter included |
| Power consumption | Idle: 350mA@12vDC Data connection: 900mA@12vDC |
| Material | Metal |
| Protection rating | IP30 |
| Operating temp. | -30º C ~ +75º C |
| Operating humidity | ≤ 95% (non-condensing) |
| Installation | Wall-mount or desktop |
| Dimensions | 28.5 (H) x 177.8 (W) x 105.22 (D) mm |
| Weight | 550 g |
| Regions | Europe, Middle East, Africa, Korea, Thailand, India, Malaysia |
- User manual Link
