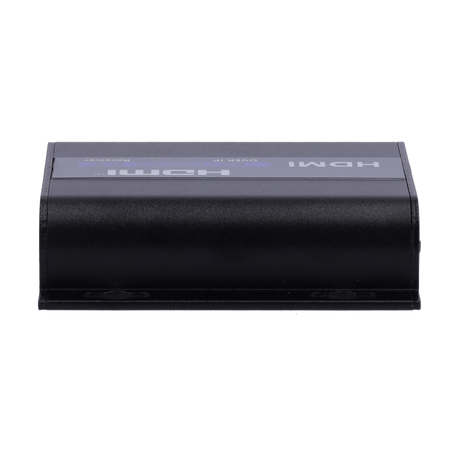

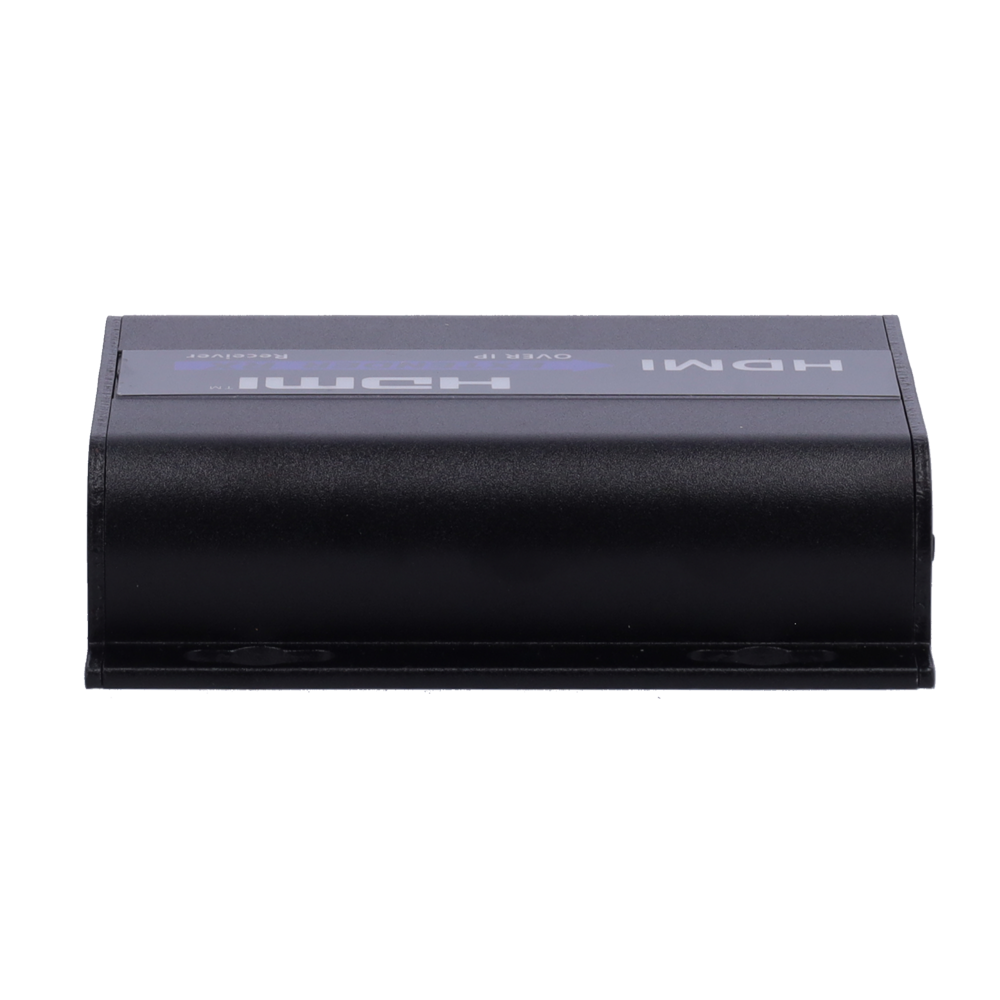

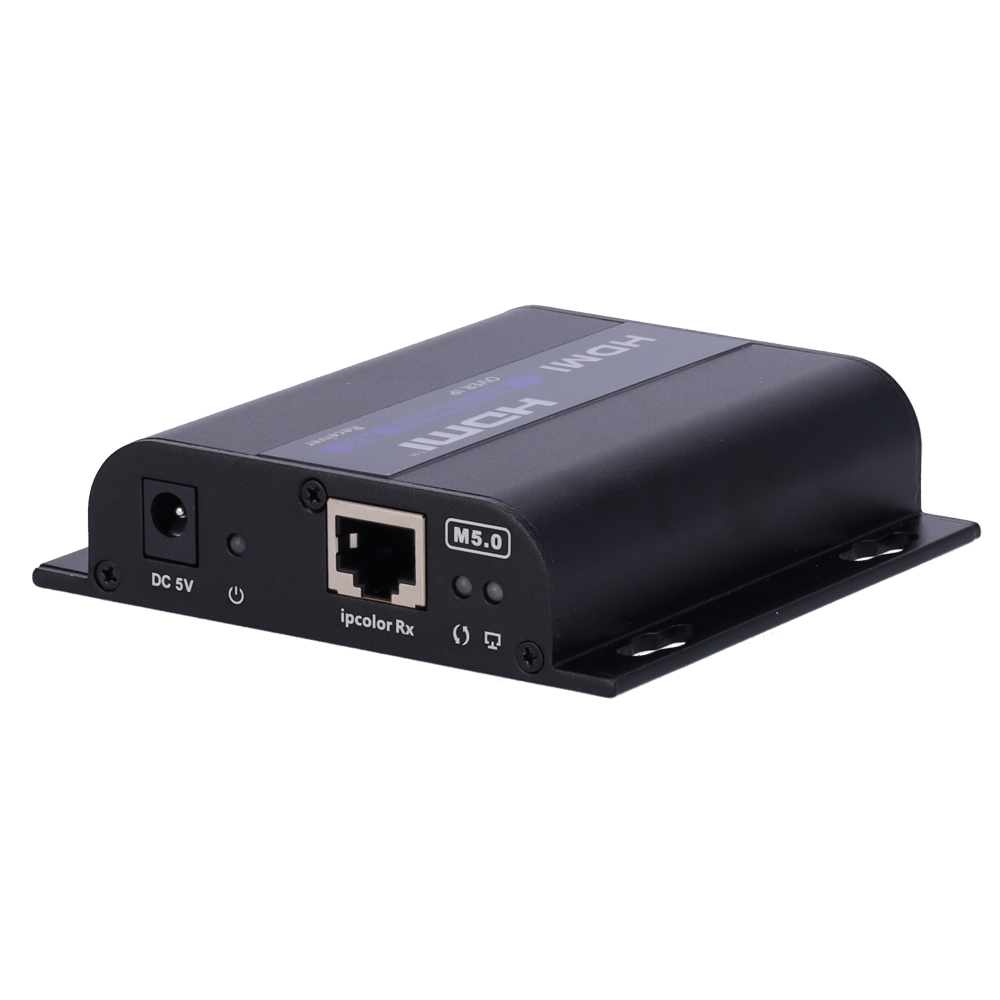

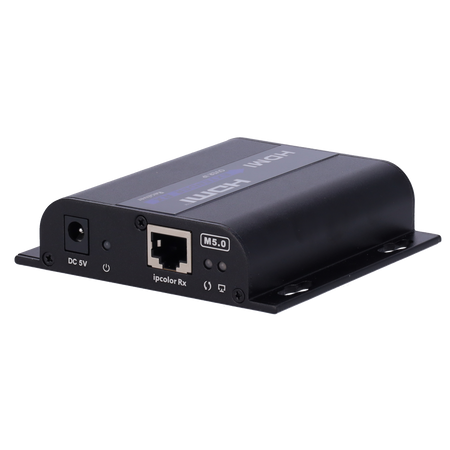

HDMI IP signal matrix - Allows NxM - FHD resolution - Includes 1 receiver
📋 SPECIFICATIONS:

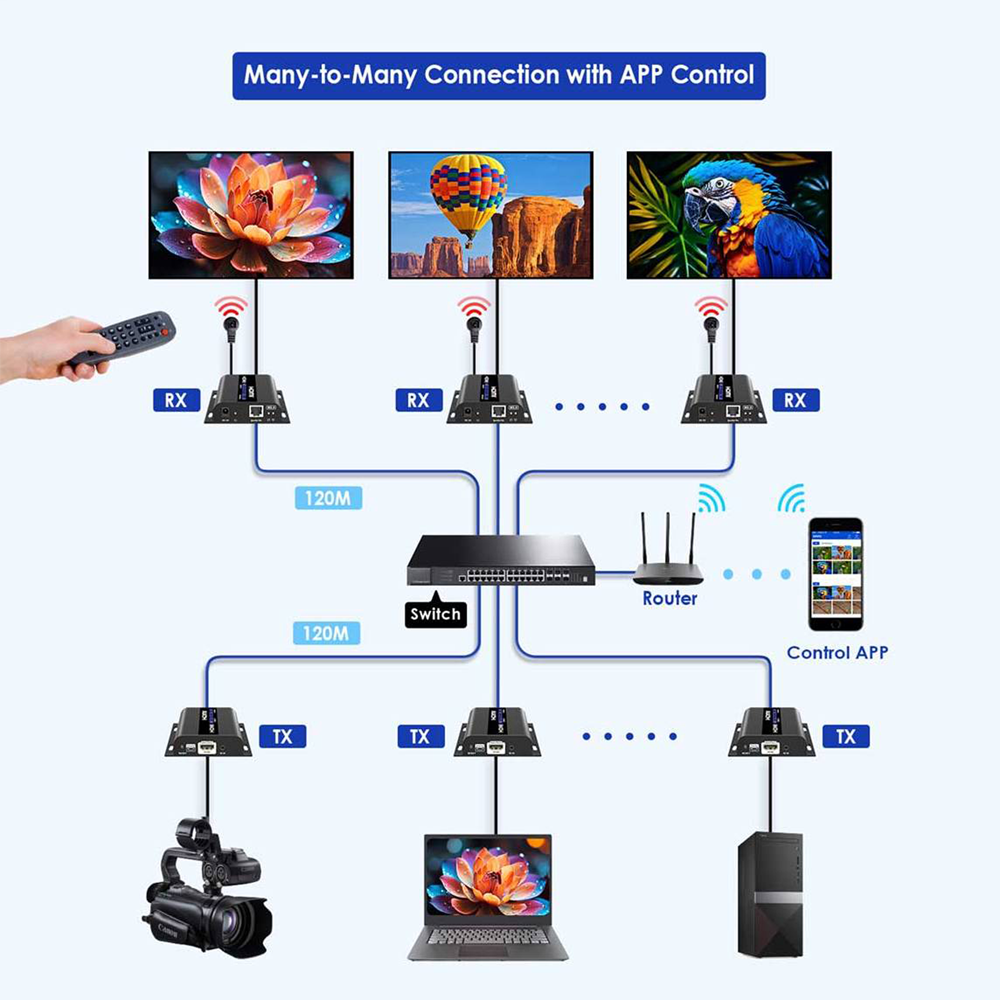

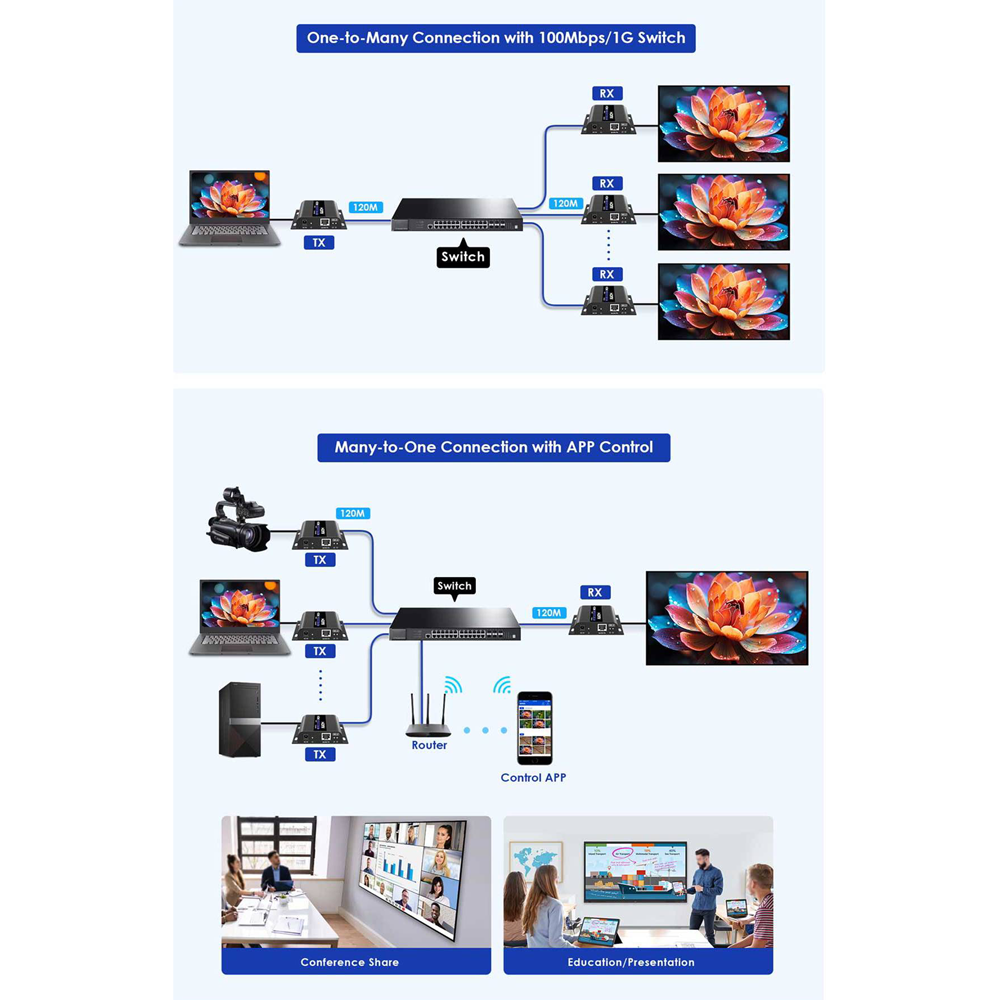

• Allows: NxM (N transmitters and M receivers)
• Resolution: 1080@60 Hz
• HDCP: 1.3; 1.4
• EDID settings: No
• Control: PC Software; Android App
• Power supply: DC 5V / 2A
• Consumption: ≤ 2.5 W
• Maximum transmission speed: 4.96 Gbps
• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 80 ~ 130 ms

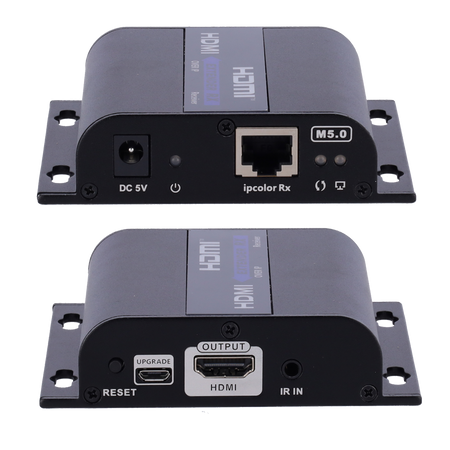

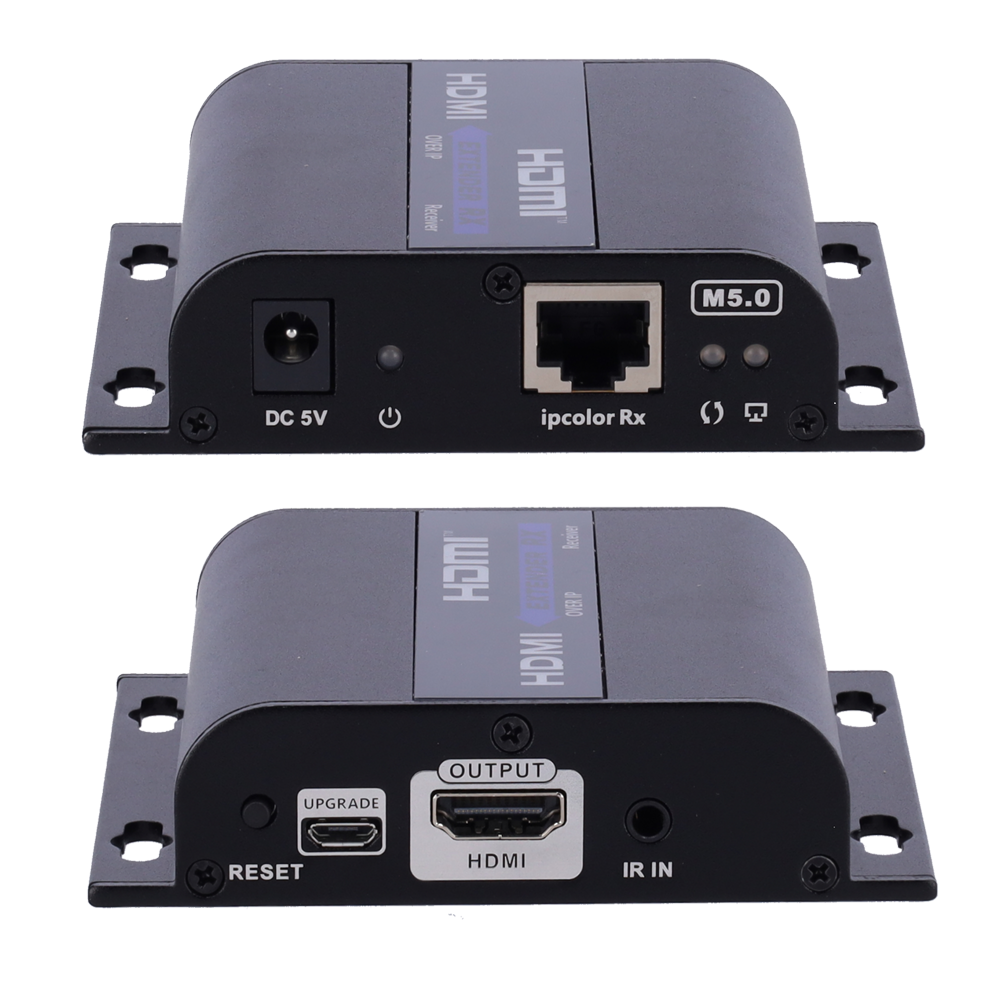

• Inputs: Ethernet
• Outputs: HDMI
• buttons: Reset: press to reset the device; hold for 5 s to restore device factory settings
• LED indicators: Power; Data transmission: light off, no data transmission; light on, there is data transmission; Network: light off, no network connection; light on, there is a network connection
• HDMI cable length: ≤ 5 m
• Dimensions: 96.8 (H) x 23.7 (W) x 94 (D) mm
• Weight: 154 g
• Working conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90 % (non-condensing)
📦 INCLUDED:

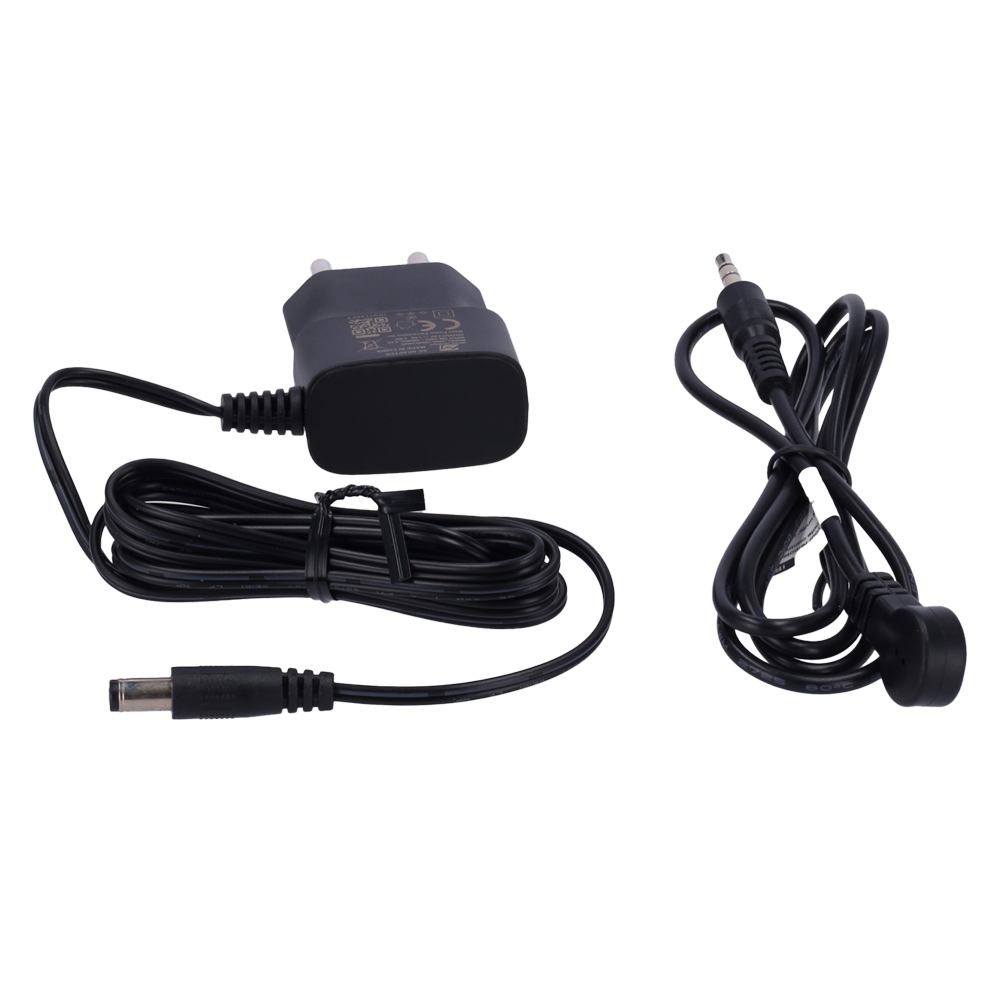

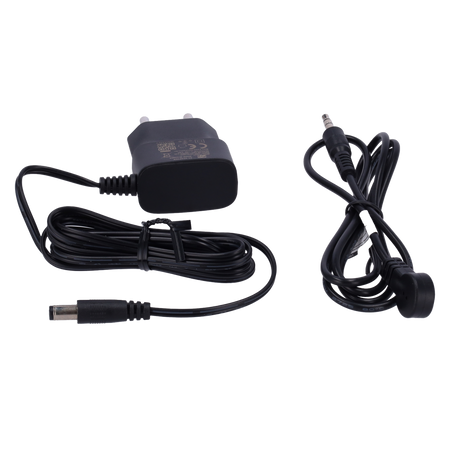

• Receiver • DC 5 V / 2 A power supply • IR receiver • User manual
| Supports | NxM (N transmitters and M receivers) |
|---|---|
| Resolution | 1080@60 Hz |
| HDCP | 1.3 1.4 |
| EDID Settings | No |
| Control | PC Software, Android App |
| Power supply | DC 5V / 2A |
| Power consumption | ≤ 2.5 W |
| Maximum transmission speed | 4.96 Gbps |
| Transmission distance | CAT 5: 80 m, CAT 5E: 100 m, CAT 6: 120 m |
| Transmission latency | 80 ~ 130 ms |
| Inputs | Ethernet |
| Outputs | HDMI |
| Buttons | Reset: press to reset the device; hold for 5 s to restore the device to factory settings |
| LED indicators | Power, Data transmission: light off, no data transmission; light on, data is being transmitted. Network: light off, no network connection; light on, there is a network connection |
| HDMI cable length | ≤ 5 m |
| Dimensions | 96.8 (H) x 23.7 (W) x 94 (D) mm |
| Weight | 154 g |
| Operating conditions | Temperature: -20 ~ 60 ºC, Humidity: 0 ~ 90% (non-condensing) |
| Storage conditions | Temperature: -30 ~ 70 ºC, Humidity: 0 ~ 90% (non-condensing) |
- User manual Link
