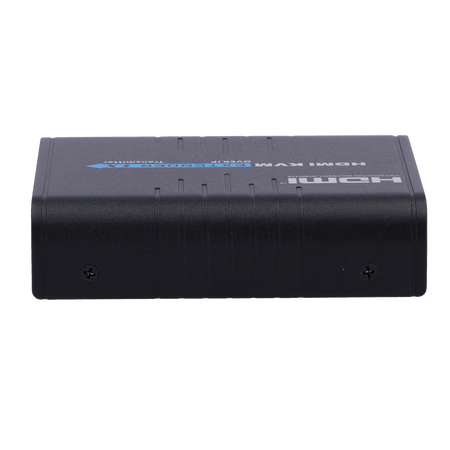

Lenkeng HDMI IP Signal Matrix - FHD Resolution - KVM Function - ≤ 3
Lenkeng HDMI IP Signal Matrix - FHD Resolution - KVM Function - ≤ 3
Regular price
€99,14
Final price
Regular price
-6%
€106,00
Sale price
€99,14
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

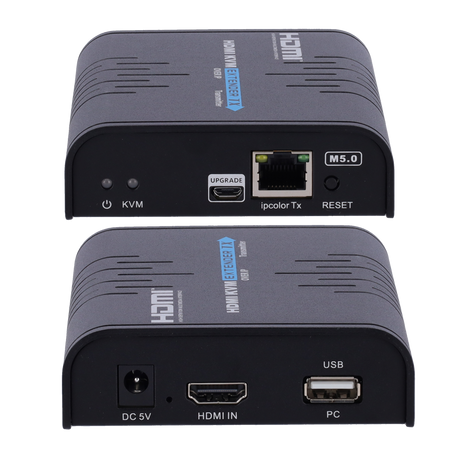

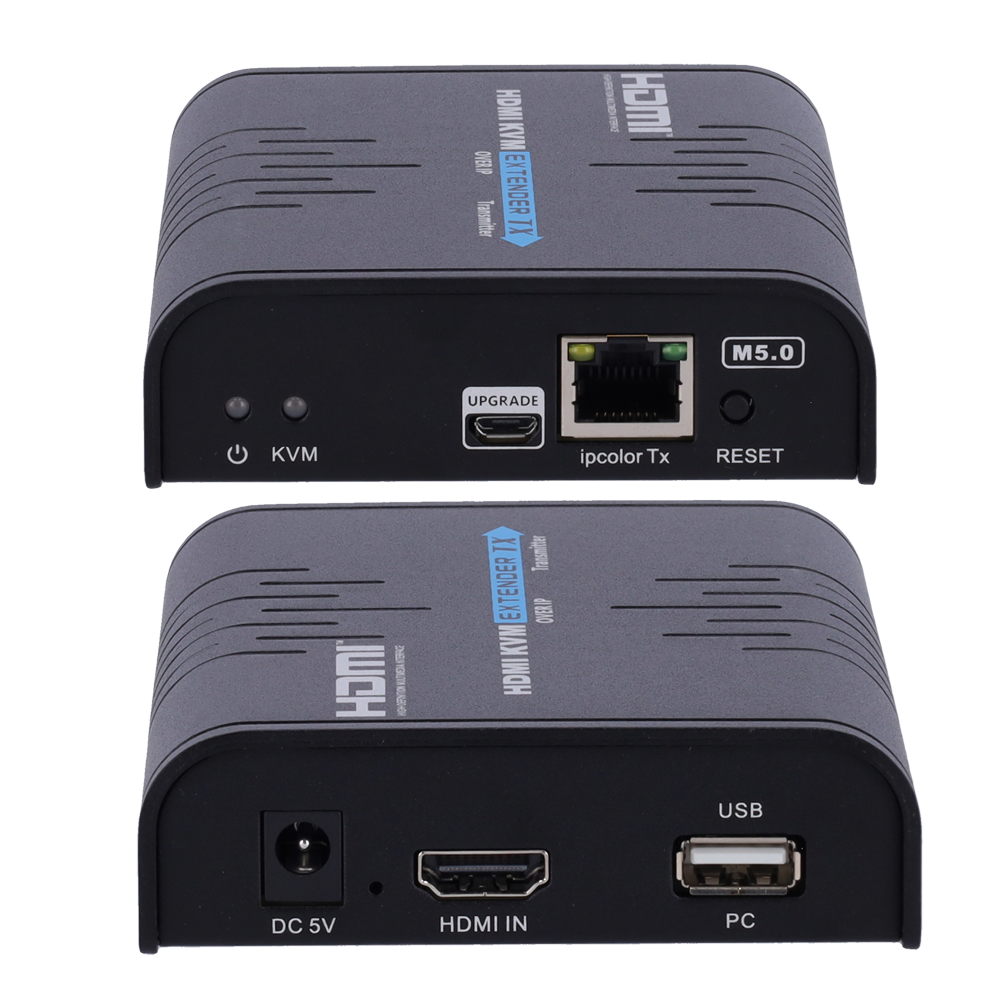

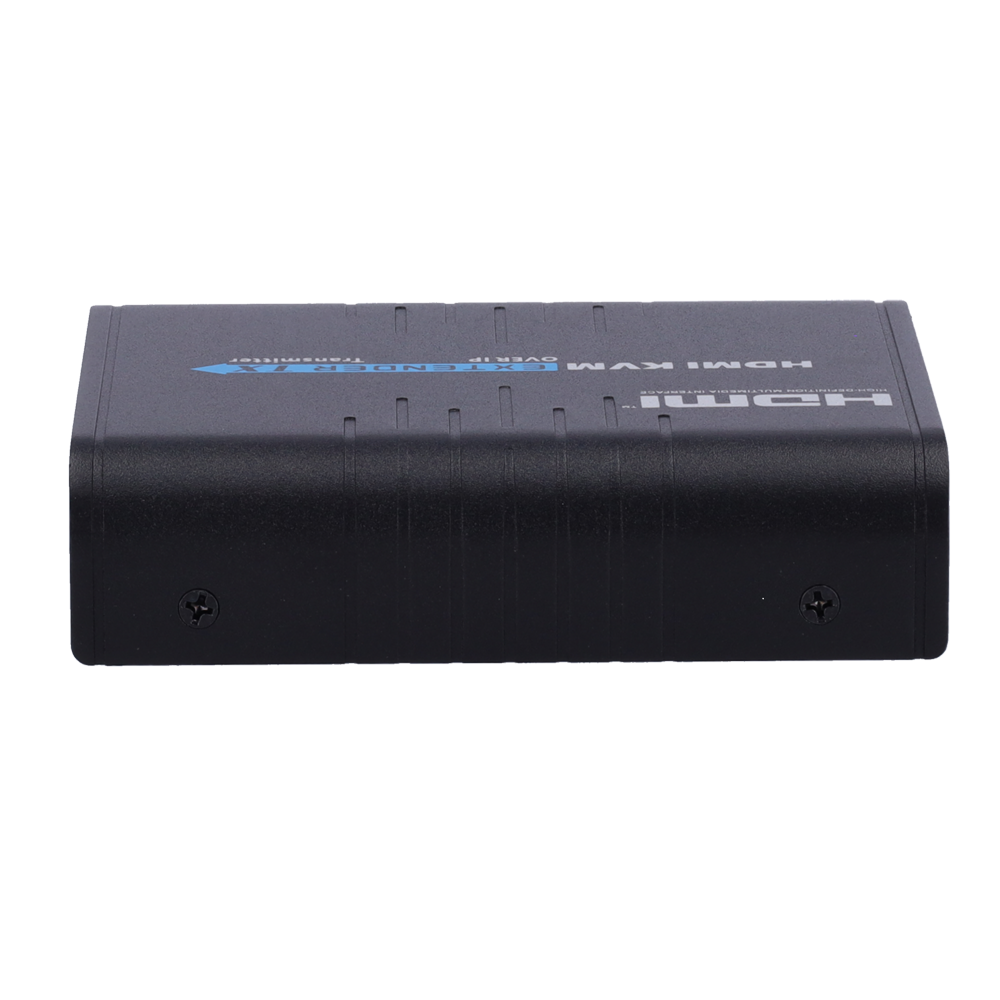

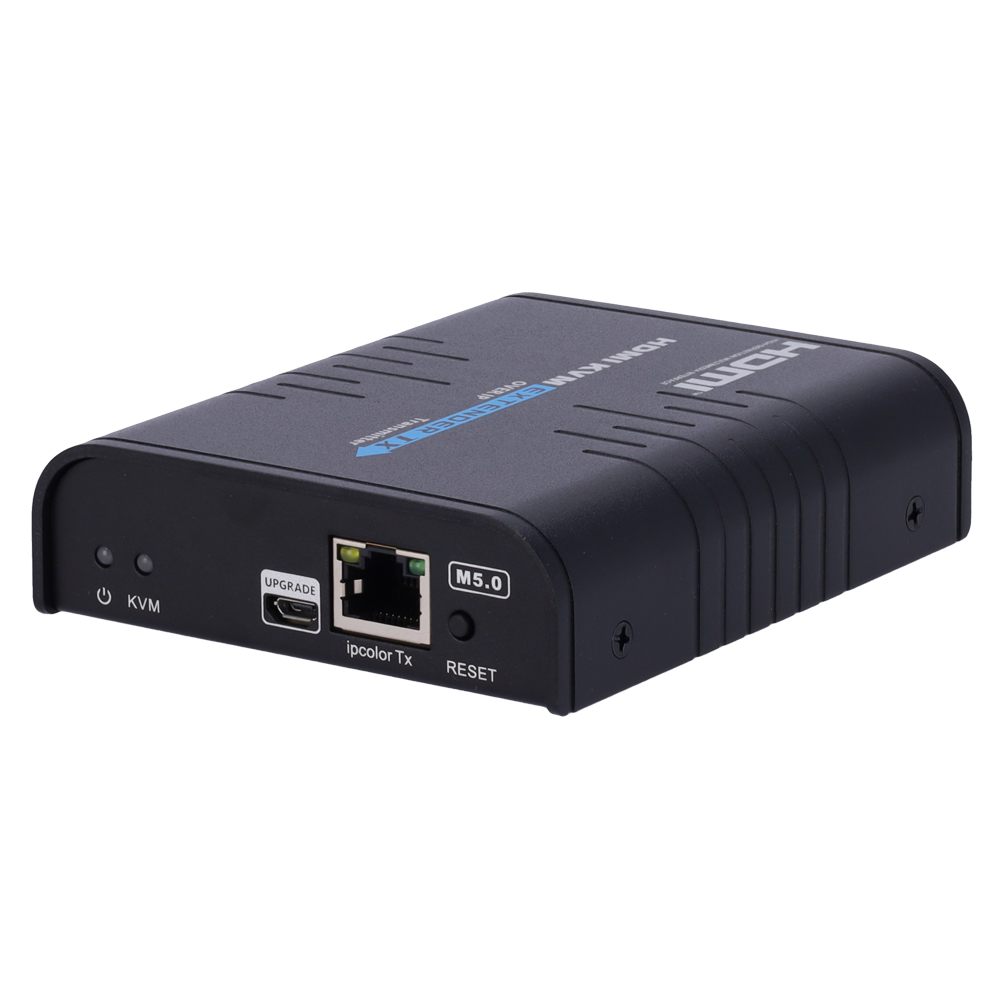

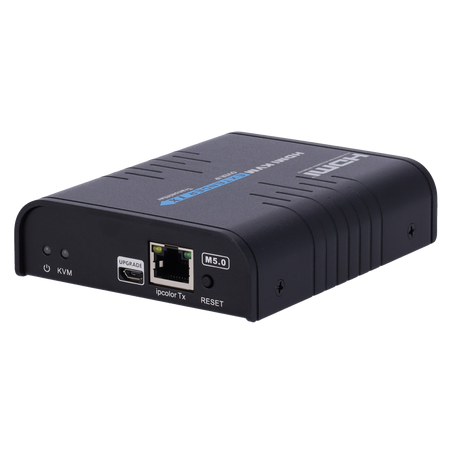

HDMI IP signal matrix - Allows NxM - FHD resolution - Includes 1 transmitter - KVM function
📋 SPECIFICATIONS:

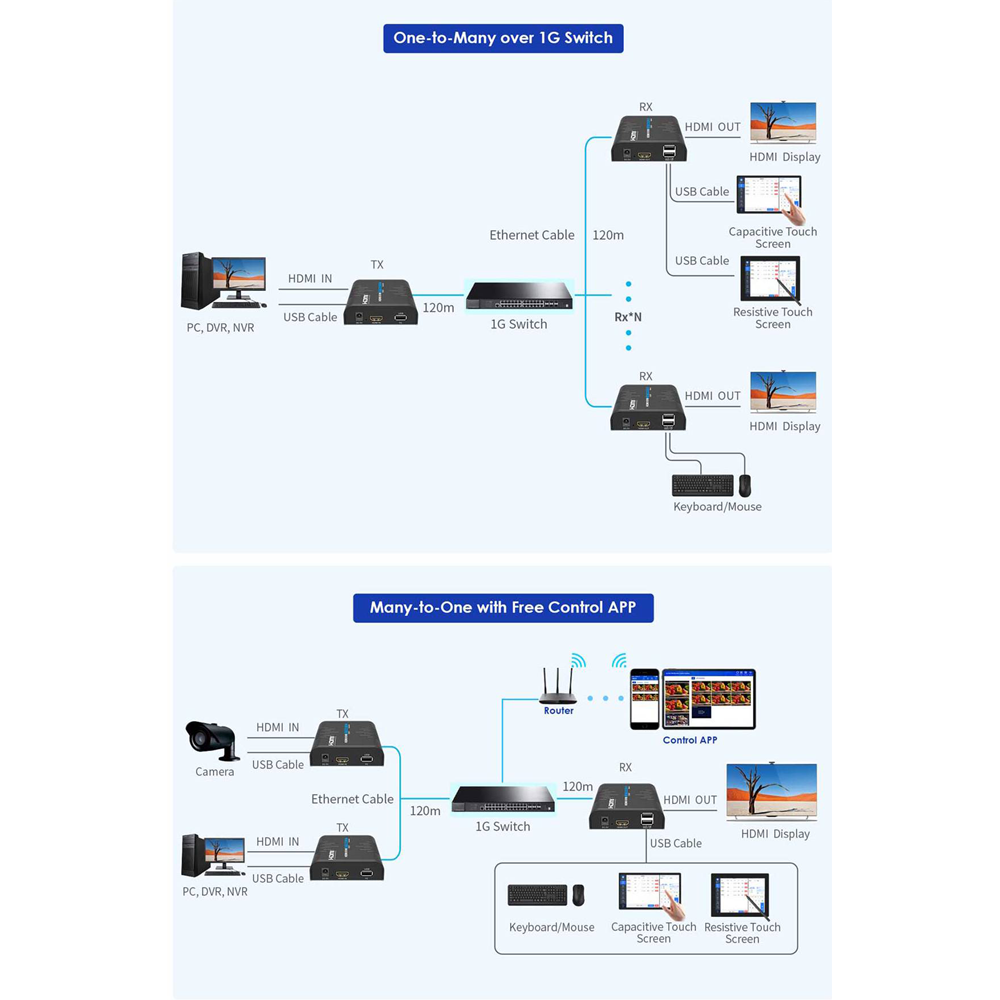

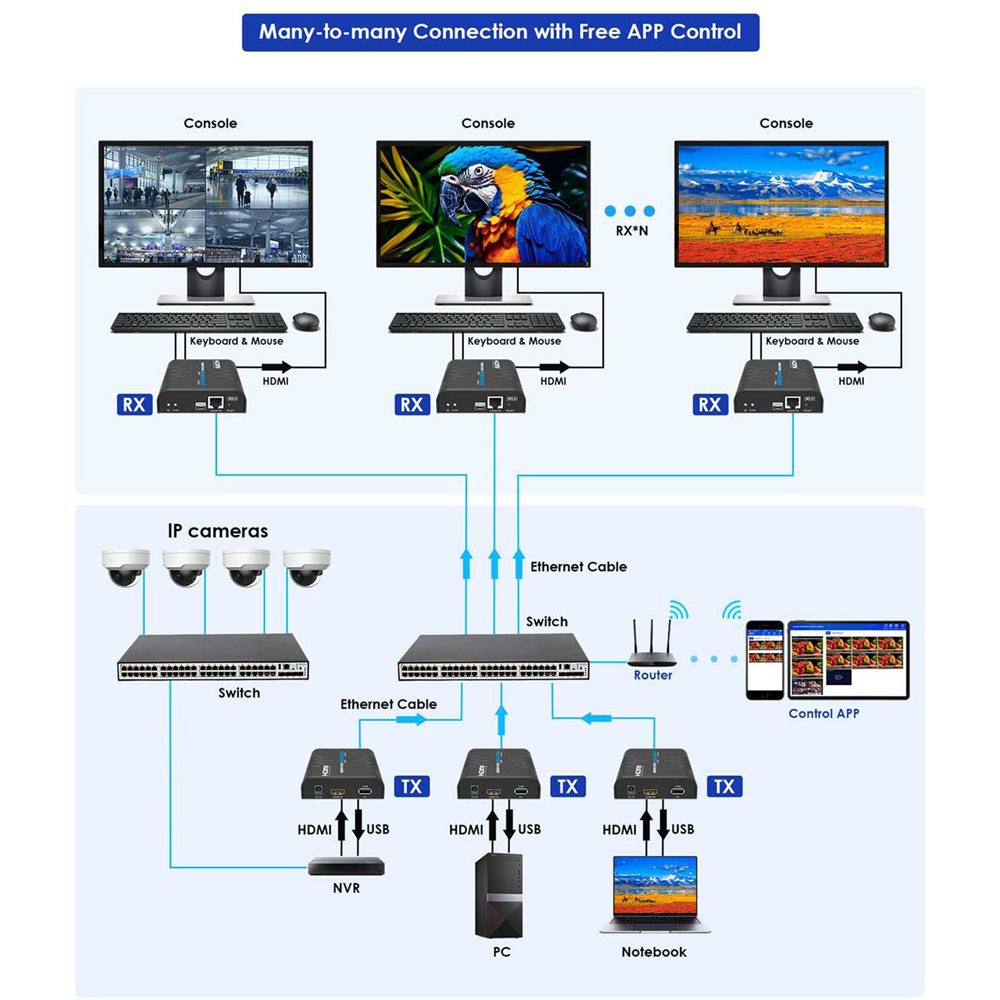

• Allows: NxM (N transmitters and M receivers)
• Resolution: 1080@60 Hz
• HDCP: 1.3; 1.4
• EDID settings: No
• Control: PC Software; Android App
• KVM function: Yes
• Power supply: DC 5V / 2A
• Consumption: ≤ 3.5 W
• Maximum transmission rate: 4.96 Gbps
• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 80 ~ 110 ms
• Inputs: HDMI
• Outputs: Ethernet
• LED indicators: Power; KVM: flashing light (KVM function is transmitting signal); solid light (keyboard and mouse are connected)
• HDMI cable length: ≤ 5 m
• Dimensions: 109.6 (H) x 26.3 (W) x 89.5 (D) mm
• Weight: 240 g
• Operating conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90 % (non-condensing)
📦 INCLUDED:

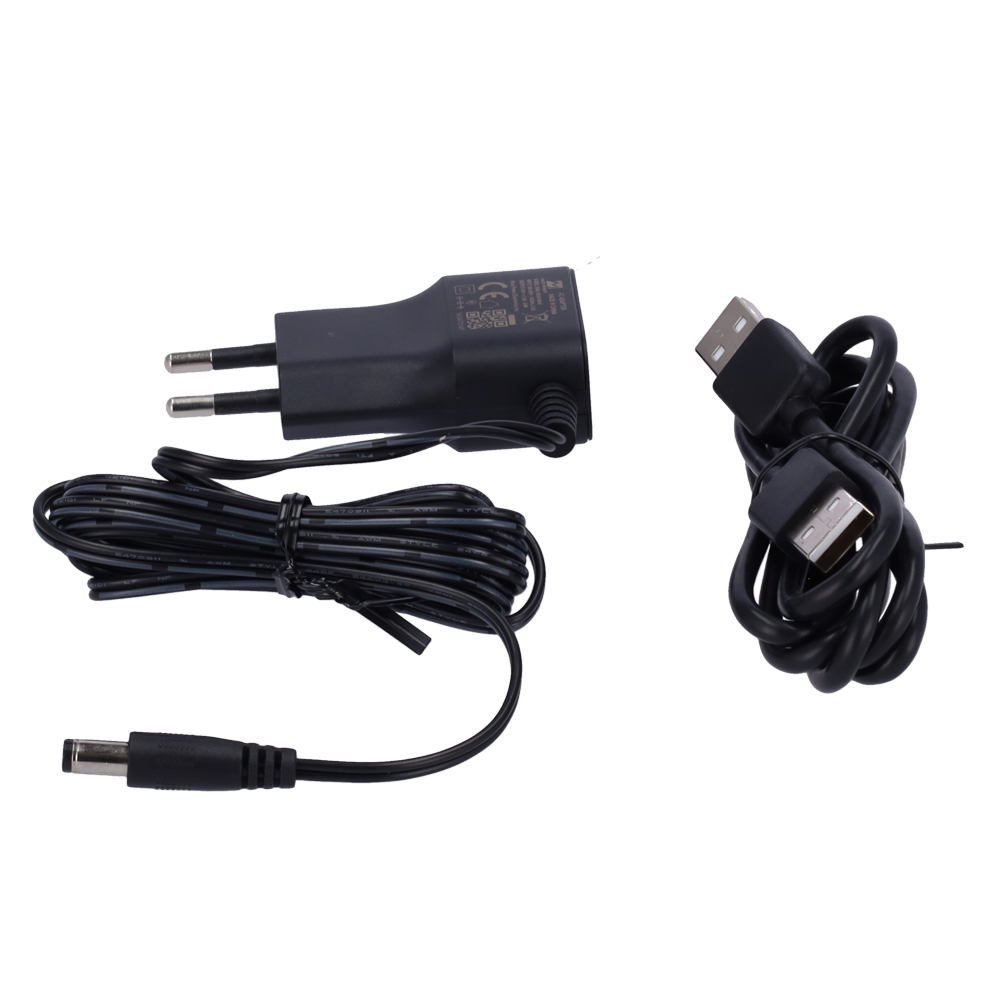

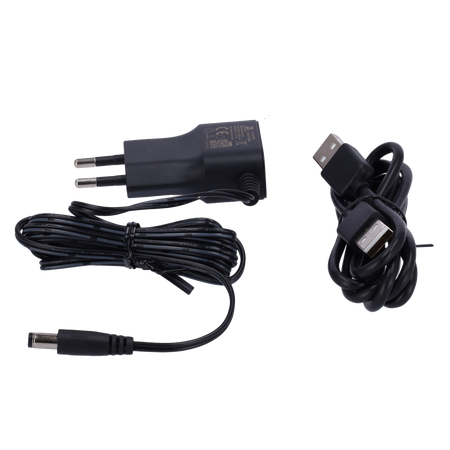

• Transmitter• USB cable• DC 5 V / 2 A power supply• User manual
| Supports | NxM (N transmitters and M receivers) |
|---|---|
| Resolution | 1080@60 Hz |
| HDCP | 1.3 1.4 |
| EDID settings | No |
| Control | PC Software, Android App |
| KVM function | Yes |
| Power supply | DC 5V / 2A |
| Power consumption | ≤ 3.5 W |
| Maximum transmission speed | 4.96 Gbps |
| Transmission distance | CAT 5: 80 m, CAT 5E: 100 m, CAT 6: 120 m |
| Transmission latency | 80 ~ 110 ms |
| Inputs | HDMI |
| Outputs | Ethernet |
| LED indicators | Power, KVM: flashing light (KVM function is transmitting signal); steady light (keyboard and mouse are connected) |
| HDMI cable length | ≤ 5 m |
| Dimensions | 109.6 (H) x 26.3 (W) x 89.5 (D) mm |
| Weight | 240 g |
| Operating conditions | Temperature: -20 ~ 60 ºC, Humidity: 0 ~ 90 % (non-condensing) |
| Storage conditions | Temperature: -30 ~ 70 ºC, Humidity: 0 ~ 90 % (non-condensing) |
- User manual Link
