Lenkeng HDMI IP Signal Matrix - FHD Resolution - KVM Function - ≤ 2
Lenkeng HDMI IP Signal Matrix - FHD Resolution - KVM Function - ≤ 2
Regular price
€99,14
Final price
Regular price
-5%
€104,00
Sale price
€99,14
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

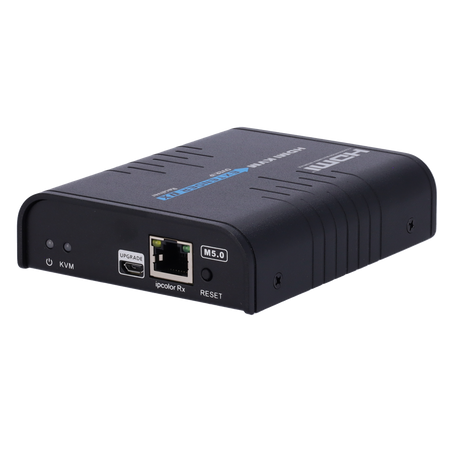

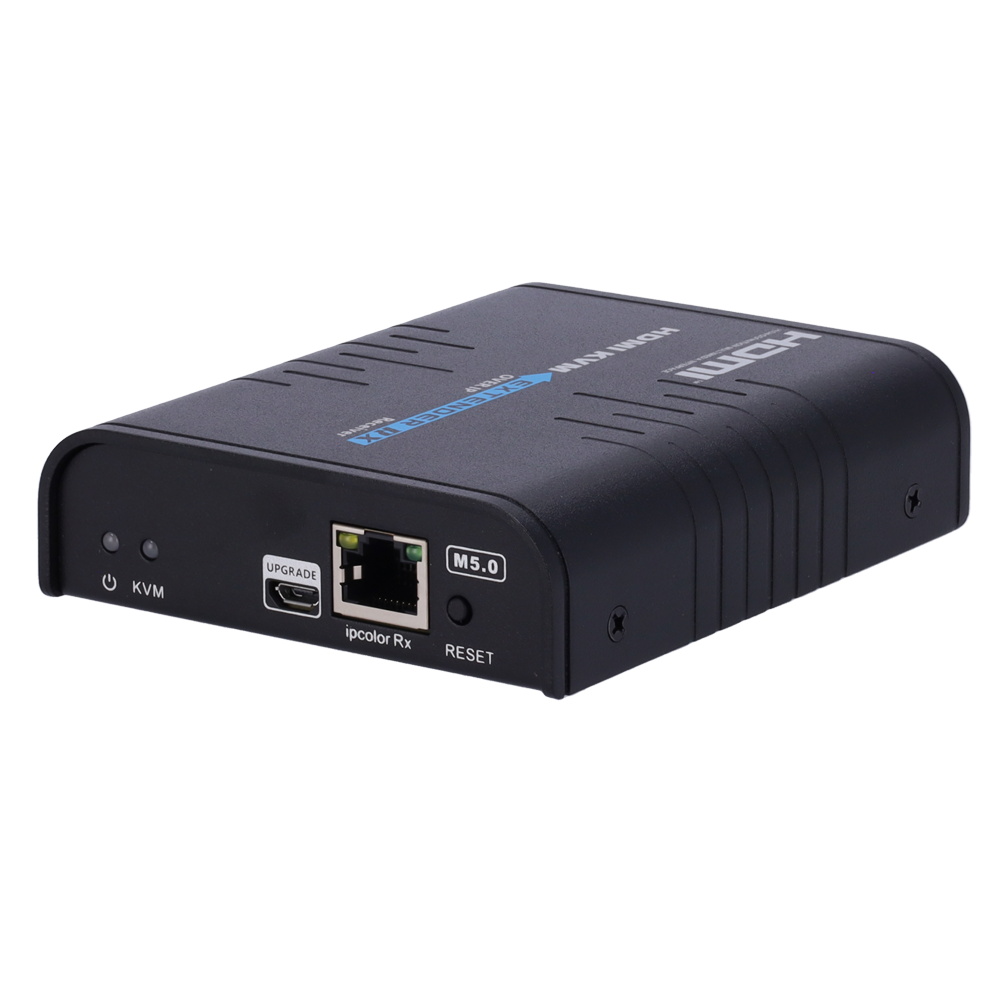

HDMI IP signal matrix - Allows NxM - FHD resolution - Includes 1 receiver - KVM function
📋 SPECIFICATIONS:

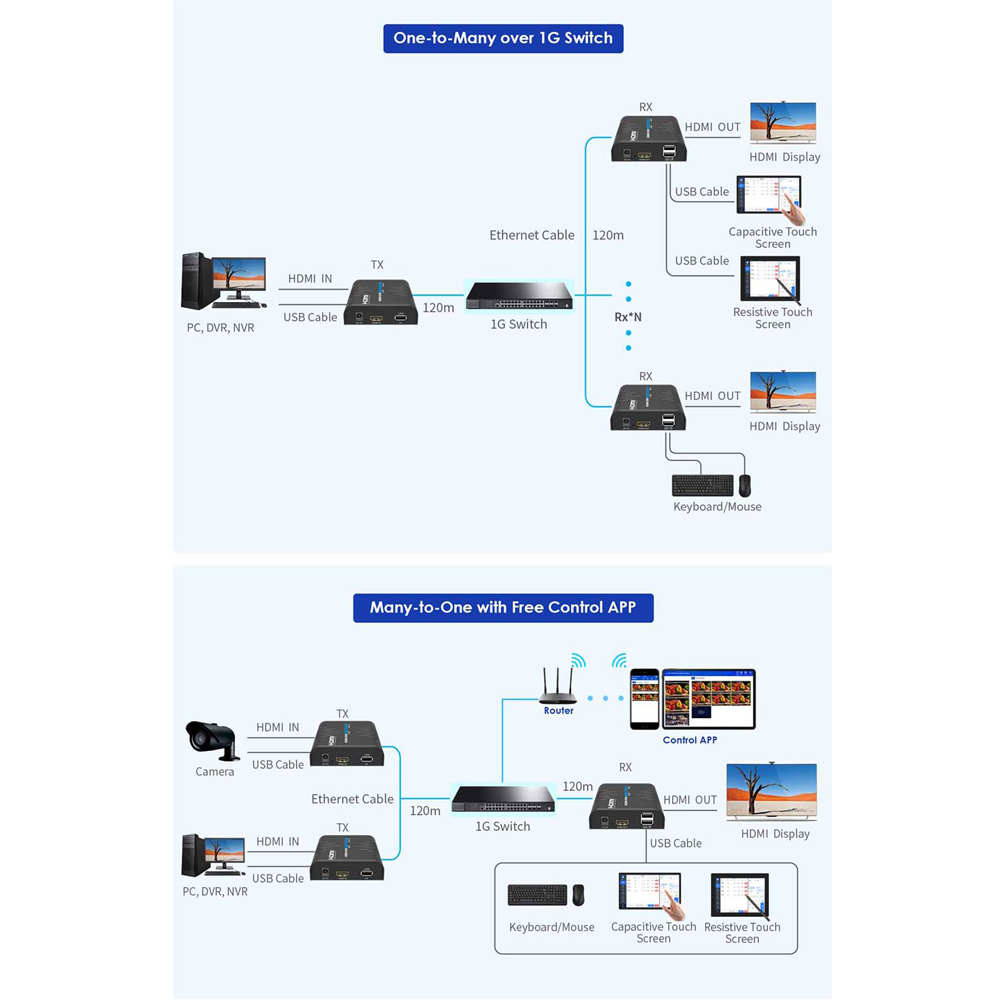

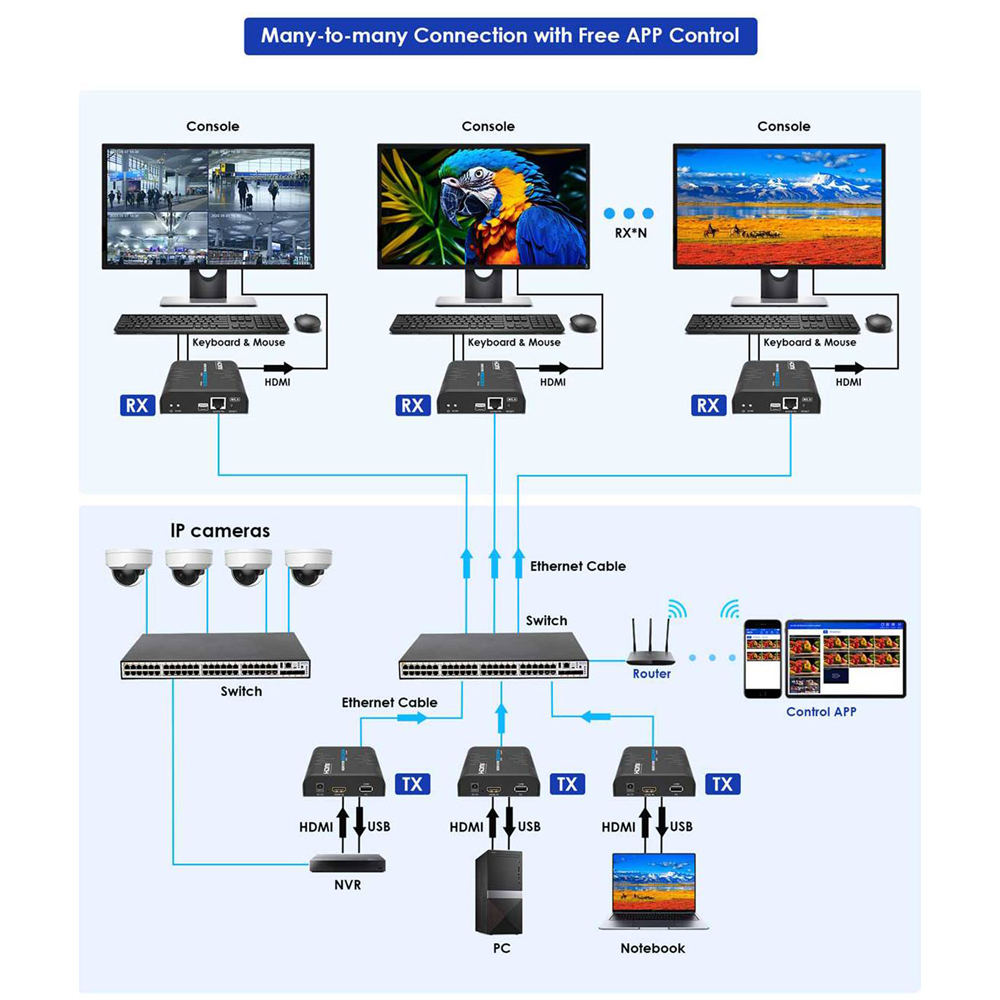

• Allows: NxM (N transmitters and M receivers)
• Resolution: 1080@60 Hz
• HDCP: 1.3; 1.4
• EDID settings: No
• Control: PC Software; Android App
• KVM function: Yes
• Power supply: DC 5V / 2A
• Consumption: ≤ 2.5 W
• Maximum transmission speed: 4.96 Gbps
• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 80 ~ 110 ms

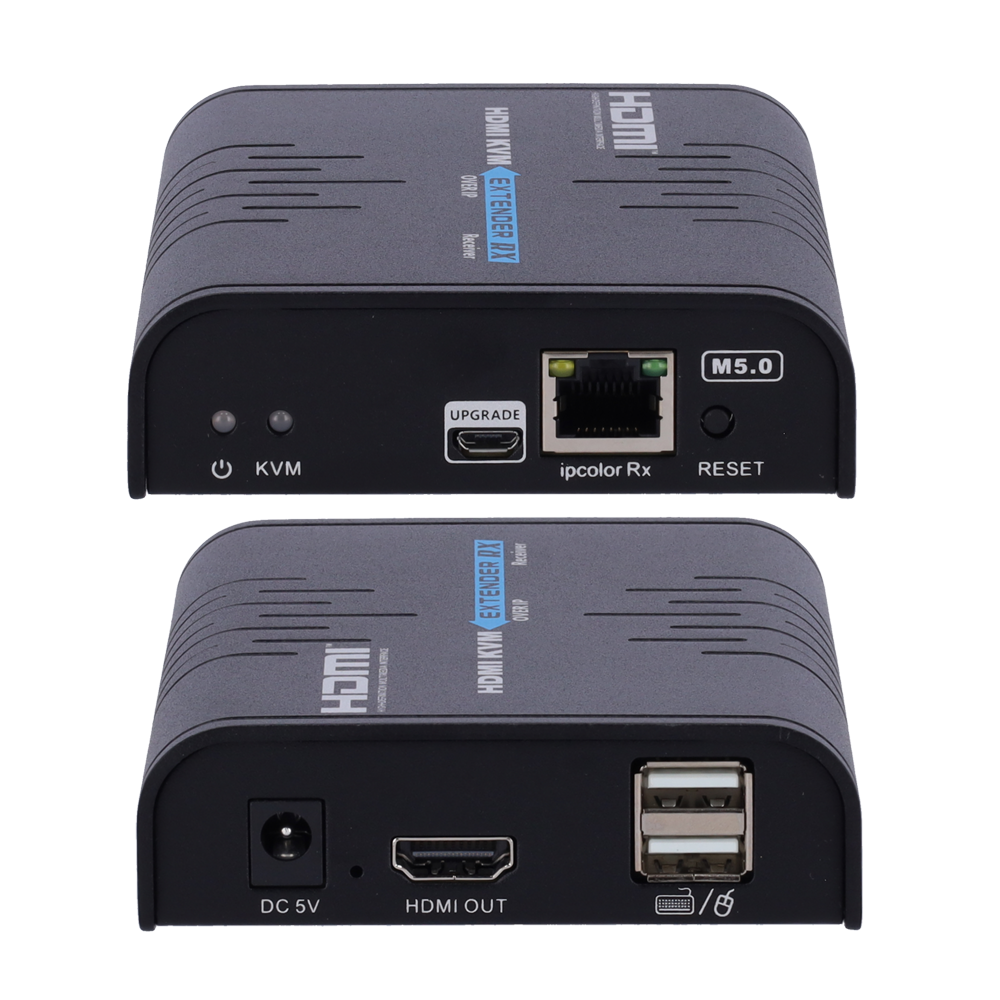

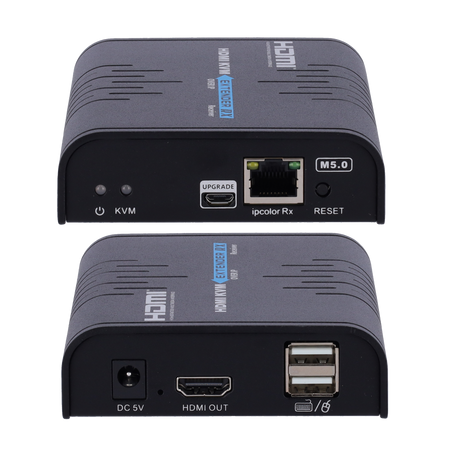

• Inputs: Ethernet; USB-A x2 (connection of keyboard, mouse and/or touchscreen for KVM function); Micro USB (update)
• Outputs: HDMI
• LED indicators: Power; KVM: flashing light (the KVM function is transmitting the signal); steady light (keyboard and mouse are connected)
• HDMI cable length: ≤ 5 m
• Dimensions: 109.6 (H) x 26.3 (W) x 89.5 (D) mm
• Weight: 243 g
• Operating conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90 % (non-condensing)
📦 INCLUDED:

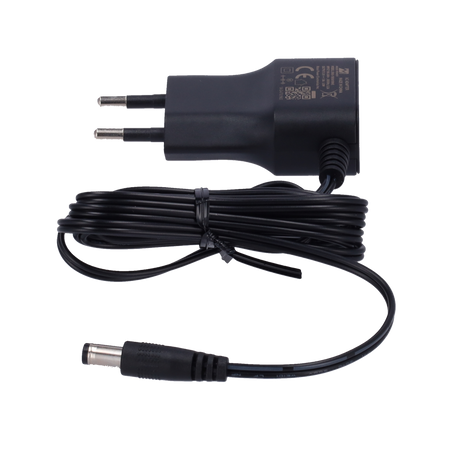

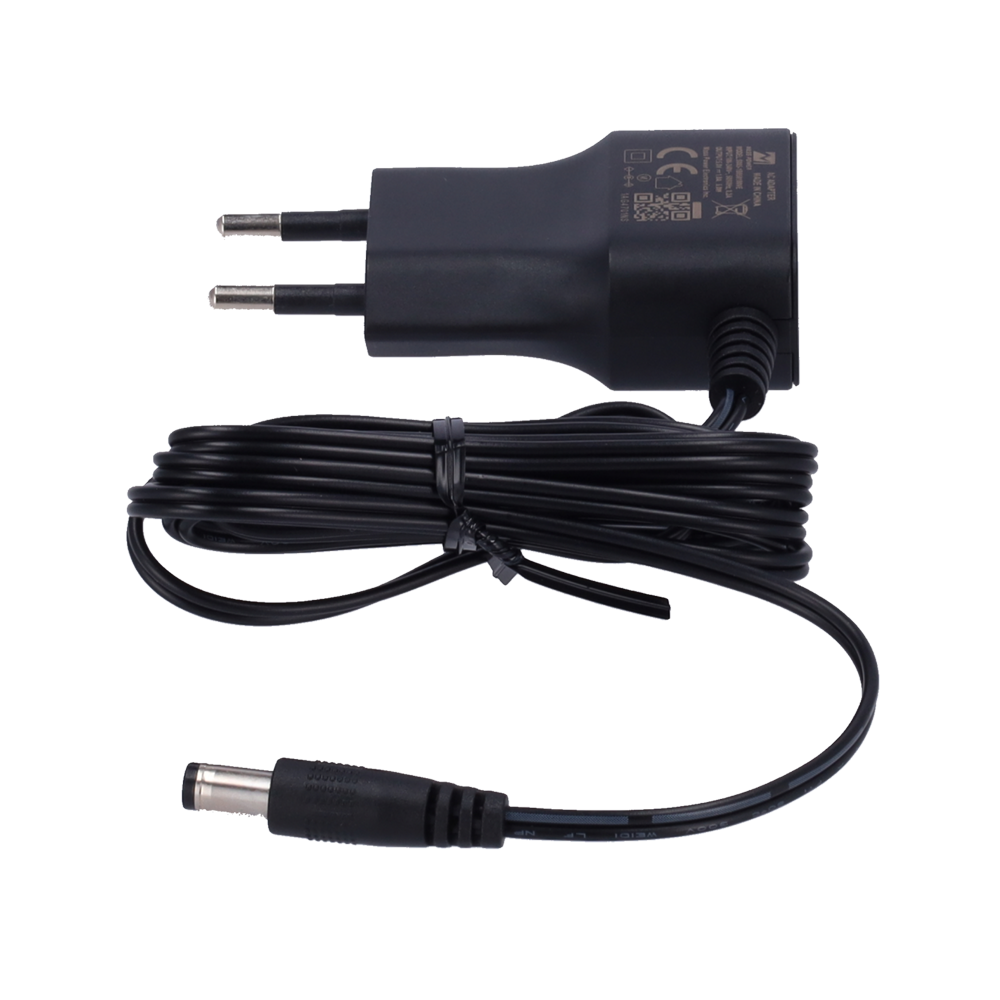

• Receiver• DC 5 V / 2 A power adapter• User manual
| Allows | NxM (N transmitters and M receivers) |
|---|---|
| Resolution | 1080@60 Hz |
| HDCP | 1.3 1.4 |
| EDID settings | No |
| Control | PC Software Android App |
| KVM function | Yes |
| Power supply | DC 5V / 2A |
| Consumption | ≤ 2.5 W |
| Maximum transmission speed | 4.96 Gbps |
| Transmission distance | CAT 5: 80 m CAT 5E: 100 m CAT 6: 120 m |
| Transmission latency | 80 ~ 110 ms |
| Inputs | Ethernet USB-A x2 (connection of keyboard, mouse and/or touchscreen for KVM function) Micro USB (update) |
| Outputs | HDMI |
| LED indicators | Power KVM: flashing light (KVM function is transmitting the signal); steady light (keyboard and mouse are connected) |
| HDMI cable length | ≤ 5 m |
| Dimensions | 109.6 (H) x 26.3 (W) x 89.5 (D) mm |
| Weight | 243 g |
| Working conditions | Temperature: -20 ~ 60 ºC Humidity: 0 ~ 90 % (non-condensing) |
| Storage conditions | Temperature: -30 ~ 70 ºC Humidity: 0 ~ 90 % (non-condensing) |
- User manual Link
