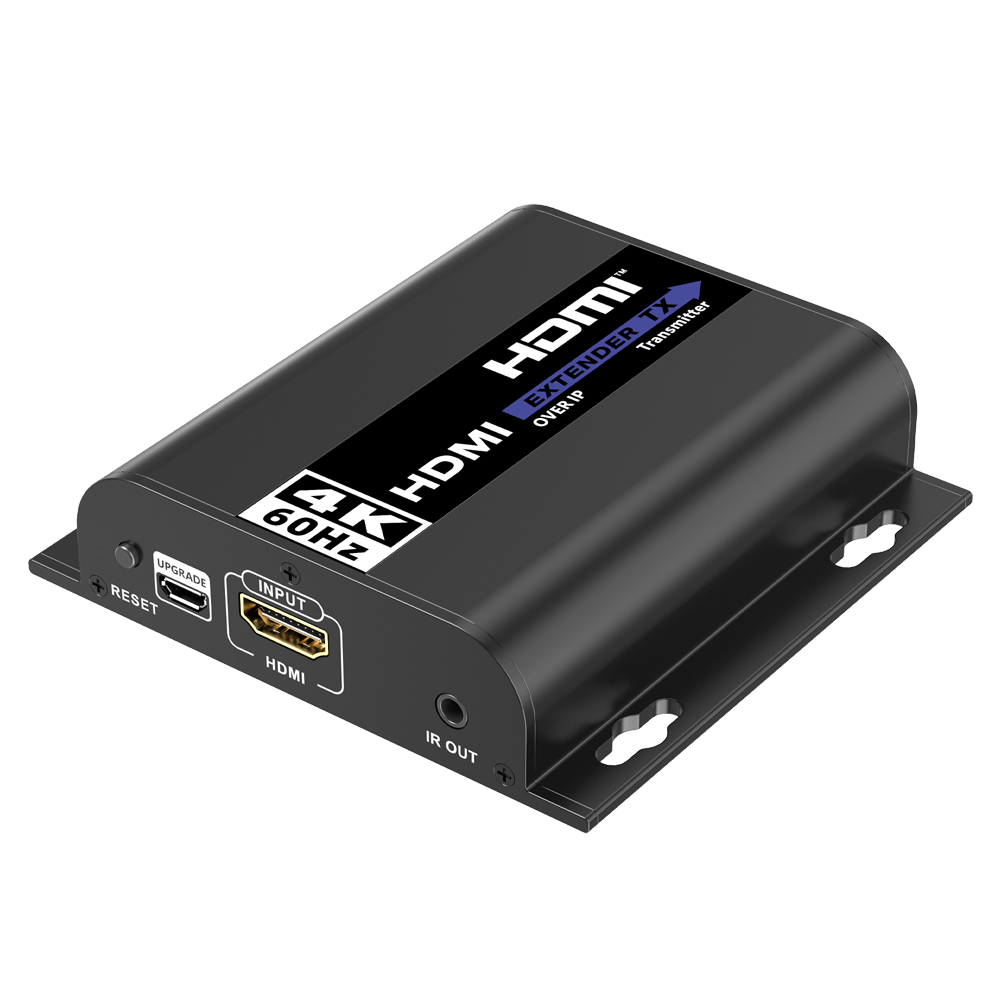

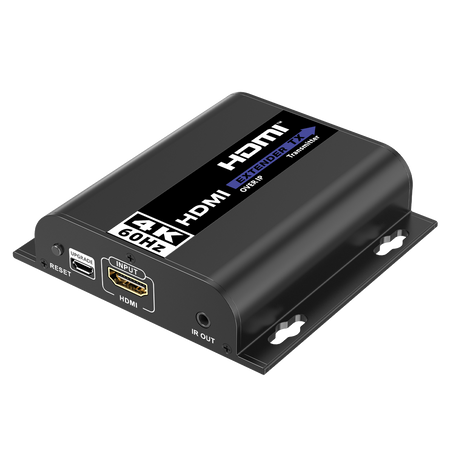

HDMI-MATRIX-PRO-4K-L-TX
HDMI-MATRIX-PRO-4K-L-TX
HDMI-MATRIX-PRO-4K-L-TX
HDMI-MATRIX-PRO-4K-L-TX
HDMI-MATRIX-PRO-4K-L-TX
HDMI-MATRIX-PRO-4K-L-TX

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

LENKENG

Lenkeng HDMI IP Signal Matrix - 4K Resolution - ≤ 3

SKU: HDMI-MATRIX-PRO-4K-L-TX
(0)
In stock
Usually shipped within 24 hours
€99,14 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

IP HDMI signal matrix - Allows NxM - 4K resolution - Includes 1 transmitter

📋 SPECIFICATIONS:

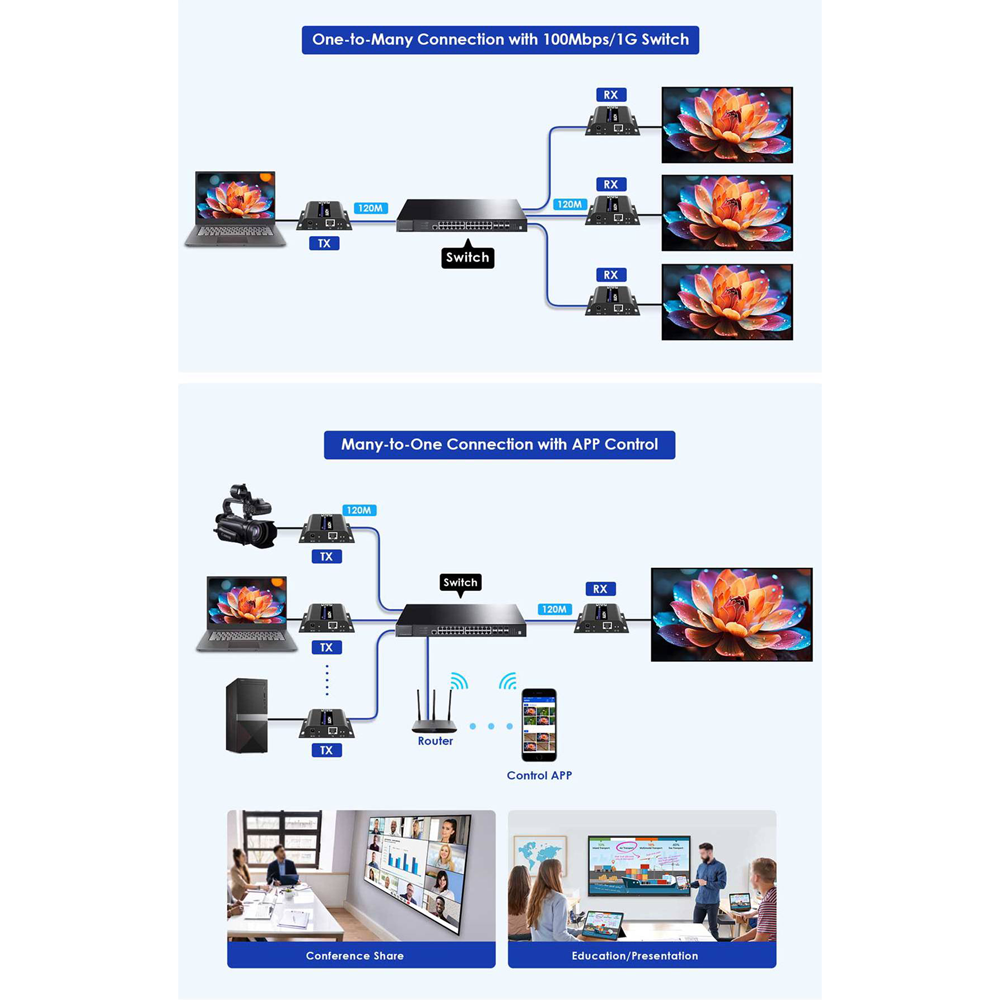

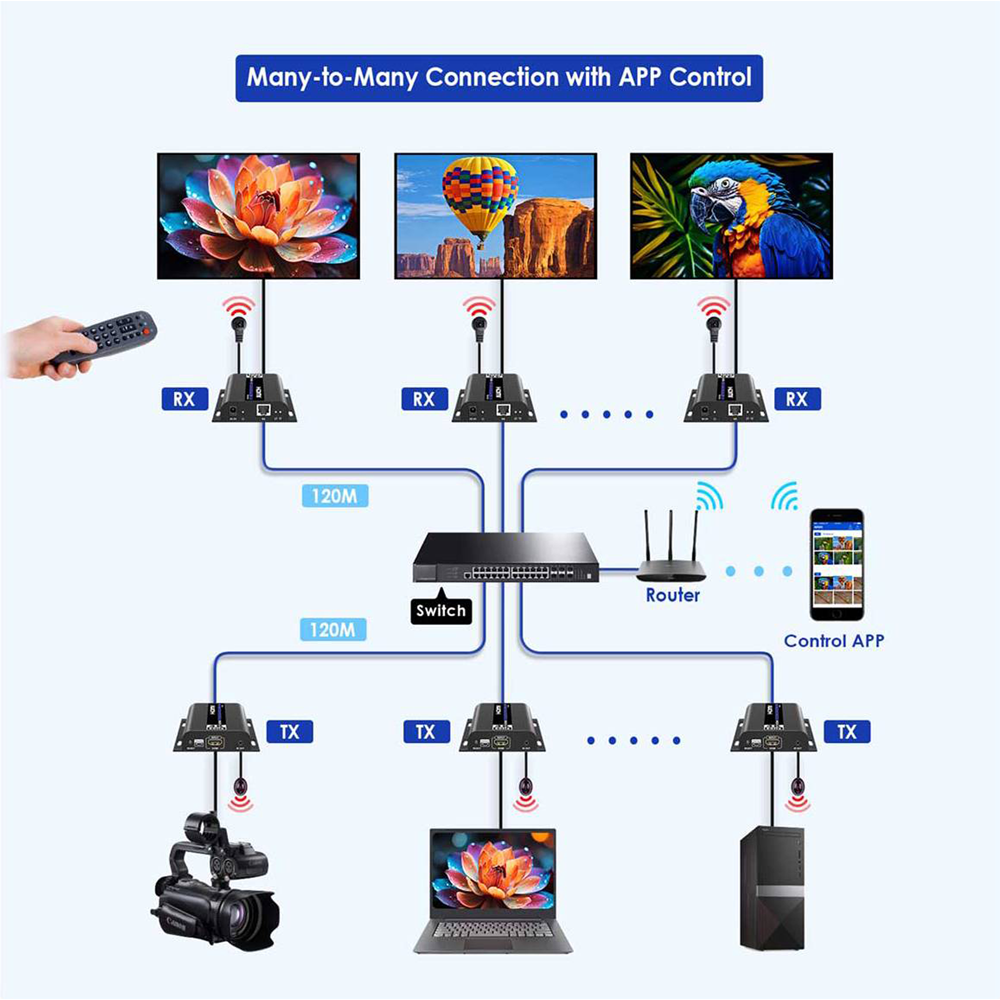

• Allows: NxM (N transmitters and M receivers)
• Resolution: 4K@60 Hz
• HDCP: 1.4; 2.2
• EDID settings: No
• Control: PC Software; Android App
• Power supply: DC 5V / 2A
• Consumption: ≤ 3.5 W
• Maximum transmission speed: 18 Gbps
• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 1080: 80 ~ 130 ms; 4K: 150 ~ 220 ms
• Inputs: HDMI
• Outputs: Ethernet
• buttons: Reset: press to reset the device; hold for 5 s to restore device factory settings
• LED indicators: Power; Data transmission: light off, no data transmission; light on, data is being transmitted; Network: light off, no network connection; light on, there is a network connection
• HDMI cable length: ≤ 5 m
• Dimensions: 96.8 (H) x 23.7 (W) x 94 (D) mm
• Weight: 156 g
• Working conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90 % (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90 % (non-condensing)

📦 INCLUDED:
• Transmitter• DC 5 V / 2 A power adapter• IR receiver • User manual
Configuration NxM (N transmitters and M receivers)
Resolution 4K@60 Hz
HDCP 1.4 2.2
EDID settings No
Control PC Software, Android App
Power supply DC 5V / 2A
Power consumption ≤ 3.5 W
Maximum transmission speed 18 Gbps
Transmission distance CAT 5: 80 m CAT 5E: 100 m CAT 6: 120 m
Transmission latency 1080: 80 ~ 130 ms 4K: 150 ~ 220 ms
Inputs HDMI
Outputs Ethernet
Buttons Reset: press to reset the device; hold for 5 s to restore factory settings
LED indicators Power; Data transmission: light off, no data transmission; light on, data transmission in progress; Network: light off, no network connection; light on, network connection active
HDMI cable length ≤ 5 m
Dimensions 96.8 (H) x 23.7 (W) x 94 (D) mm
Weight 156 g
Operating conditions Temperature: -20 ~ 60 ºC Humidity: 0 ~ 90 % (non-condensing)
Storage conditions Temperature: -30 ~ 70 ºC Humidity: 0 ~ 90 % (non-condensing)
