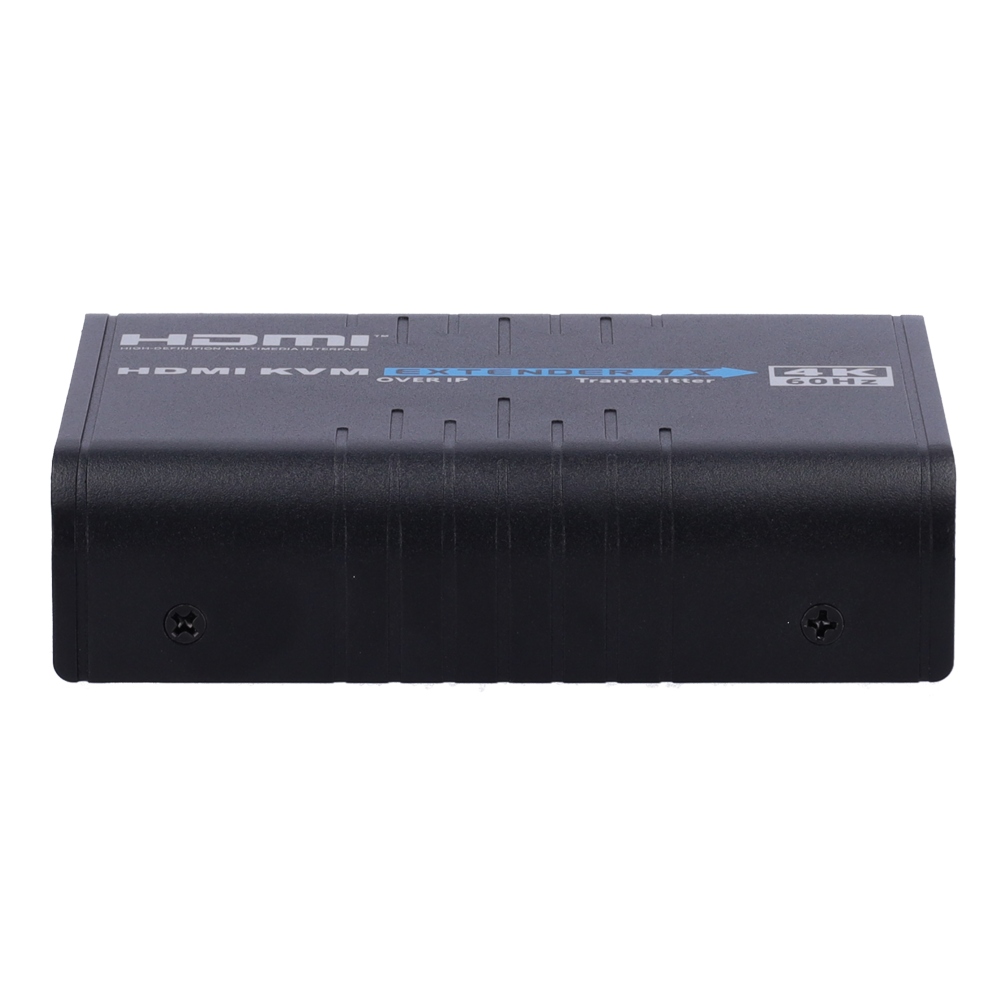

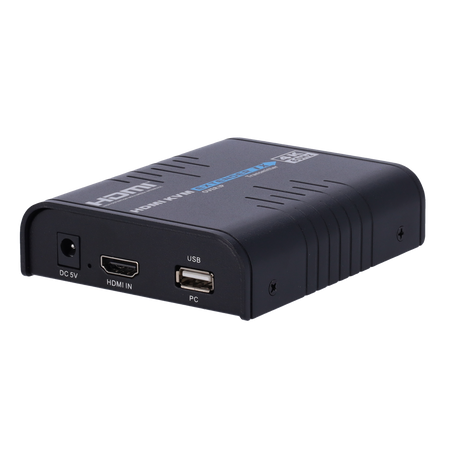

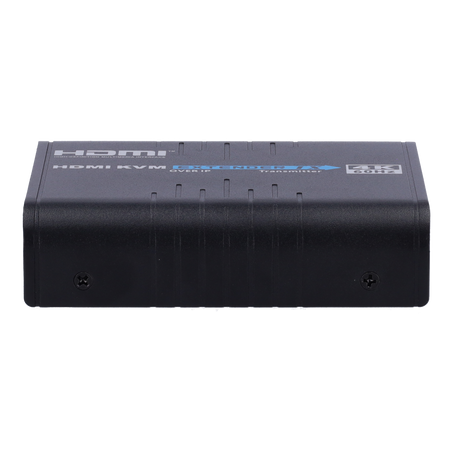

HDMI IP Signal Matrix - Allows NxM - 4K Resolution - Includes 1 transmitter - KVM function
📋 SPECIFICATIONS:

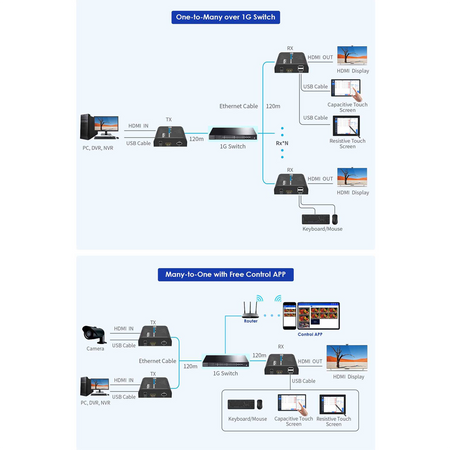

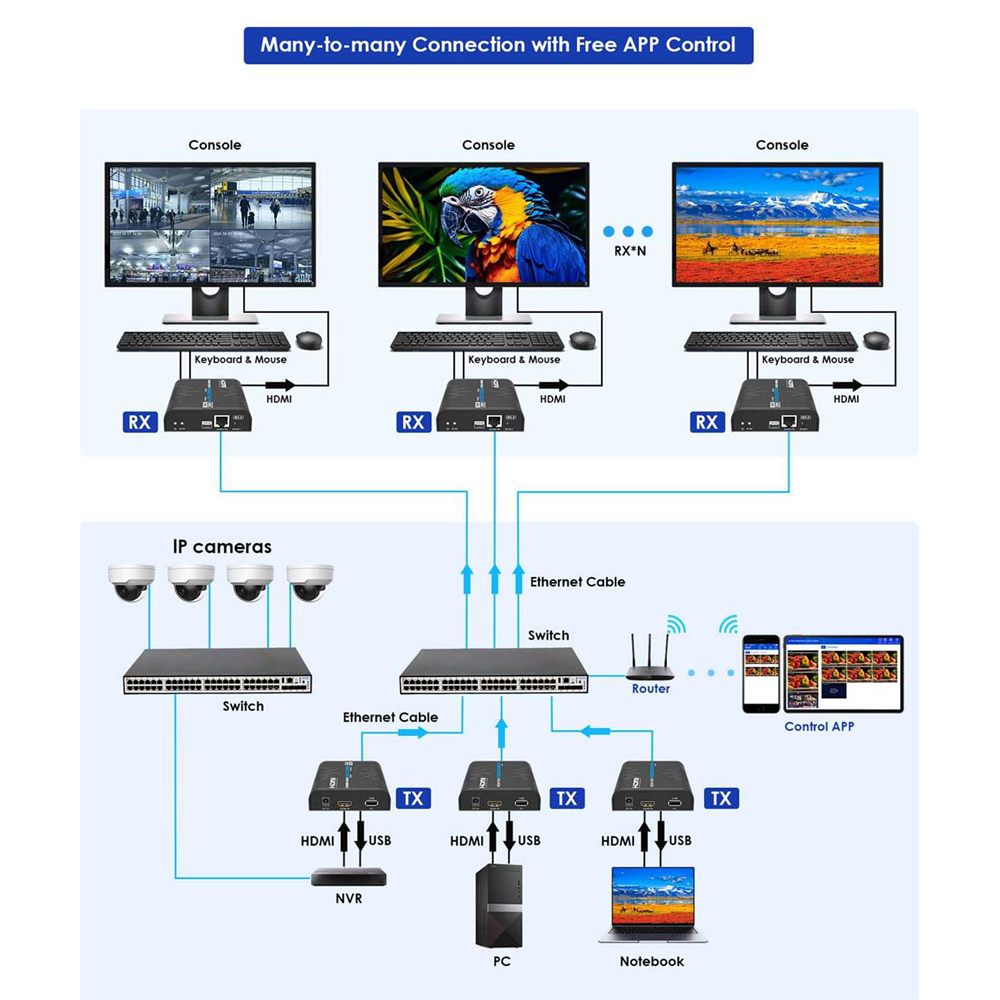

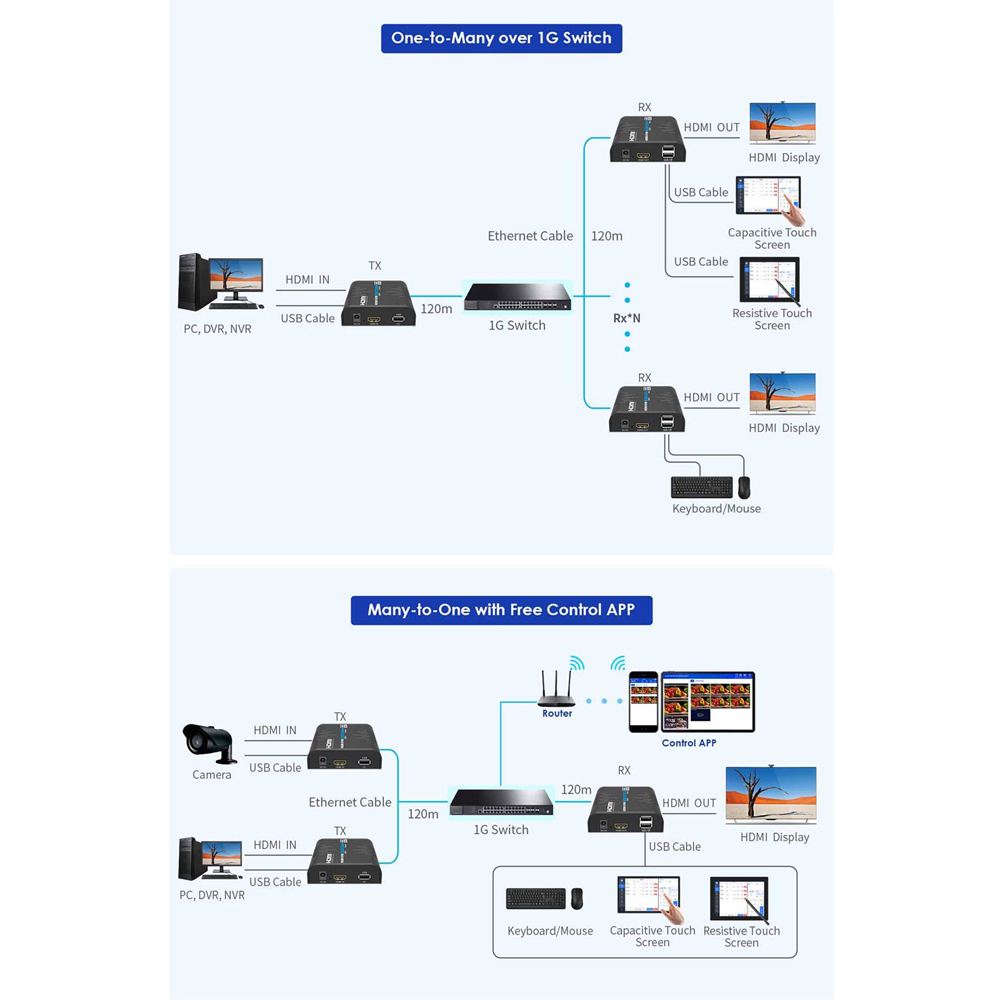

• Allows: NxM (N transmitters and M receivers)
• Resolution: 4K@60 Hz
• HDCP: 1.4; 2.2
• EDID settings: No
• Control: PC Software; Android App
• KVM function: Yes
• Power supply: DC 5V / 2A
• Consumption: ≤ 3.5 W
• Maximum transmission speed: 18 Gbps
• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 1080: 80 ~ 110 ms; 4K: 120 ~ 170 ms

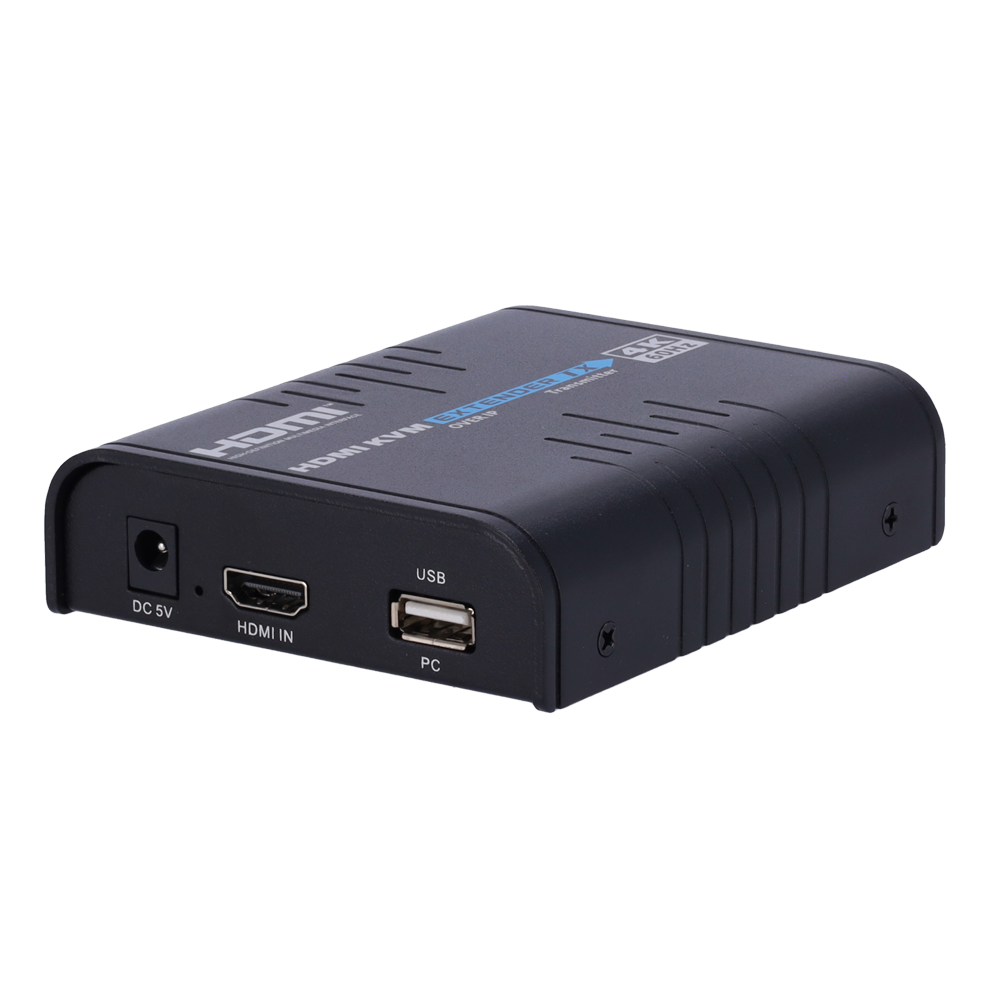

• Inputs: HDMI
• Outputs: RJ45

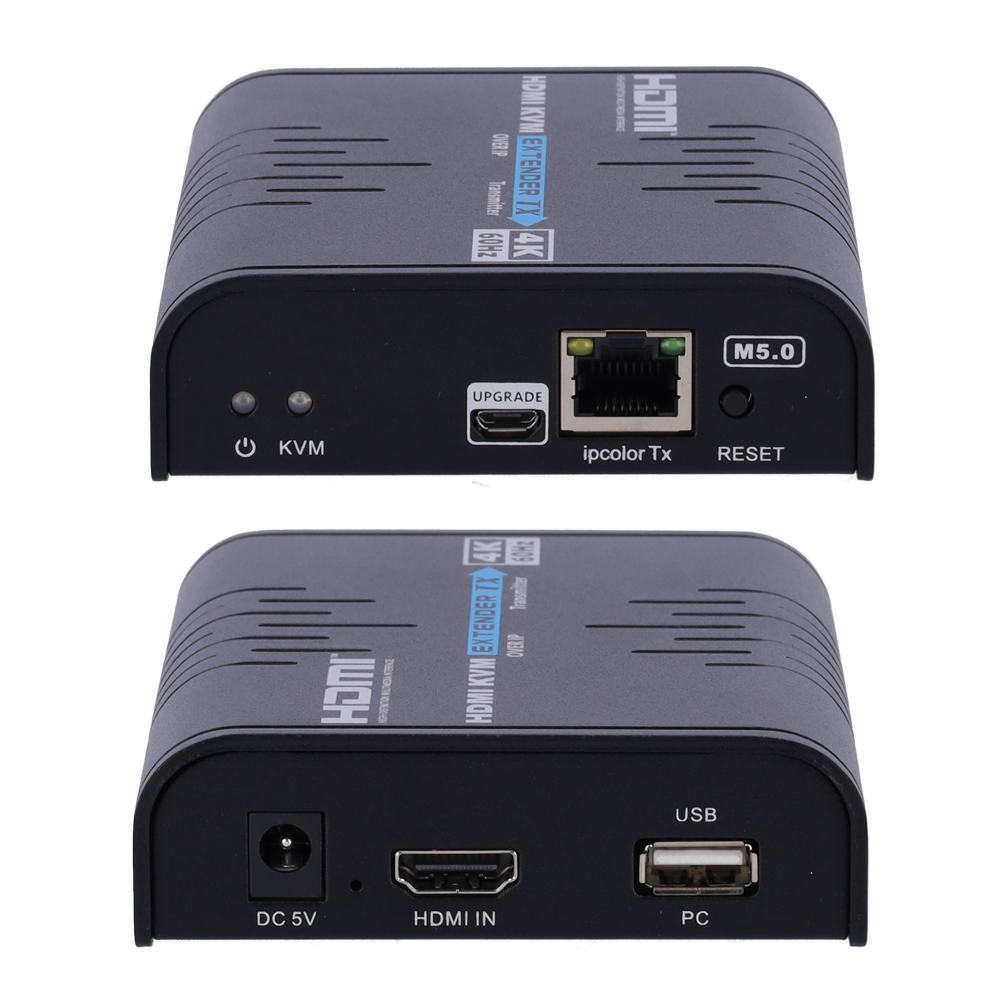

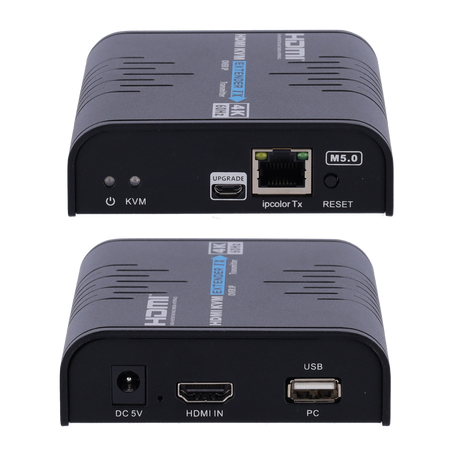

• Buttons: Reset: press to reset the device; hold for 5 s to restore device factory settings
• LED indicators: Power; KVM: flashing light (KVM function is transmitting signal); steady light (keyboard and mouse are connected)
• HDMI cable length: ≤ 5 m
• Dimensions: 109.6 (H) x 26.3 (W) x 89.5 (D) mm
• Weight: 240 g
• Operating conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90% (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90% (non-condensing)
📦 INCLUDED:

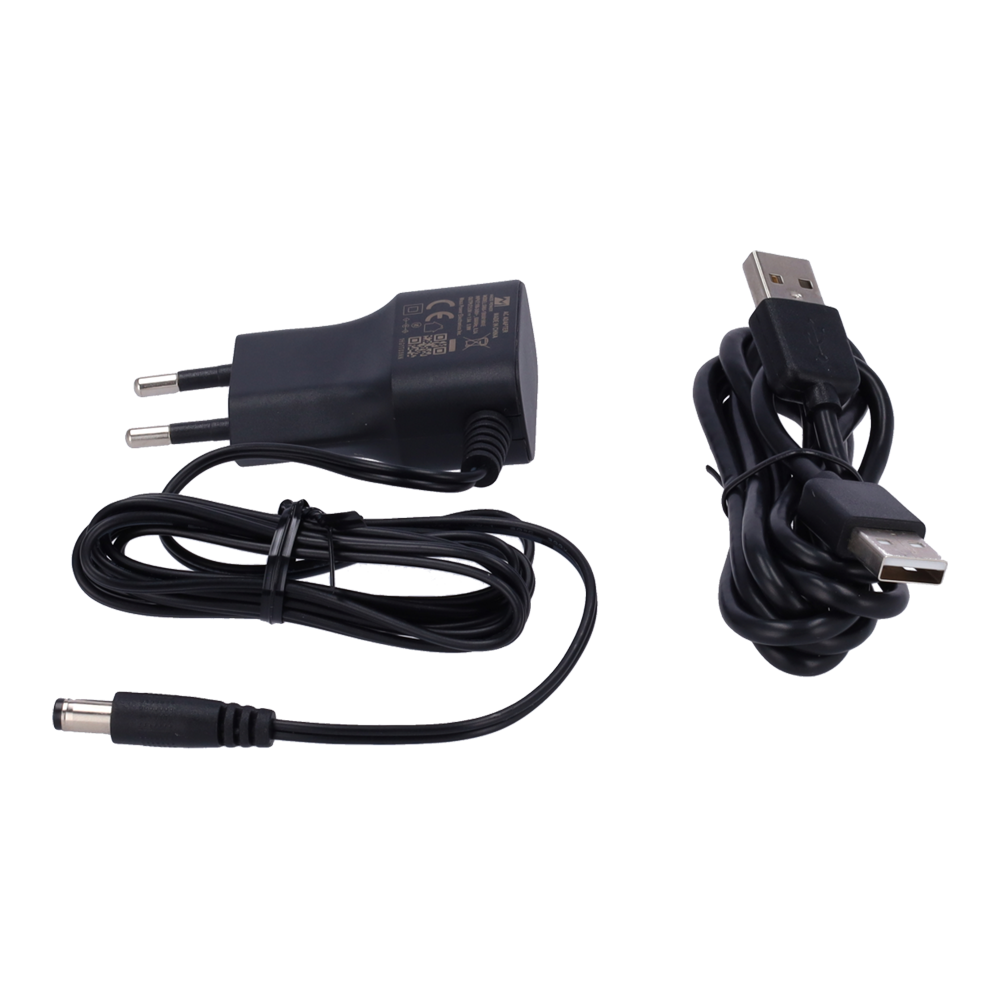

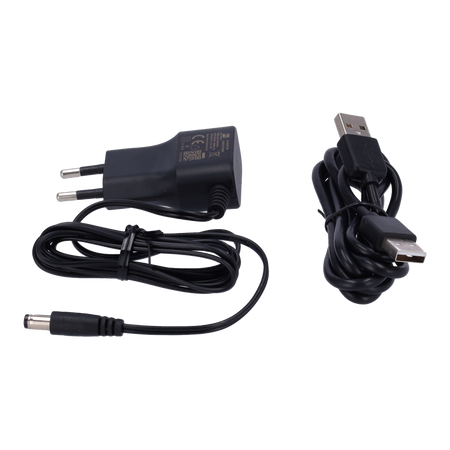

• Transmitter• DC 5 V / 2 A power supply• User manual
| Supports | NxM (N transmitters and M receivers) |
|---|---|
| Resolution | 4K@60 Hz |
| HDCP | 1.4 2.2 |
| EDID settings | No |
| Control | PC Software App for Android |
| KVM function | Yes |
| Power supply | DC 5V / 2A |
| Power consumption | ≤ 3.5 W |
| Maximum transmission speed | 18 Gbps |
| Transmission distance | CAT 5: 80 m CAT 5E: 100 m CAT 6: 120 m |
| Transmission latency | 1080: 80 ~ 110 ms 4K: 120 ~ 170 ms |
| Inputs | HDMI |
| Outputs | RJ45 |
| buttons | Reset: press to reset the device; hold for 5 s to restore factory settings |
| LED indicators | KVM power: flashing light (KVM function is transmitting the signal); steady light (keyboard and mouse are connected) |
| HDMI cable length | ≤ 5 m |
| Dimensions | 109.6 (H) x 26.3 (W) x 89.5 (D) mm |
| Weight | 240 g |
| Operating conditions | Temperature: -20 ~ 60 ºC Humidity: 0 ~ 90 % (non-condensing) |
| Storage conditions | Temperature: -30 ~ 70 ºC Humidity: 0 ~ 90 % (non-condensing) |
- User manual Link
