Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

LENKENG

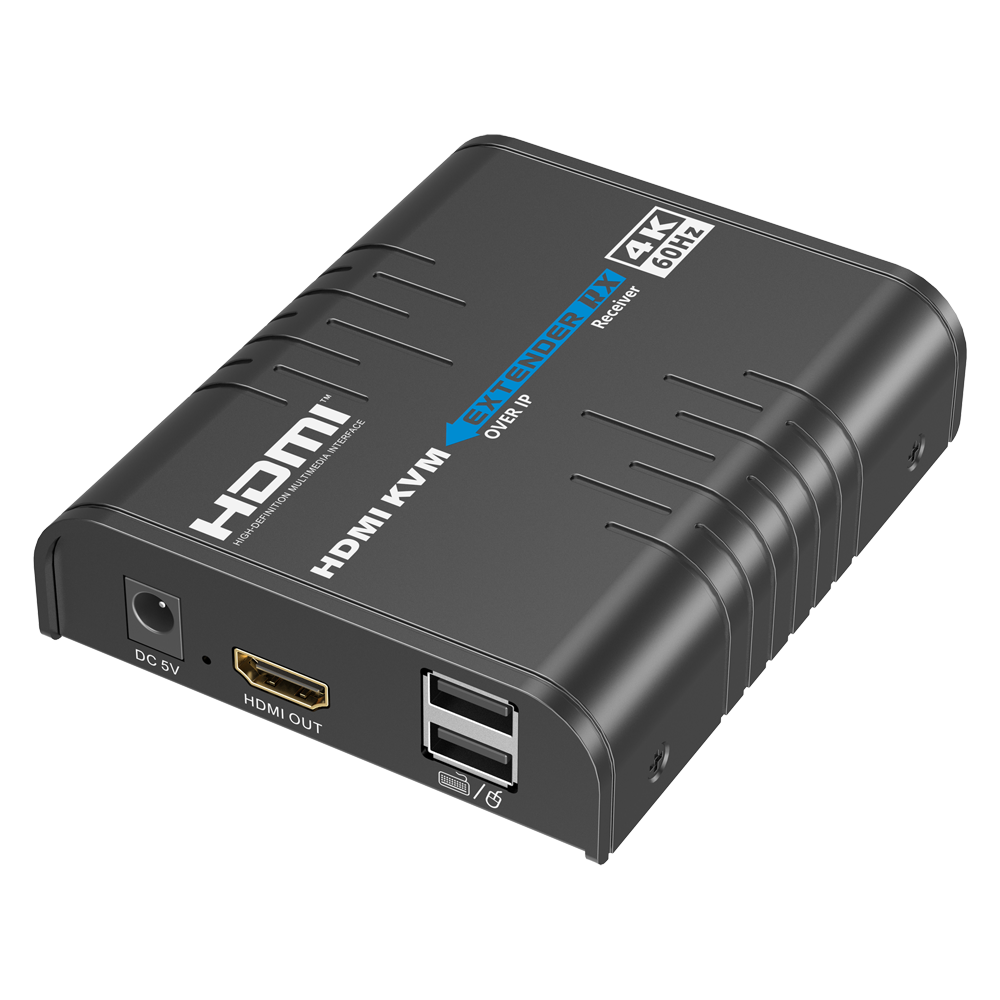

Lenkeng HDMI IP Signal Matrix - 4K Resolution - KVM Function - ≤ 2

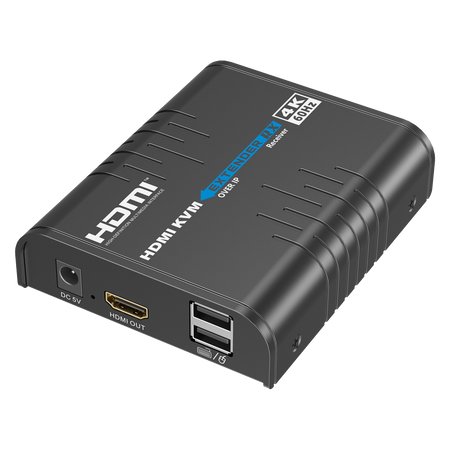

SKU: HDMI-MATRIX-PRO-4K-KVM-L-RX
(0)
In stock
Usually shipped within 24 hours
€122,20 Final price
-7% €132,00 €122,20 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

HDMI over IP signal matrix - Allows NxM - 4K resolution - Includes 1 receiver - KVM function

📋 SPECIFICATIONS:

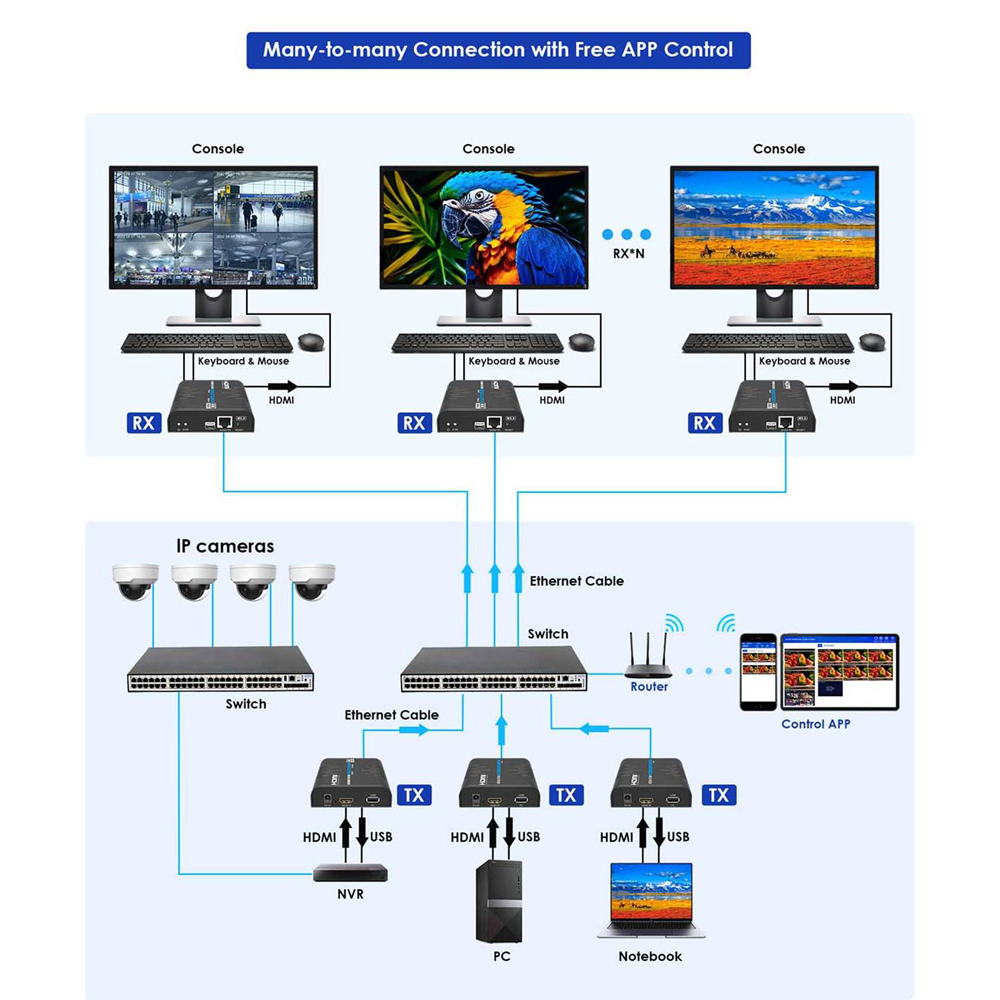

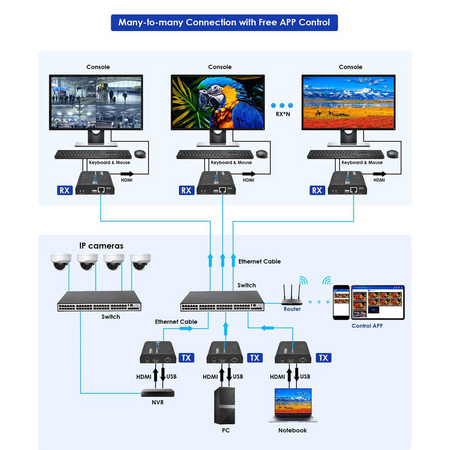

• Allows: NxM (N transmitters and M receivers)
• Resolution: 4K@60 Hz
• HDCP: 1.4; 2.2
• EDID settings: No
• Control: PC Software; Android App
• KVM function: Yes
• Power supply: DC 5V / 2A
• Power consumption: ≤ 2.5 W
• Maximum transmission speed: 18 Gbps

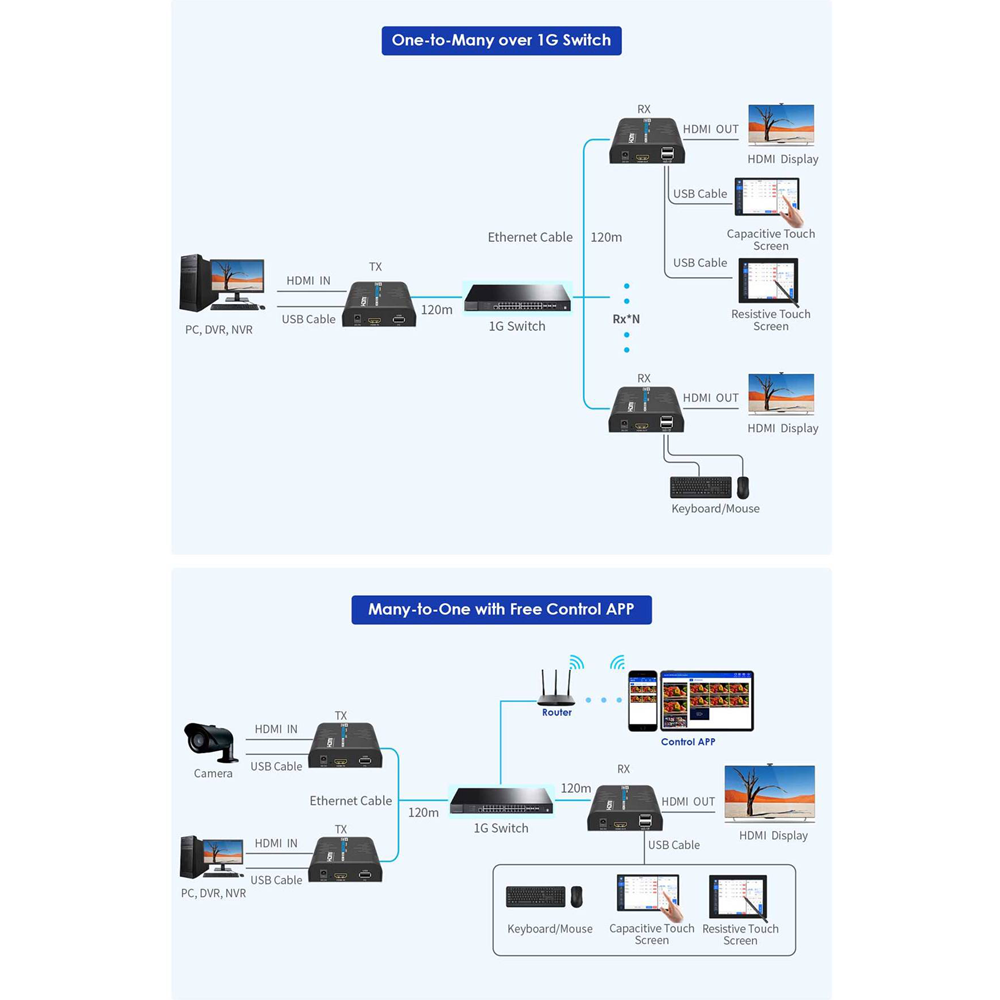

• Transmission distance: CAT 5: 80 m; CAT 5E: 100 m; CAT 6: 120 m
• Transmission latency: 1080: 80 ~ 110 ms; 4K: 120 ~ 170 ms

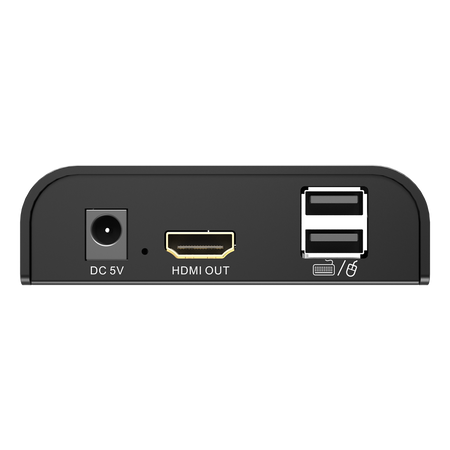

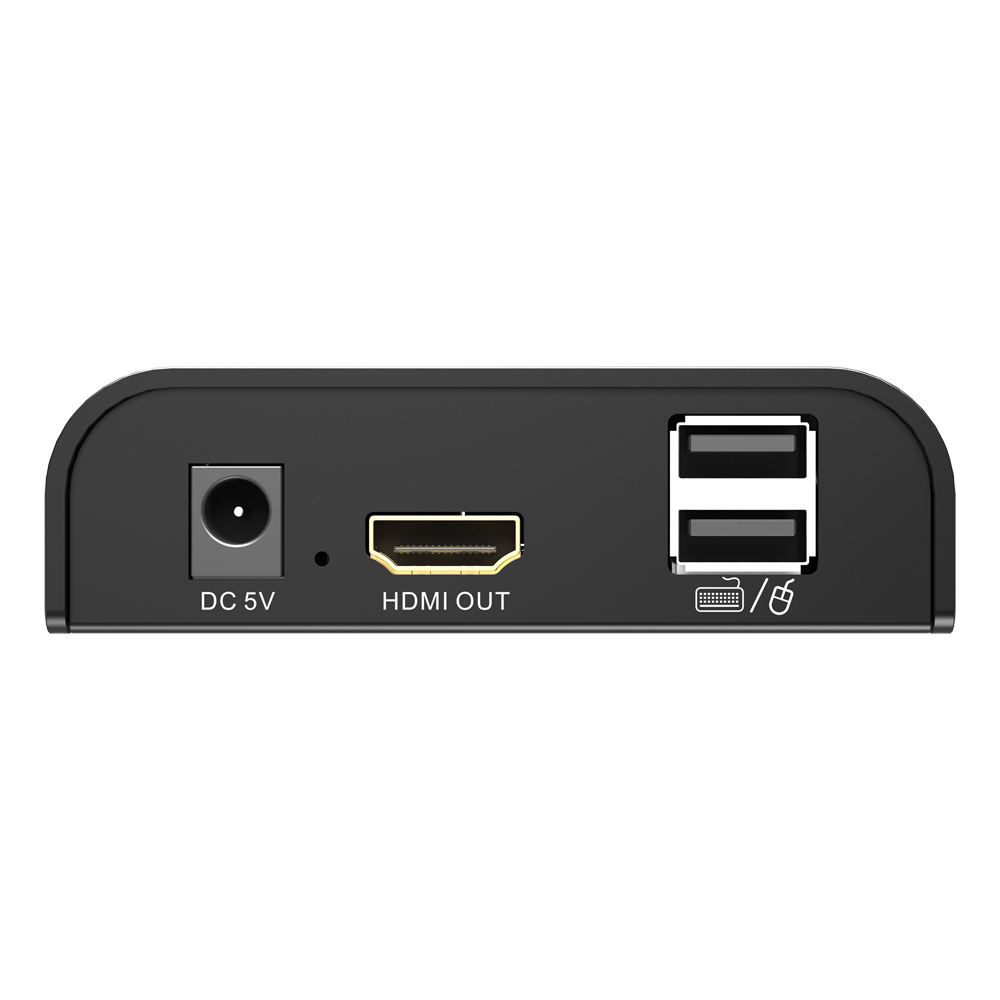

• Inputs: Ethernet; USB-A x2 (connection for keyboard, mouse and/or touchscreen for KVM function); Micro USB (update)
• Outputs: HDMI

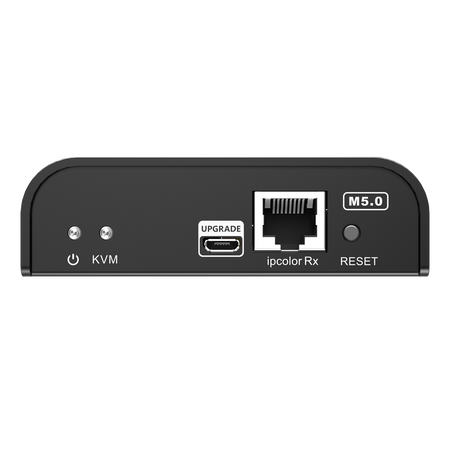

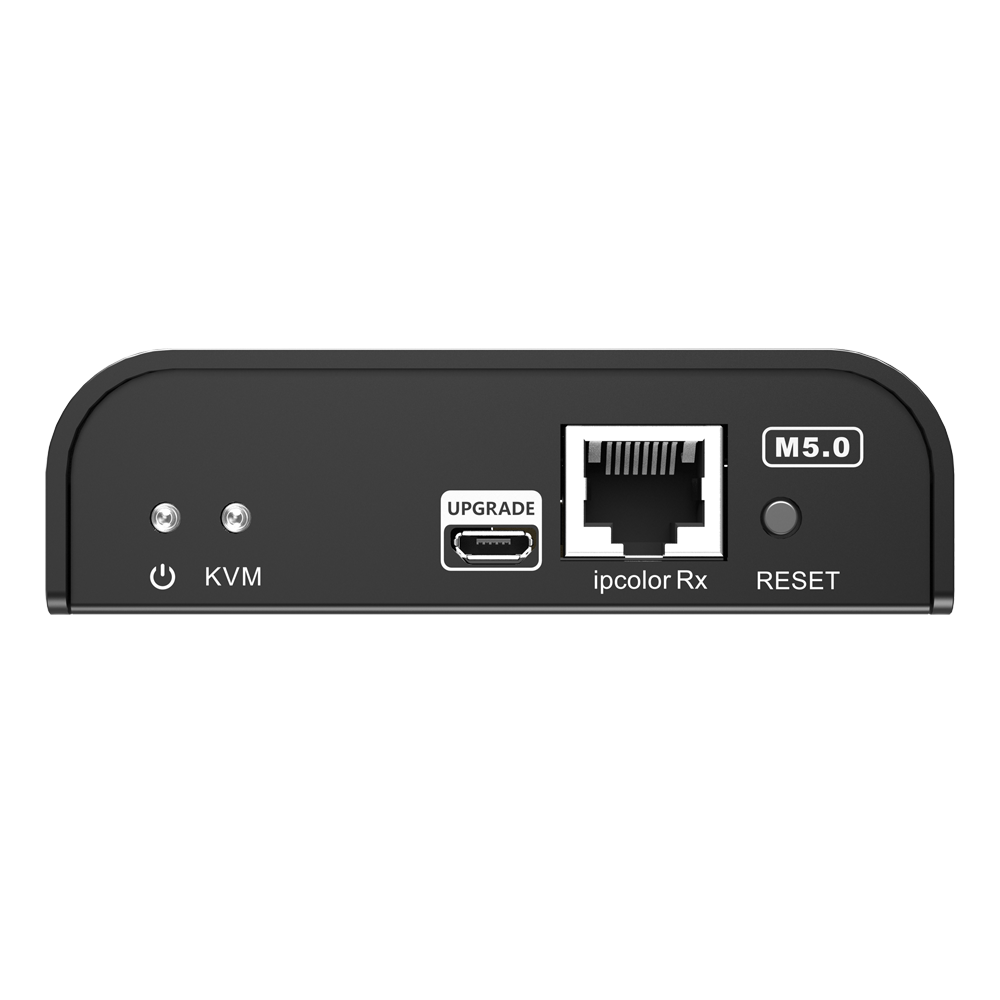

• Buttons: Reset: press to reset the device; hold for 5 s to restore factory settings
• LED indicators: Power; KVM: flashing light (KVM function is transmitting signal); steady light (keyboard and mouse are connected)
• HDMI cable length: ≤ 5 m
• Dimensions: 109.6 (H) x 26.3 (W) x 89.5 (D) mm
• Weight: 243 g
• Operating conditions: Temperature: -20 ~ 60 ºC; Humidity: 0 ~ 90% (non-condensing)
• Storage conditions: Temperature: -30 ~ 70 ºC; Humidity: 0 ~ 90% (non-condensing)

📦 INCLUDED:
• Receiver • DC 5 V / 2 A power supply • User manual
Supports NxM (N transmitters and M receivers)
Resolution 4K@60 Hz
HDCP 1.4 2.2
EDID settings No
Control PC Software, Android App
KVM function Yes
Power supply DC 5V / 2A
Power consumption ≤ 2.5 W
Maximum transmission speed 18 Gbps
Transmission distance CAT 5: 80 m, CAT 5E: 100 m, CAT 6: 120 m
Transmission latency 1080: 80 ~ 110 ms, 4K: 120 ~ 170 ms
Inputs Ethernet, USB-A x2 (connection of keyboard, mouse and/or touchscreen for KVM function), Micro USB (update)
Outputs HDMI
Buttons Reset: press to restart the device; press and hold for 5 s to restore factory settings
LED indicators Power, KVM: flashing light (KVM function is transmitting signal); steady light (keyboard and mouse are connected)
HDMI cable length ≤ 5 m
Dimensions 109.6 (H) x 26.3 (W) x 89.5 (D) mm
Weight 243 g
Operating conditions Temperature: -20 ~ 60 ºC, Humidity: 0 ~ 90 % (non-condensing)
Storage conditions Temperature: -30 ~ 70 ºC, Humidity: 0 ~ 90 % (non-condensing)
