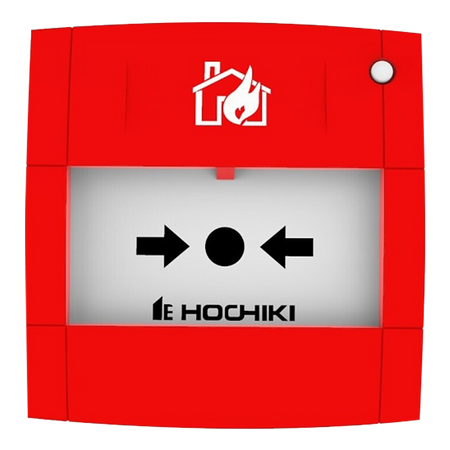

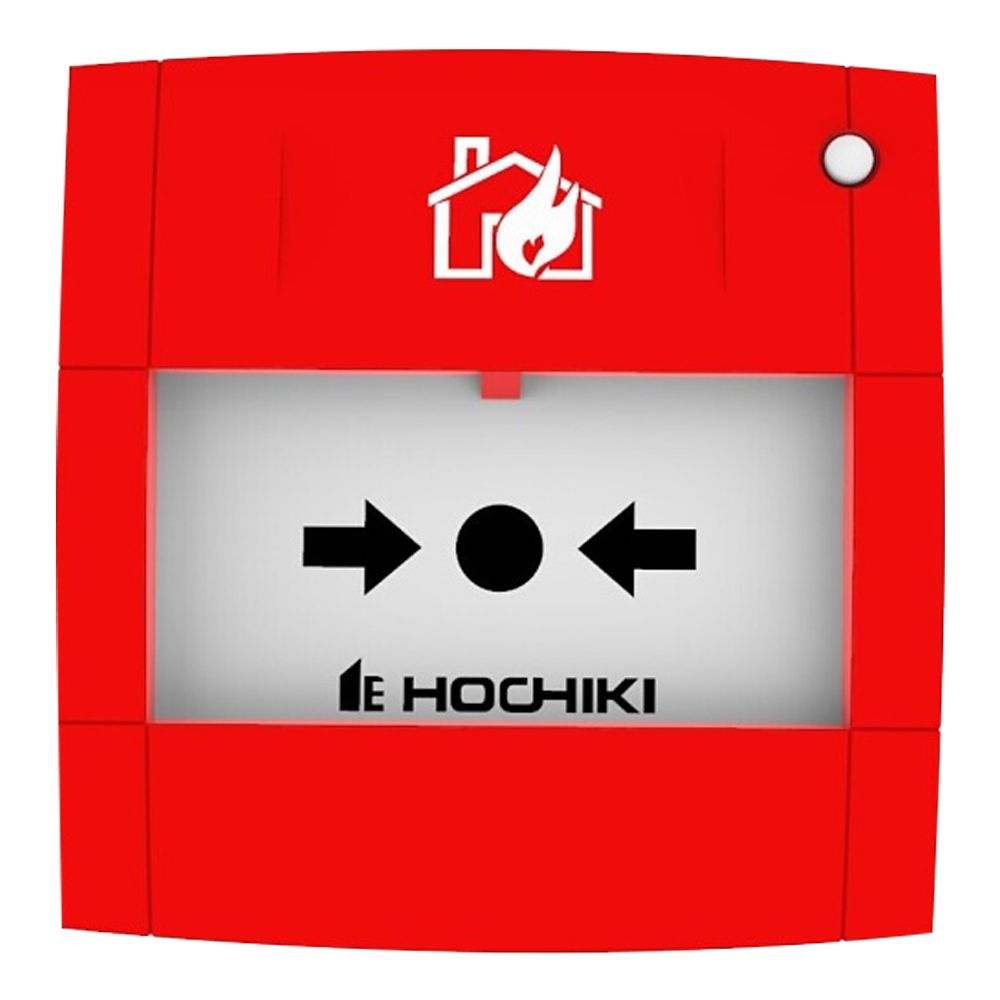

HOCHIKI Analog manual call point
Regular price
€63,90
Final price
Regular price
-6%
€68,22
Sale price
€63,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
HOCHIKI - Analogue manual call point - Hochiki ESP protocol - Integrated short-circuit isolator - Resettable via key - Dual-colour status LED
📋 SPECIFICATIONS:
• Model: HCP-E(SCI) - Addressable manual call point with short-circuit isolator
• Protocol: Hochiki ESP analogue addressable
• Standards / certifications: EN 54‑11 (manual call point), EN 54‑17 (isolator), LPCB approved
• Operating voltage: 17 – 41 V DC
• Standby current (typical): 250–350 µA (normal mode)
• Alarm current (typical): ≈ 5 mA (max. 10 mA)
• Activation element: EN 54 “fake brake” plastic, resettable with test key; glass optional
• LED indicator: Dual-colour red/amber (red: alarm/detection, amber: short-circuit)
• Short-circuit isolator: Integrated; typical threshold 430 Ω
• Transmission method: ESP digital communication over two-wire loop
• Operating temperature range: −10 °C to +50 °C
• Storage temperature range: −30 °C to +70 °C
• Maximum relative humidity: 95% non-condensing
• Protection rating: IP24 (standard indoor mounting)
• Address: Programming with TCH‑B100/TCH‑B200 Hand Held Programmer
• Connections: 2 terminal blocks for loop wiring
• Mounting: Flush-mount in standard box or wall-mount with optional SR box
• Approximate dimensions: 88 × 88 × 52 mm (depending on model)
• Housing colour / material: Red (other colour versions available); self-extinguishing ABS plastic
📦 INCLUDED:
• Analogue manual call point
| Model | HCP-E(SCI) - Addressable manual call point with short-circuit isolator |
|---|---|
| Protocol | Hochiki ESP analogue addressable |
| Standards / certifications | EN 54‑11 (manual call point), EN 54‑17 (isolator), LPCB approved |
| Operating voltage | 17 – 41 V DC |
| Standby current (typical) | 250–350 µA (normal mode) |
| Alarm current (typical) | ≈ 5 mA (max. 10 mA) |
| Activation element | EN 54 "fake brake" plastic, resettable with test key; optional glass |
| LED indicator | Dual-color red/amber (red: alarm/detection, amber: short-circuit) |
| Short-circuit isolator | Integrated; typical threshold 430 Ω |
| Transmission method | Digital ESP communication on two-wire loop |
| Operating temperature range | −10 °C to +50 °C |
| Storage temperature range | −30 °C to +70 °C |
| Maximum relative humidity | 95% non-condensing |
| Protection rating | IP24 (standard indoor mounting) |
| Address | Programming with TCH‑B100/TCH‑B200 Hand Held Programmer |
| Connections | 2 terminal blocks for loop wiring |
| Mounting | Flush in standard box or wall-mounted with optional SR box |
| Approximate dimensions | 88 × 88 × 52 mm (depending on model) |
| Housing color / material | Red (other color versions available); self-extinguishing ABS plastic |
