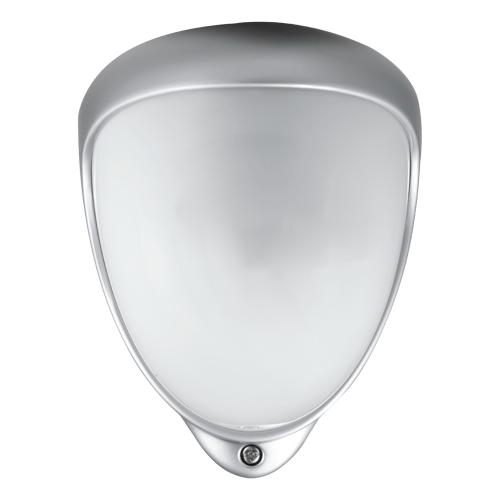

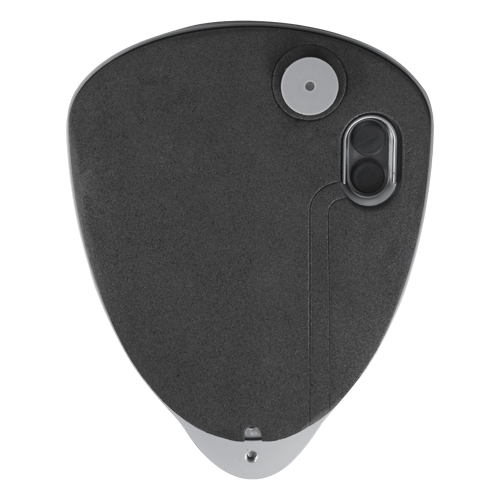

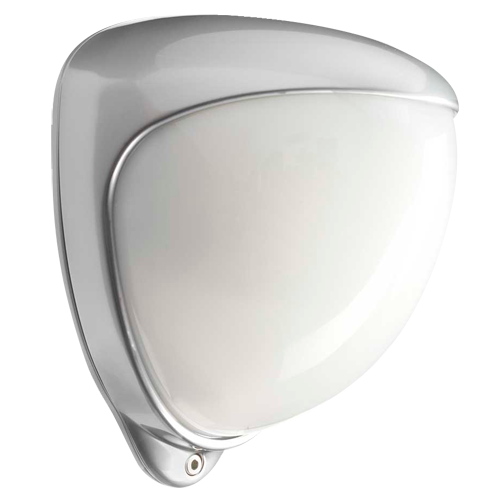

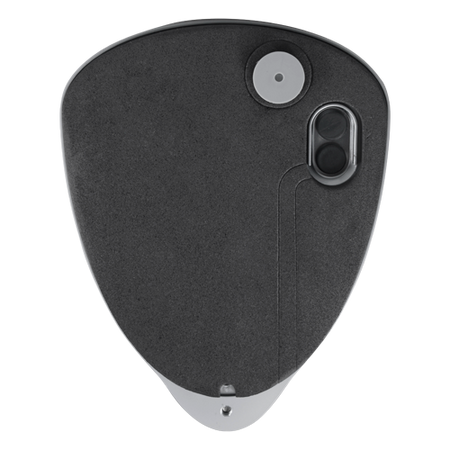

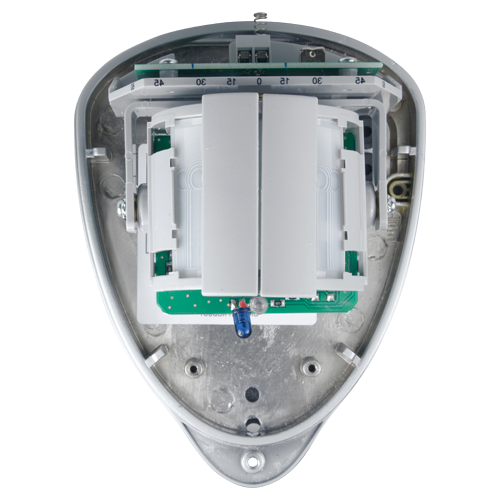

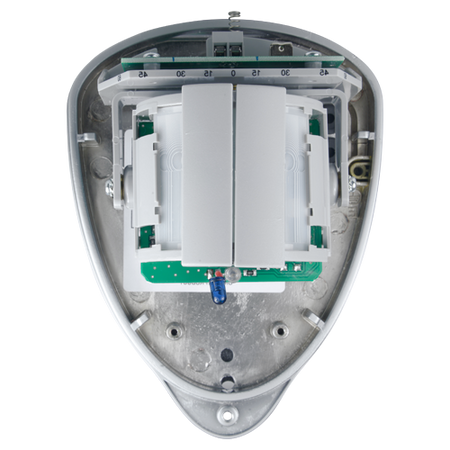

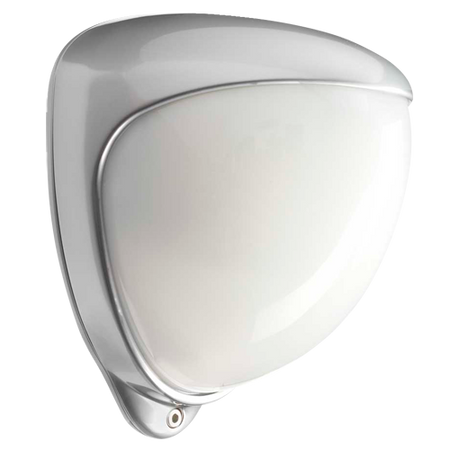

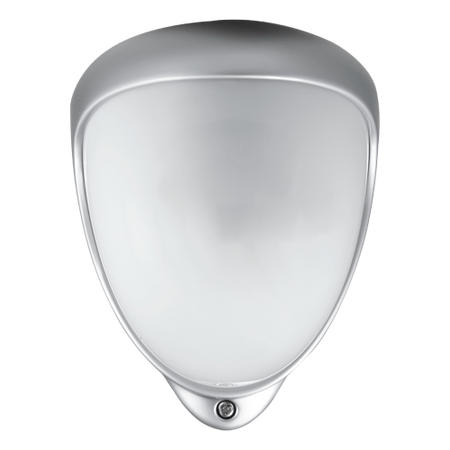

GJD outdoor PIR detector - Volumetric PIR - Adjustable detection range 10/20/30 m - High quality material - Power supply 9~15 VDC - Outdoor use
📋 SPECIFICATIONS:
• Brand: GJD
• Technology: Volumetric PIR
• PIR Lens: 28 per PIR
• Detection range: Adjustable: 10, 20 and 30 m / 10~70º

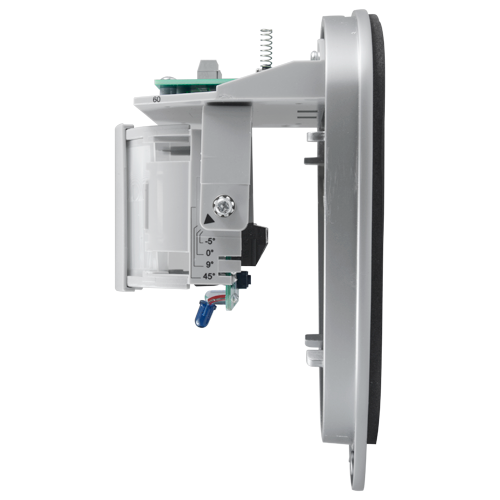

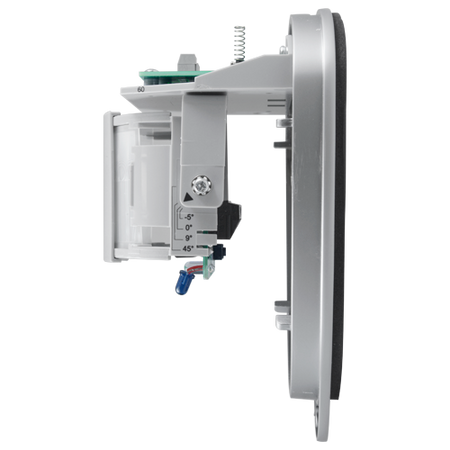

• Installation: Adjustable tilt: 180º H / 90º V
• Installation height: Recommended: 3 m / Maximum: 6 m
• Pet immunity: Available
• Masking: Not available
• Anti-tamper: Available
• LED indication: Alarm

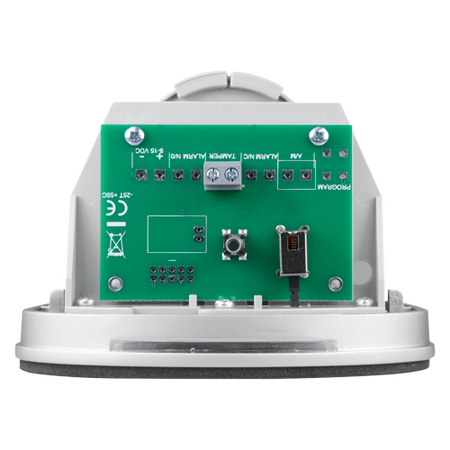

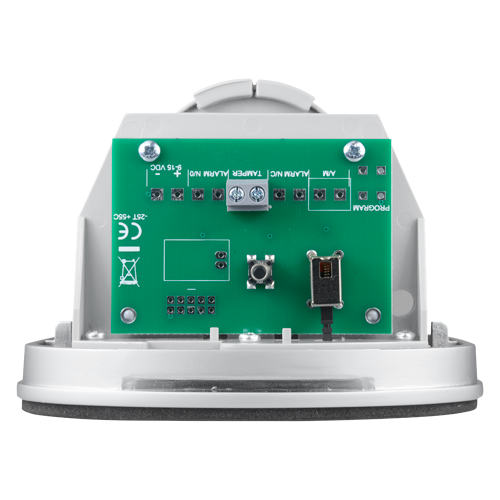

• DIP switch configuration: LED, detection range (10-20-30 m) and pulse counter (1 or 2)

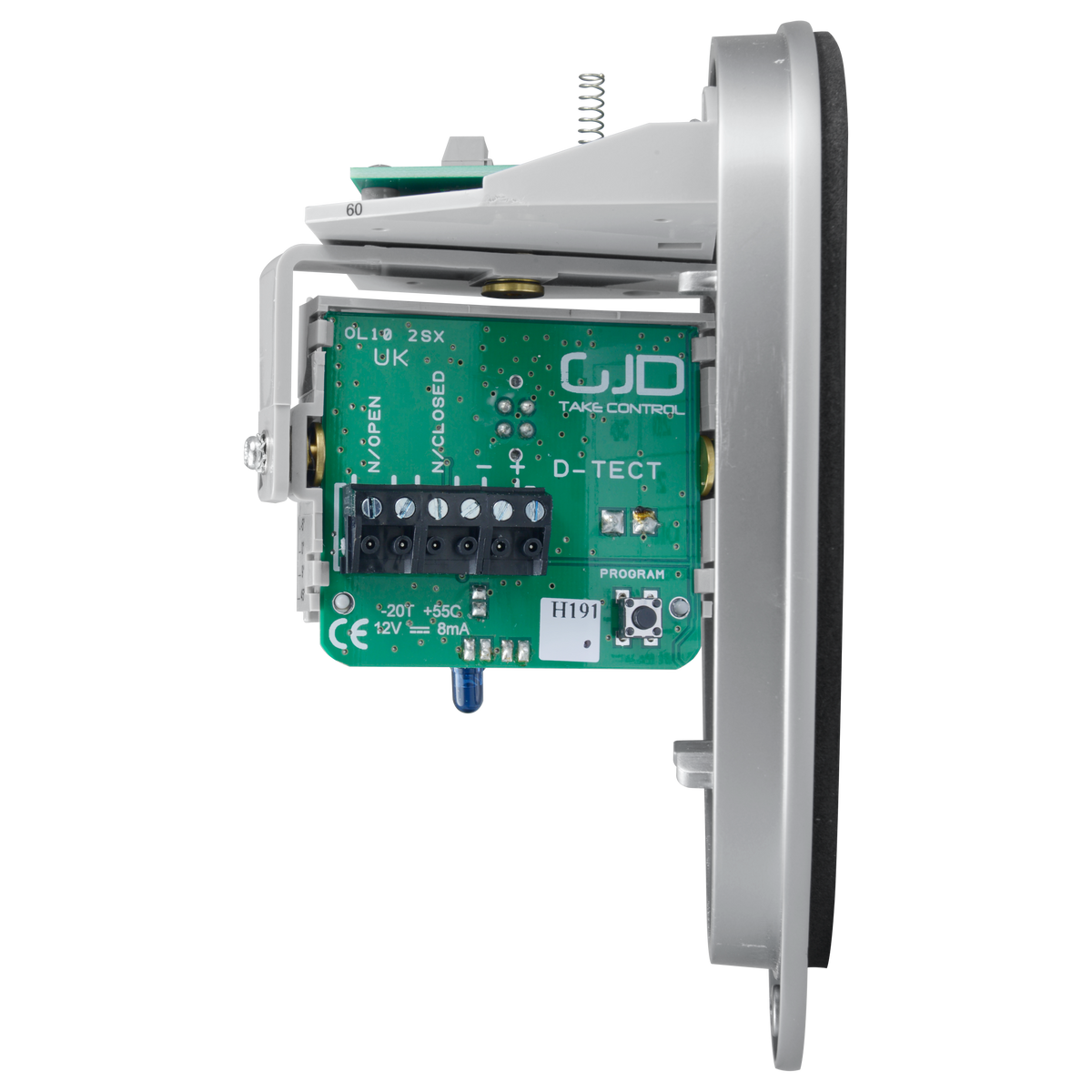

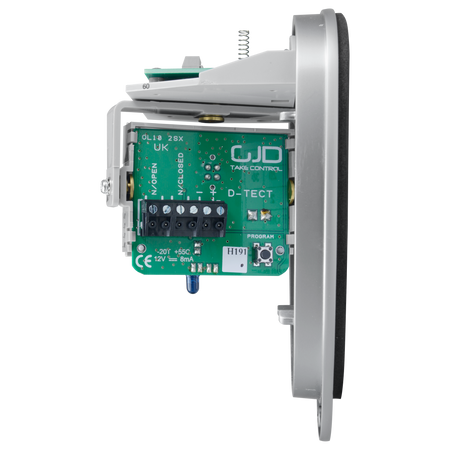

• Wired outputs: NC/NO Alarm and Tamper
• Power supply: 9 to 15 VDC
• Average consumption: 8 mA at 12 VDC
• Operating temp.: -20 ºC ~ 55 ºC
• Protection rating: IP65
• Housing material: High quality chrome-plated metal
• Dimensions: 145 (H) x 120 (W) x 115 (D) mm
• Weight: 740 g
📦 INCLUDED:
• Outdoor PIR detector• Instruction manual• Installation material
| Technology | Volumetric PIR |
|---|---|
| PIR lens | 28 per PIR |
| Detection range | Adjustable: 10, 20 and 30 m / 10~70º |
| Installation | Adjustable tilt: 180º H / 90º V |
| Installation height | Recommended: 3 m / Maximum: 6 m |
| Pet immunity | Available |
| Masking | Not available |
| Anti-tamper | Available |
| LED indication | Alarm |
| DIP switch configuration | LED, detection range (10-20-30 m) and pulse counter (1 or 2) |
| Wired outputs | NC/NO alarm and Tamper |
| Power supply | 9 to 15 VDC |
| Average consumption | 8 mA at 12 VDC |
| Operating temp. | -20 ºC ~ 55 ºC |
| Protection degree | IP65 |
| Cover material | High-quality chrome-plated metal |
| Dimensions | 145 (H) x 120 (W) x 115 (D) mm |
| Weight | 740 g |
