FRC2X25-100-C
FRC2X25-100-C

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

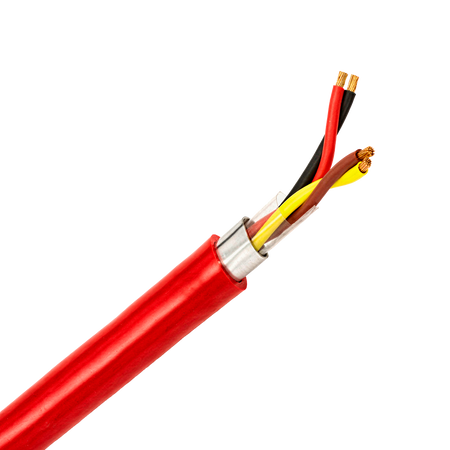

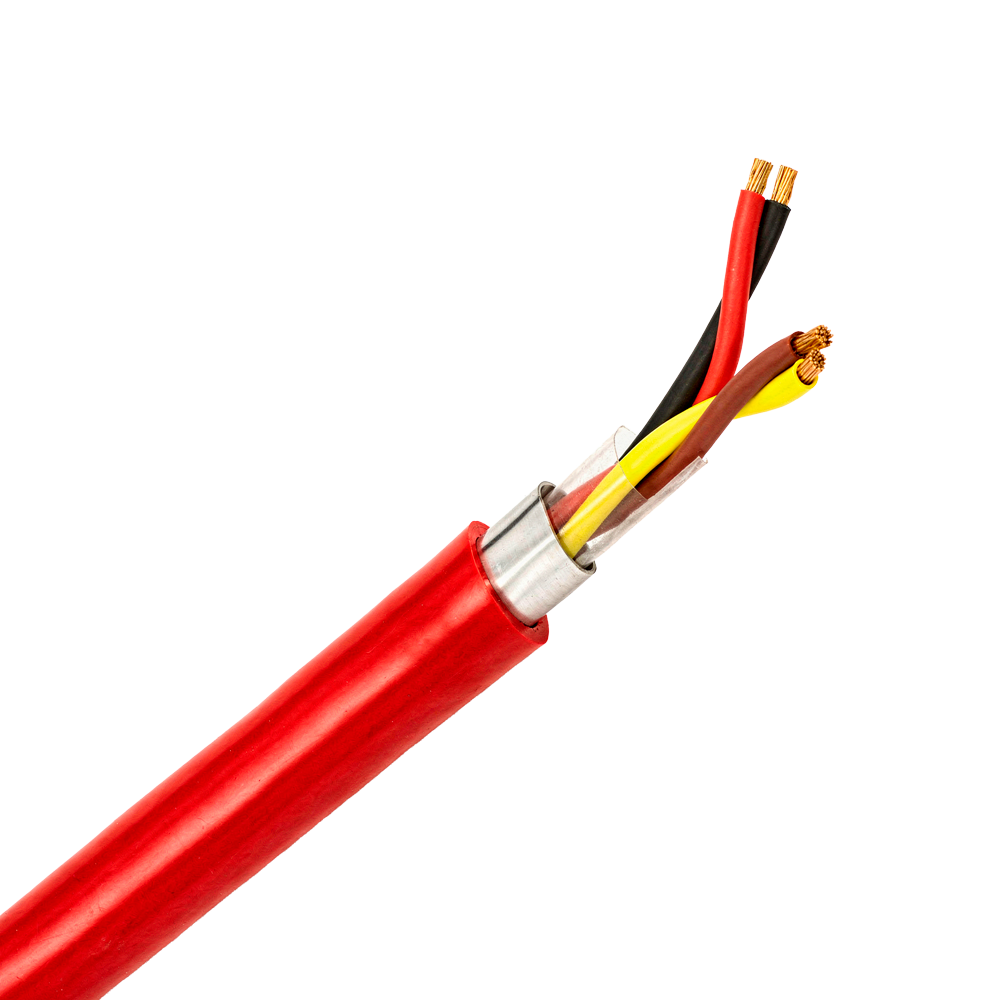

Shielded twisted cable reel - Fire resistance RF 120 minutes - 100-meter coil - 2x2x1

SKU: FRC2X25-100-C
(0)
In stock
Usually shipped within 24 hours
€370,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Shielded twisted cable coil - 120-minute fire resistance (RF) - 100-meter reel - 2x2x1.5 mm² copper conductor - CPR Certificate: Cca -s1a, d1, a1 - Resistance 8.3 Ω/Km

📋 SPECIFICATIONS:
• Length: 100 m
• Cross-section: 2x2x1.5 mm²
• Conductor: Flexible polished copper Class V according to UNE 60228 standard
• Insulation: Special RF Silicone elastomer CR1
• Fire resistance performance: Structural resistance to fire exposure RF 120 minutes; Service resistance to fire exposure PH 90 minutes
• Shield: Shielding with aluminum Mylar tape with flexible drain wire (Cu Sn)
• Sheath: Halogen-free polyolefin (Z1) LSH0 in color: Red. Outer sheath Ø: 7.8 / 8.3 / 9.1
• Twisted pair: ≤ 25 Turns/m
• Operating voltage: 300V/500V
• Capacitance: 86 pF/m
• Characteristic impedance: 90 Ω +/-10%
• Conductor Resistance Ω: 20/14.3/9.2 Ω/Km
• Insulation resistance: MΩ/100m = 300
• Propagation speed: < 70% 120’ AT 850º acc. to UNE 50200 test (CEL 1009/19.1), 120’ AT 800º acc. to UNE 60331 test (APPLUS 22/32301471)
• Operating temperature: -20/+90
• Test voltage: 2000 V DC > 1 Min
• Certification: CPR: Cca -s1a, d1, a1, UNE EN 50200, UNE EN 21025, UNE EN 50575, UNE EN 13501-6, IEC 60332-1-2, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60331 FE 180, RoHS Directive

📦 INCLUDED:
• Cable coil
Length 100 m
Section 2x2x1.5 mm2
Conductor Class V bright flexible copper according to UNE 60228 standard
Insulation Special RF Silicone CR1 elastomer
Fire resistance performance Constructive resistance to fire exposure RF 120 minutes, Operational resistance to fire exposure PH 90 minutes
Shield Aluminium Mylar tape shielding with flexible drain wire (Cu Sn)
Sheath Halogen-free polyolefin (Z1) LSH0, colour: Red, External sheath Ø: 7.8 / 8.3 / 9.1
Twisted pair ≤ 25 turns/m
Working voltage 300V/500V
Capacitance 86 pF/m
Characteristic impedance 90 Ω +/-10%
Conductor resistance Ω 20/14.3/9.2 Ω/Km
Insulation resistance MΩ/100mts = 300
Propagation speed &lt; 70% 120’ at 850º s/test UNE 50200 (CEL 1009/19.1), 120’ at 800º s/test UNE 60331 (APPLUS 22/32301471)
Operating temperature -20/+90
Test voltage 2000 V DC &gt; 1 Min
Certification CPR: Cca -s1a, d1, a1, UNE EN 50200, UNE EN 21025, UNE EN 50575, UNE EN 13501-6, IEC 60332-1-2, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60331 FE 180, RoHS Directive
