FRC15-100-C
FRC15-100-C

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

Elettricity

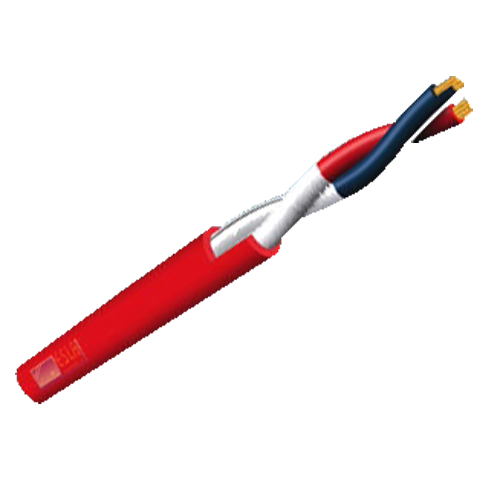

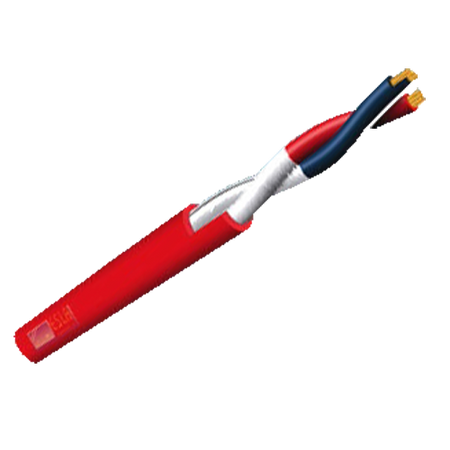

Coil of shielded twisted pair cable - Fire resistance RF 120 minutes - 100-meter reel - 13.9 Ω/km

SKU: FRC15-100-C
(0)
In stock
Usually shipped within 24 hours
€177,55 Final price
-5% €186,00 €177,55 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Shielded twisted cable coil - Fire resistance RF 120 minutes - 100-meter spool - 2x1.5mm2 copper conductor [%VAR%] - CPR Cca -1sb, a1, d1 certified - EN 50575 certified - Resistance 13.9 Ω/Km

📋 SPECIFICATIONS:
• Length: 100 m
• Conductor: Flexible polished copper Class 5 1.5mm2
• Insulation: Fire-resistant ceramic silicone CR1 2.8mm
• Fire resistance performance: Structural resistance to fire exposure RF 120 minutes; Service resistance to fire exposure PH 90 minutes
• Colors: Red and black - more than 25 twists/meter
• Shield: Aluminum Mylar tape for assembly / 96% RFI coverage / CuSn drain wire 7x0.20
• Sheath: Halogen-free EVA polyolefin 7-7.4mm
• Resistance: 13.9 Ω/Km
• Working voltage: 500V
• Capacitance: 98 pF/m
• Working temperature: -40º ~ +70º
• Certification: CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2

📦 INCLUDED:
• Cable coil
Length 100 m
Conductor Class 5 flexible bright copper 1.5mm2
Insulation Fire-resistant ceramic silicone CR1 2.8mm
Fire resistance performance Constructive fire resistance RF 120 minutes, operational fire resistance PH 90 minutes
Colors Red and black - more than 25 twists/meter
Shield Aluminum Mylar tape for assembly / 96% coverage RFI / CuSn drain wire 7x0.20
Sheath Halogen-free EVA polyolefin 7-7.4mm
Resistance 13.9 Ω/Km
Operating voltage 500V
Capacitance 98 pF/m
Operating temperature -40º ~ +70º
Certification CPR (Cca -s1b, a1, d1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2

Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.

For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.

The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
