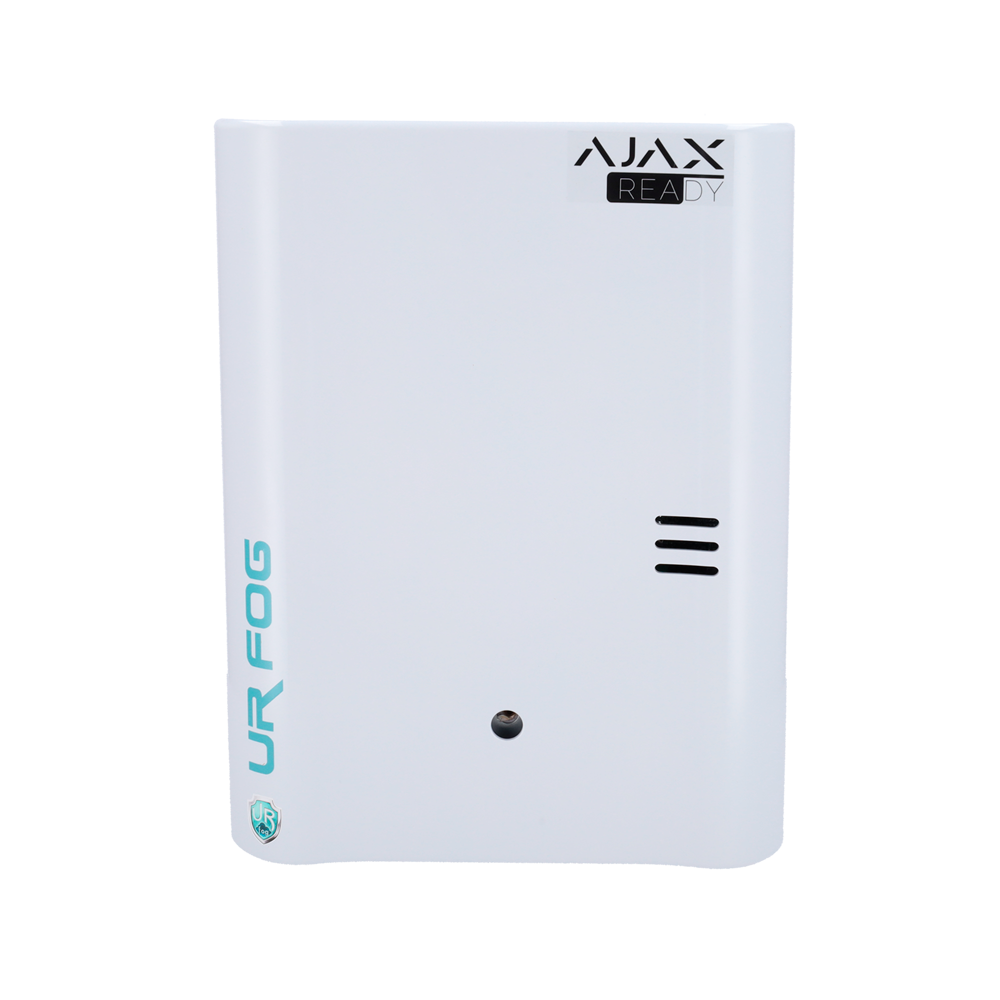

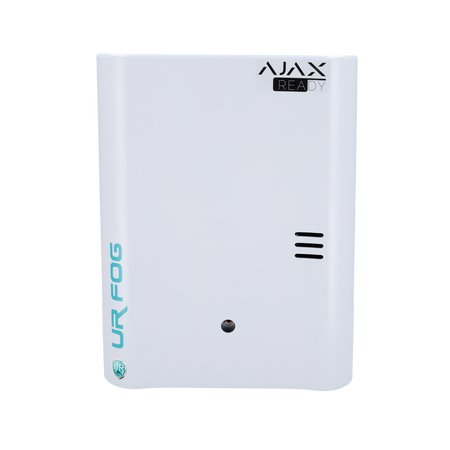

URFOG Ajax Ready Modular Gamma Fog Generator - Up to 200 m3 with zero visibility
URFOG Ajax Ready Modular Gamma Fog Generator - Up to 200 m3 with zero visibility
Regular price
€1.383,48
Final price
Regular price
-6%
€1.470,00
Sale price
€1.383,48
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

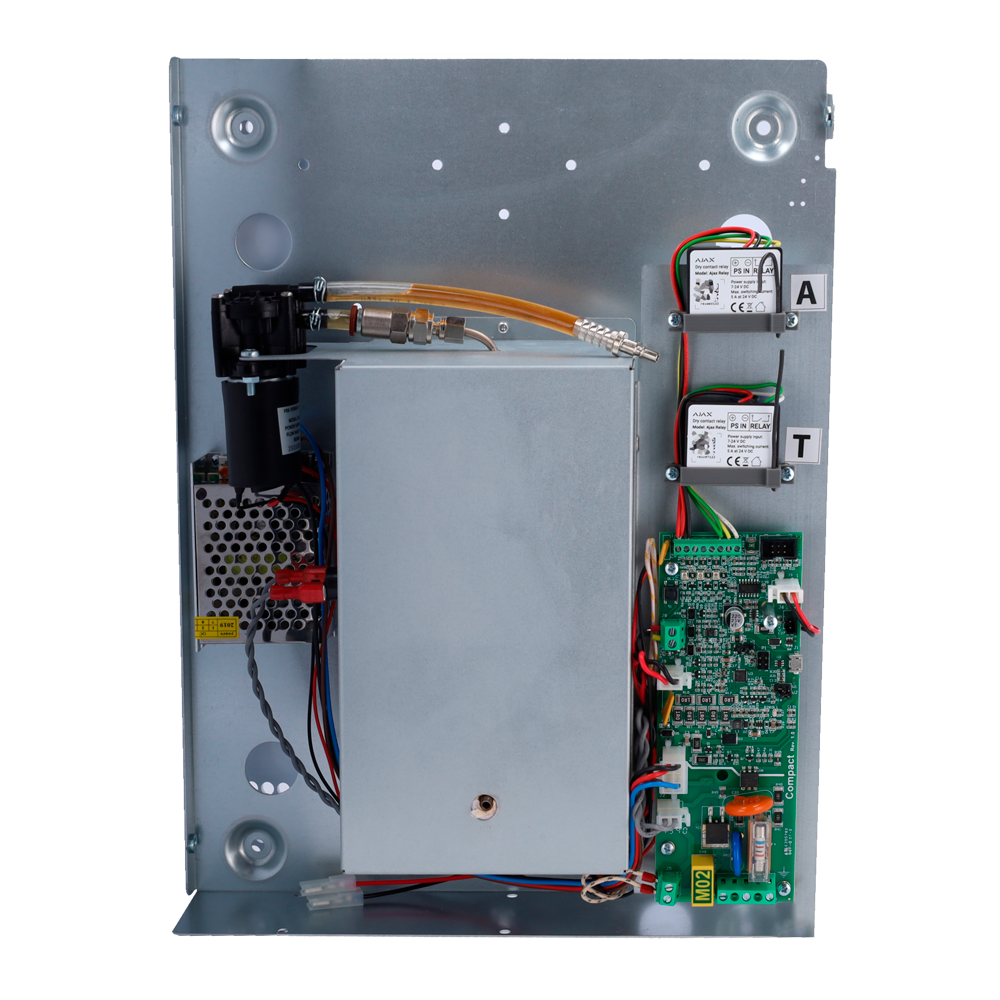

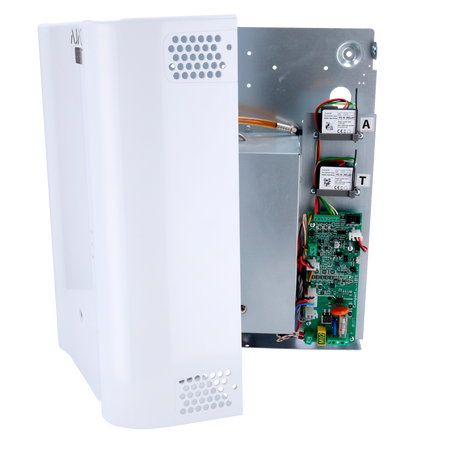

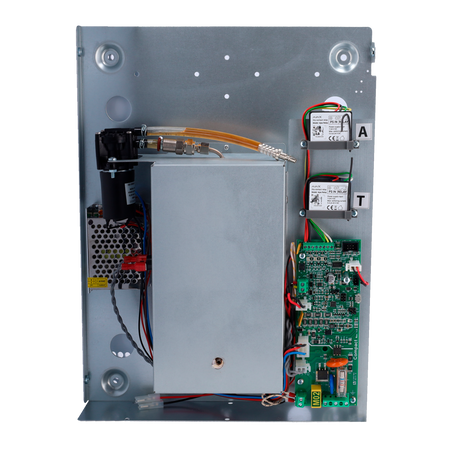

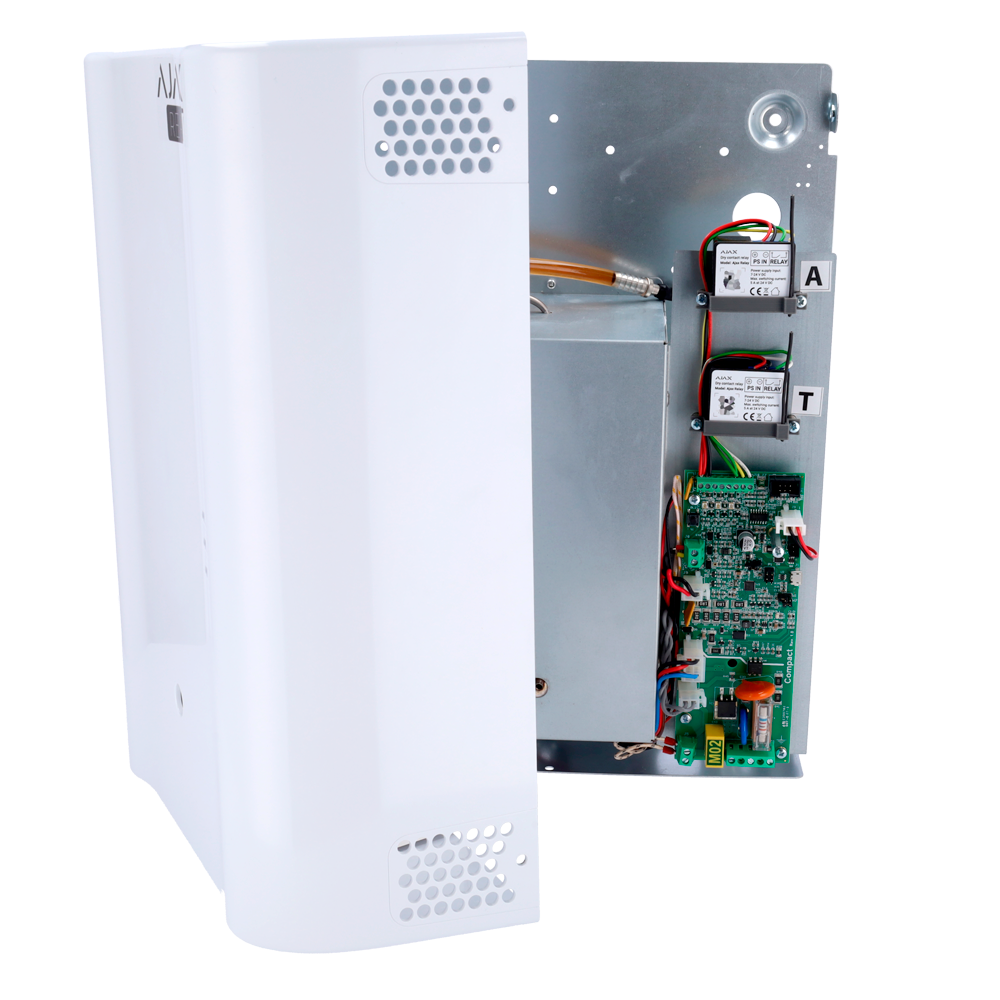

URFOG Ajax Ready - Modular Gamma Fog Generator - 2 integrated Ajax relays (arming and firing) - Up to 200 m3 with zero visibility - Very low energy consumption - Leaves no residue after firing
📋 SPECIFICATIONS:
• Brand: URFOG

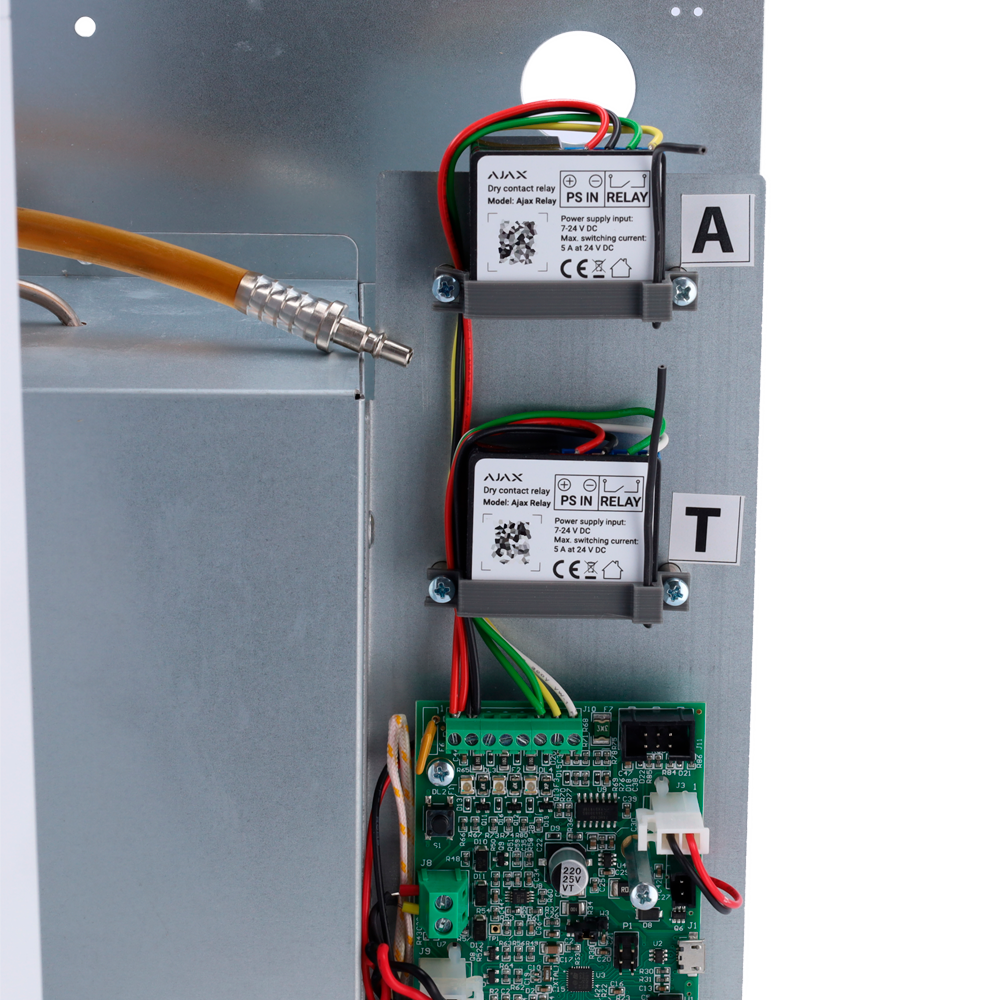

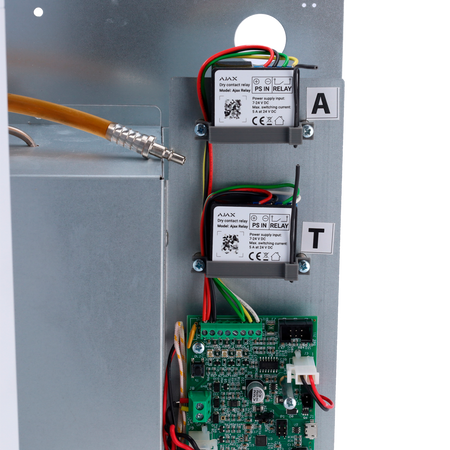

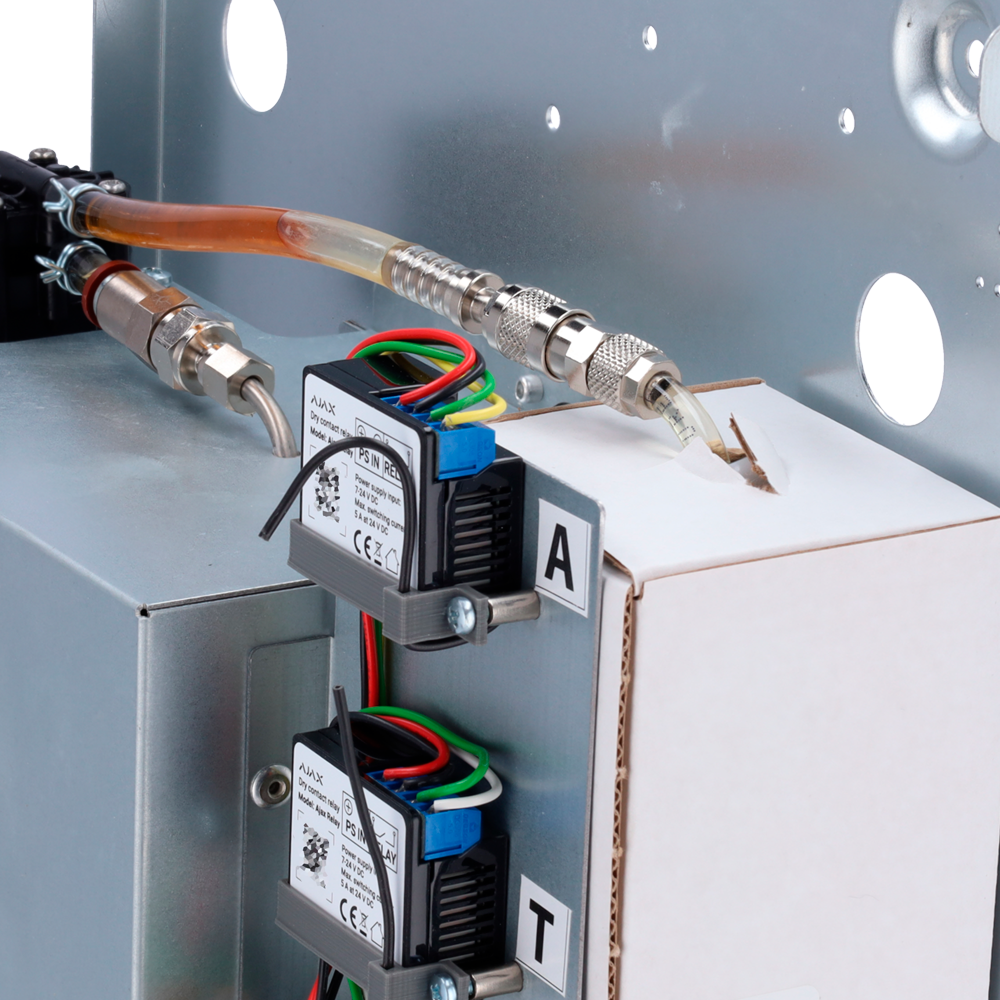

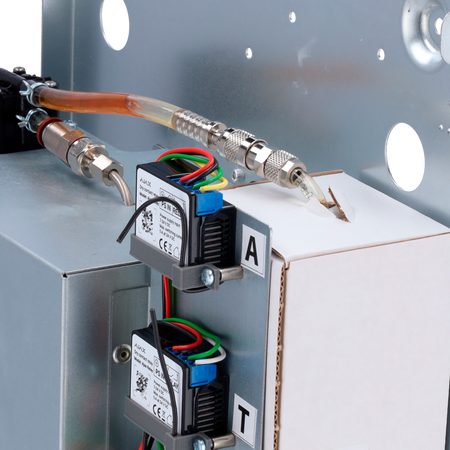

• Ajax relays: 2 units pre-installed (for arming and firing)
• Fog coverage: 600 m3 (1 meter visibility); 200 m3 (zero visibility)
• Total fog emission time: Configurable up to 28 seconds
• Total dispensing time: 2 minutes
• Total discharge volume: 2550 m3 (1 meter visibility); 850 m3 (zero visibility)
• Tank capacity: 0.5 L
• Replacement module: Easy-to-install disposable bag
• Heating time (100%): < 60 min
• Reaction time: 200ms
• Inputs: 1 Armed / 1 Firing
• Outputs: Fault, Liquid, and 12V@0.3A
• Power supply: AC 220 V
• Nominal power consumption during heating / standby: 170 W / 37W
• Backup battery: 12V/2Ah (not included) / 60' of backup operation without primary power
• Dimensions: 390 (W) x 300 (H) x 130 (D) mm
• Weight: 7.5 Kg with full tank
• Installation type: Vertical or horizontal
📦 INCLUDED:
• URFOG fog generator• Operating and installation instructions• 2 Ajax relays• 1 liquid refill
| Ajax relay | 2 units already installed (for arming and firing) |
|---|---|
| Fog coverage | 600 m3 (1 meter of visibility) 200 m3 (zero visibility) |
| Total fog emission time | Configurable up to 28 seconds |
| Total discharge time | 2 minutes |
| Total discharge volume | 2550 m3 (1 meter of visibility) 850 m3 (zero visibility) |
| Tank capacity | 0.5 L |
| Replacement module | Easy-to-install disposable bag |
| Warm-up time (100%) | < 60 min |
| Reaction time | 200ms |
| Inputs | 1 Armed / 1 Firing |
| Outputs | Error, Liquid and 12V@0.3A |
| Power supply | AC 220 V |
| Nominal power consumption at startup / standby | 170 W / 37 W |
| Backup battery | 12V/2Ah (not included) / 60' of backup operation without primary power |
| Dimensions | 390 (W) x 300 (H) x 130 (D) mm |
| Weight | 7.5 kg with full tank |
| Installation type | Vertical or horizontal |
- User manual Link
