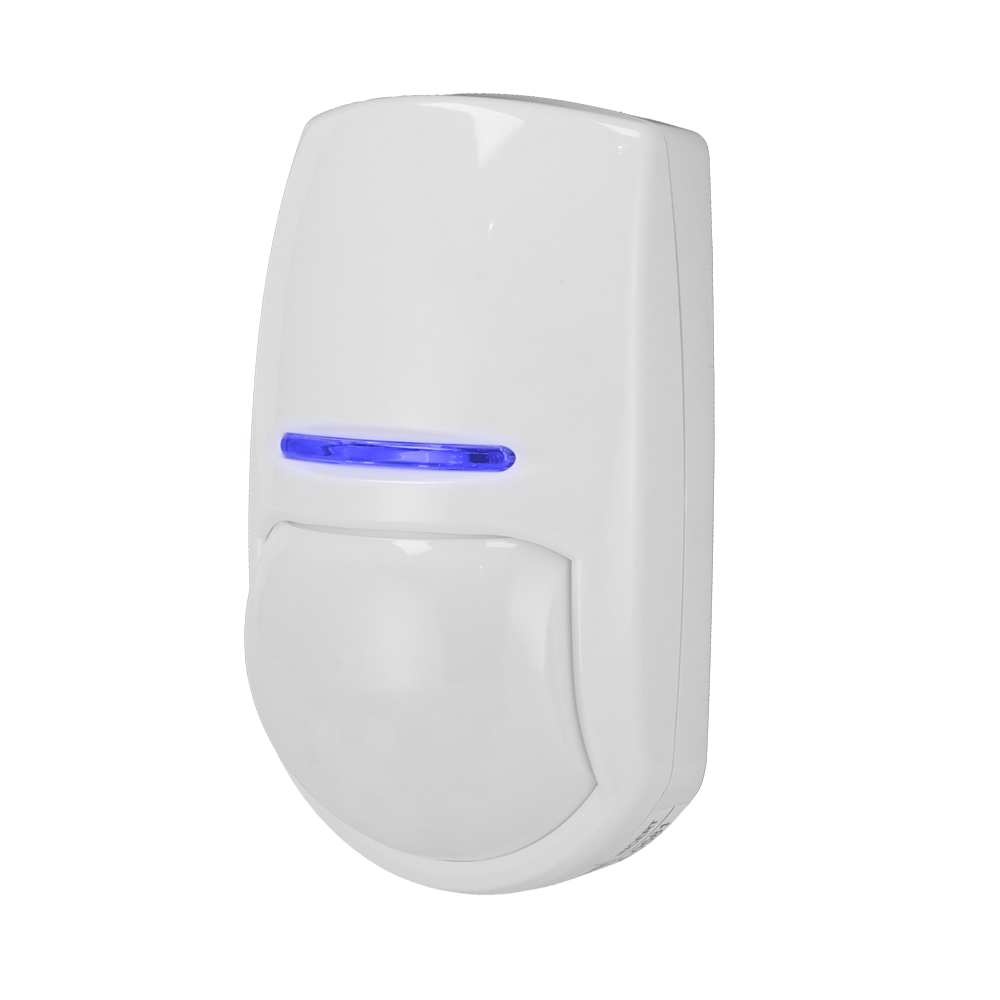

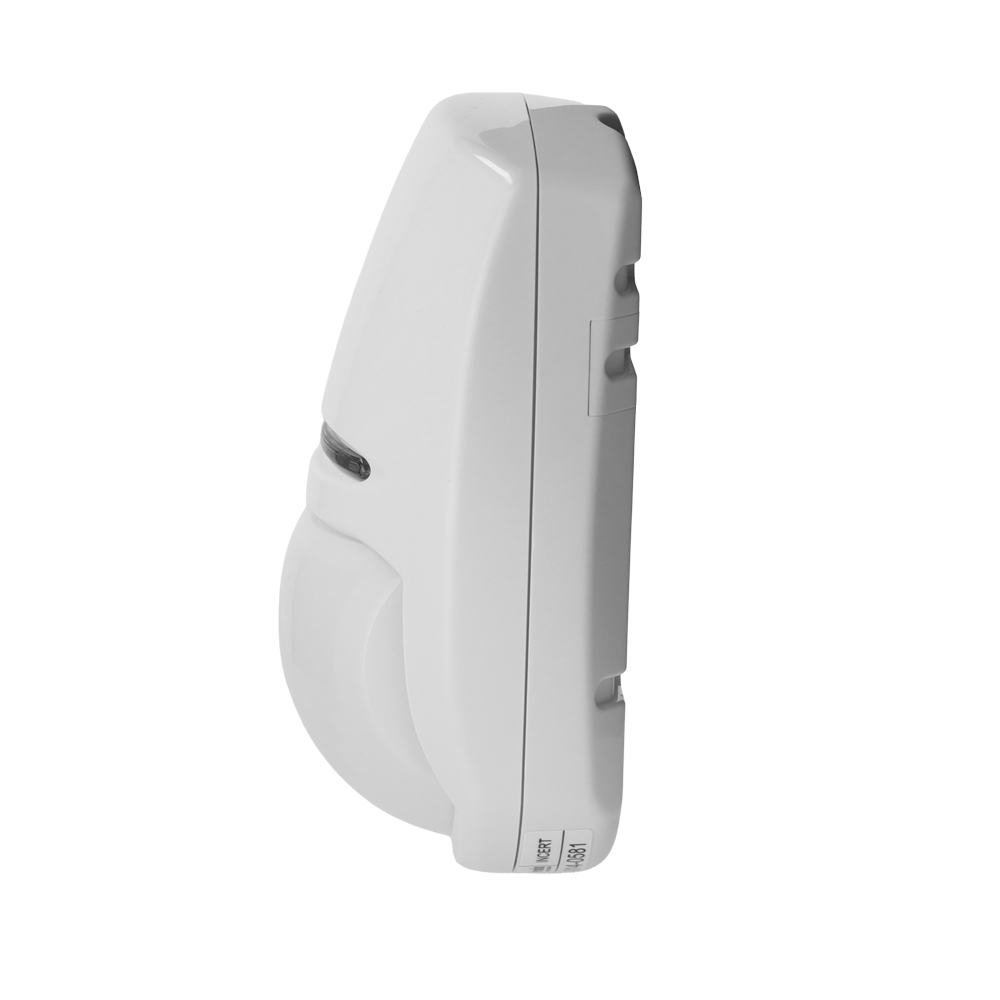

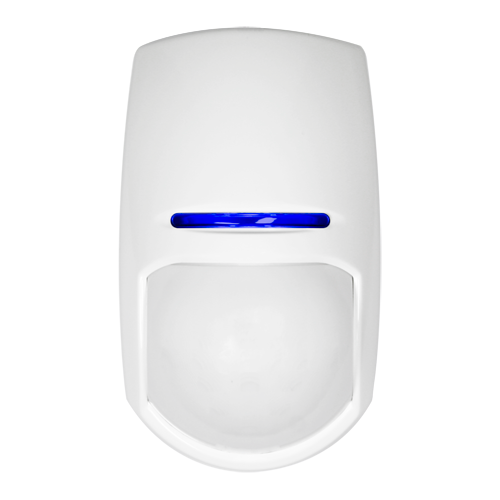

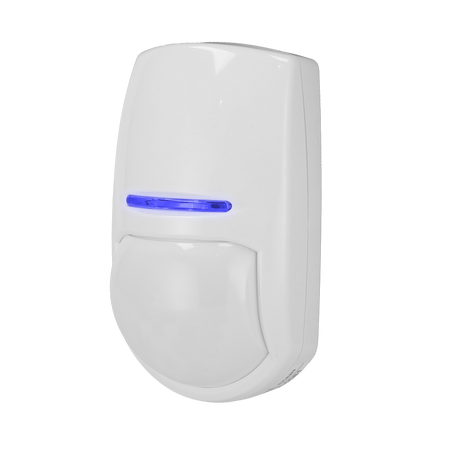

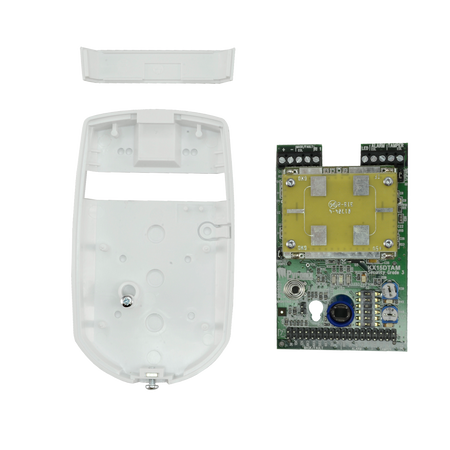

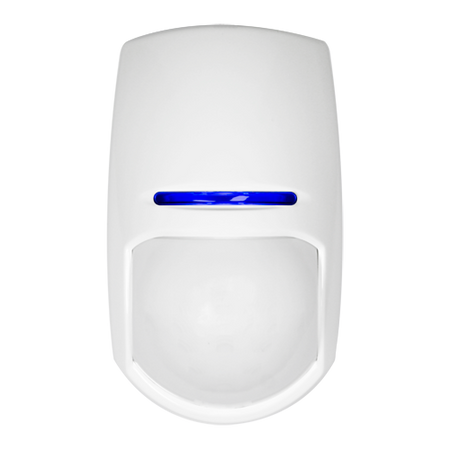

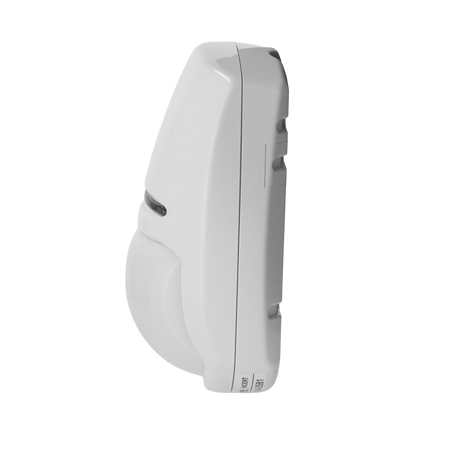

KX15DTAM Pyronix dual technology PIR detector
Regular price
€62,95
Final price
Regular price
-3%
€65,20
Sale price
€62,95
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
KX15DTAM - Dual technology PIR detector - Anti-masking function - Suitable for indoor use - 1 Infrared PIR, 1 Microwave - Grade 3 wiring - Detection range 15/18/30 m
📋 SPECIFICATIONS:
• Brand: Pyronix
• Technology: 1 x PIR + 1 x Microwave with AND/OR function
• PIR lens: 3 lenses available 1/2/3: 60/24/46 zones and 7/6/6 planes

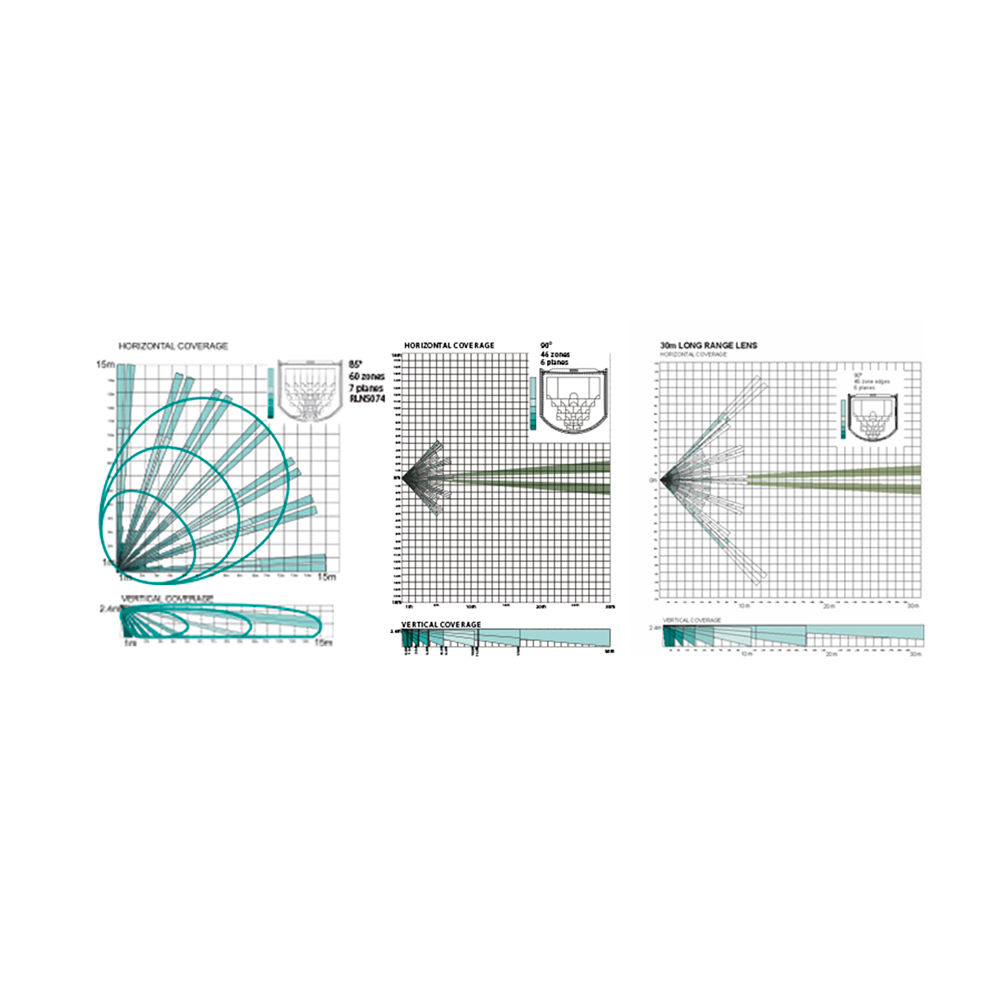

• Detection range: 15/18/30 m at 85º/20º/90º for installation height = 2.4/4/2.4 m
• Pet immune: Not available
• Masking: Adjustable from 0 to 1 m
• Sensitivity: Automatically adjustable or pulse count 1
• Detection speed: 0.25~2.5 m/s
• Relay output: DC 60 V / 50 mA
• Tamper switch: DC 12 V / 50 mA
• Power supply: DC 9~16 V / 13~16 mA @ DC 12 V
• Operating temp.: -30º C ~ 70º C
• Dimensions (without bracket): 114 (H) x 67 (W) x 47 (D) mm
📦 INCLUDED:
• Indoor PIR detector• - 2 wall plugs and 2 mounting screws• - Additional optics• - Rear support tamper• - Wall and ceiling brackets• - Instruction manual
| Technology | 1 x PIR + 1 x Microwave with AND/OR function |
|---|---|
| PIR lens | 3 available lenses 1/2/3: 60/24/46 Zones and 7/6/6 planes |
| Detection range | 15/18/30 m in 85º/20º/90º for installation H = 2.4/4/2.4 m |
| Pet immune | Not available |
| Masking | Adjustable from 0 to 1 m |
| Sensitivity | Automatically adjustable or Pulse Count 1 |
| Detection speed | 0.25~2.5 m/s |
| Relay output | DC 60 V / 50 mA |
| Tamper switch | DC 12 V / 50 mA |
| Power supply | DC 9~16 V / 13~16 mA @ DC 12 V |
| Operating temp. | -30º C ~ 70º C |
| Dimensions (without bracket) | 114 (H) x 67 (W) x 47 (D) mm |
