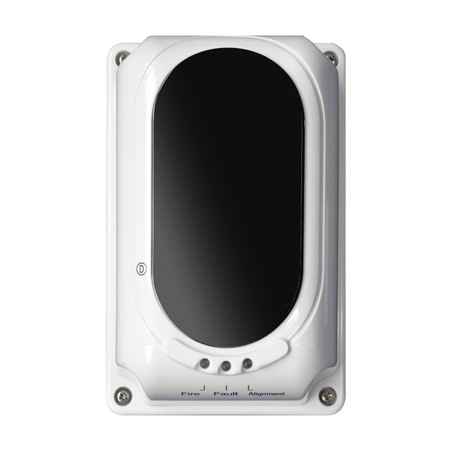

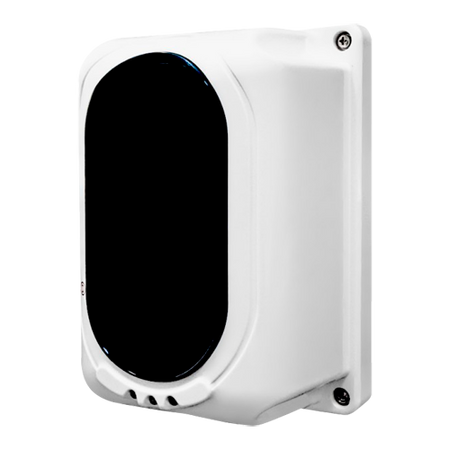

Neutral infrared fire barrier
Regular price
€288,23
Final price
Regular price
-10%
€320,00
Sale price
€288,23
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

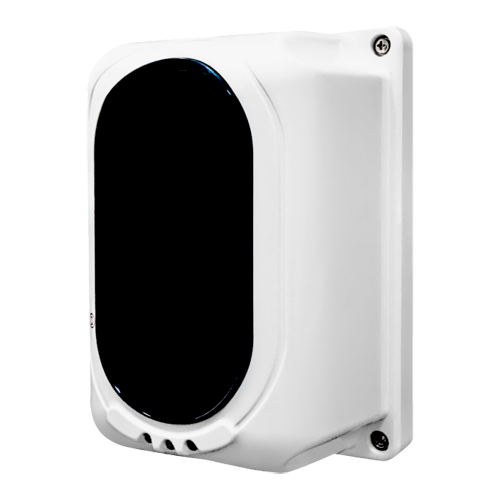

Infrared fire barrier - Range up to 100 meters - Display and laser pointer for easy installation - 14-meter coverage (7 on each side) - Adjustable sensitivity - EN54-12:2015 certified
📋 SPECIFICATIONS:
• Certification: LPCB / CE-CPR; EN54-12:2015; BS 5839 Part1:2017
• Coverage distance: Mode 1: 8 - 20 m (1 reflective panel required); Mode 2: 20 - 40 m (1 reflective panel required); Mode 3: 40 - 70 m (4 reflective panels required); Mode 4: 70 - 100 m (4 reflective panels required)
• Sensitivity: Level 1: 2.6dB (High sensitivity); Level 2: 3.8dB (Medium sensitivity); Level 3: 5.8dB (Low sensitivity)

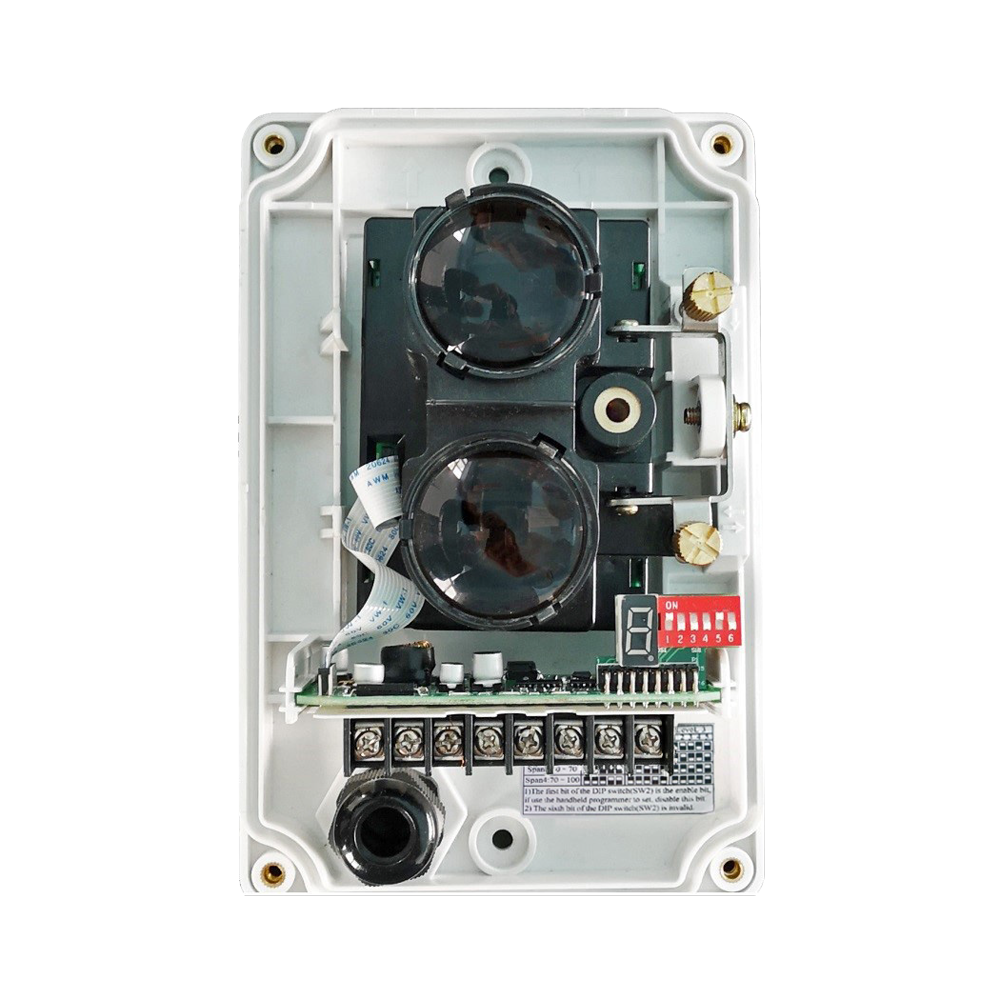

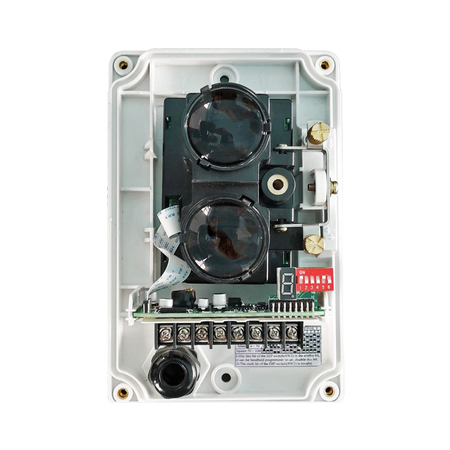

• Configuration: Via DIP switch
• Alignment guide: Laser pointer

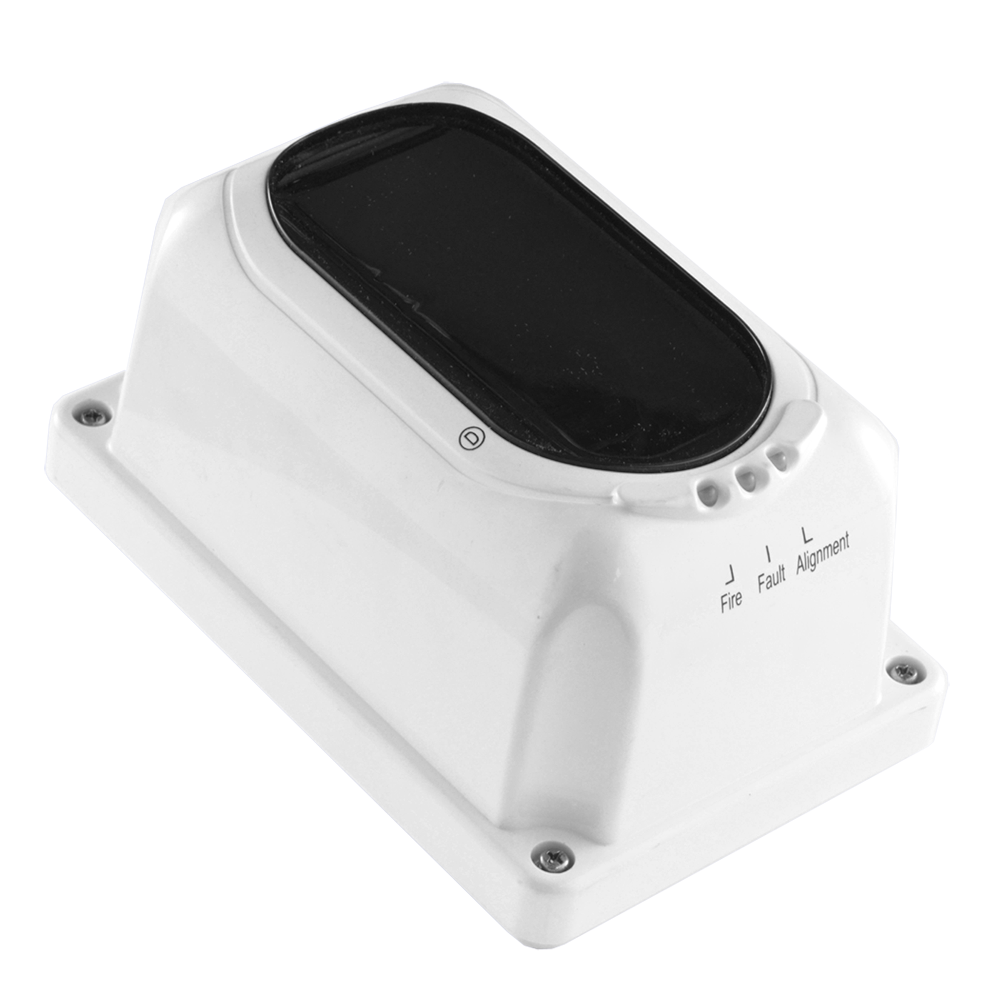

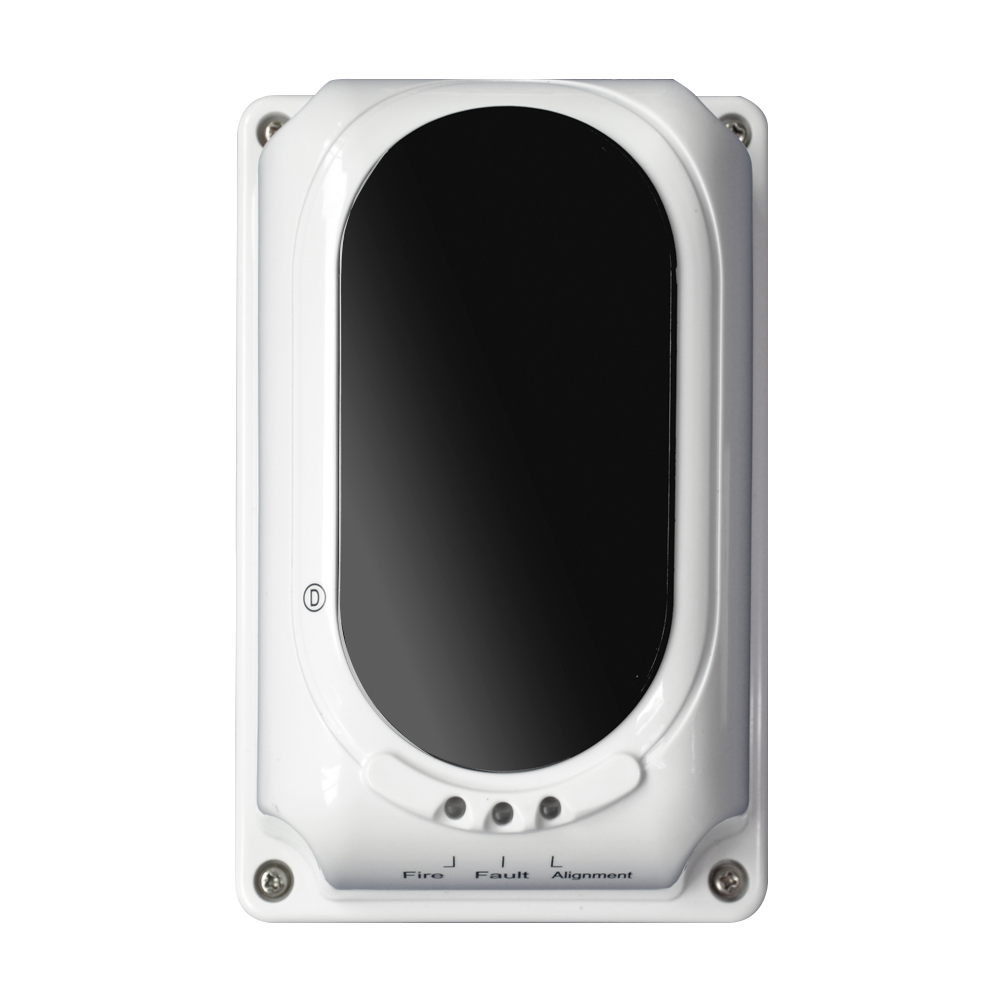

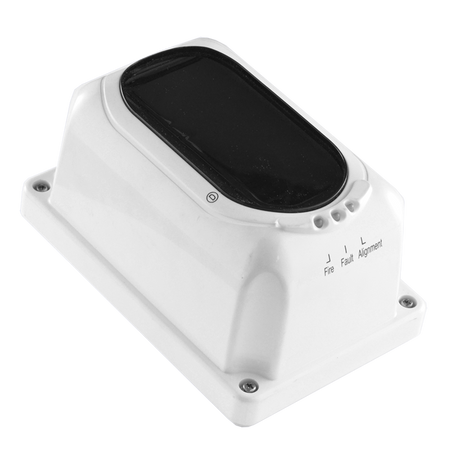

• Indicators: Via display for configuration and via LED for faults (Red: fire / Yellow: fault / Green: aligned)
• Reset time: Less than 2 seconds without power
• Relay: 2 relays (fire and fault) NO/NC, 30VDC/2A max.
• Power supply: 20-28 VDC
• Consumption: Standby: 23mA; Alarm: 33mA
• Dimensions: W:190.87 x L:126.87 x H:91.96 mm
• Weight: 440g
• Material: ABS plastic
• Protection rating: IP30
• Temperature range: -10~55ºC
• Humidity: 0~95% relative humidity, non-condensing
📦 INCLUDED:

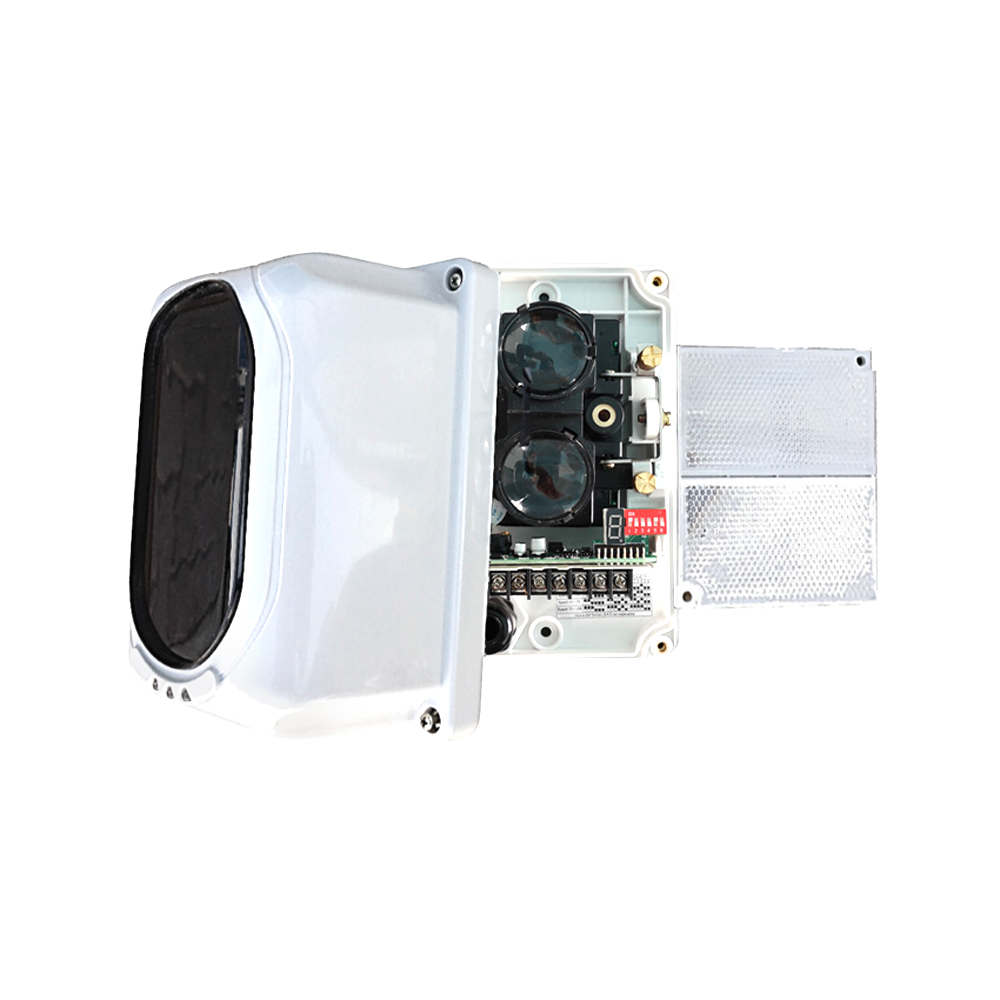

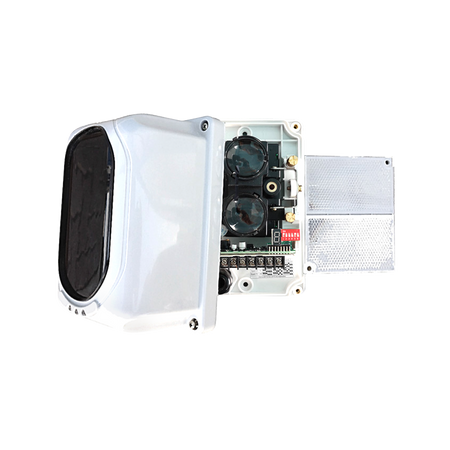

• Infrared barrier• 4 reflective panels• Configuration manual• Installation material
| Certification | LPCB / CE-CPR EN54-12:2015 BS 5839 Part1:2017 |
|---|---|
| Coverage distance | Mode 1: 8 - 20 m (1 reflector required) Mode 2: 20 - 40 m (1 reflector required) Mode 3: 40 - 70 m (4 reflectors required) Mode 4: 70 - 100 m (4 reflectors required) |
| Sensitivity | Level 1: 2.6dB (High sensitivity) Level 2: 3.8dB (Medium sensitivity) Level 3: 5.8dB (Low sensitivity) |
| Configuration | Via DIP Switch |
| Alignment guide | Laser pointer |
| Indications | Via display for configuration and via LEDs for faults (Red: fire / Yellow: fault / Green: aligned) |
| Reset time | Less than 2 seconds without power |
| Relays | 2 relays (fire and fault) NO/NC, 30VDC/2A max. |
| Power supply | 20-28 VDC |
| Consumption | Standby: 23mA Alarm: 33mA |
| Dimensions | L:190.87 x W:126.87 x H:91.96 mm |
| Weight | 440g |
| Material | ABS plastic |
| Protection rating | IP30 |
| Temperature range | -10~55ºC |
| Humidity | 0~95% relative humidity, non-condensing |
- User manual Link
