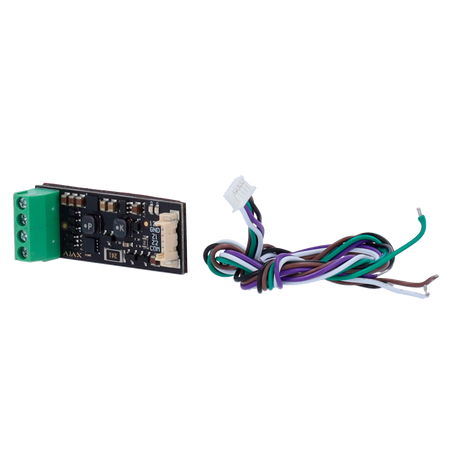

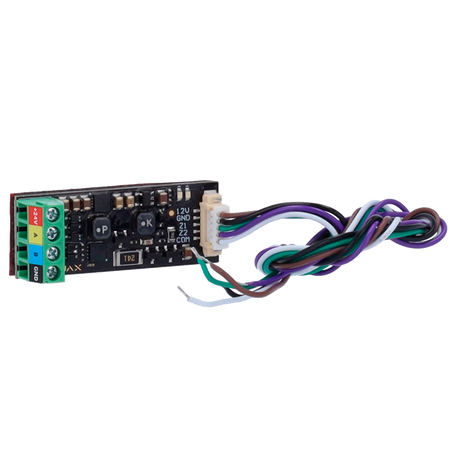

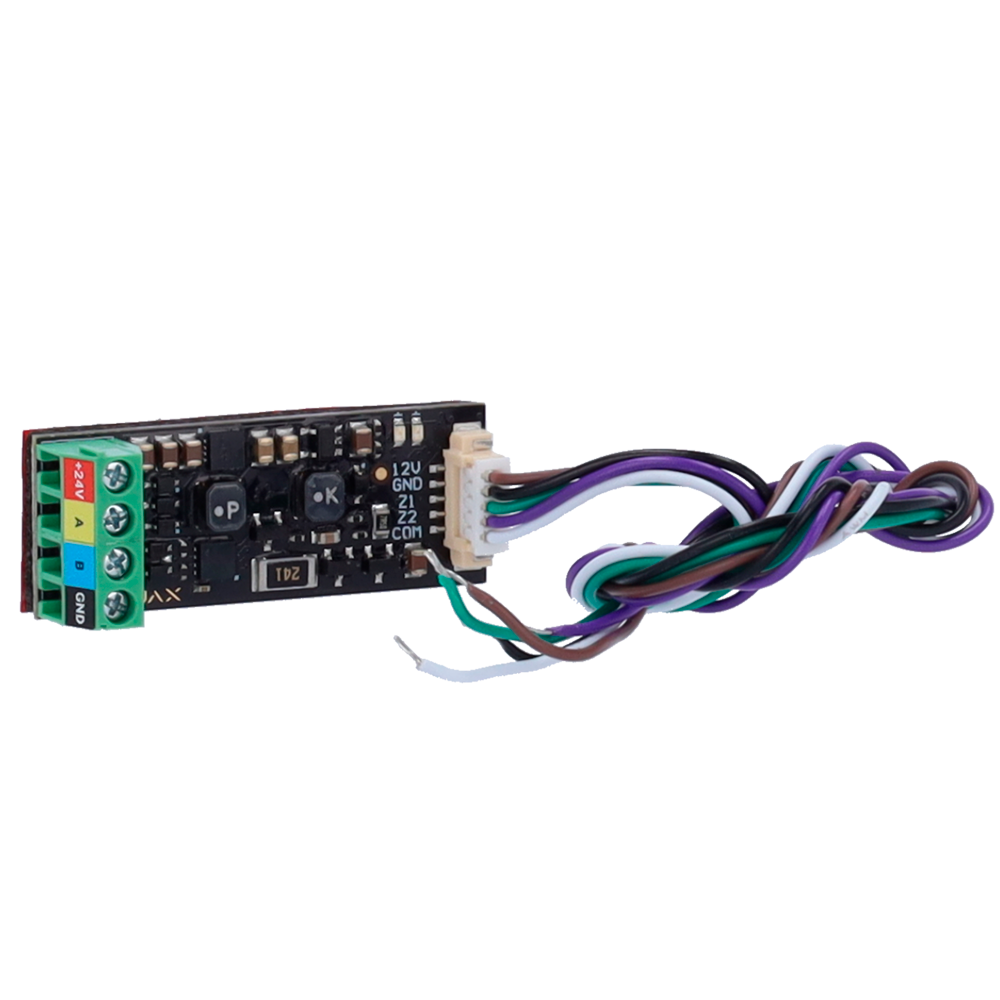

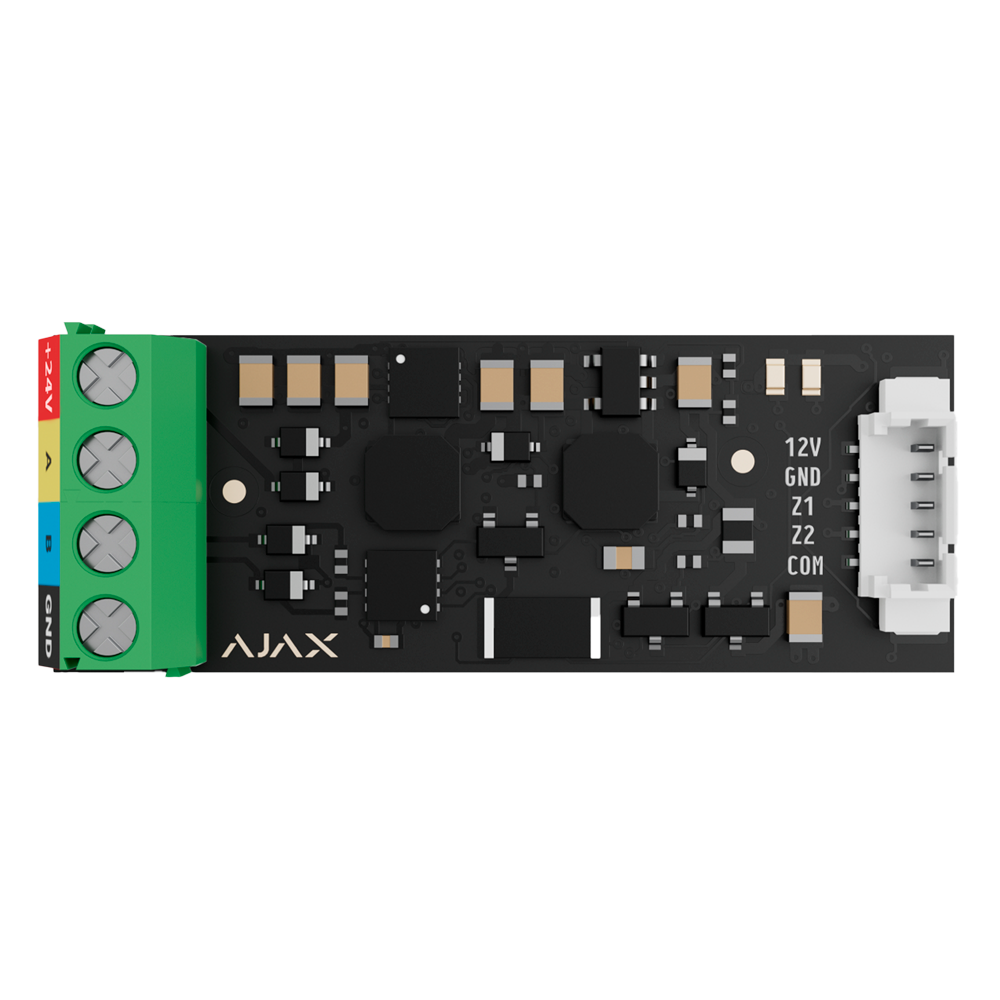

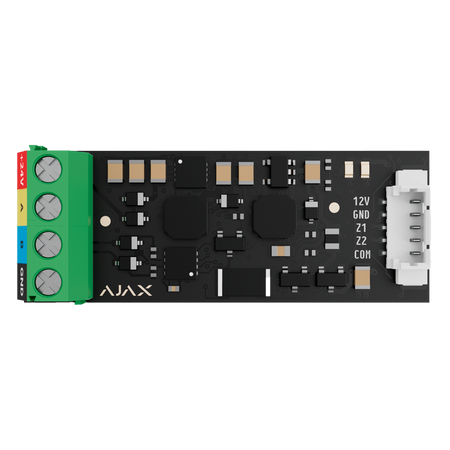

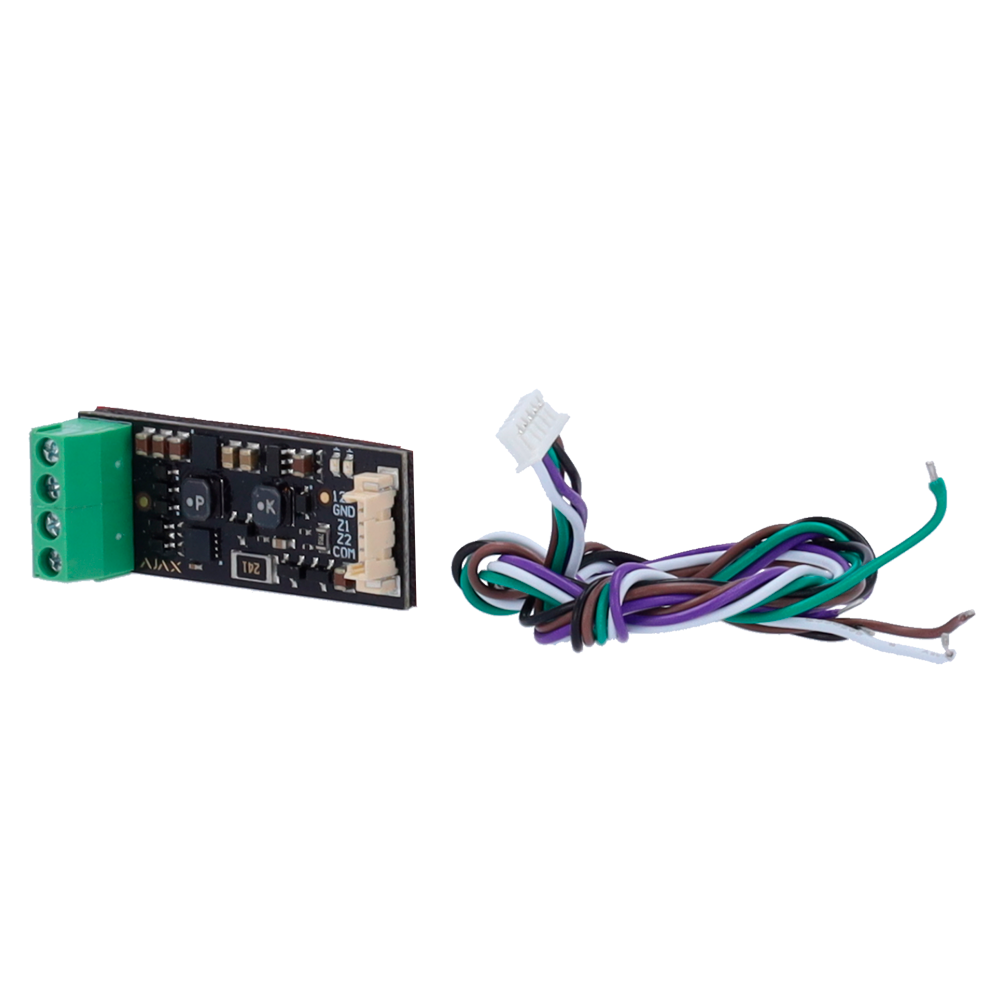

Ajax third-party device integration module
Regular price
€33,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Third-party device integration module - Fibra protocol - Grade 3 certified - 2 wired inputs - Configurable alarm NC, NO, EOL, 2EOL, 3EOL - 12V / 50 mA power output
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Wired inputs: 2 inputs
• Operating mode: Alarms or arming mode changes
• Event types: Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Malfunction, Flooding, Glass break, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Custom
• Alarm inputs: NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
• EOL resistor: From 1 kΩ to 15 kΩ in 100 Ω increments
• Cable length: Up to 3 meters
• Power output: 10.5-15 V output / up to 50 mA (max.) for wired devices
• Compatibility: Compatible with Hub Hybrid (2G and 4G)
• Power supply: 24 V DC
• Maximum consumption: 1 W
• Advanced functions: KeyArm Zone
• Operating temp.: -25 ºC ~ 50 ºC
• Dimensions: 15 (W) x 40 (H) x 12.2 (D) mm
📦 INCLUDED:
• Wired transmitter• User manual• Mounting hardware
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Wired inputs | 2 inputs |
| Operating mode | Alarms or arming mode change |
| Event types | Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Fault, Flooding, Glass break, High temperature, Low temperature, Masking, Duress code (disarming), Vibration (seismic sensor), Custom |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL resistor value | From 1 kΩ to 15 kΩ with 100 Ω increments |
| Cable length | Up to 3 meters |
| Power supply output | 10.5-15 V / up to 50 mA (max.) output for wired devices |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Power supply | 24 V DC |
| Maximum consumption | 1 W |
| Advanced features | KeyArm Zone |
| Operating temp. | -25 ºC ~ 50 ºC |
| Dimensions | 15 (W) x 40 (H) x 12.2 (D) mm |
- User manual Link
