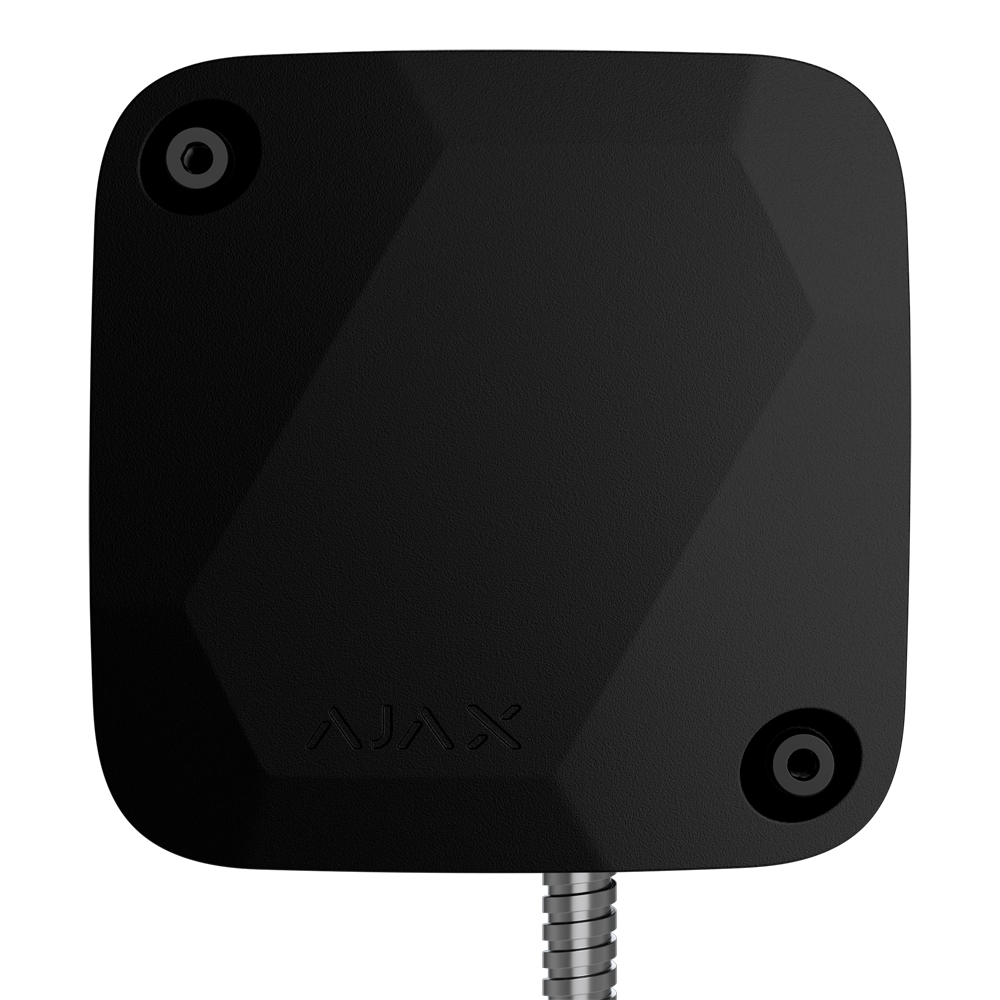

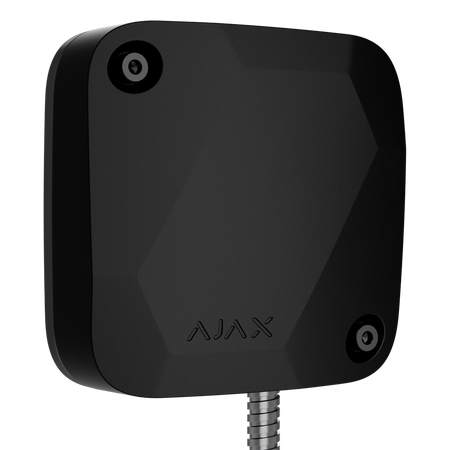

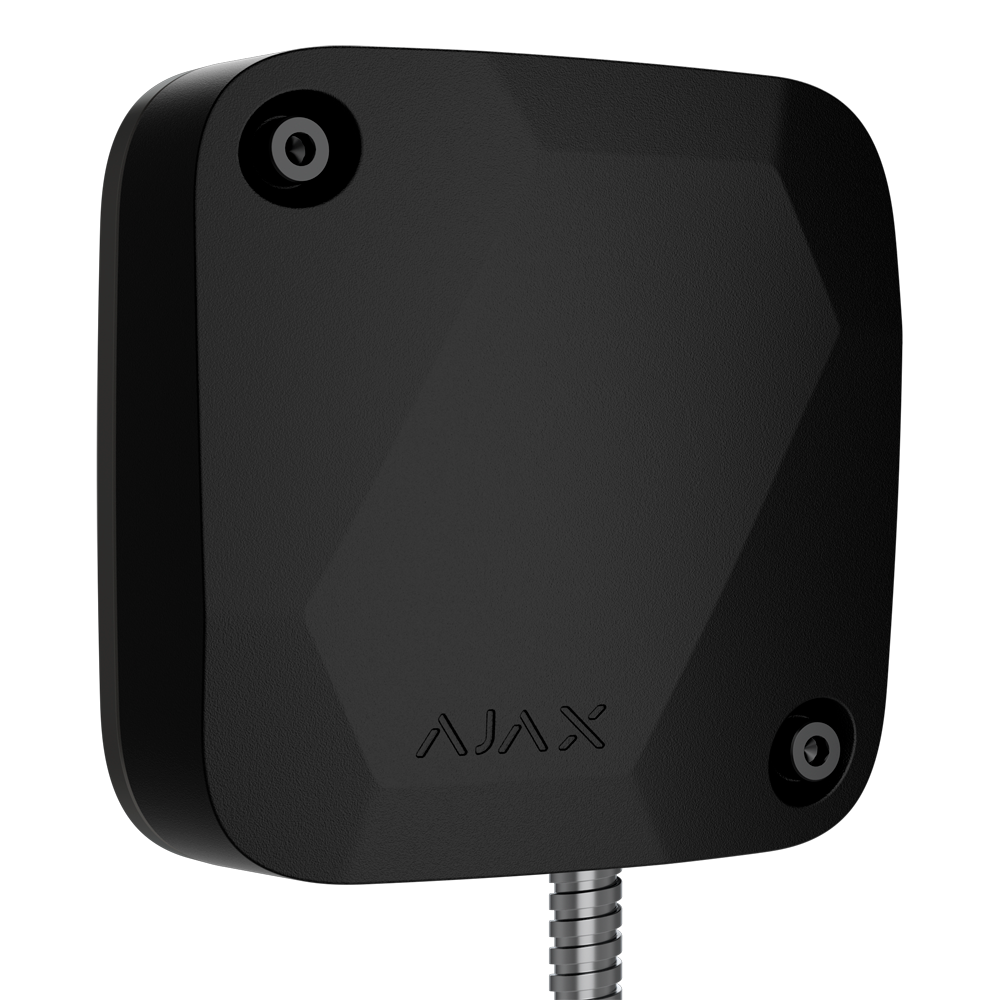

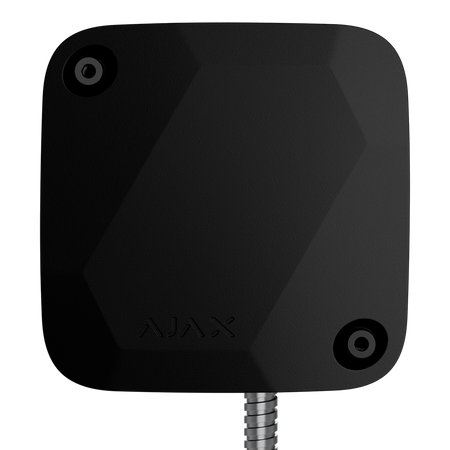

Seismic detector for drilling, Ajax explosions - Black
Seismic detector for drilling, Ajax explosions - Black
Regular price
€404,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Seismic detector for drilling, explosions - Integrated temperature sensor and accelerometer - Grade 3 certified (impact and tilt) - Fibra protocol - Sensitivity adjustable in 3 levels - Includes a self-test device
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3 (impact and tilt)
• Technology: Seismic: Piezoelectric detector; Impact and tilt: Accelerometer; Digital temperature sensor
• Threats it can detect: Explosions; Vibrations caused by drilling or cutting tools; Shockwaves caused by detonations; Physical force exerted on the device: bending, pressing, or forcing
• Detection range: Concrete: 4 m; Metal surface: 2 m
• Tilt alarm activation: Adjustable from 5º to 25º
• Seismic sensor sensitivity: Adjustable. 3 levels (low, medium, and high)

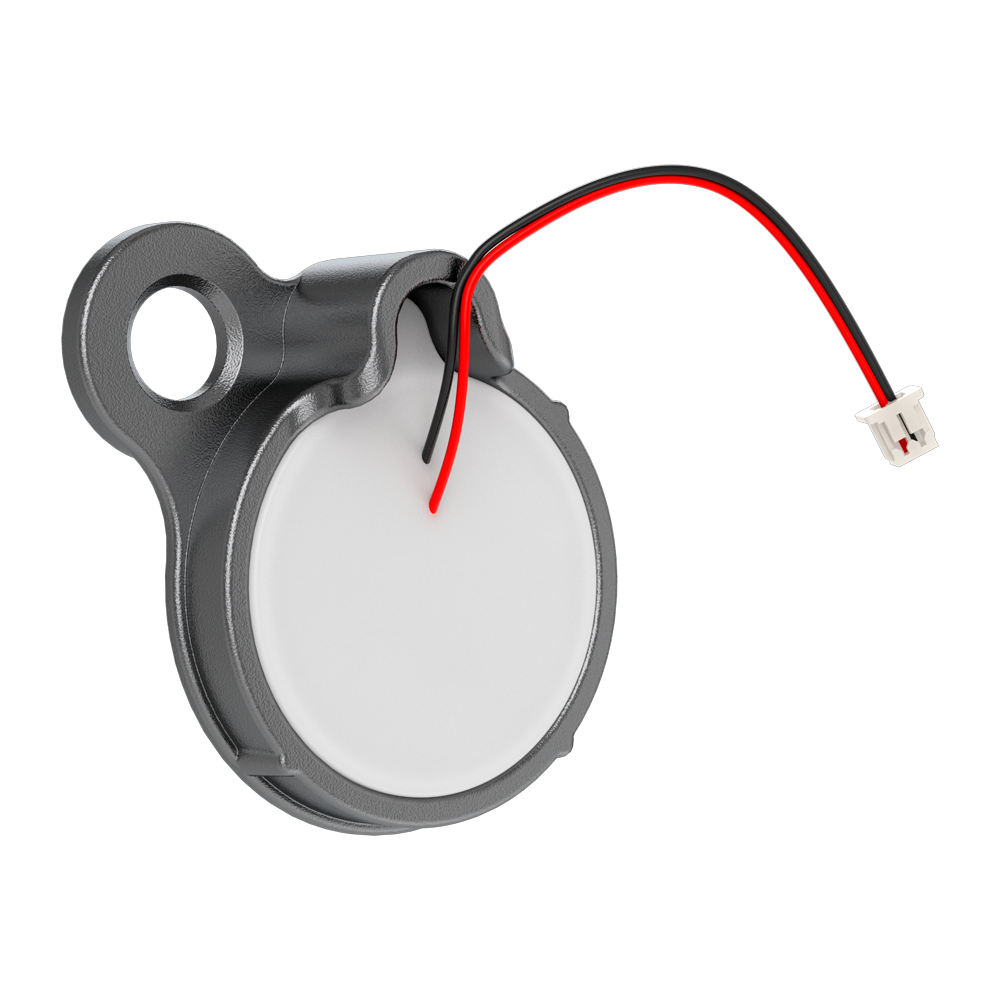

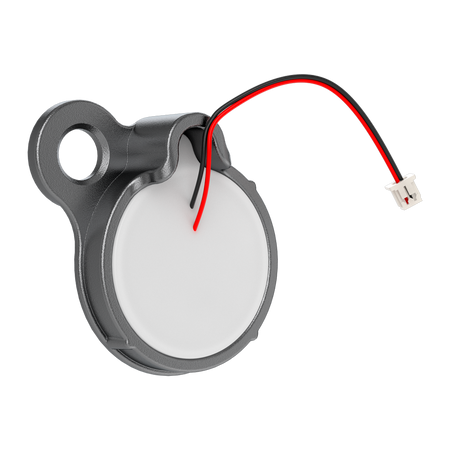

• Self-test device: Available. Allows ensuring the correct operation of the device remotely
• Tamper: 2 anti-opening tampers
• Temperature alarms: Temperature above 70ºC; Temperature increase of 5ºC in 5 seconds or less
• Integrity alarms: The device triggers an alarm if it detects an attempted drilling or impact
• Self-test: Available. Automatic or manual
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Shielded cable: 4-wire cable; Length 1.5 m; Weight 130 g
• Power supply: 24 V DC (consumption up to 2.6 mA)
• Consumption: 288 mW
• Compatibility: FIBRA-HUBHYBRID and FIBRA-HUBHYBRID-4G
• Operating temp.: -25ºC ~ +70ºC
• Operating humidity: Up to 95%
• Protection rating: IP43 / IK04
• Housing material: ABS plastic
• Dimensions: 88 (W) x 88 (H) x 20 (D) mm
• Detector weight: 170 g
• Housing weight: 224 g
• Color: Black
📦 INCLUDED:
• Seismic detector• Mounting plate• Self-test device• 4-wire shielded cable• Installation kit• Instruction manual
| Security level | Grade 3 (impact and tilt) |
|---|---|
| Technology | Seismic: Piezoelectric detector Impact and tilt: Accelerometer Digital temperature sensor |
| Threats it can detect | Explosions Vibrations caused by drilling or cutting tools Shockwaves caused by detonations Physical force exerted on the device: bending, pressing, or prying |
| Detection range | Concrete: 4 m Metal surface: 2 m |
| Tilt alarm activation | Adjustable from 5º to 25º |
| Seismic sensor sensitivity | Adjustable. 3 levels (low, medium, and high) |
| Self-test device | Available. Allows for remote verification of proper device operation |
| Tamper | 2 anti-opening tampers |
| Temperature alarms | Temperature above 70ºC Temperature increase of 5ºC in 5 seconds or less |
| Integrity alarms | The device triggers an alarm if it detects an attempt to drill or impact it |
| Self-test | Available. Automatic or manual |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Shielded cable | 4-wire cable Length 1.5 m Weight 130 g |
| Power supply | 24 V DC (consumption up to 2.6 mA) |
| Consumption | 288 mW |
| Compatibility | FIBRA-HUBHYBRID and FIBRA-HUBHYBRID-4G |
| Operating temp. | -25º C ~ +70º C |
| Operating humidity | Up to 95% |
| Protection rating | IP43 / IK04 |
| Housing material | ABS plastic |
| Dimensions | 88 (W) x 88 (H) x 20 (D) mm |
| Detector weight | 170 g |
| Housing weight | 224 g |
| Color | Black |
