Expansion of Ajax Grade 3 wired zones
Regular price
€169,41
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

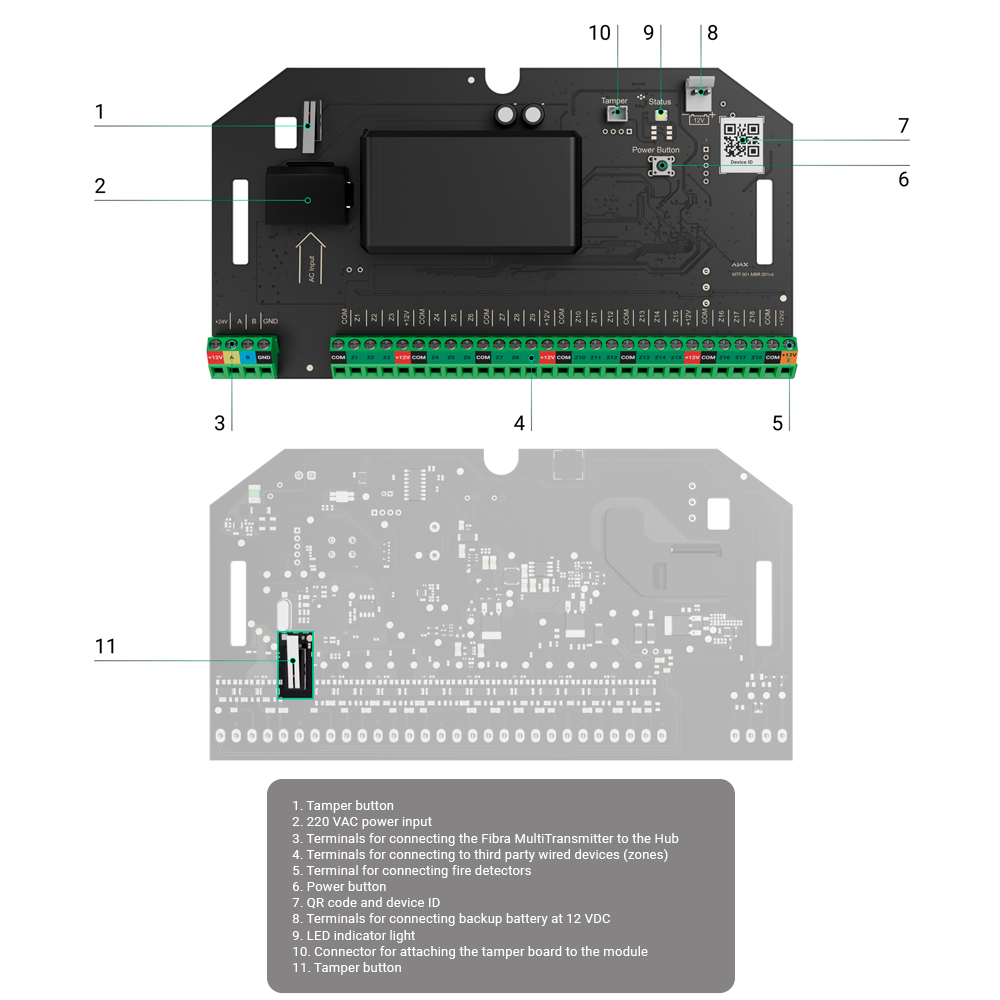

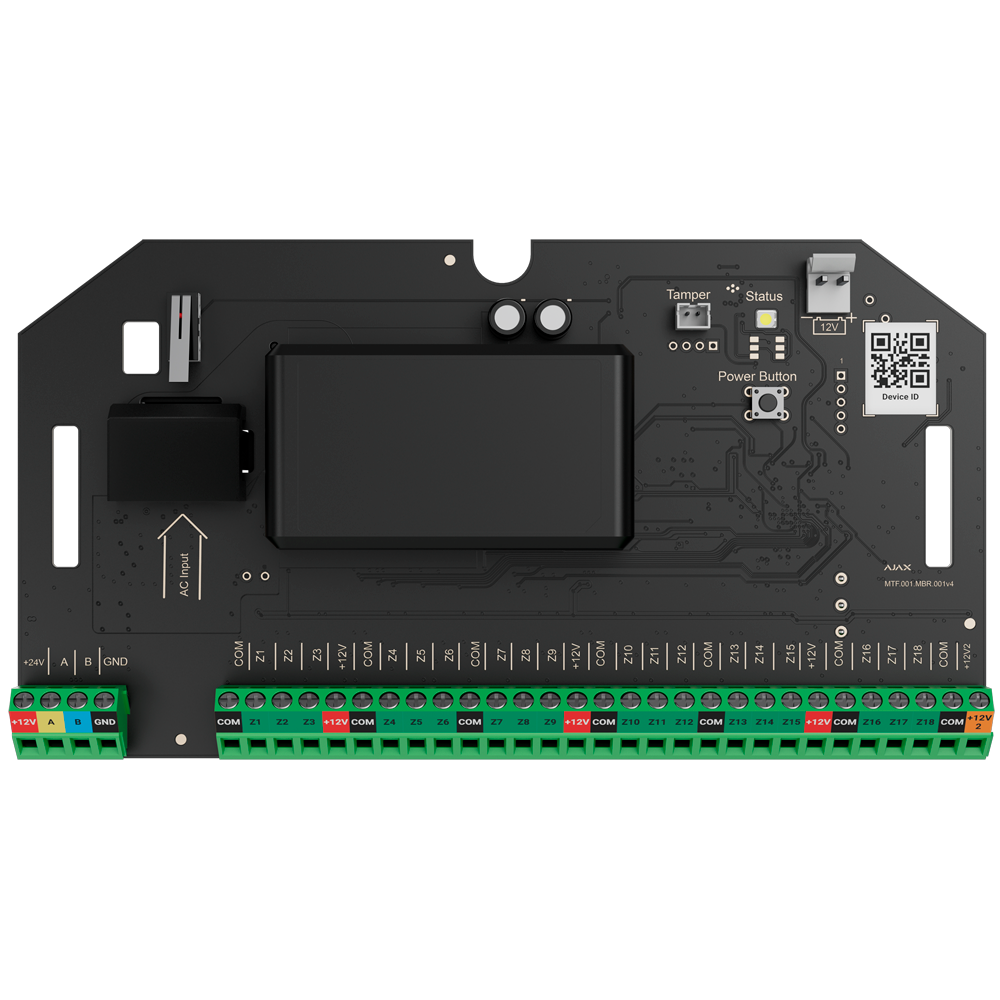

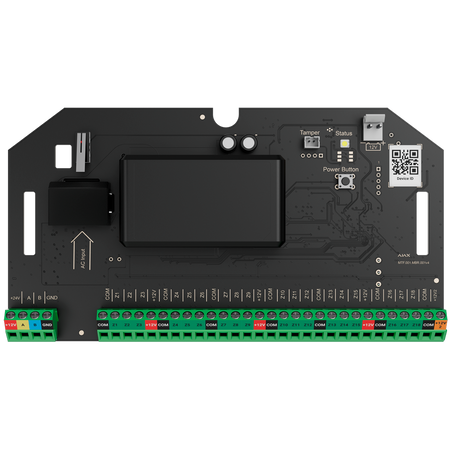

Grade 3 wired zone expander - Fibra protocol - Up to 18 wired inputs - Configurable alarm NC, NO, EOL, 2EOL, 3EOL - Dual anti-opening tamper - Dual 12V / 1A power output
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)

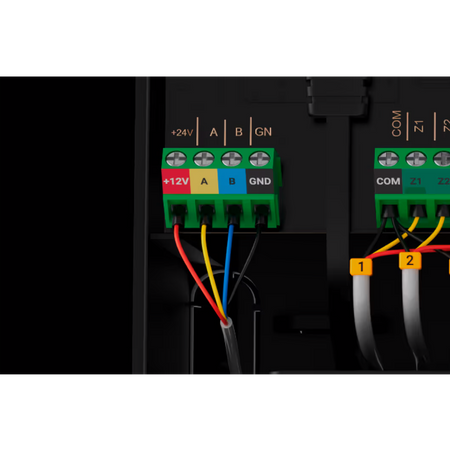

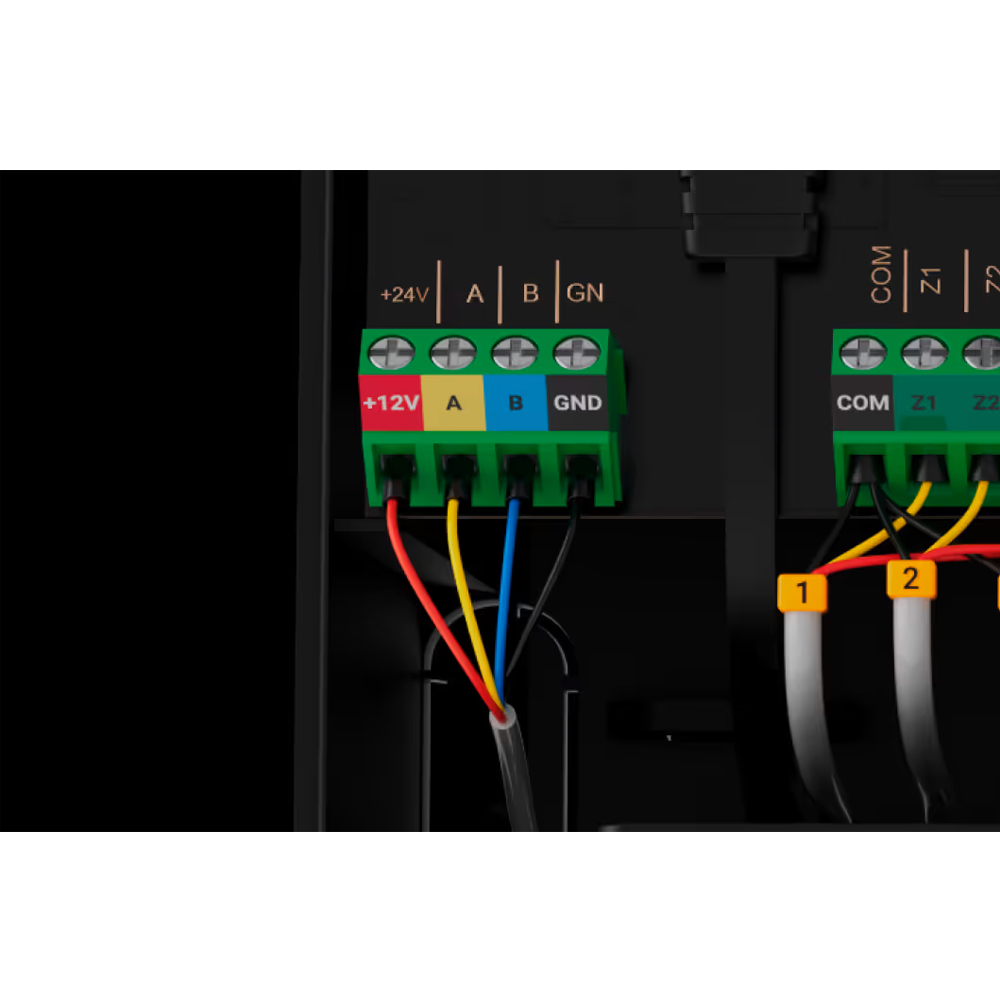

• Bus connection: 4-wire cable
• Wired inputs: Up to 18 inputs
• Operating modes: Alarms or arming mode changes
• Event types: Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Fault, Flooding, Glass break, High temperature, Low temperature, Masking, Duress code (opening), Vibration (seismic sensor), Custom
• Tamper input: NC: Normally Closed
• Alarm inputs: NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
• EOL resistor: From 1 kΩ to 15 kΩ in 100 Ω increments
• Cable length: Up to 400 meters
• Anti-opening tamper: Front and rear
• Power output: Two 12 V / 1 A outputs (total) for wired detectors
• Compatibility: Compatible with Hub Hybrid (2G and 4G)

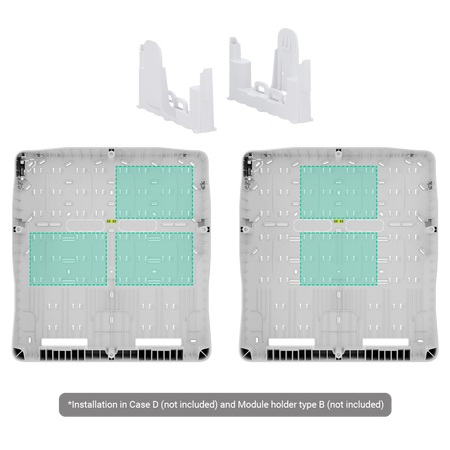

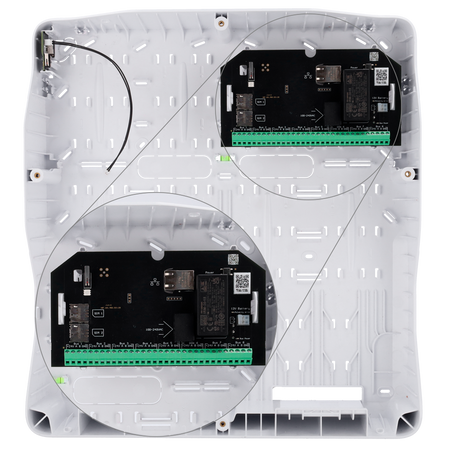

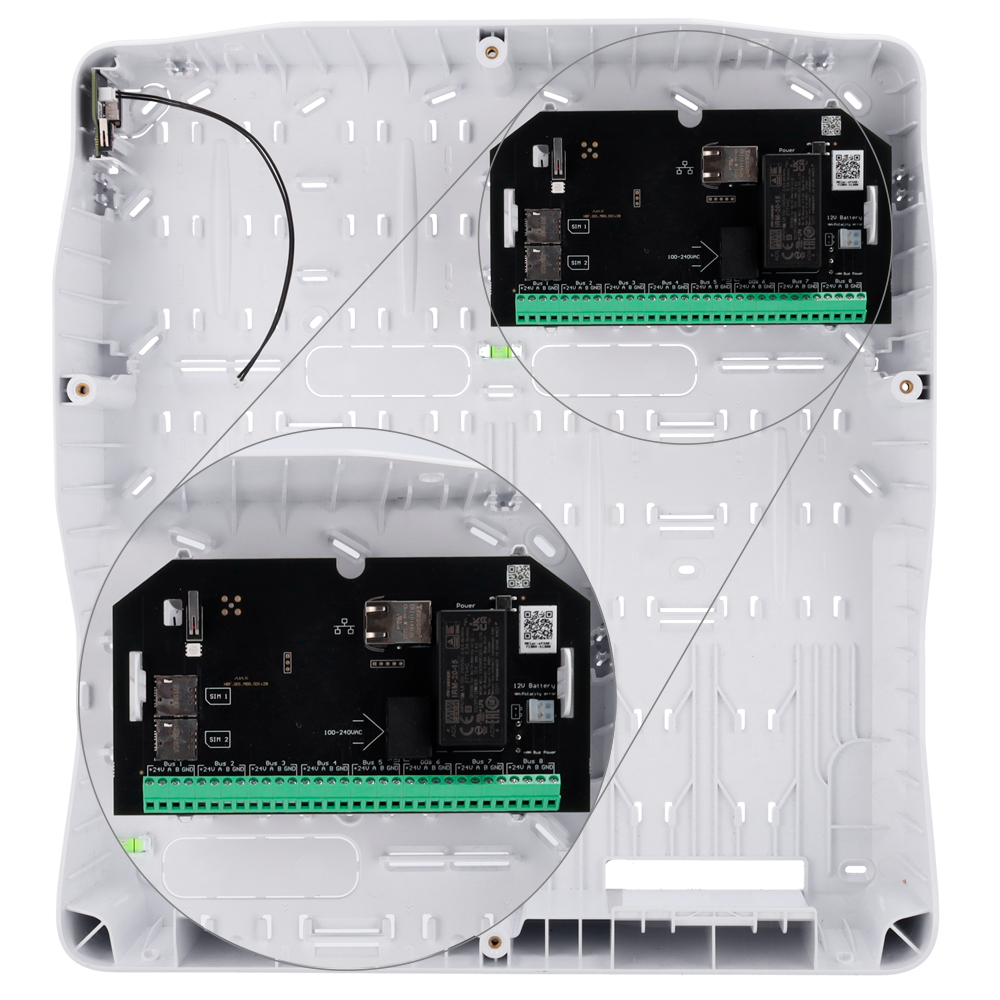

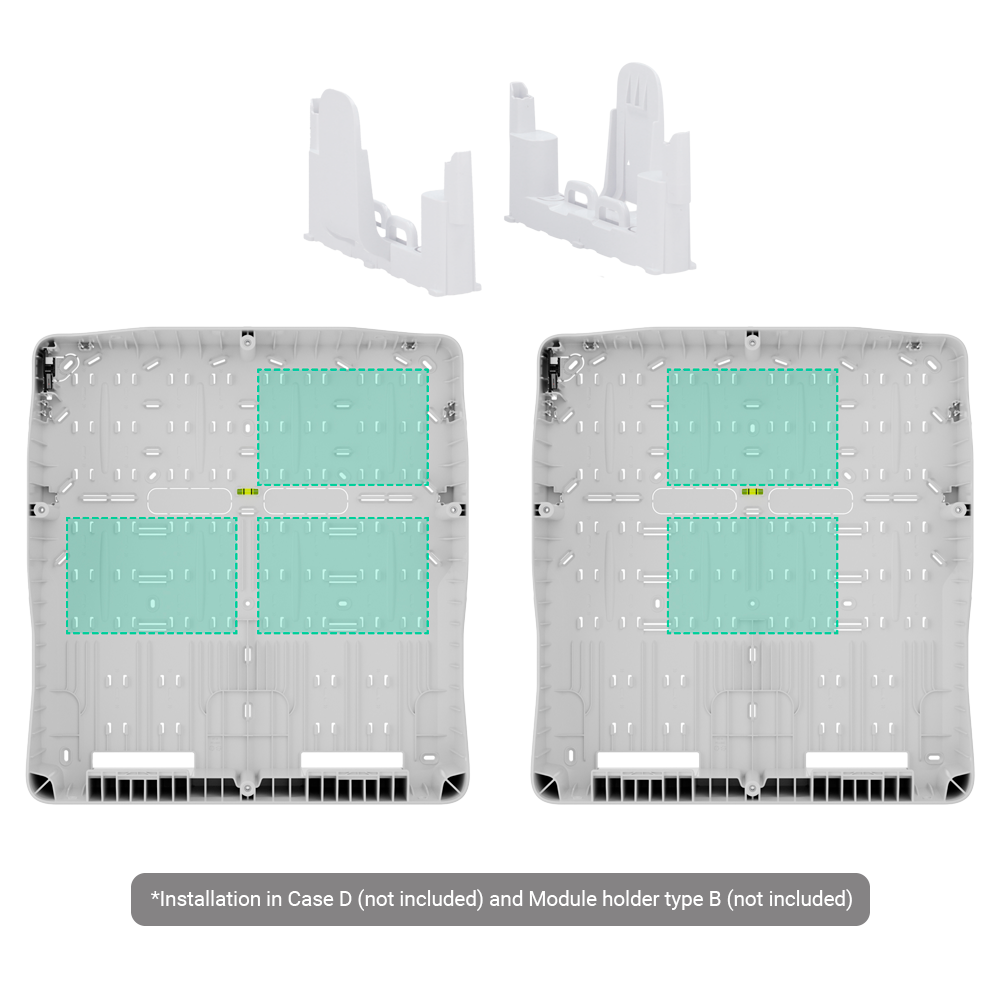

• Compatible housings: FIBRA-CASE-D430-W/B and module holder support FIBRA-MODULEHOLDER-B-W/B
• Power supply: AC 110~240 V, 50/60 Hz
• Maximum consumption: 360 mW
• Backup battery: 12 V / up to 7 Ah battery (not included)
• Advanced functions: KeyArm Zone
• Operating temp.: -10 ºC ~ 40 ºC
• Dimensions: 185 (H) x 99 (W) x 28 (D) mm
📦 INCLUDED:
• Wired MultiTransmitter without housing• Power cable• Battery connection cable• Instruction manual
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Wired inputs | Up to 18 inputs |
| Operating mode | Alarms or arming mode change |
| Event types | Intrusion, Fire, Medical assistance, Panic button, Gas alarm, Tamper alarm, Fault, Flooding, Glass break, High temperature, Low temperature, Masking, Duress code (disarming), Vibration (seismic sensor), Custom |
| Tamper input | NC: Normally Closed |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable |
| EOL resistor value | 1 kΩ to 15 kΩ in 100 Ω increments |
| Cable length | Up to 400 meters |
| Anti-opening tamper | Front and rear |
| Power output | Two 12 V / 1 A outputs (total) for wired detectors |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Compatible housings | FIBRA-CASE-D430-W/B and support for FIBRA-MODULEHOLDER-B-W/B module |
| Power supply | AC 110~240 V, 50/60 Hz |
| Maximum consumption | 360 mW |
| Backup battery | 12 V / up to 7 Ah battery (not included) |
| Advanced functions | KeyArm Zone |
| Operating temp. | -10 ºC ~ 40 ºC |
| Dimensions | 185 (H) x 99 (W) x 28 (D) mm |
