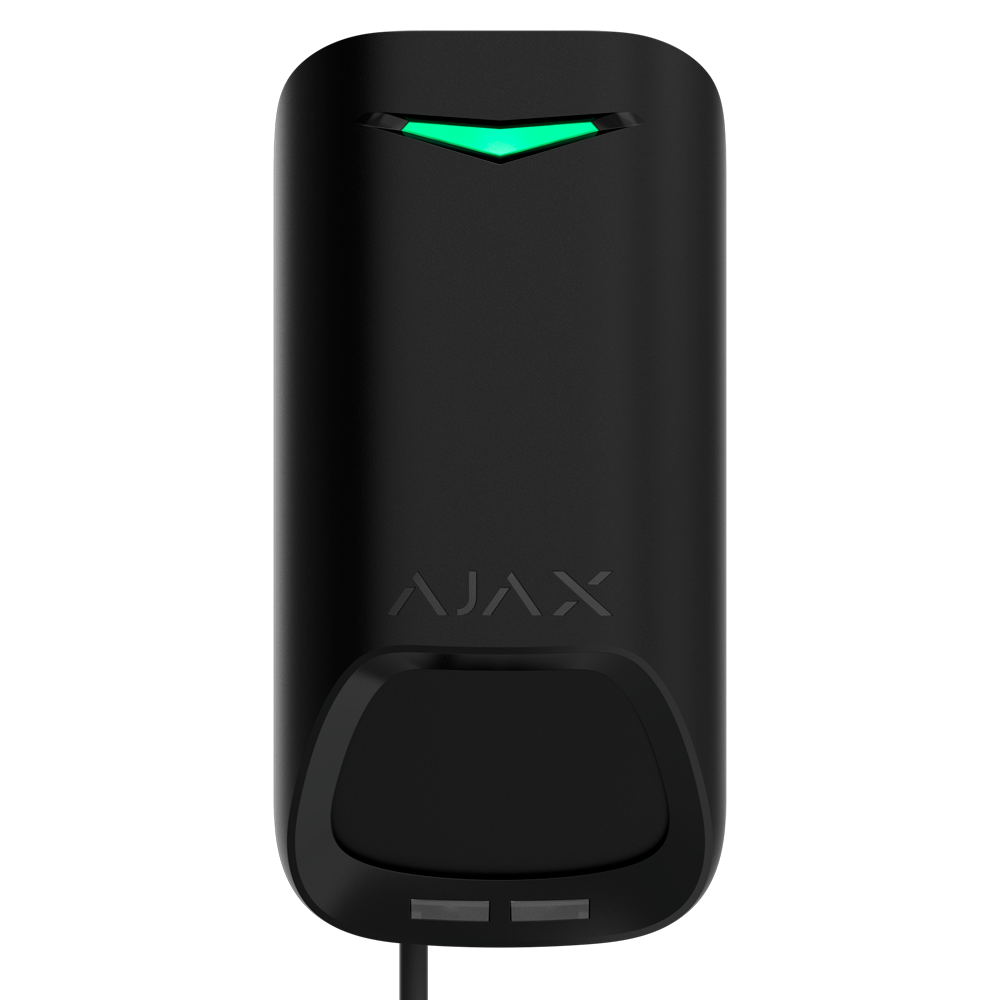

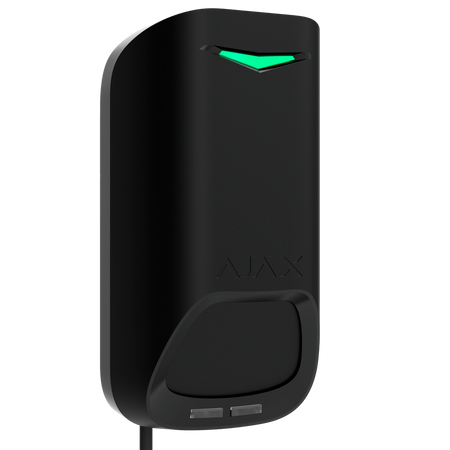

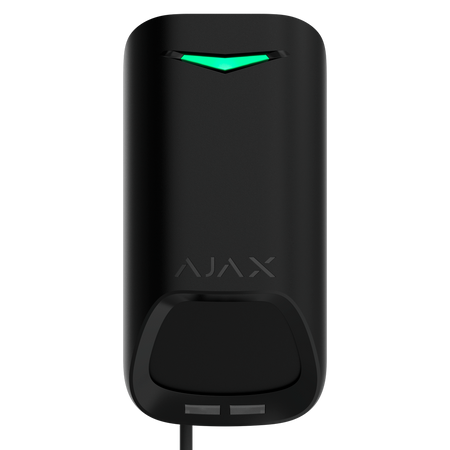

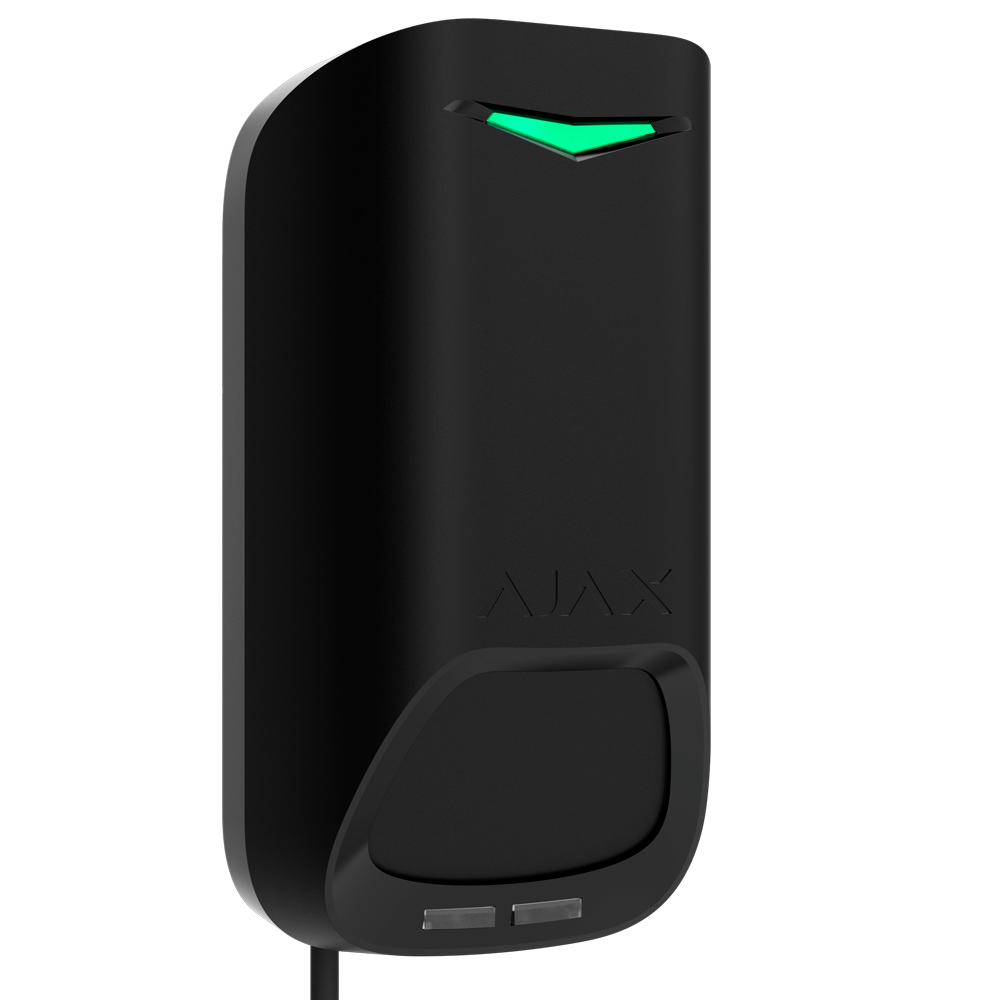

Ajax dual-technology PIR detector - PIR and K-band microwave

Dual-technology PIR detector - PIR and K-band microwave - Grade 3 certified - Detection range 15 m (H: 90°) - Anti-masking sensor - Fibra protocol

📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Technology: Volumetric PIR and microwave sensor
• Detection operation: AND (IR activates microwave for detection)

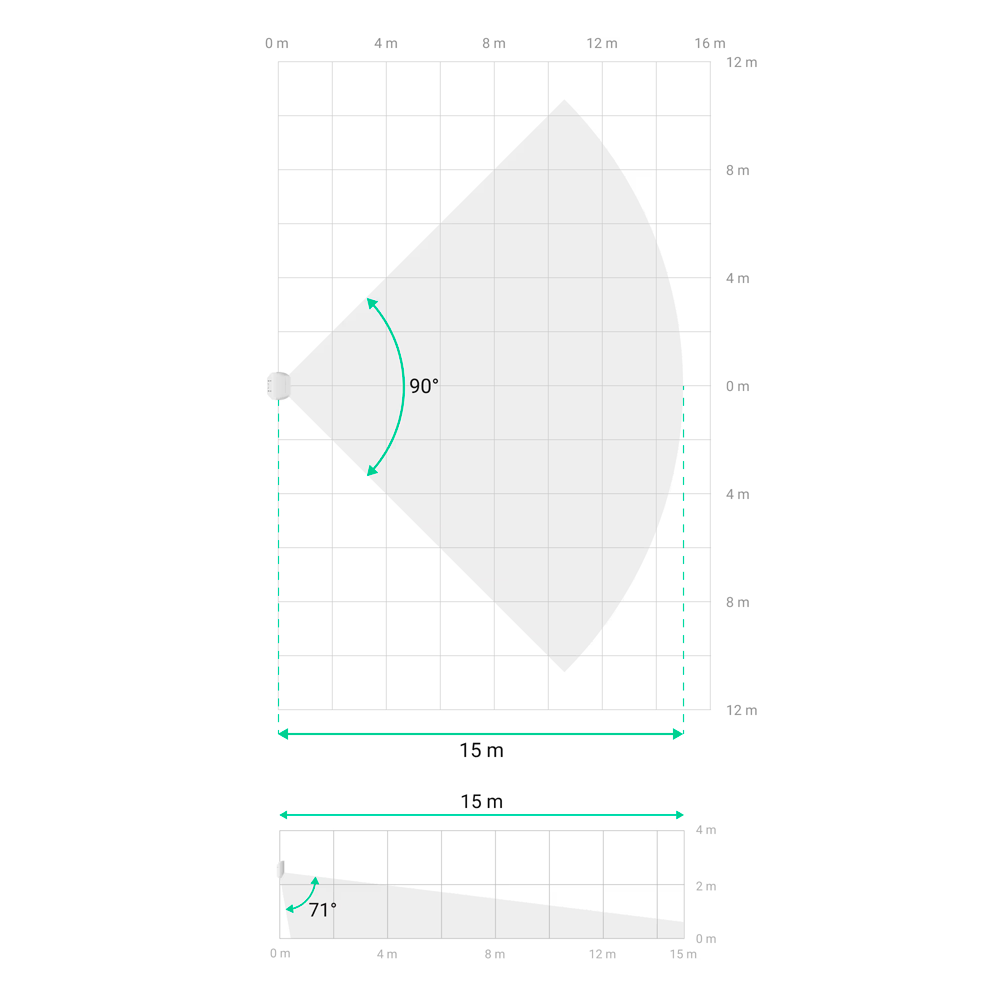

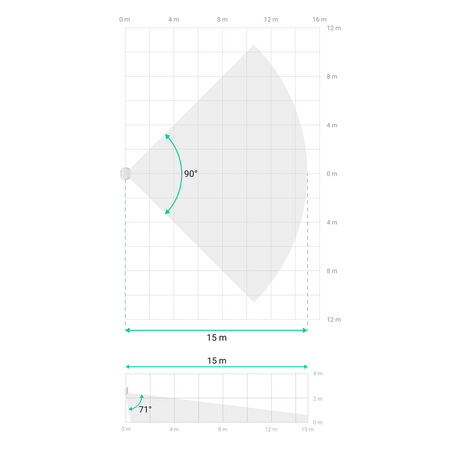

• Detection range: 15 m / H: 90º / V: 71º / Installation 2.4 m
• Minimum blind zone: Detection at 0.5 m from the detector
• Pet immunity: Not available
• Microwave sensor: K-band (24 GHz)
• Anti-masking: Available

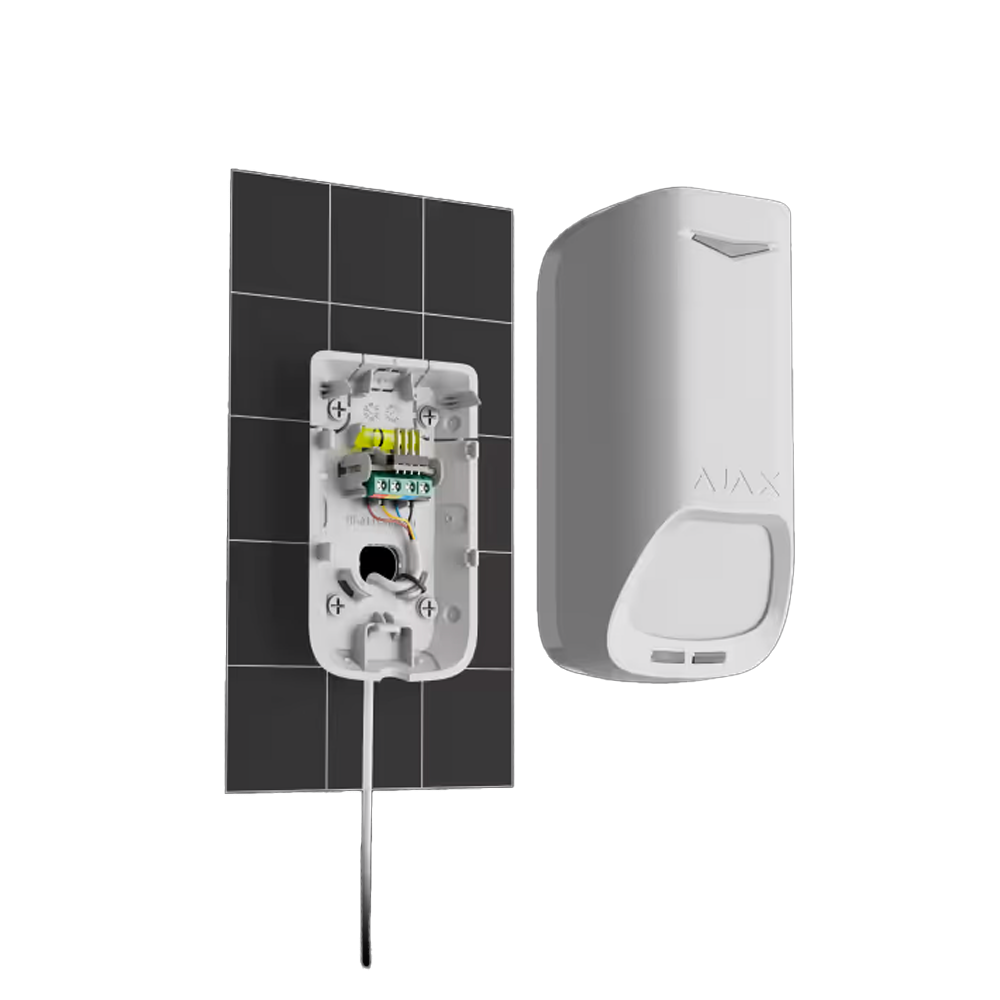

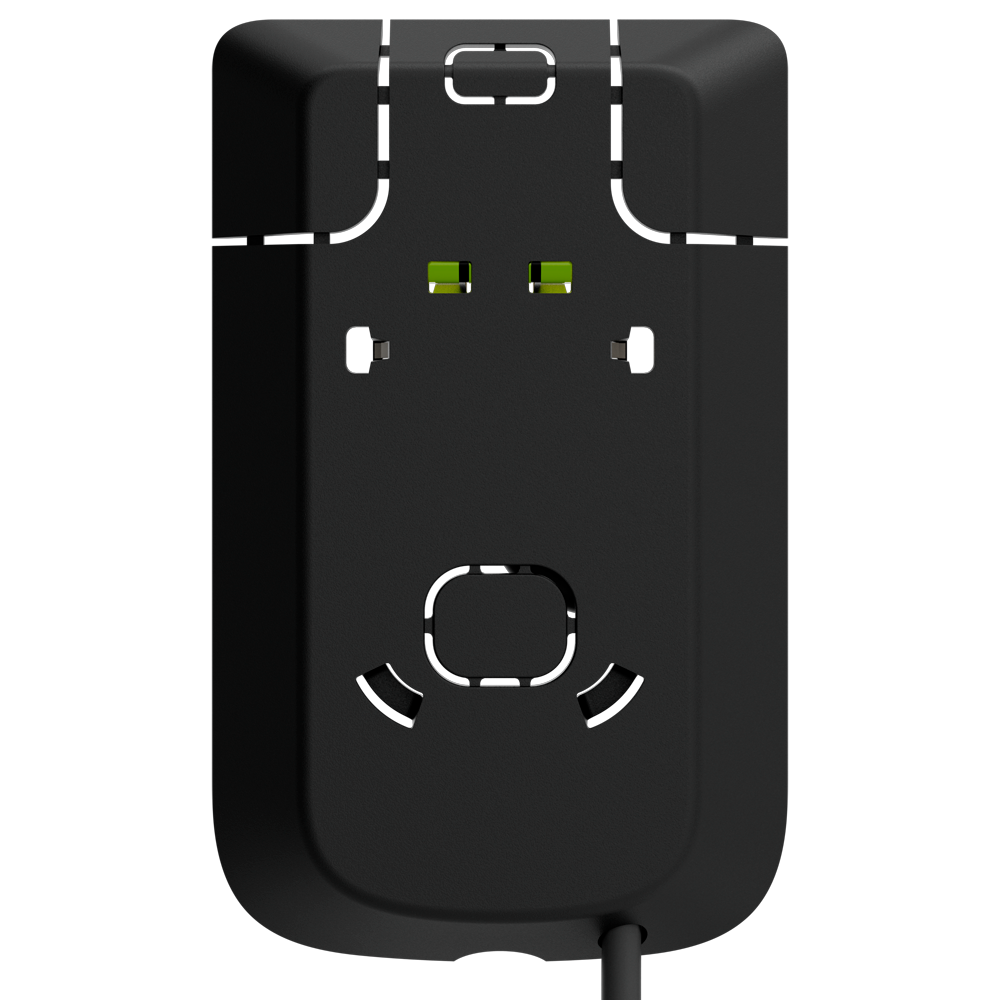

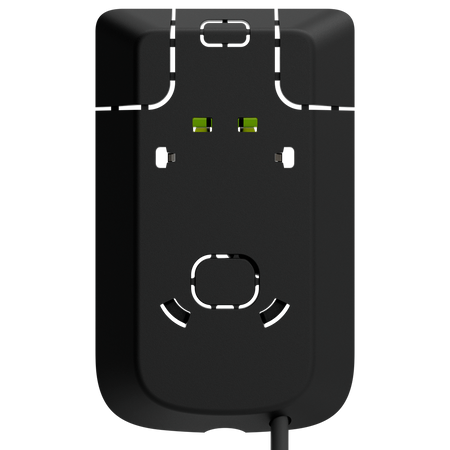

• Tamper: 2 anti-opening tampers; 1 bottom tamper (SmartBracket)
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)

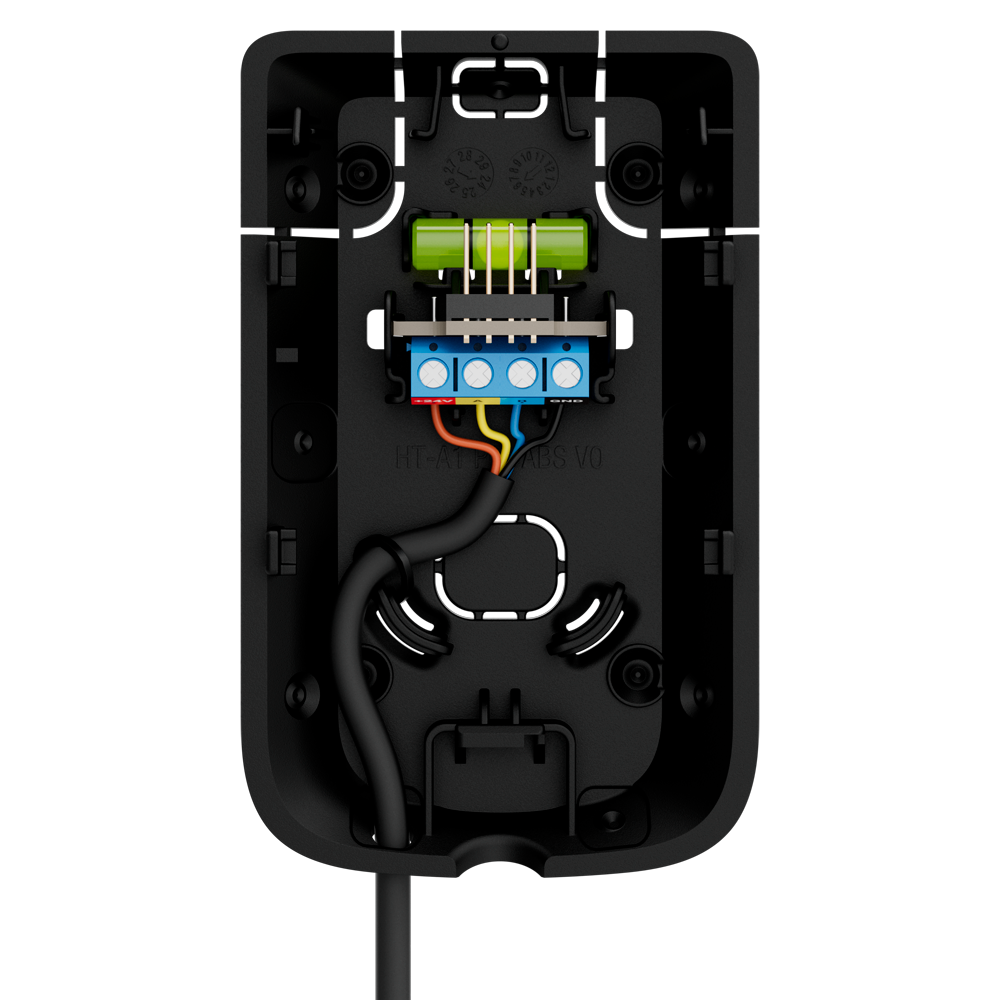

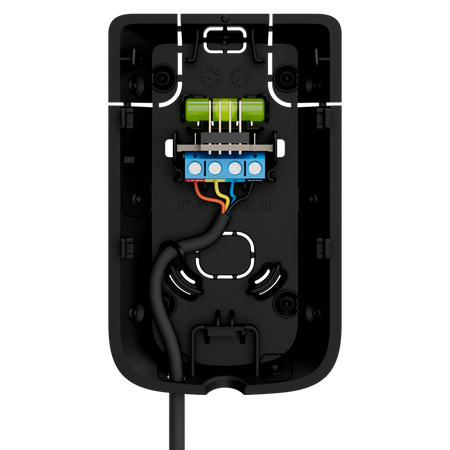

• Bus connection: 4-wire cable
• Power supply: 24 V DC
• Consumption: 280 mW
• Self-test: Remote sensor operation check: PIR, microwave, and anti-masking
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• LED indication: Alarm, tamper, masking
• Compatibility: FIBRA-HUBHYBRID and FIBRA-HUBHYBRID-4G
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection rating: IP30
• Housing material: ABS plastic
• Dimensions: 120 (W) x 62 (H) x 52 (D) mm
• Color: Black

📦 INCLUDED:

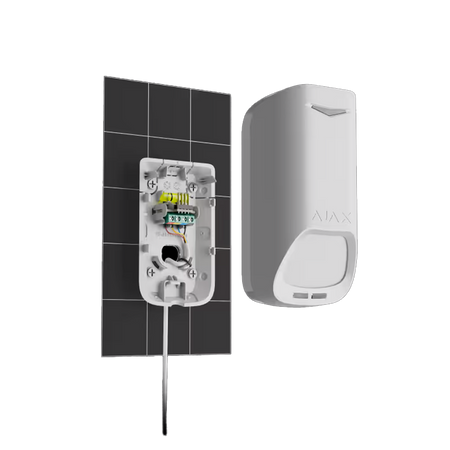

• Grade 3 indoor PIR detector• SmartBracket• Installation kit• Instruction manual
