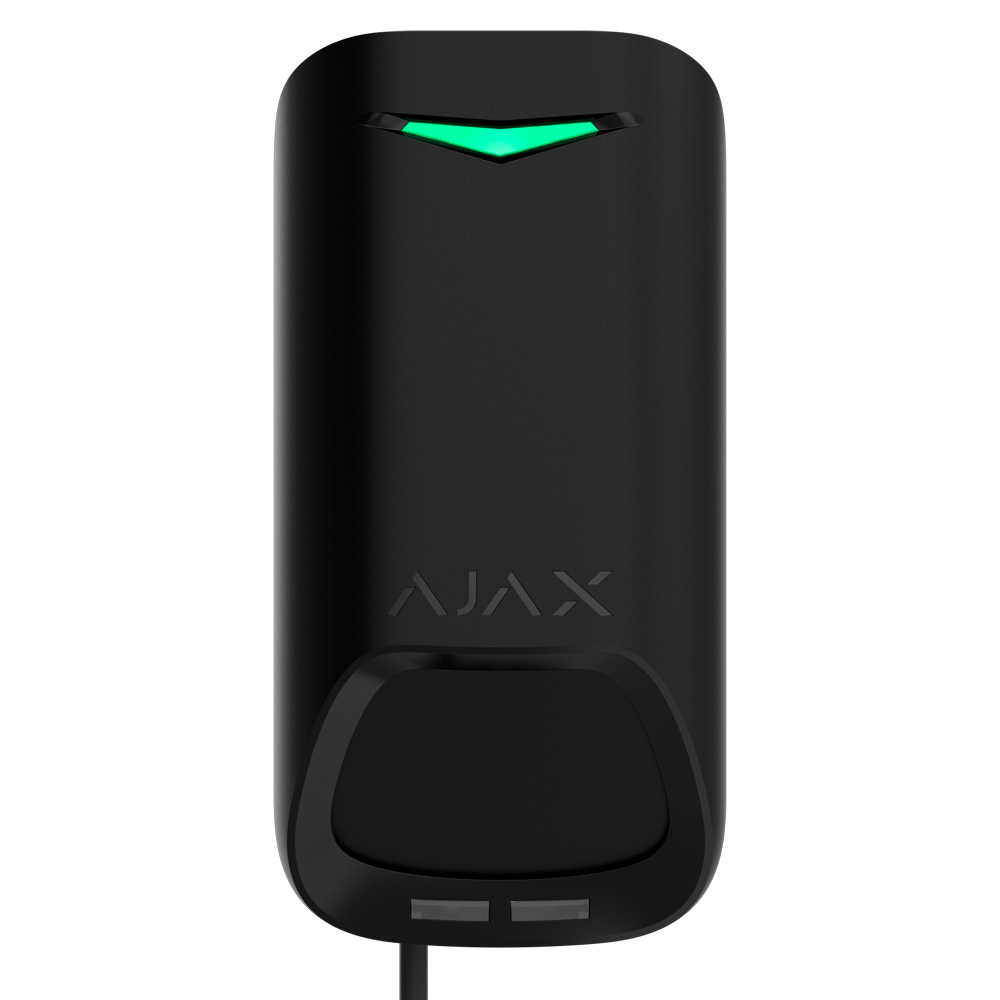

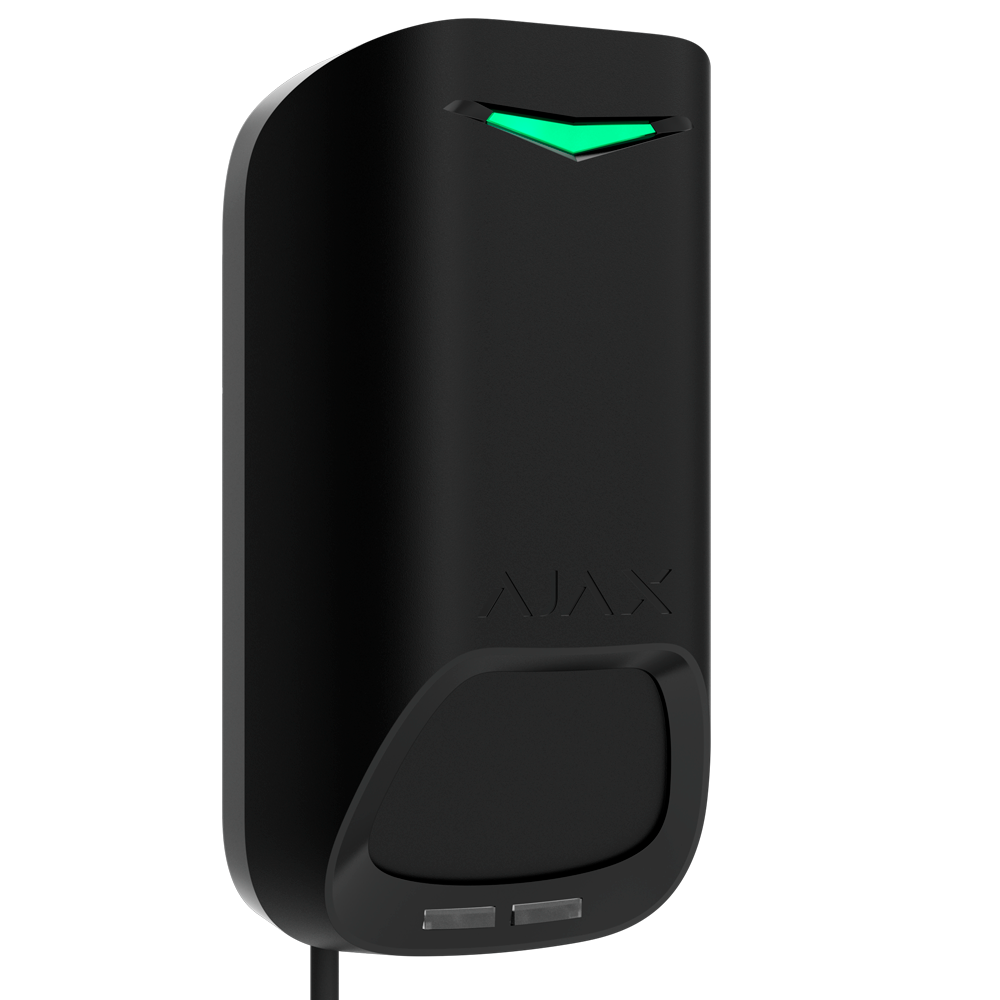

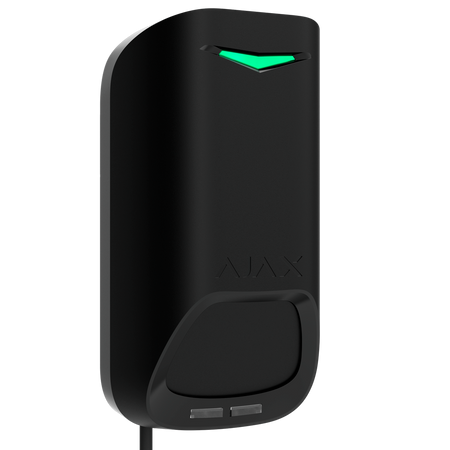

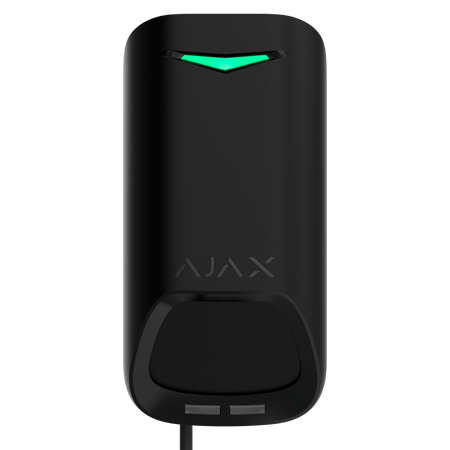

Ajax volumetric PIR detector - Fibra protocol (wired) - Black
Ajax volumetric PIR detector - Fibra protocol (wired) - Black
Regular price
€108,09
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Volumetric PIR detector - Grade 3 - Detection range 15 m (H: 90°) - Fibra protocol (wired) - Anti-masking sensor - Reduced blind zone: detection at 0.5 m - 3 anti-tamper switches
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Technology: Volumetric PIR

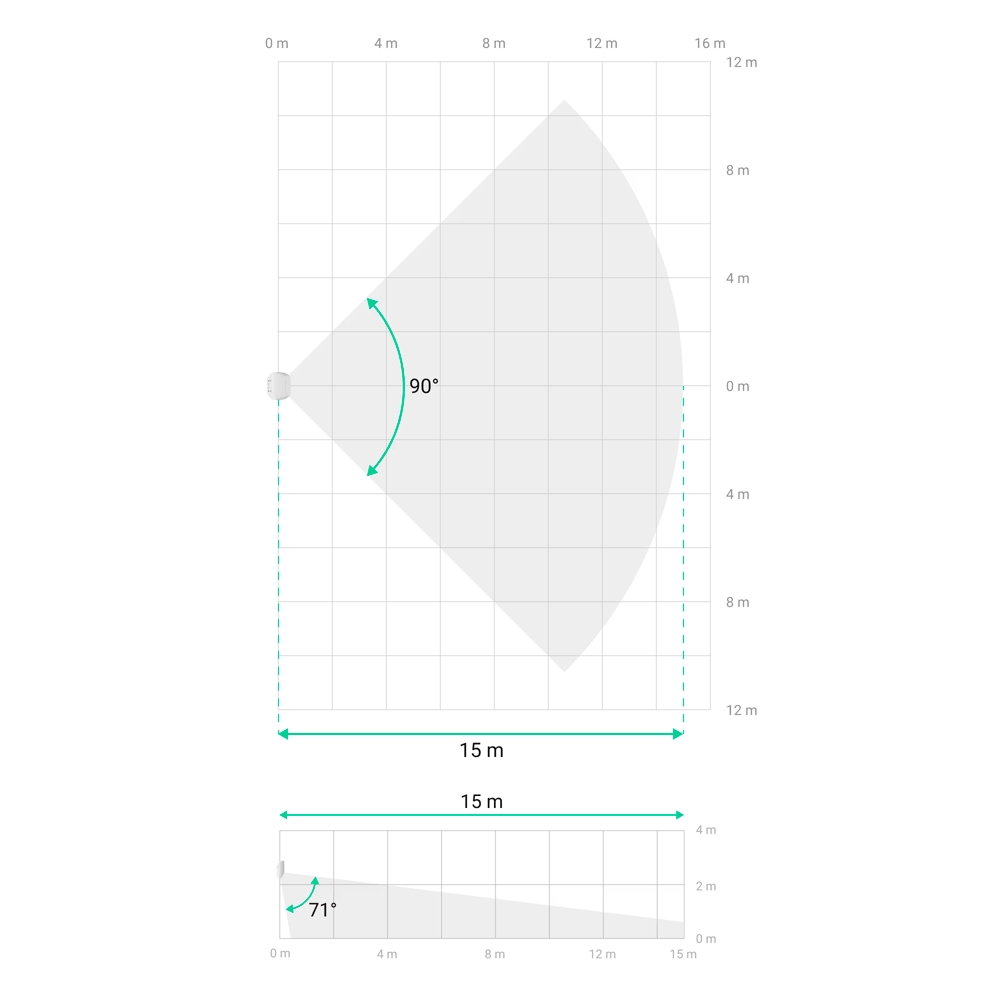

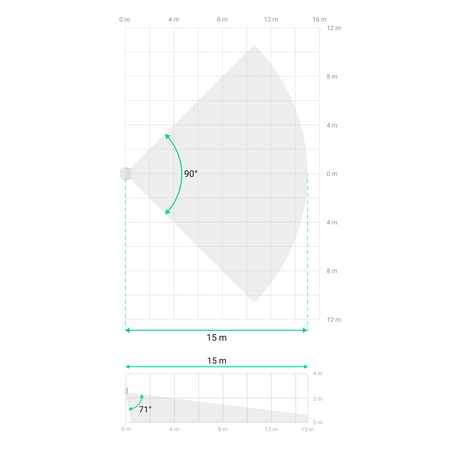

• Detection range: 15 m / H: 90º / V: 71º / Installation 2.4 m
• Minimum blind zone: Detection at 0.5 m from the detector
• Pet immunity: Not available
• Anti-masking: Available

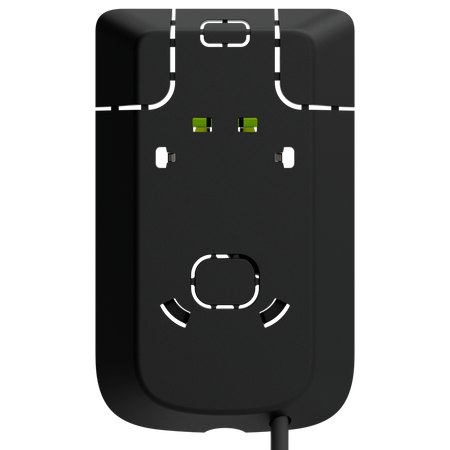

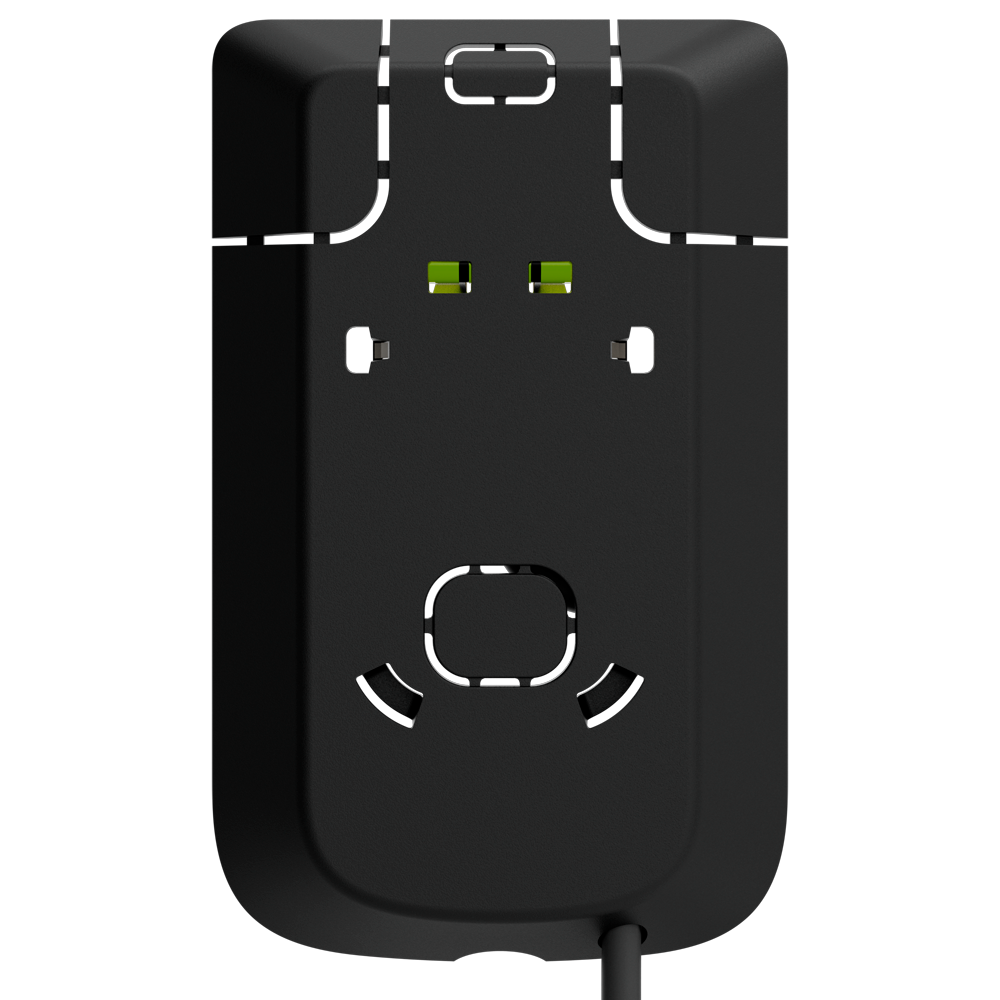

• Tamper: 2 opening tamper switches; 1 bottom tamper (SmartBracket)
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)

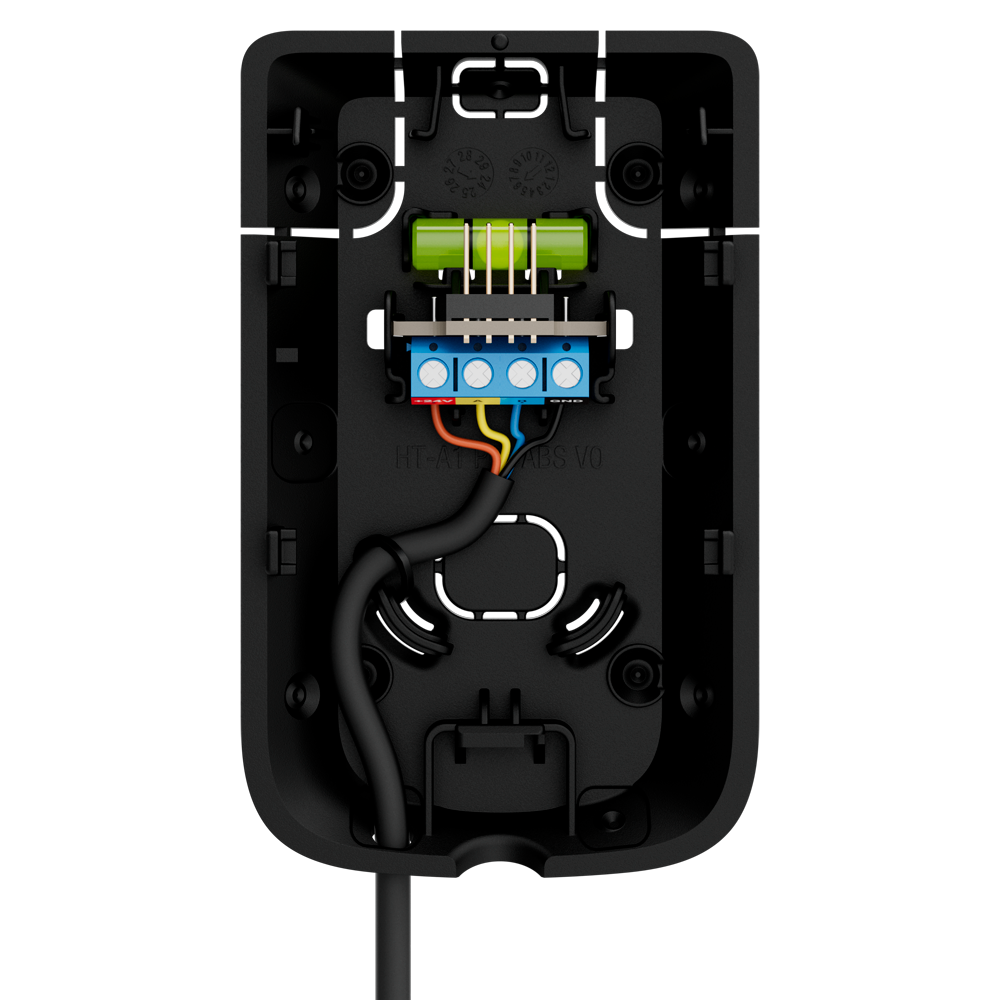

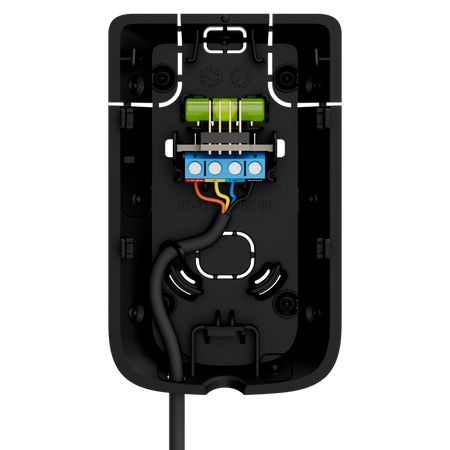

• Bus connection: 4-wire cable
• Power supply: 24 V DC
• Consumption: Up to 90 mW
• Self-test: Remote sensor operation verification: PIR and anti-masking
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• LED indication: Alarm, tamper, masking
• Compatibility: FIBRA-HUBHYBRID and FIBRA-HUBHYBRID-4G
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection degree: IP30
• Housing material: ABS plastic
• Dimensions: 120 (W) x 62 (H) x 52 (D) mm
• Color: Black
📦 INCLUDED:

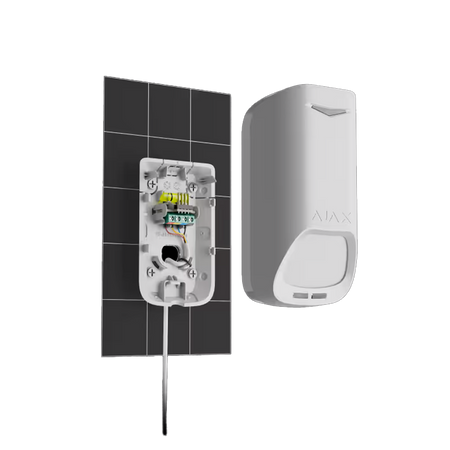

• Indoor grade 3 PIR detector• SmartBracket• Installation kit• Instruction manual
| Security level | Grade 3 |
|---|---|
| Technology | Volumetric PIR |
| Detection range | 15 m / H: 90º / V: 71º / Installation 2.4 m |
| Minimum blind zone | Detection at 0.5 m from the detector |
| Pet immunity | Not available |
| Anti-masking | Available |
| Tamper | 2 anti-opening tampers, 1 bottom tamper (SmartBracket) |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Power supply | 24 V DC |
| Consumption | Up to 90 mW |
| Self-test | Remote sensor operation check: PIR and anti-masking |
| Sensitivity | Adjustable. 3 levels (low, medium, and high) |
| LED indication | Alarm, tamper, masking |
| Compatibility | FIBRA-HUBHYBRID and FIBRA-HUBHYBRID-4G |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP30 |
| Housing material | ABS plastic |
| Dimensions | 120 (W) x 62 (H) x 52 (D) mm |
| Color | Black |
