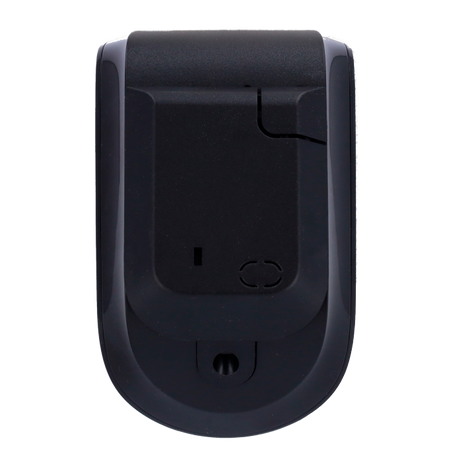

NFA2P Certified Grade 2 Ajax PIR Detector - Fibra Protocol - 3-level adjustable sensitivity
NFA2P Certified Grade 2 Ajax PIR Detector - Fibra Protocol - 3-level adjustable sensitivity
Regular price
€54,05
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

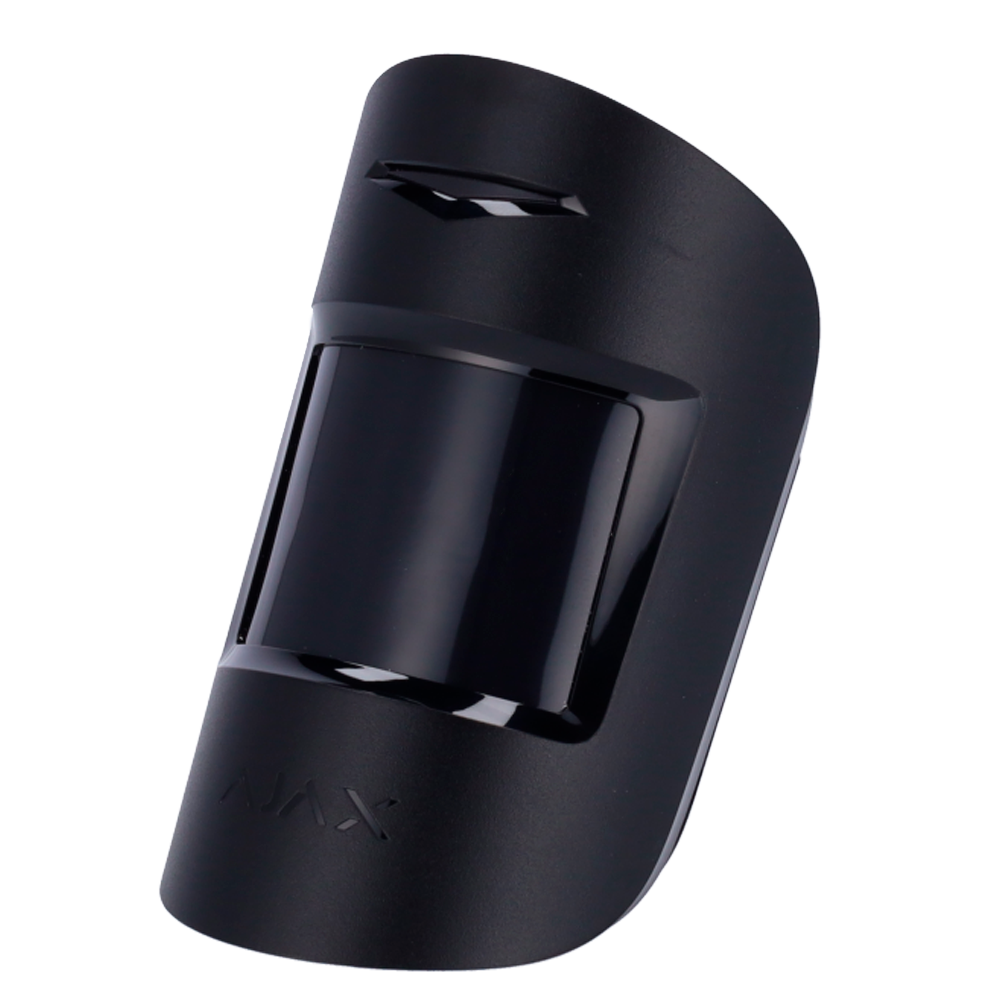

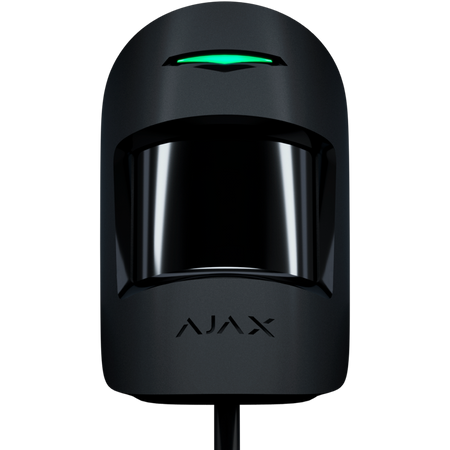

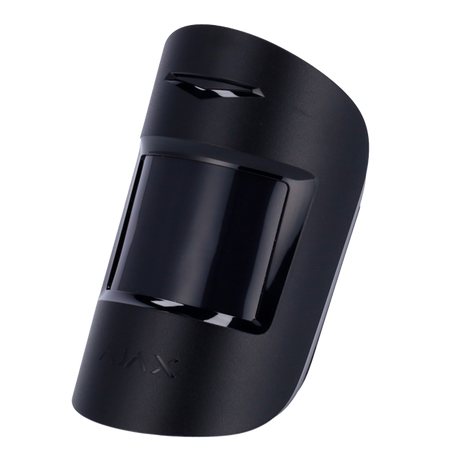

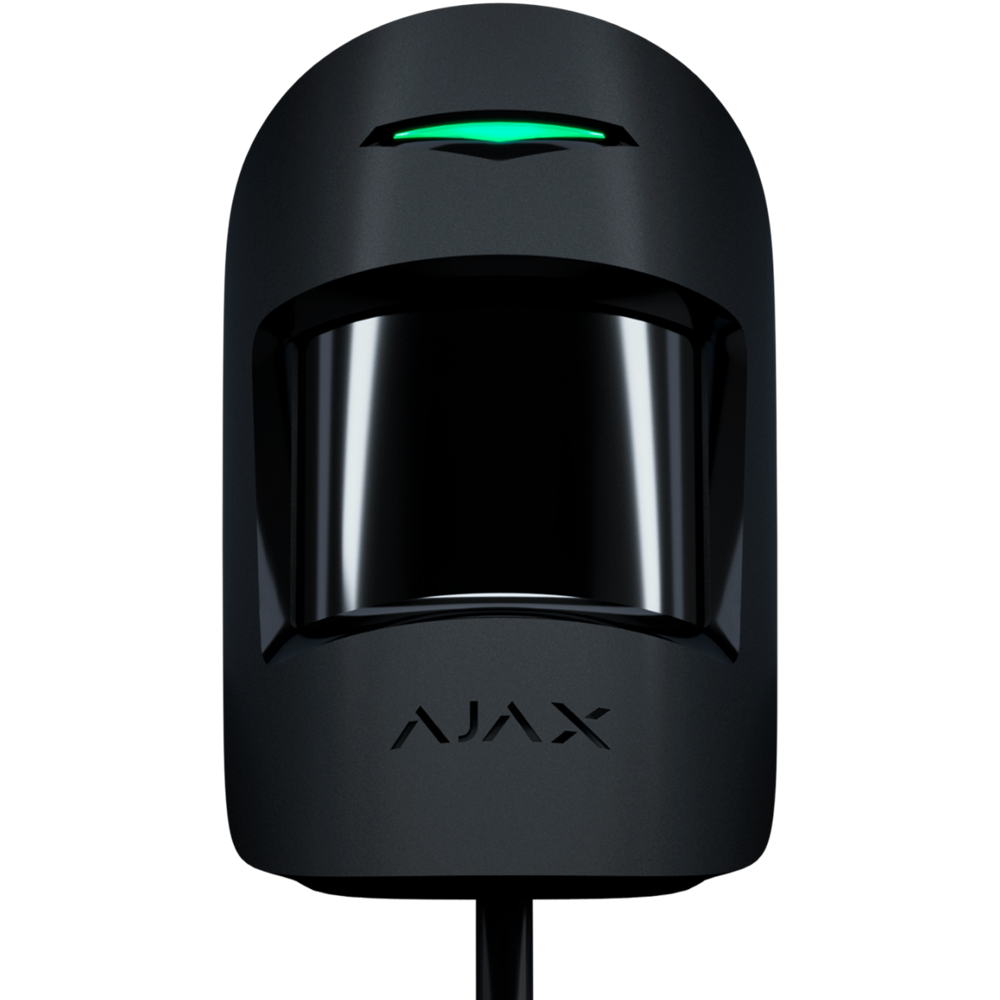

PIR detector - NFA2P certified and grade 2 - Fibra protocol - Sensitivity adjustable in 3 levels - Pet immunity - Detection range 12 m
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 2
• Technology: Volumetric PIR
• PIR lens: 24 zones and 6 planes

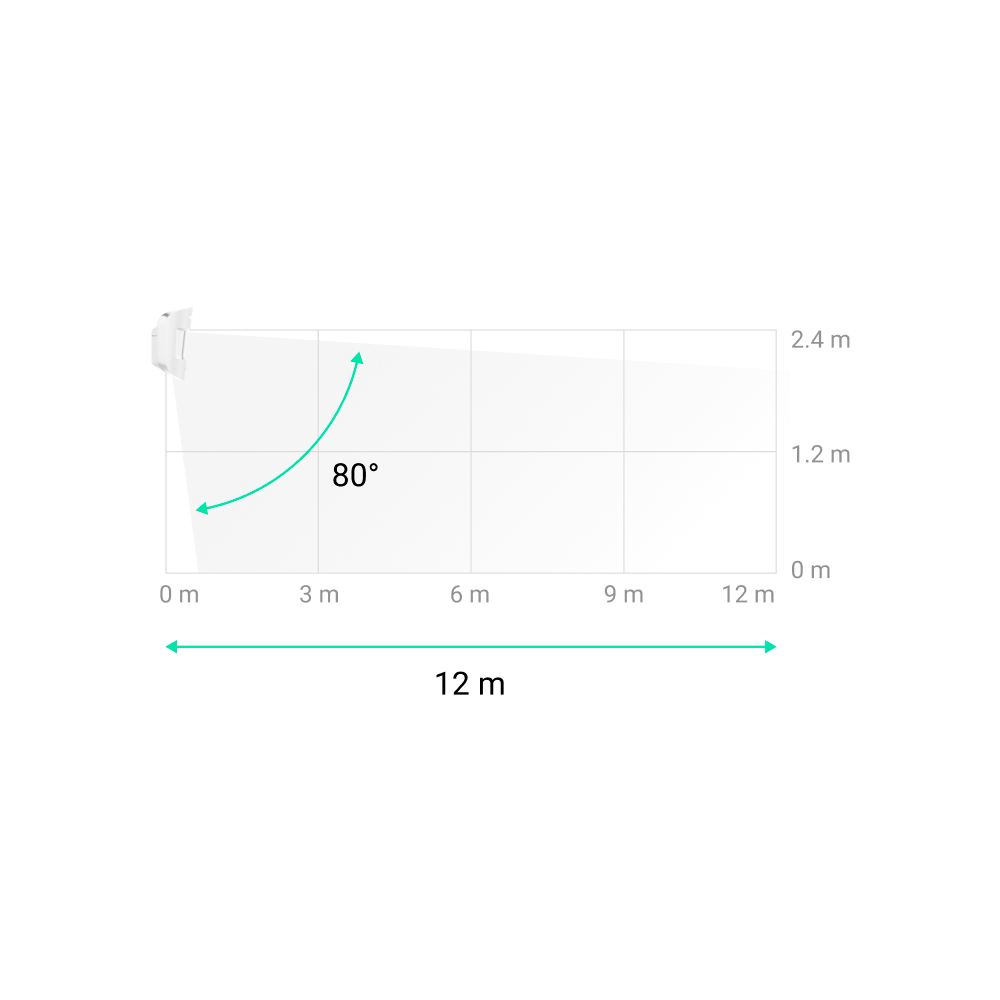

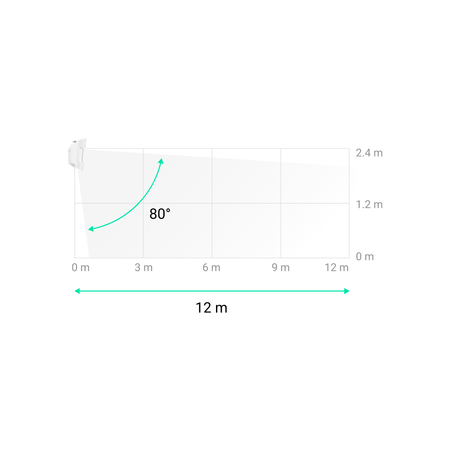

• Detection range: 12 m / H: 88.5º / V: 80º / Installation height 2.4 m
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)

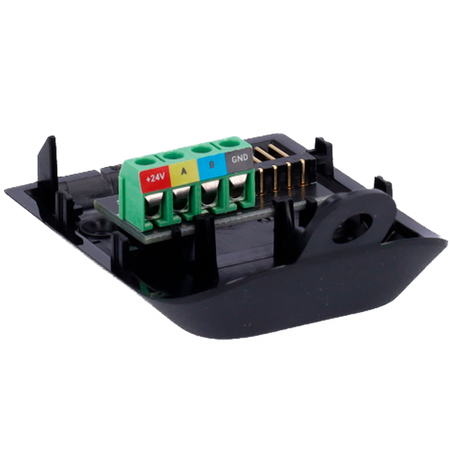

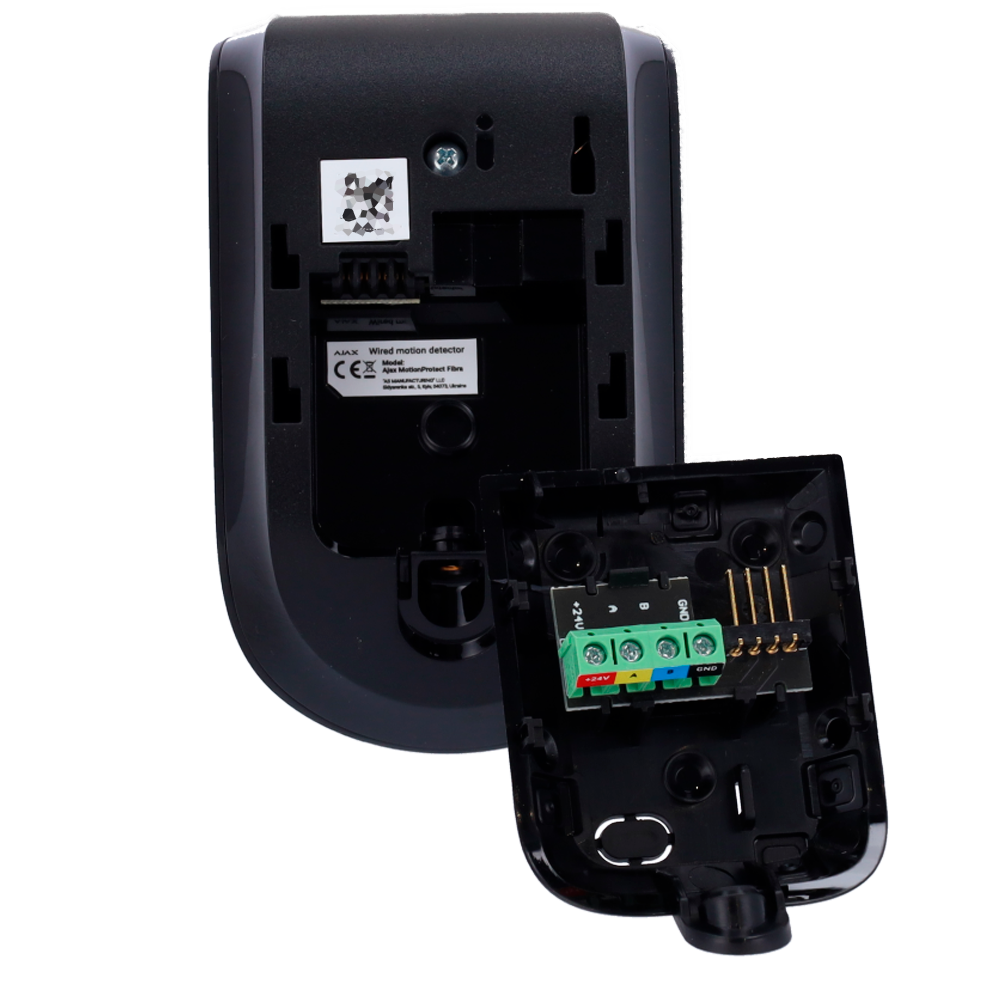

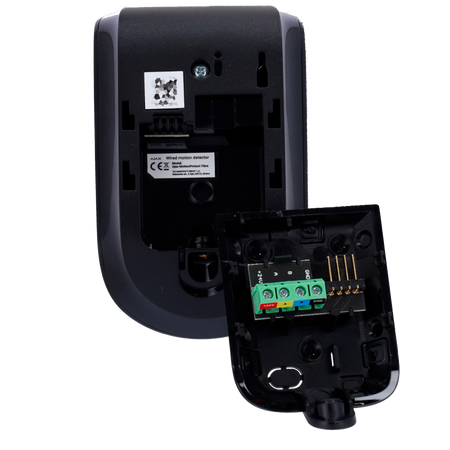

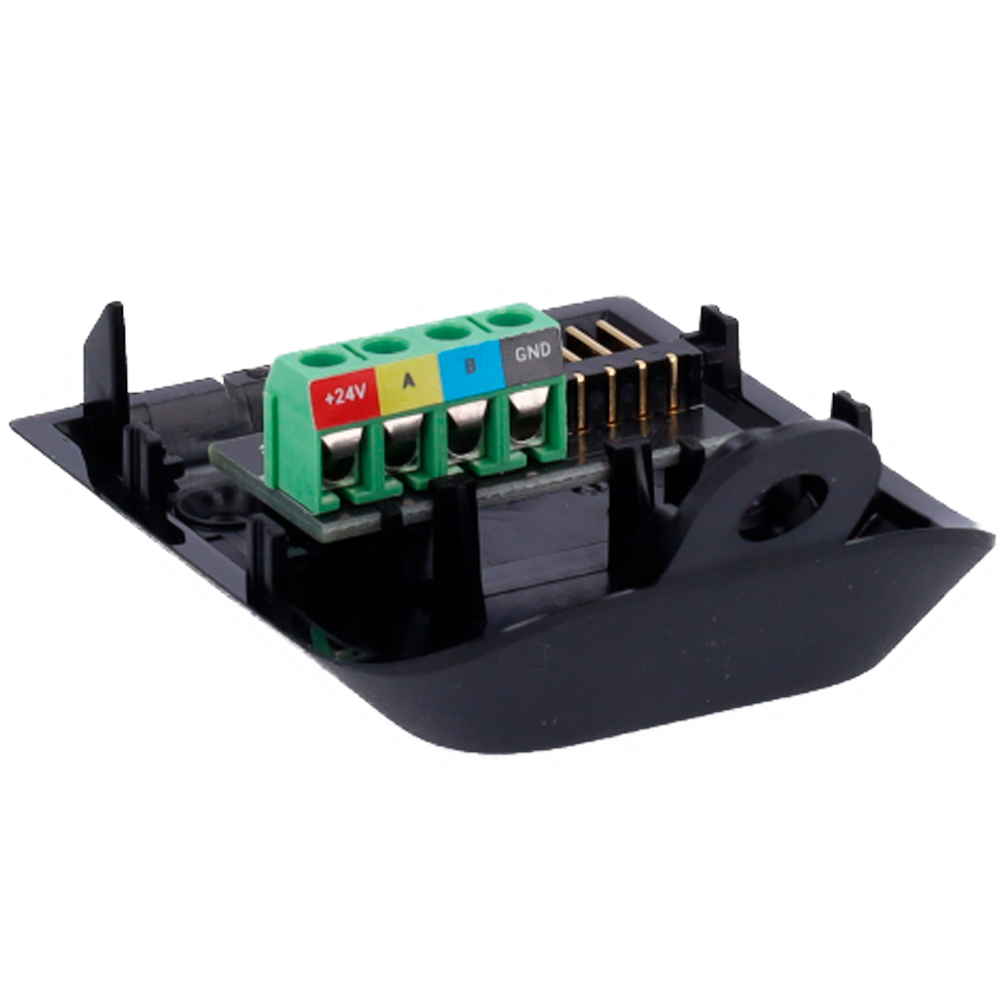

• Bus connection: 4-wire cable
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC
• Maximum consumption: 25 mW
• Operating temp.: -10º C ~ +40º C
• Housing material: ABS plastic
• Dimensions (without bracket): 110 (W) x 65 (H) x 50 (D) mm
• Color: Black
📦 INCLUDED:
• Indoor PIR detector• Instruction manual• Mounting material
| NFA2P certification | Available |
|---|---|
| Security level | Grade 2 |
| Technology | Volumetric PIR |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LED indication | Alarm, tamper, signal |
| Battery | 24 V DC |
| Maximum consumption | 25 mW |
| Operating temp. | -10º C ~ +40º C |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 110 (W) x 65 (H) x 50 (D) mm |
| Color | Black |
