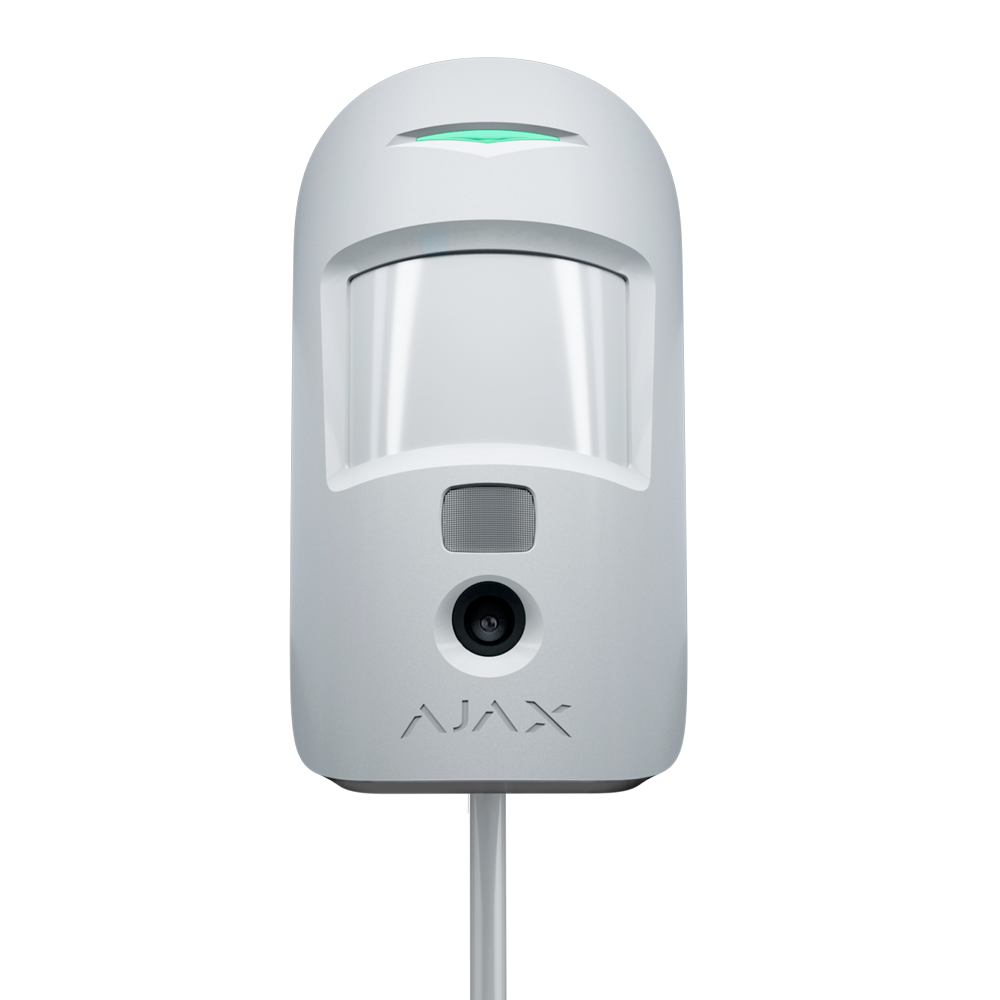

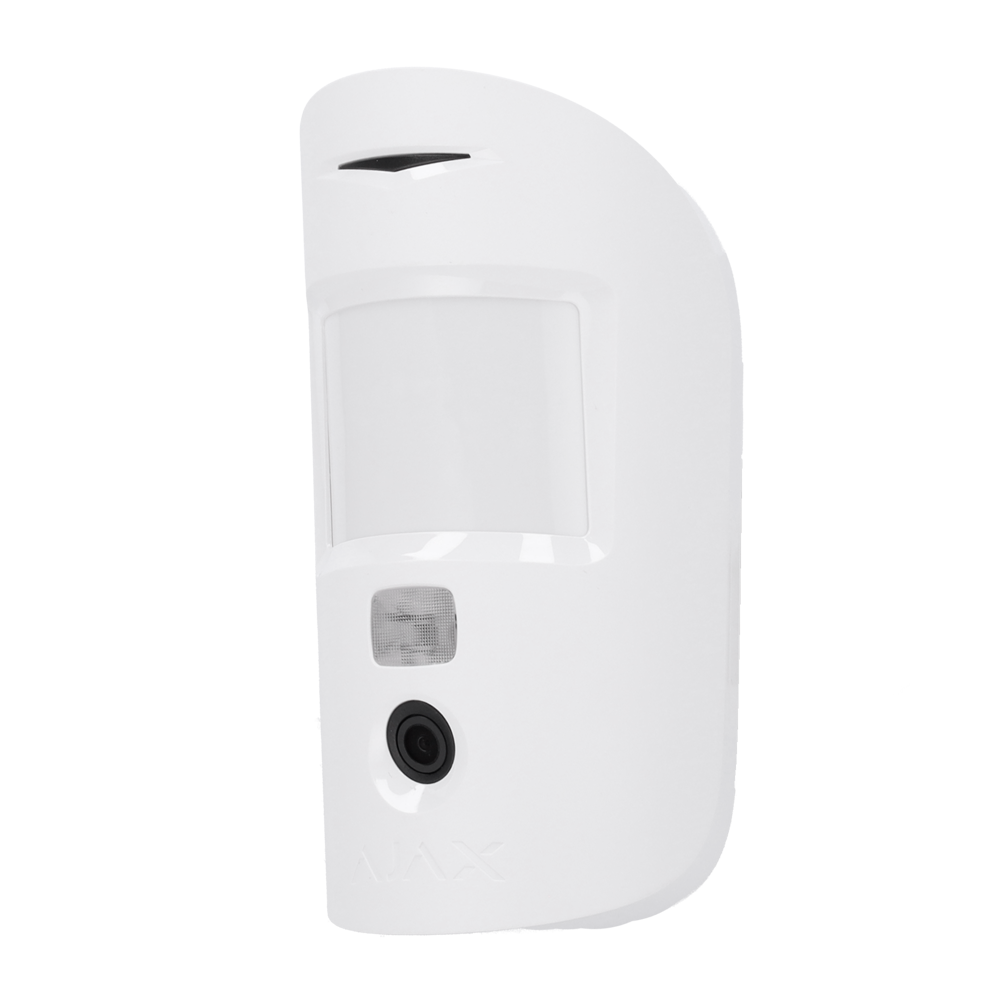

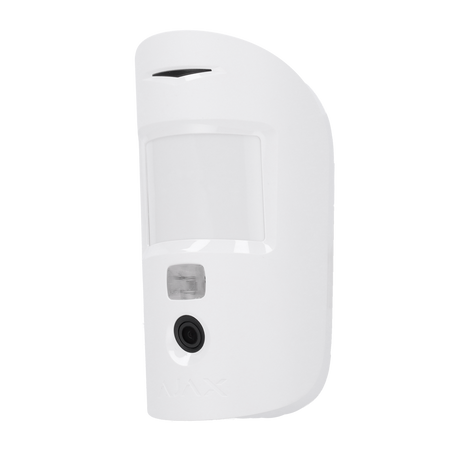

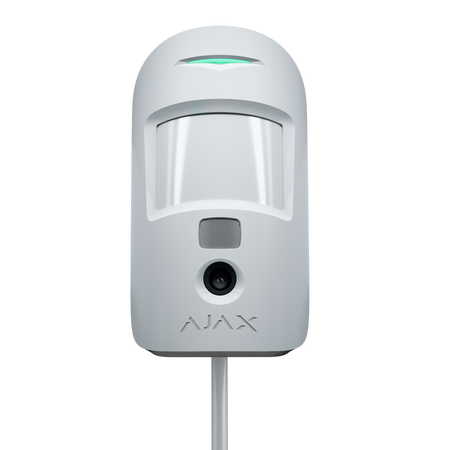

Ajax PhOD Motion Detector - PhOD image request
Regular price
€200,07
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PhOD photo-verification detector - NFA2P certified and Grade 2 - PhOD image request - Fibra protocol - Image transmission up to VGA (640x480) - Up to 5 images per detection - Pet Immunity / 12 m detection
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• NFA2P Certification: Available
• Security Level: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes

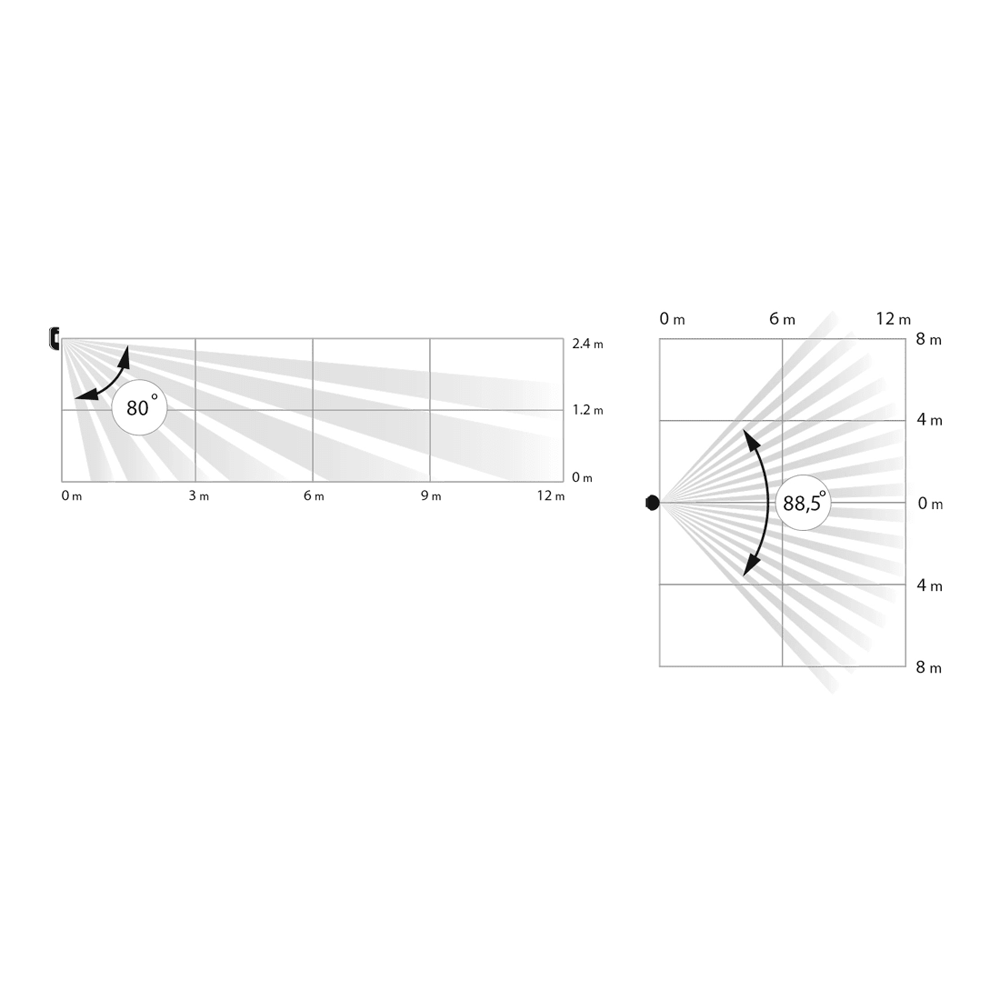

• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters

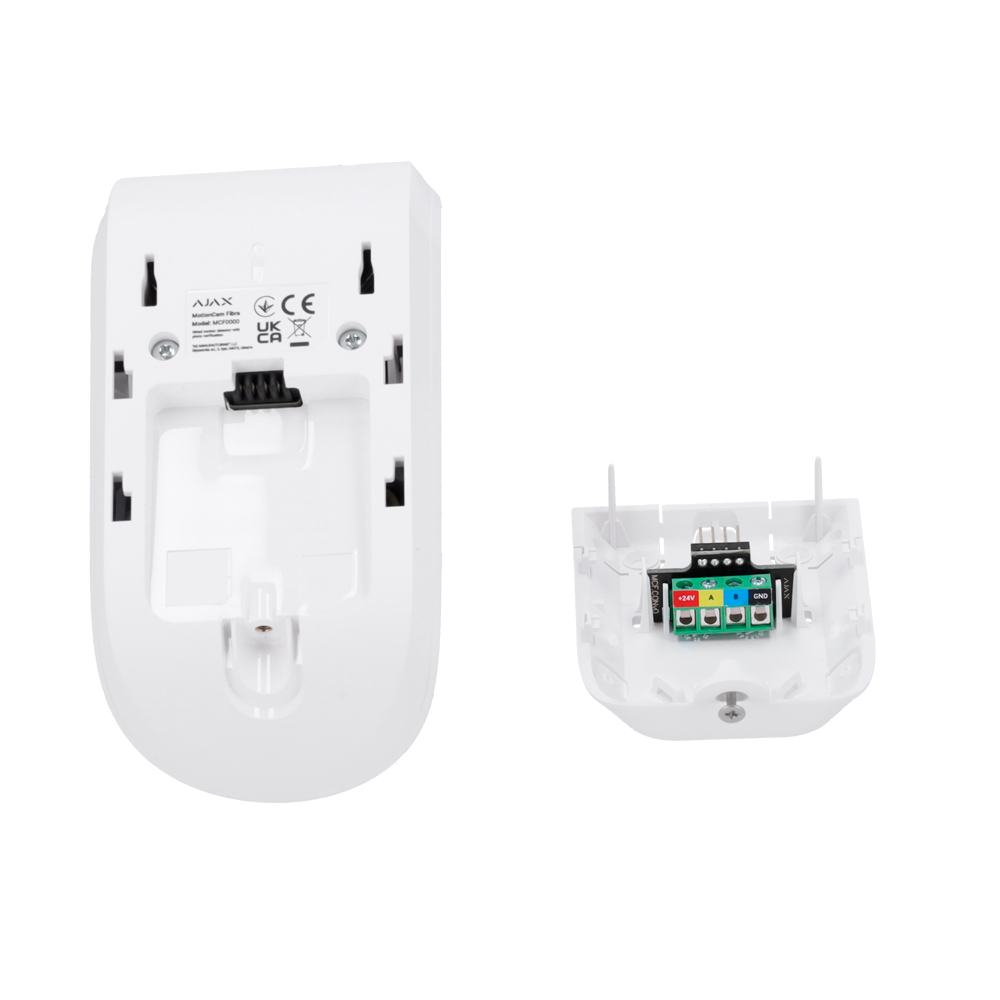

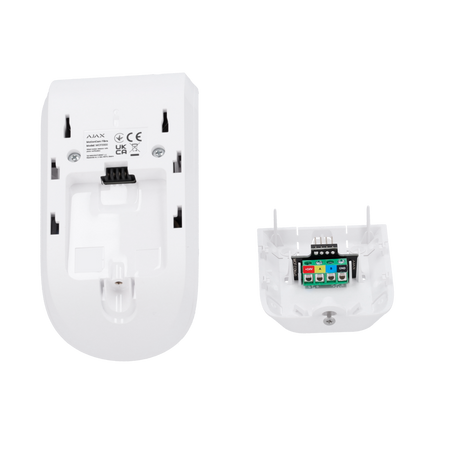

• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• Privacy management: End-user management of permissions for image requests
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image transmission: Sending and receiving images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and built-in rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrink)
• Operating temp.: -10º C ~ +40º C
• Protection: IP50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 60 (D) mm
• Weight: 150 grams
• Color: White
📦 INCLUDED:
• Wired PIR photo-verification detector for indoor use• Instruction manual• Mounting material
| NFA2P certification | Available |
|---|---|
| Security level | Grade 2 |
| Technology | Volumetric PIR with camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Installation height | 2.4 meters |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Privacy management | End-user management of permissions for image requests |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Image transmission | Sending and receiving images in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Power supply | 24 V DC and integrated rechargeable battery |
| Maximum consumption | 120 mW |
| Backup battery | LTO AA (shrink-wrapped) |
| Operating temp. | -10º C ~ +40º C |
| Protection | IP50 |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 60 (D) mm |
| Weight | 150 grams |
| Color | White |
- User manual Link
