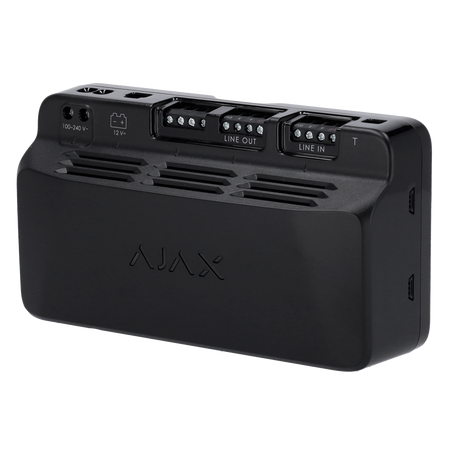

Fibra bus power supply module for Ajax - 45 W output power - Black
Fibra bus power supply module for Ajax - 45 W output power - Black
Regular price
€197,65
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Additional power supply module for Fibra bus - 45 W output power - Grade 3 certified - Extends range by up to 2,000 meters - Up to 10 modules per bus - 230 VAC main power supply
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Anti-opening tamper: Available (connected to housing)
• Number of output lines: 1
• Number of input lines: 1
• Main power supply: 230 VAC
• Backup battery: Connector for 12 VDC battery with a capacity of 7 to 18 Ah
• Output power: 30 W for the Fibra bus output and 15 W for the backup battery. Total 45 W output power
• Modules per bus: Up to 10 modules per bus
• Ventilation: Passive ventilation system
• Protection: Surge and short-circuit protection
• Compatibility: Compatible with Hub Hybrid (2G and 4G)

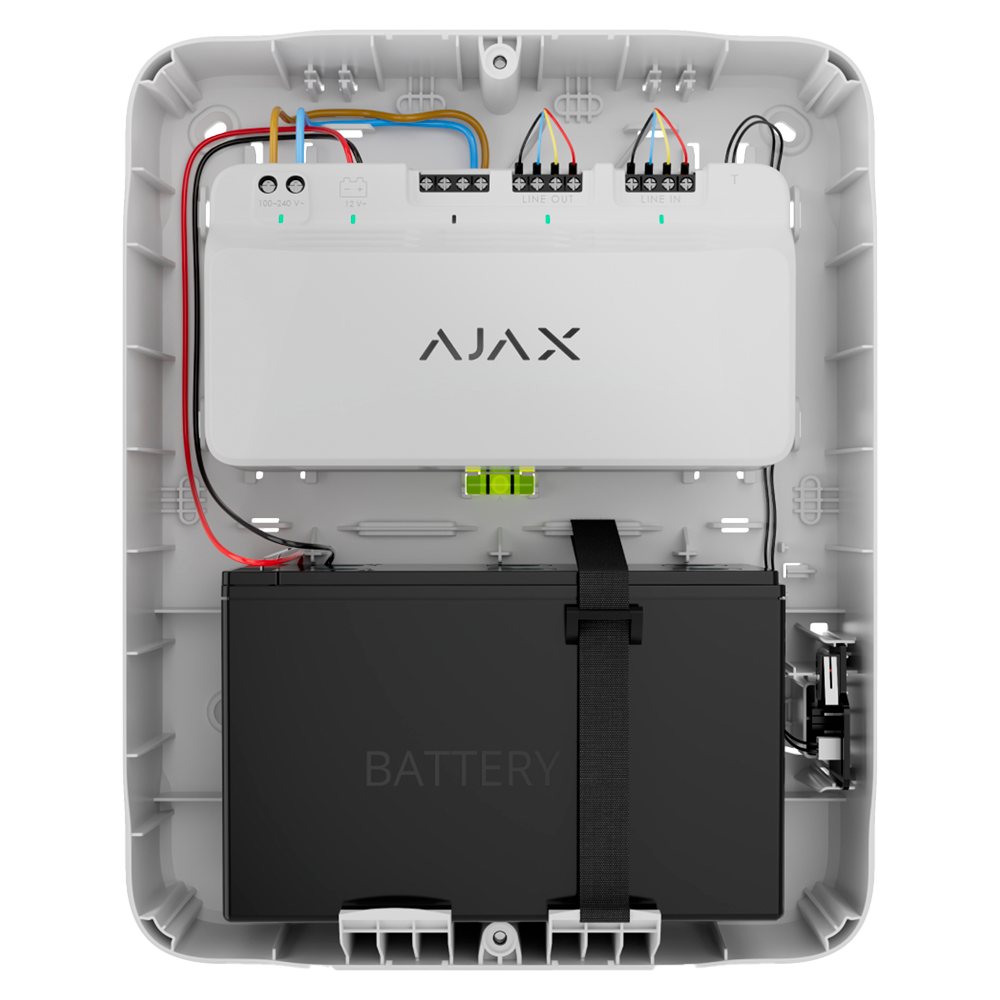

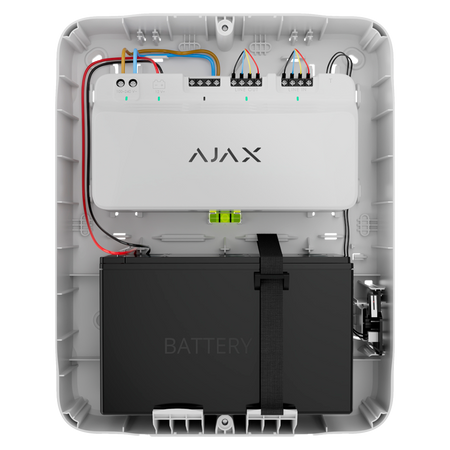

• Compatible housings: FIBRA-CASE-C260-W and FIBRA-CASE-D430-W
• Operating temp.: -10 ºC ~ 40 ºC
• Dimensions: 85 (W) x 160 (H) x 53 (D) mm
• Weight: 456 g
• Color: Black
📦 INCLUDED:
• Additional power supply module for bus• Instruction manual• Mounting material
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Tamper protection | Available (connected to the housing) |
| Number of output lines | 1 |
| Number of input lines | 1 |
| Main power supply | 230 VAC |
| Backup battery | Connector for 12 VDC battery with a capacity of 7 to 18 Ah |
| Output power | 30 W for the Fibra bus output and 15 W for the backup battery. Total 45 W output power |
| Modules per bus | Up to 10 modules per bus |
| Ventilation | Passive ventilation system |
| Protection | Surge and short-circuit protection |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Compatible housings | FIBRA-CASE-C260-W and FIBRA-CASE-D430-W |
| Operating temp. | -10 ºC ~ 40 ºC |
| Dimensions | 85 (W) x 160 (H) x 53 (D) mm |
| Weight | 456 g |
| Color | Black |
