Ajax professional alarm kit - Ethernet and dual SIM 4G communication - White

Professional alarm kit - Grade 2 Certified - Ethernet and dual 4G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, 2 wired PIRCAMs, - indoor siren and touch screen keypad

📋 SPECIFICATIONS:

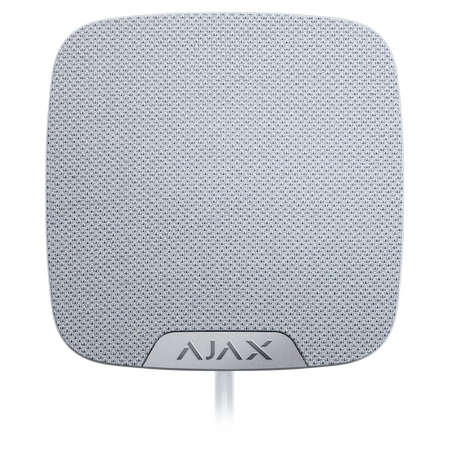

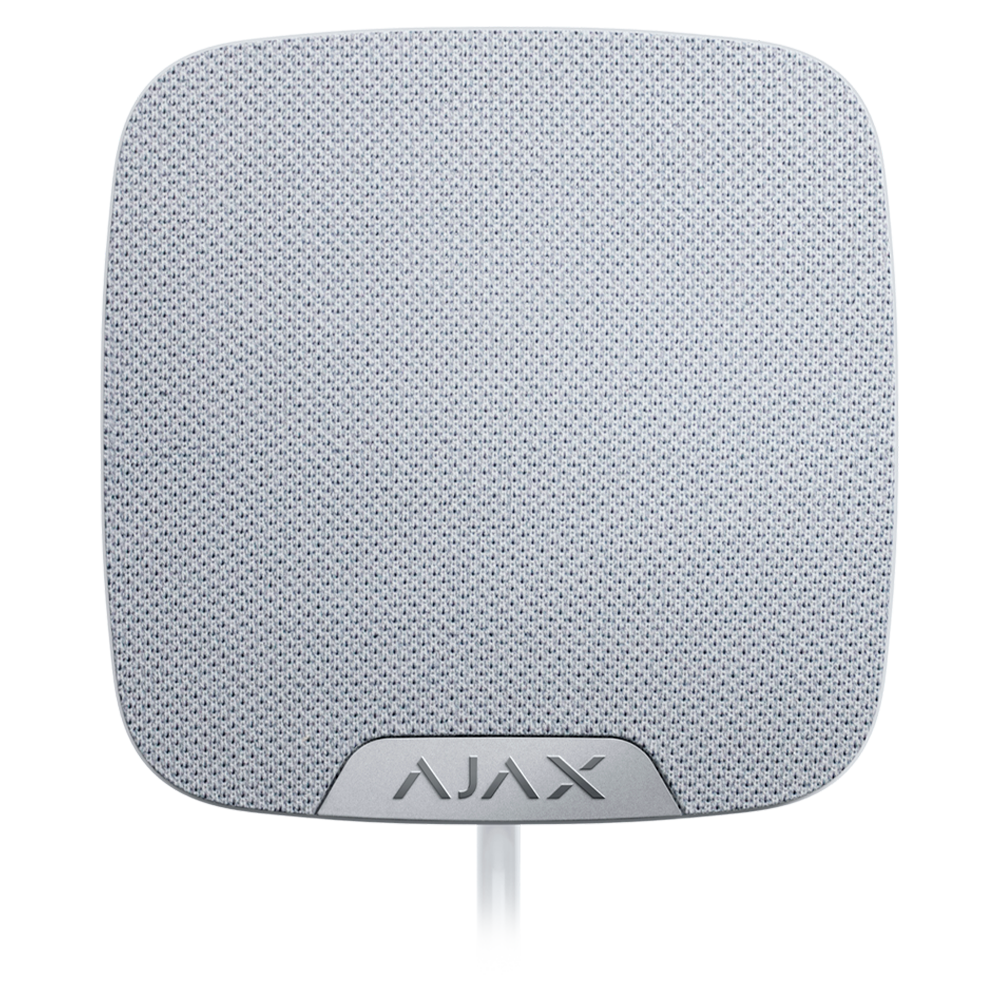

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indicators: Alarm notification and arming/disarming acoustic signal
• Internal security: Tamper protection
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: White

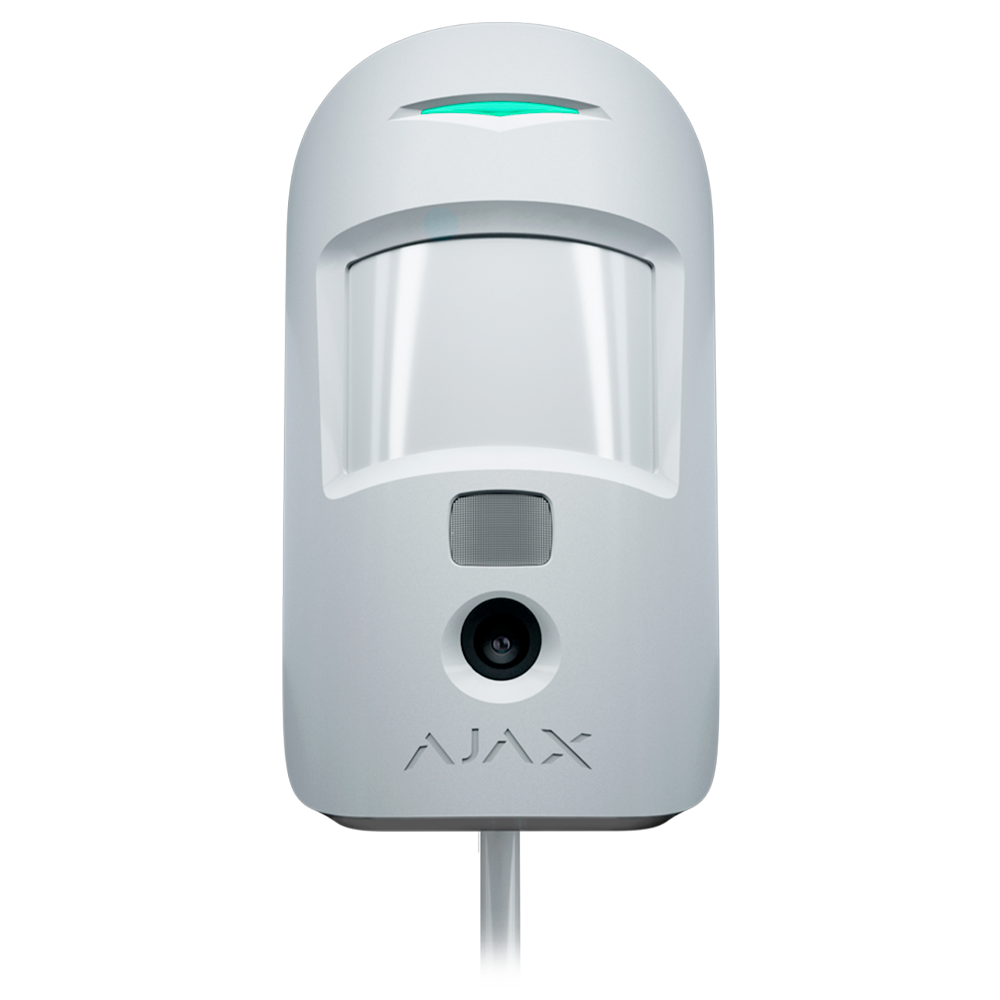

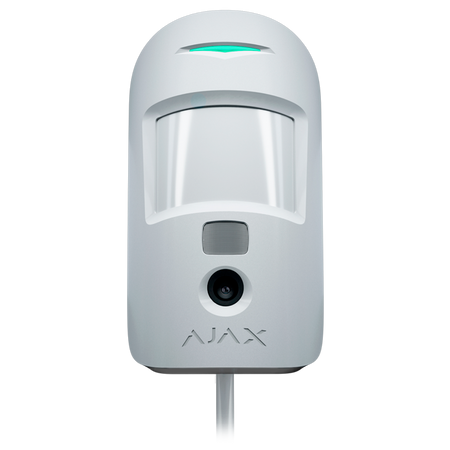

• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes
• Detection field: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image transmission: Sending and receiving images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and integrated rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrink)
• Operating temp.: -10º C ~ +40º C
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: White

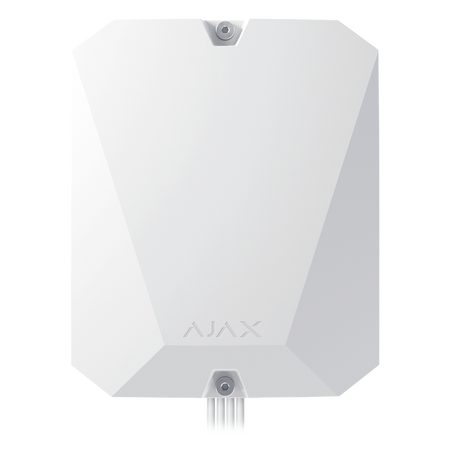

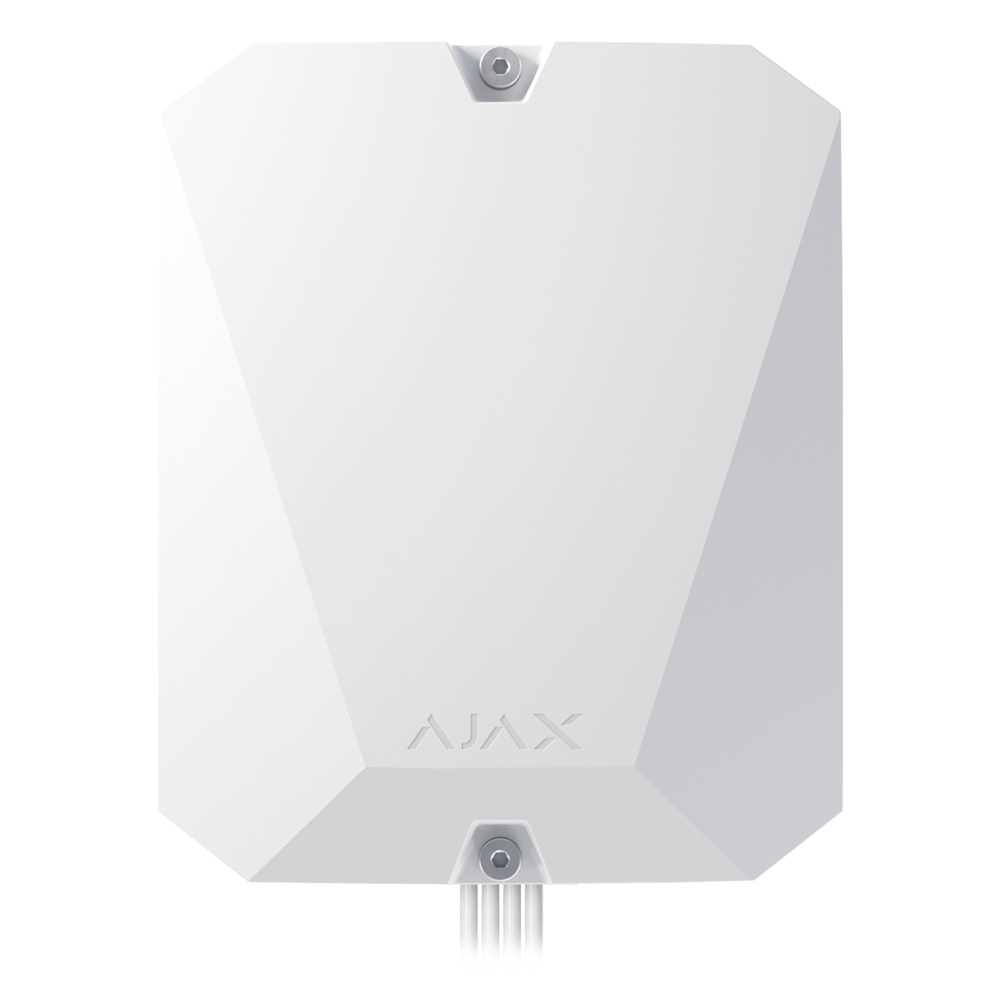

• Brand: Ajax Fibra
• Certification: Available
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Opening tamper
• Internal siren: Not available
• Communication: Ethernet / Dual 4G SIM
• Maximum devices: 100 wireless and wired (max. 10 among wireless and wired sirens and KeyPad TouchScreen)
• Video integration: Up to 25 IP cameras or NVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with CRA (Monitoring Station): Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. OTA (Over-the-air) remote updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery autonomy: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power supply: 24 V DC (included on board)

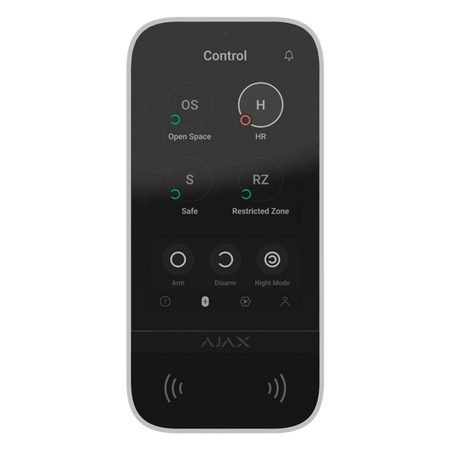

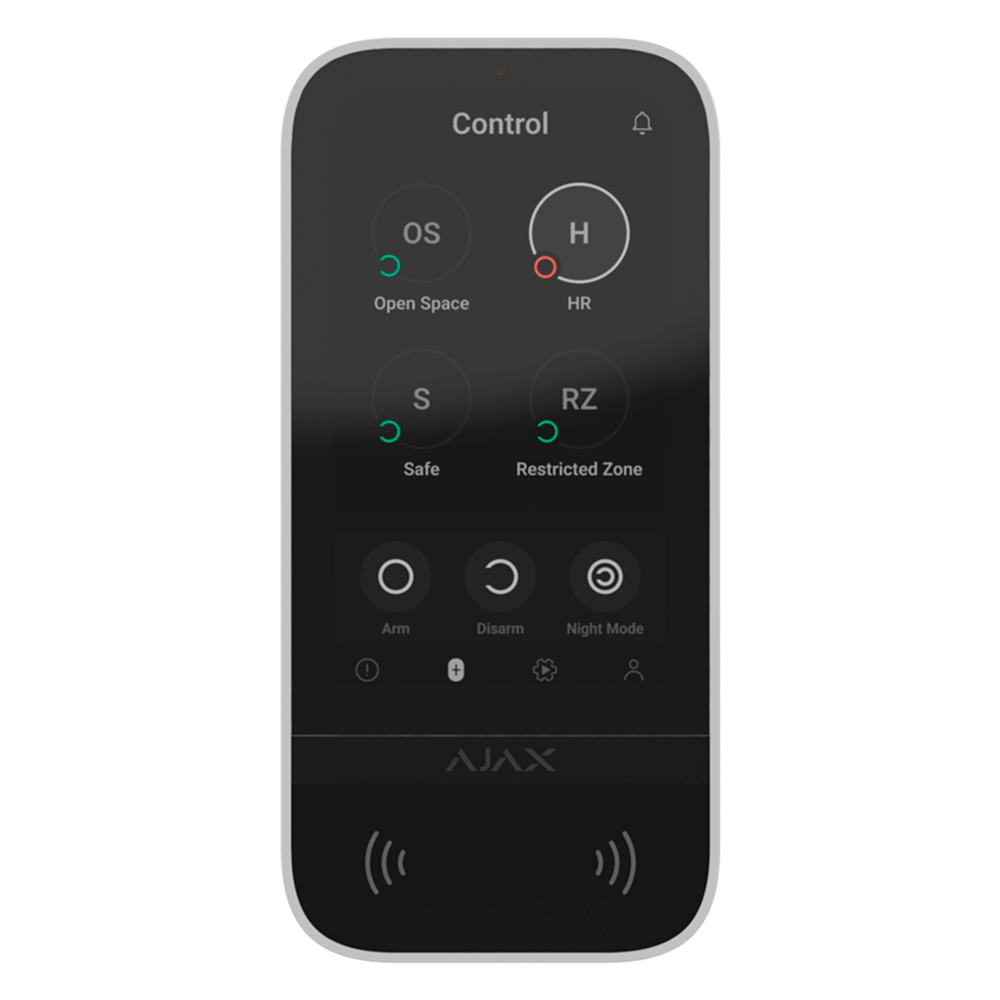

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Functions: Complete system arming/disarming; Group arming/disarming; Automation scenario control (maximum 6)
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth
• RFID technology: Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz)
• Power supply: Fibra bus: 24 V DC; Backup batteries: 2 × LTO AA (pre-installed)
• Maximum consumption: 1.6 W
• Optional power supply: 12 VDC (always-on display mode)
• External power supply operating voltage: 10.5 - 14 VDC, up to 0.5 A
• Panic button: Configurable:; Panic; Fire (silence alarm); Urgent help
• Notifications: Sound notifications for:; Delays; Door opening; Alarms; Instant fault notifications
• Tamper protection: Tamper; Mounting screw; Automatic lockout in case of unauthorized access
• LED indicator: To indicate security mode status
• Screen: 5-inch IPS touch screen
• Screen resolution: 480 × 854 px
• Interface mode: Day and night
• Hub and range extender compatibility: Compatible with Ajax Hub Hybrid (2G and 4G)
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Dimensions: 171 (W) x 82 (H) x 28 (D) mm
• Operating temp.: -10º C ~ 40º C
• Weight: 327 g
• Housing material: ABS plastic
• Color: White

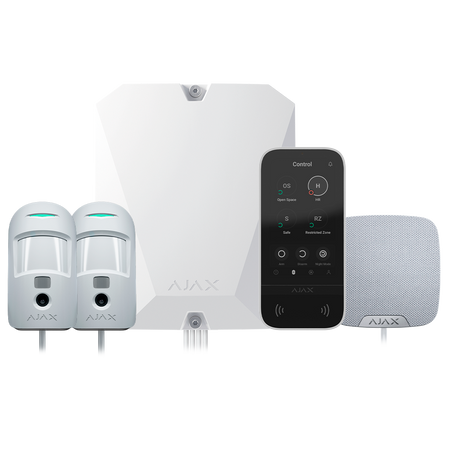

📦 INCLUDED:

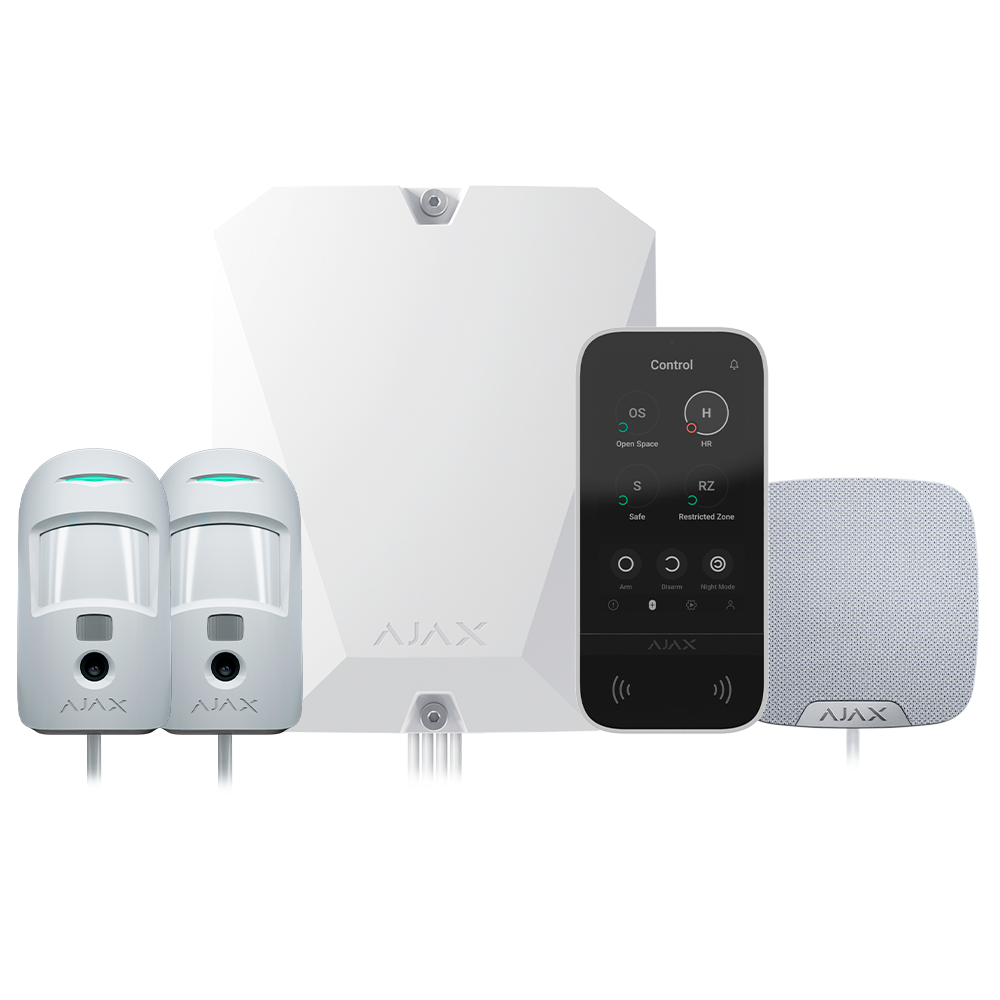

• Control panel FIBRA-HUBHYBRID-4G-W• 2 Motion detectors with camera FIBRA-MOTIONCAM-W• Touchscreen keypad FIBRA-KEYPADTOUCHSCREEN-W• Indoor siren FIBRA-HOMESIREN-W• User instructions
