Ajax professional alarm kit - Ethernet and dual SIM 4G communication - Grade 2

Professional alarm kit - Grade 2 Certified - Ethernet and dual SIM 4G communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, 2 wired PIRCAMs, indoor siren and touch screen keypad

📋 SPECIFICATIONS:

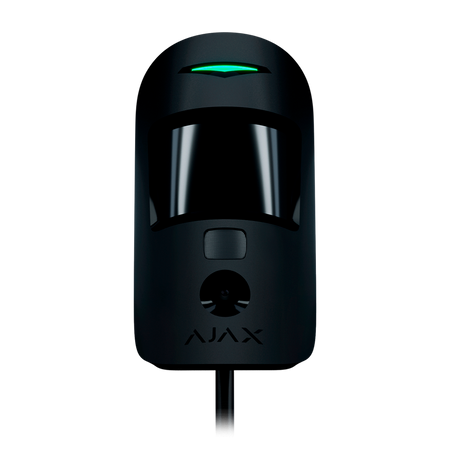

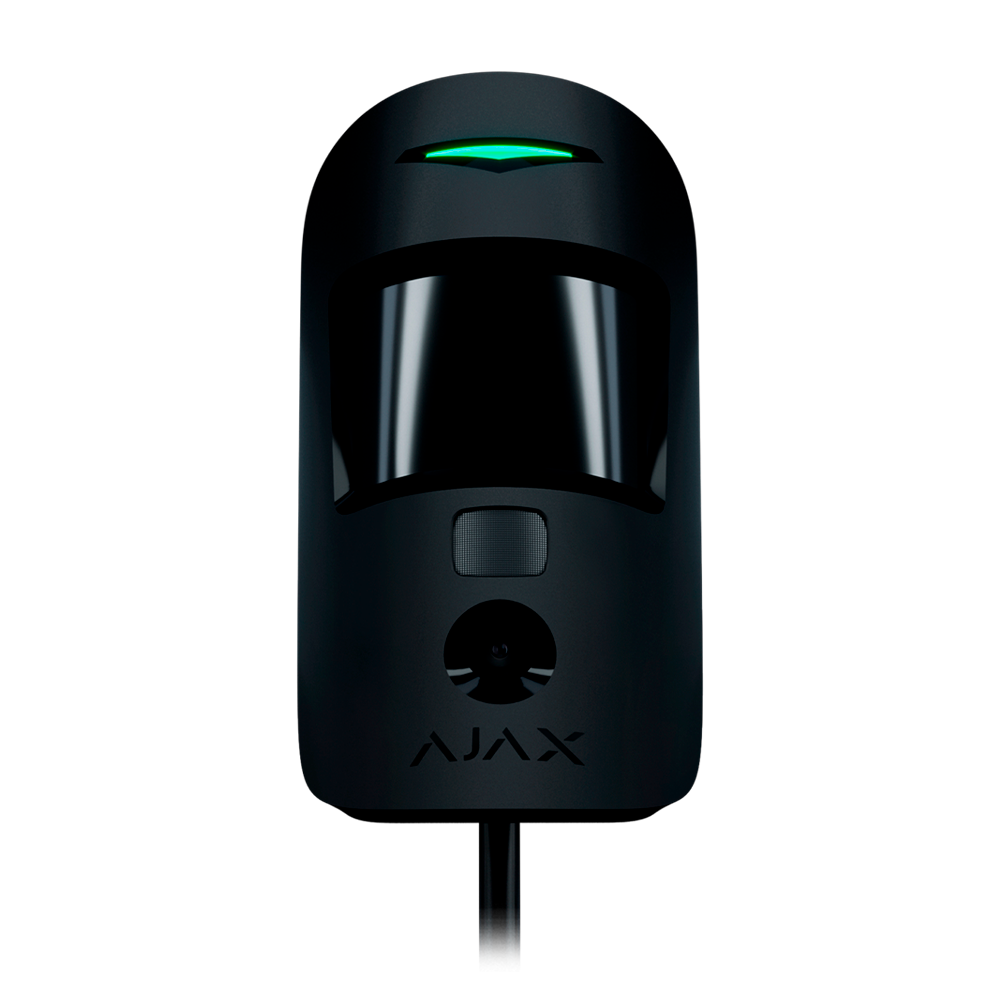

• Brand: Ajax Fibra
• NFA2P Certification: Available
• Security Level: Grade 2
• Technology: Volumetric PIR with camera
• PIR Lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image transmission: Sending and receiving images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and built-in rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrink wrapped)
• Operating temp: -10º C ~ +40º C
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: Black

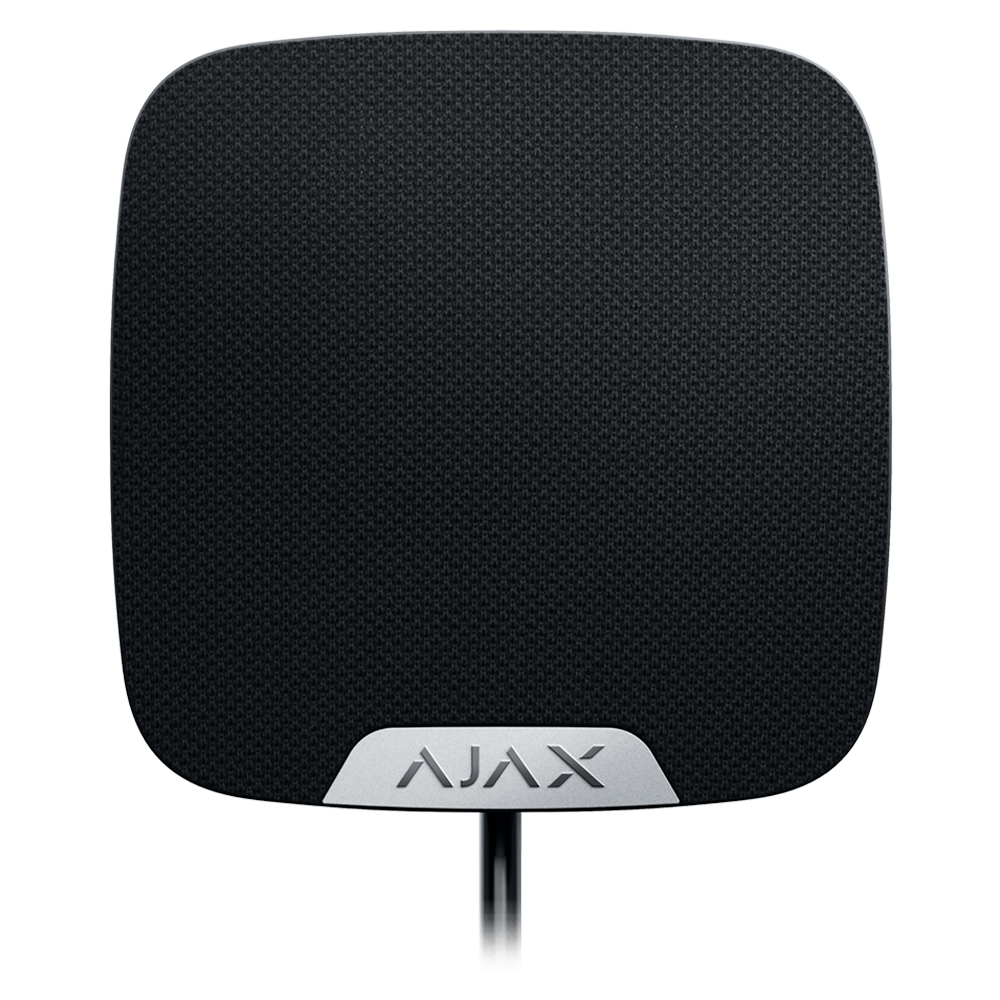

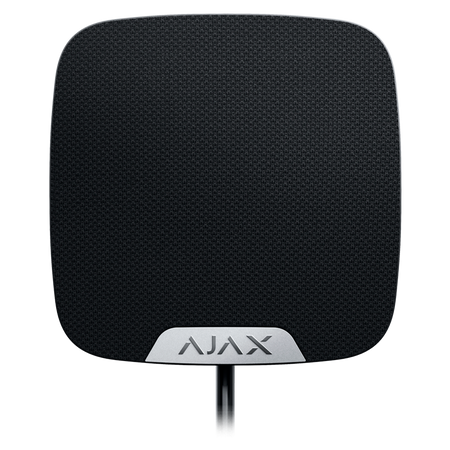

• Brand: Ajax Fibra
• Security Level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indications: Alarm signaling and arming / disarming acoustic signal
• Internal security: Tamper protection
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40 ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: Black

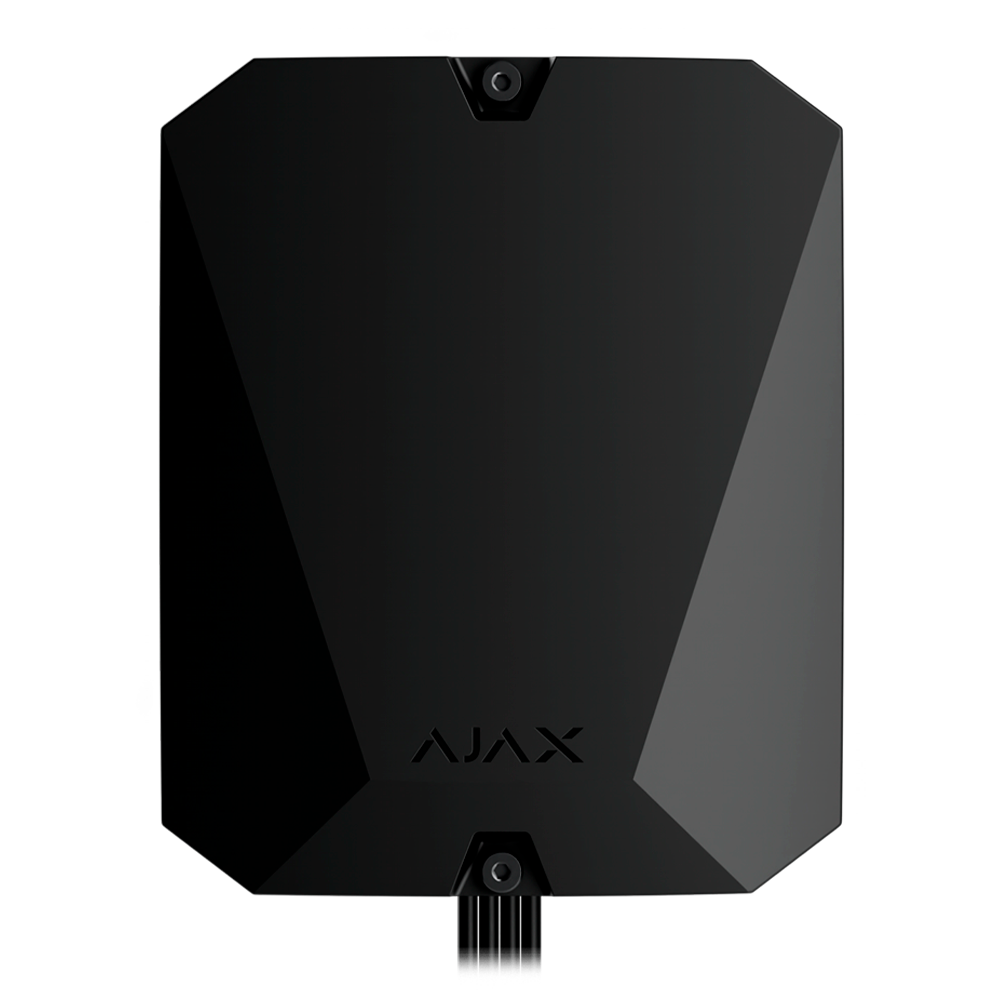

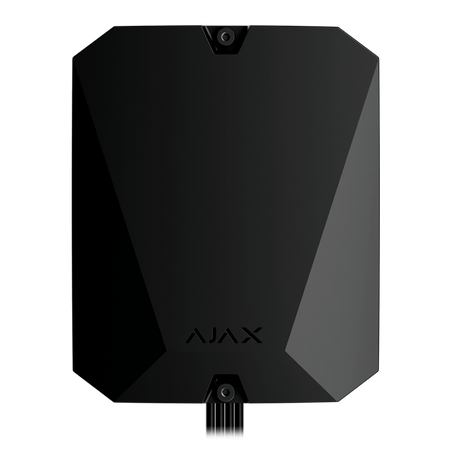

• Brand: Ajax Fibra
• NFA2P Certification: Available
• Security Level: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Anti-tamper
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 4G
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of Ajax device compatibility with control panels'
• Maximum devices: 100 wireless and wired (max. 10 among wireless and wired sirens and KeyPad TouchScreens)
• Video integration: Up to 25 IP cameras or video recorder channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. OTA (Over-the-air) updates remotely
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: Black
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power: 24 V DC (included on board)

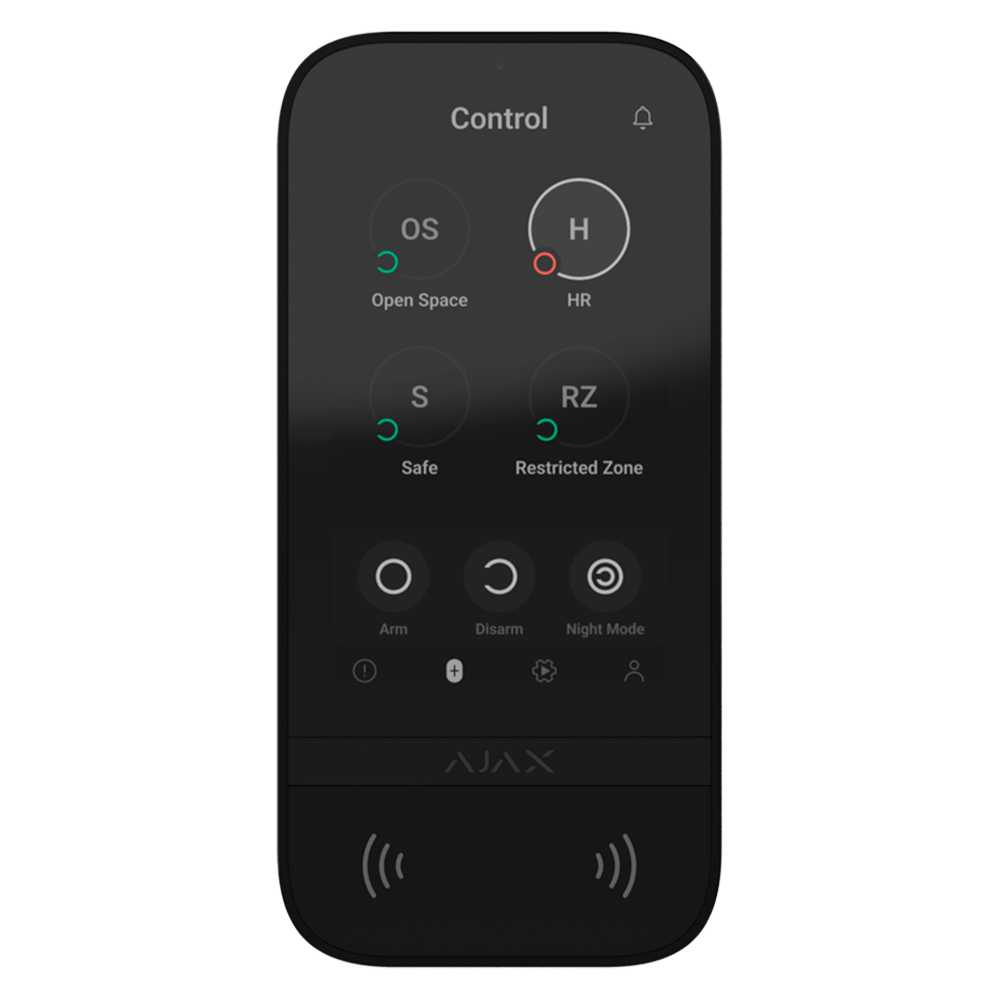

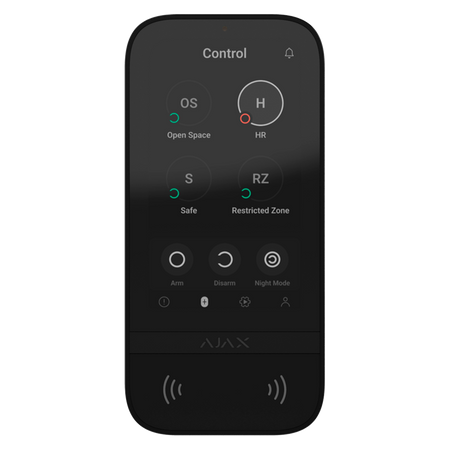

• Brand: Ajax Fibra
• Security Level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Functions: Full system arming/disarming; Arming/disarming by groups; Automation scenario control (maximum 6)
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth
• RFID technology: Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz)
• Power supply: Fibra Bus: 24 V DC; Backup batteries: 2 × LTO AA (pre-installed)
• Maximum consumption: 1.6 W
• Optional power supply: 12 VDC (always-on display mode)
• External power supply operating voltage: 10.5 - 14 VDC, up to 0.5 A
• Panic button: Configurable:; Panic; Fire (turn off alarm); Urgent assistance
• Notifications: Sound notifications for:; Delays; Door opening; Alarms; Instant fault notifications
• Tamper-proof: Tamper; Fastening screw; Automatic lockout in case of unauthorized access
• LED indicator: To indicate security mode status
• Screen: 5-inch IPS touch screen
• Screen resolution: 480 × 854 px
• Interface mode: Day and night
• Compatibility with hubs and range extenders: Compatible with Ajax Hub Hybrid (2G and 4G)
• Languages available: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Dimensions: 171 (W) x 82 (H) x 28 (D) mm
• Operating temp: -10 º C ~ 40 º C
• Weight: 327 g
• Housing material: ABS plastic
• Color: Black

📦 INCLUDED:

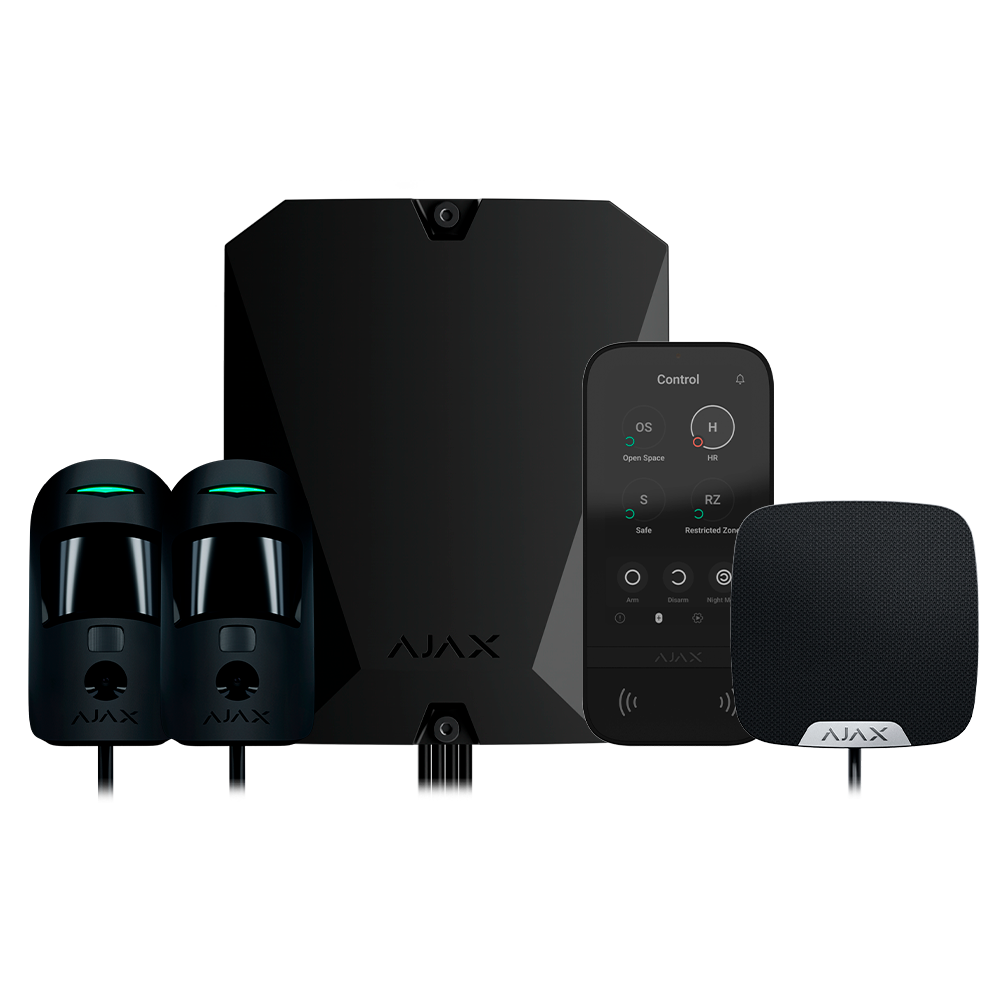

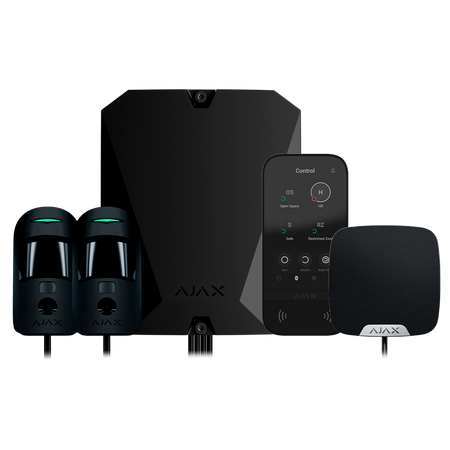

• FIBRA-HUBHYBRID-4G-B control panel• 2 FIBRA-MOTIONCAM-B motion detectors with camera• FIBRA-KEYPADTOUCHSCREEN-B wireless touchscreen keypad• FIBRA-HOMESIREN-B indoor siren• User instructions
