Professional Ajax alarm kit - Ethernet and dual SIM 2G communication - 10°C ~ 40°C
Professional Ajax alarm kit - Ethernet and dual SIM 2G communication - 10°C ~ 40°C
Regular price
€863,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional alarm kit - Grade 2 certified - Ethernet and dual 2G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, 2 wired PIRCAMs, - keypad with RFID reader and wireless siren
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Functions: Arm, disarm, partial arm and emergency
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1700 m in open space
• Siren volume: 81~105 dB at 1 meter
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Sound indication: Arming/disarming signal and delay beep
• RFID technology: Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz)
• RFID reader: Ajax key fobs and Ajax Pass cards
• Compatibility: Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher)
• Access code types: Personal (users), keypad and guest (available for Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus and Hub Hybrid (2G and 4G))
• Battery: 4 x CR123A 3 V batteries (estimated life 3 years (reader activated) / 3.5 years (reader deactivated)
• Housing material: ABS plastic
• Operating temp.: -10 º C ~ 40 º C
• Dimensions: 115 (W) x 182 (H) x 27 (D) mm
• Weight: 275 g
• Color: White
• Brand: Ajax Fibra
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Tamper against opening
• Internal siren: Not available
• Communication: Ethernet / Dual 2G SIM (GPRS)
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 among wireless and wired sirens and KeyPad TouchScreens)
• Video integration: Up to 25 IP cameras or NVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. OTA (Over-the-air) updates remotely
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power supply: 24 V DC (included on board)
• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image sending: Send and receive images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and built-in rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrinked)
• Operating temp.: -10º C ~ +40º C
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: White
📦 INCLUDED:

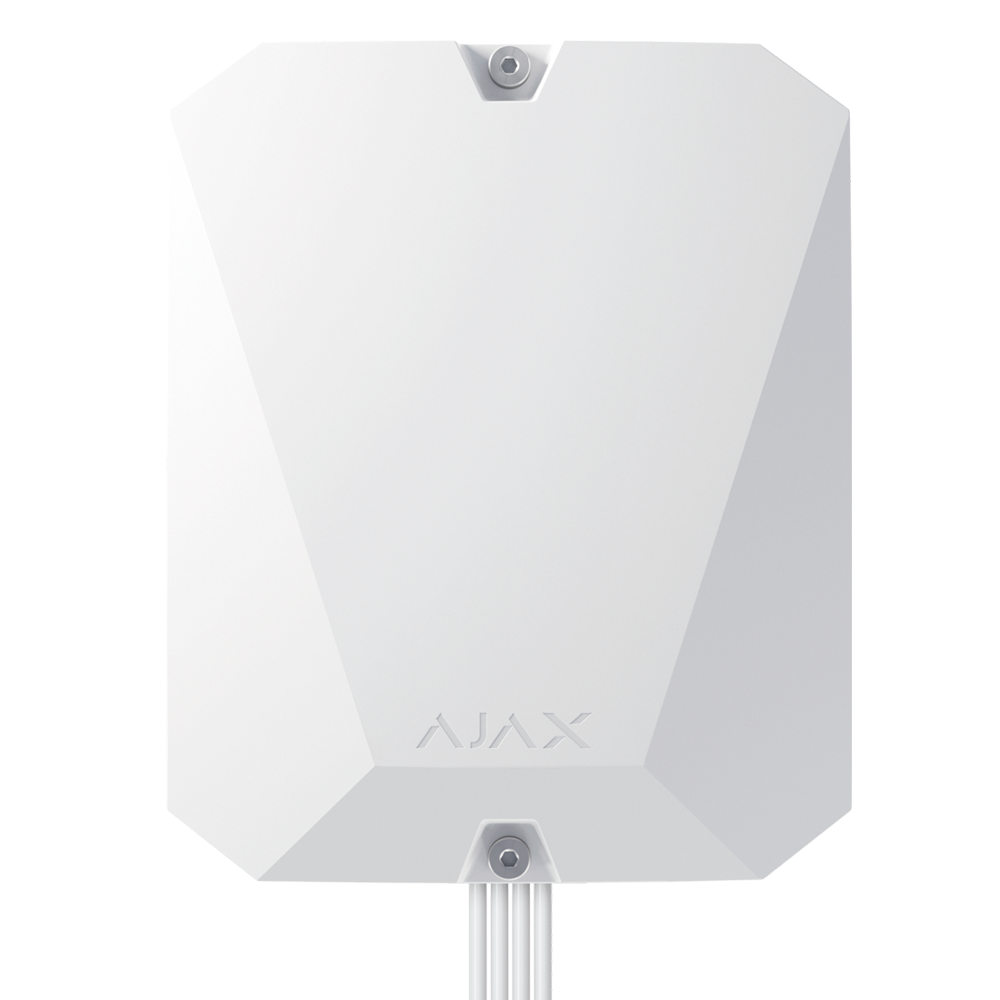

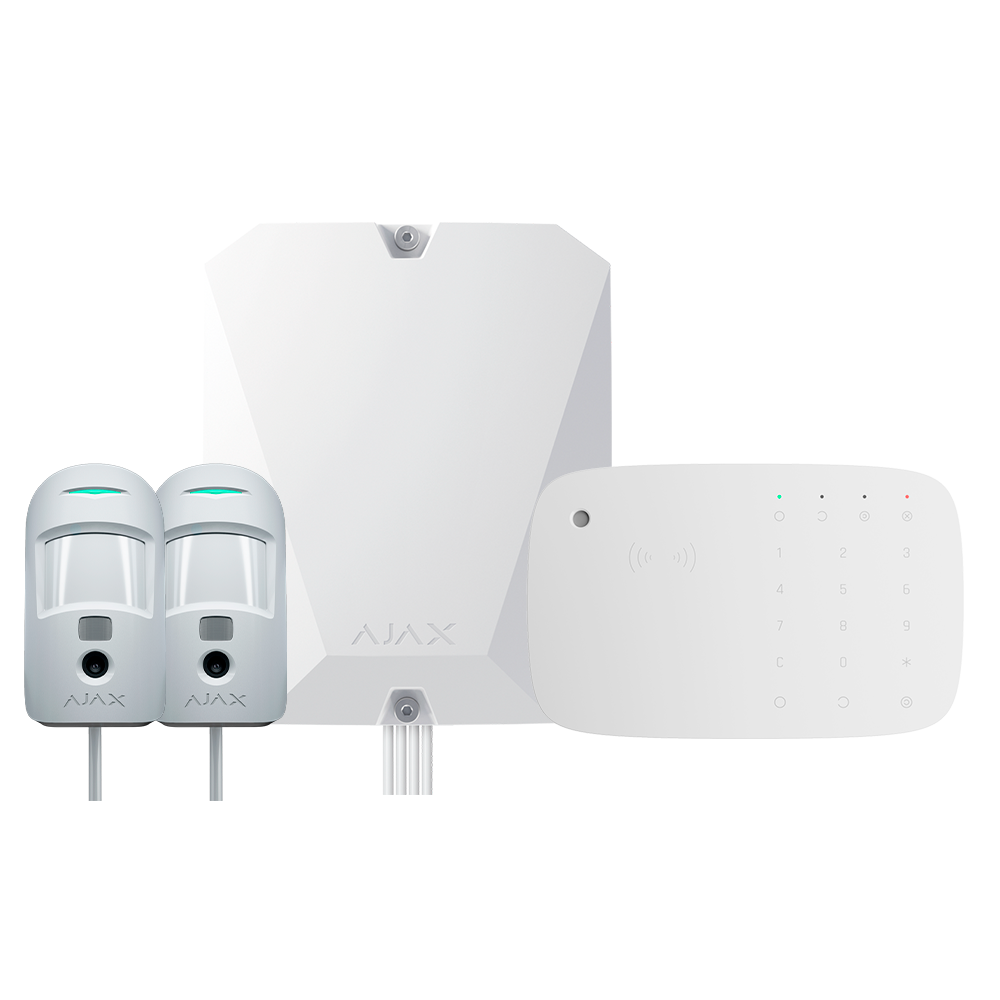

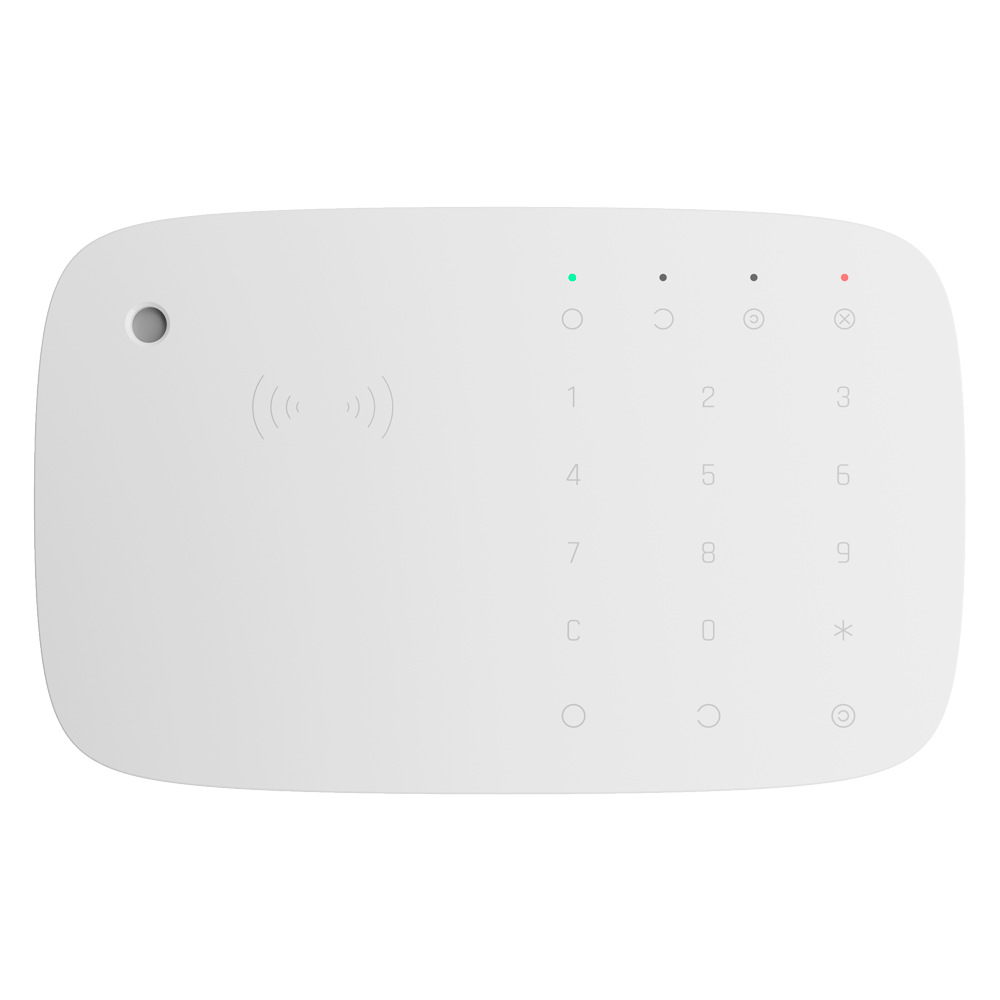

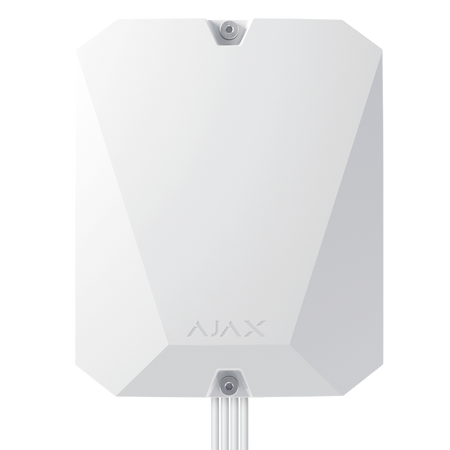

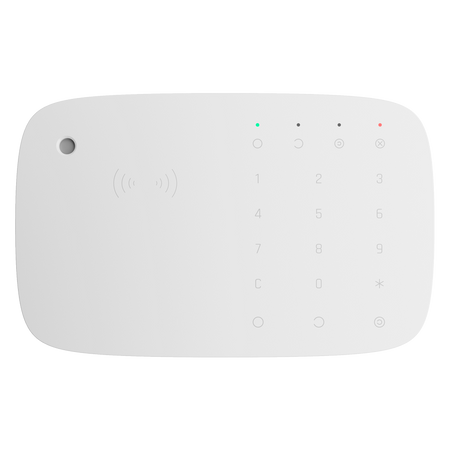

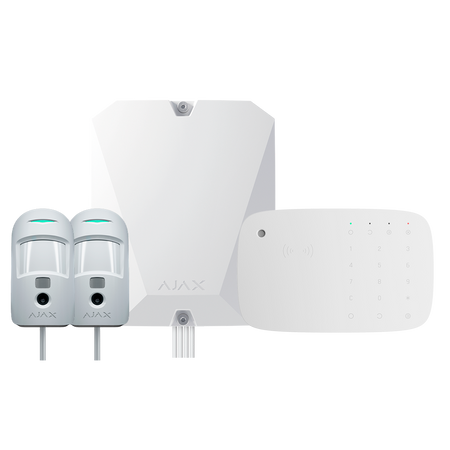

• Control panel FIBRA-HUBHYBRID-W• 2 Motion detectors with camera FIBRA-MOTIONCAM-W• Keypad with RFID reader and wireless siren AJ-KEYPADCOMBI-W• User manual
| Security level | Grade 2 |
|---|---|
| Functions | Arming, disarming, partial arming and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Siren volume | 81~105 dB at 1 meter |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Sound indication | Arming/disarming signal and entry/exit delay chime |
| RFID technology | Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz) |
| RFID reading | Ajax Tag key fobs and Ajax Pass cards |
| Compatibility | Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher) |
| Access code types | Personal (users), keypad and guest (available for Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus and Hub Hybrid (2G and 4G)) |
| Battery | 4 CR123A 3V batteries (estimated life 3 years (reader activated) / 3.5 years (reader deactivated)) |
| Housing material | ABS plastic |
| Operating temp. | -10 ºC ~ 40 ºC |
| Dimensions | 115 (W) x 182 (H) x 27 (D) mm |
| Weight | 275 g |
| Color | White |
| Security level | Grade 3 |
| Communication protocols | Jeweller, Wings and Fibra |
| Internal security | Tamper anti-opening |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Device compatibility | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 wireless and wired (max. 10 between wireless and wired sirens and KeyPad TouchScreen) |
| Video integration | Up to 25 IP cameras or DVR channels |
| Number of users | Up to 50 |
| Automation scenarios | 32 scenarios |
| Communication with ARC | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Housing material | ABS plastic |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC, 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery) |
| Operating temp. | -10º C ~ +40º C |
| Dimensions | 192 (W) × 238 (H) × 100 (D) mm |
| Color | White |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller range | Up to 2000 m in open space |
| Wings range | Up to 1700 m in open space |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable) |
| Inputs | 8 independent bus lines |
| Bus connection | 4-wire cable (2 for power and 2 for data) |
| Connection topologies | Bus, star and ring |
| Fibra device power supply | 24 V DC (included on the board) |
| NFA2P certification | Available |
| Security level | Grade 2 |
| Technology | Volumetric PIR with camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Installation height | 2.4 meters |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable) |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images for each detection |
| Image sending | Sending and receiving images in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Power supply | 24 V DC and integrated rechargeable battery |
| Maximum consumption | 120 mW |
| Backup battery | LTO AA (wrapped in heat-shrink film) |
| Operating temp. | -10º C ~ +40º C |
| Protection | IP 50 |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 66 (D) mm |
| Weight | 150 grams |
| Color | White |
