Professional Ajax alarm kit - Ethernet and dual SIM 2G communication - 10 ºC ~ 40 ºC

Professional alarm kit - Grade 2 Certified - Ethernet and dual 2G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, 2 wired PIRCAMs, - keypad with RFID reader and wireless siren

📋 SPECIFICATIONS:
• Brand: Ajax
• Security level: Grade 2
• Functions: Arm, disarm, partial arm and emergency
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1700 m in open space
• Siren volume: 81~105 dB at 1 meter
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Sound indication: Arming/disarming signal and delay acoustic signal
• RFID technology: Mifare DESFire® EV1, EV2 (ISO14443-A 13.56 MHz)
• RFID reader: Ajax Tag key fobs and Ajax Pass cards
• Compatibility: Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher)
• Access code types: Personal (users), keypad and guest (available for Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus and Hub Hybrid (2G and 4G))
• Battery: 4 CR123A 3 V batteries (estimated life 3 years (reader activated) / 3.5 years (reader deactivated))
• Housing material: ABS plastic
• Operating temp.: -10 ºC ~ 40 ºC
• Dimensions: 115 (W) x 182 (H) x 27 (D) mm
• Weight: 275 g
• Color: Black
• Brand: Ajax Fibra
• NFA2P certification: Available
• Security level: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Anti-opening tamper
• Internal siren: Not available
• Communication: Ethernet / Dual 2G SIM (GPRS)
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 between wireless and wired sirens and KeyPad TouchScreen)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery autonomy: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: Black
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power: 24 V DC (included on board)
• Brand: Ajax Fibra
• NFA2P certification: Available
• Security level: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images for each detection
• Sending images: Send and receive images in less than a minute
• Infrared lighting: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and integrated rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrink)
• Operating temp.: -10º C ~ +40º C
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: Black

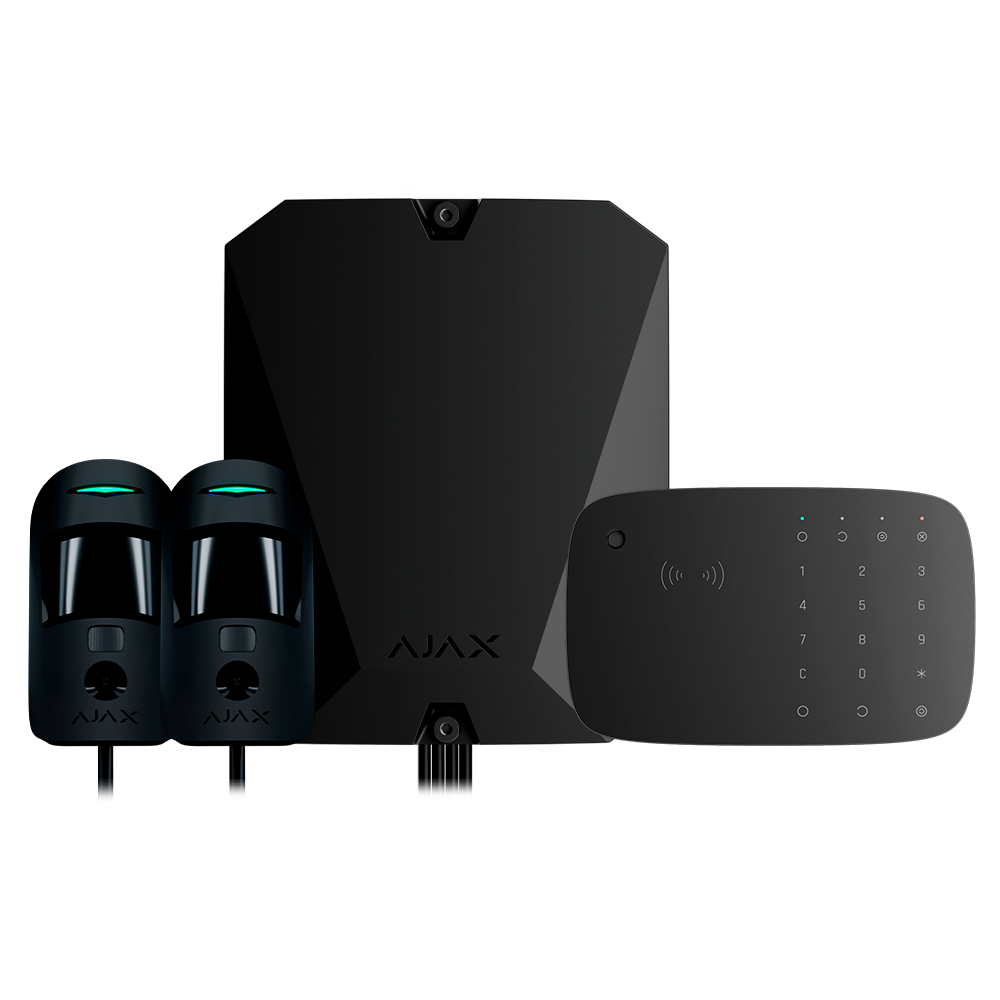

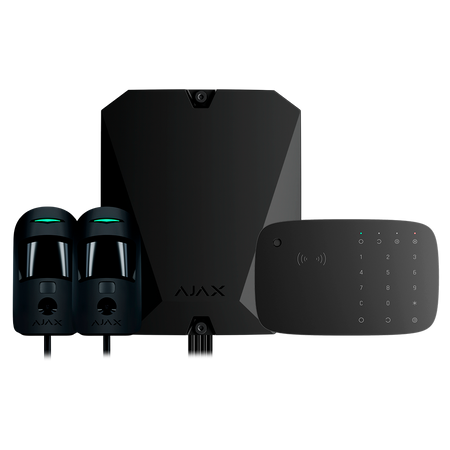

📦 INCLUDED:

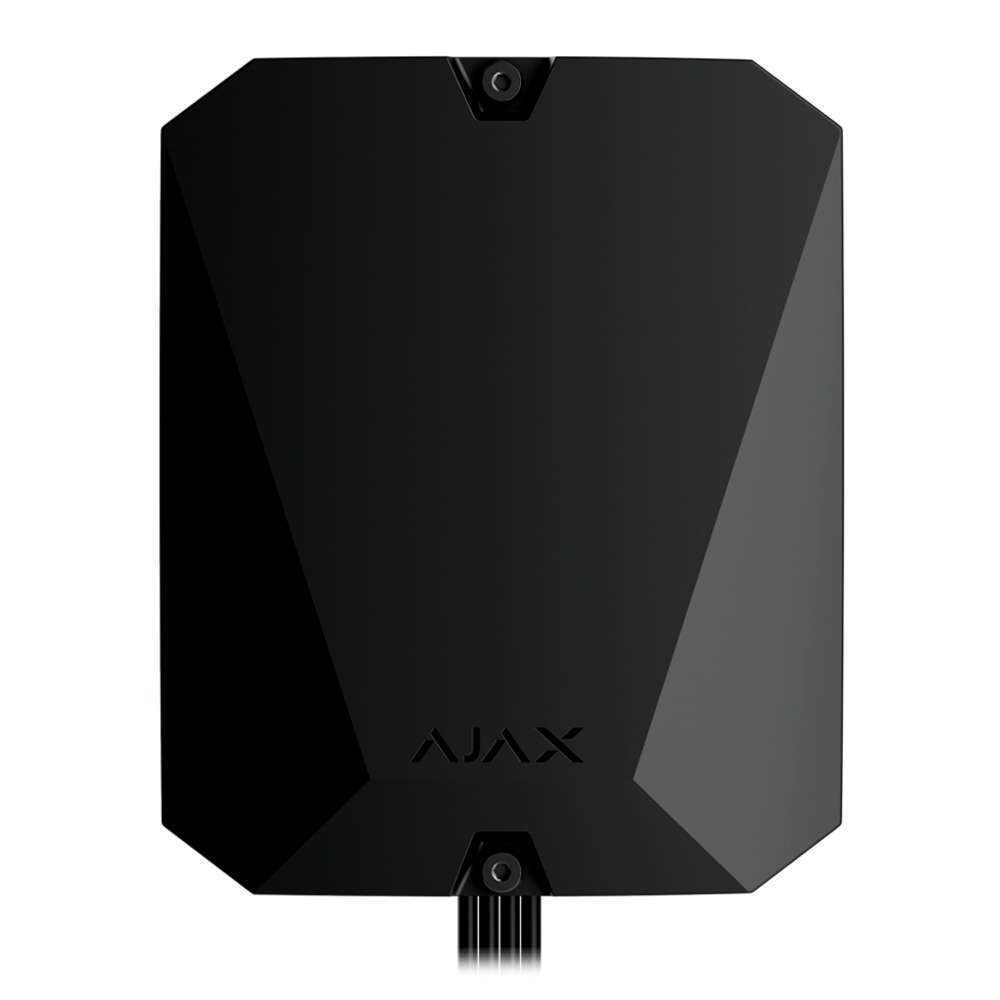

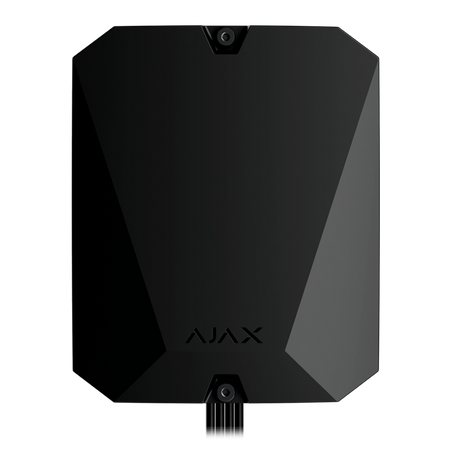

• FIBRA-HUBHYBRID-B control panel

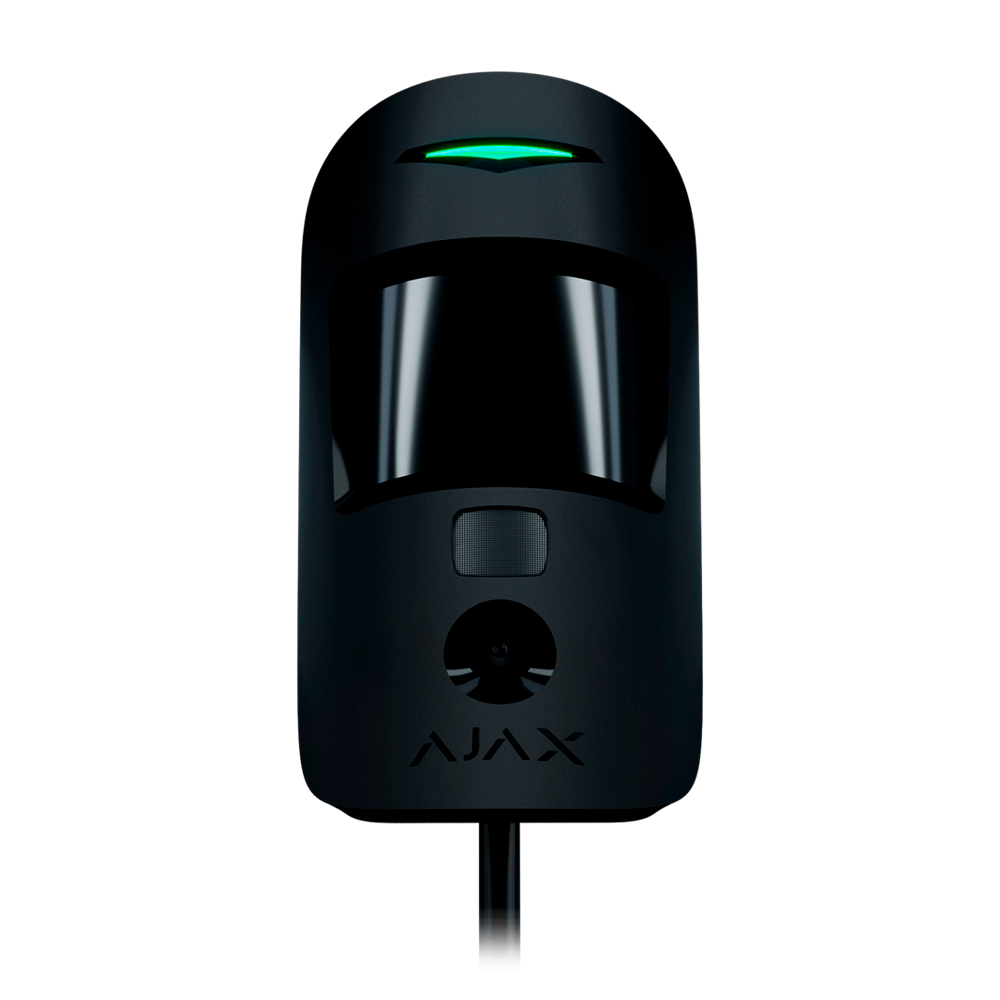

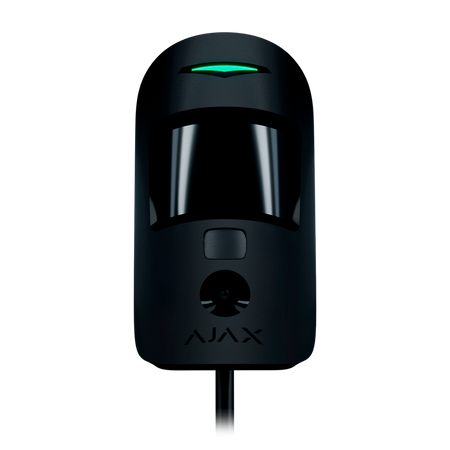

• 2 FIBRA-MOTIONCAM-B motion detectors with camera

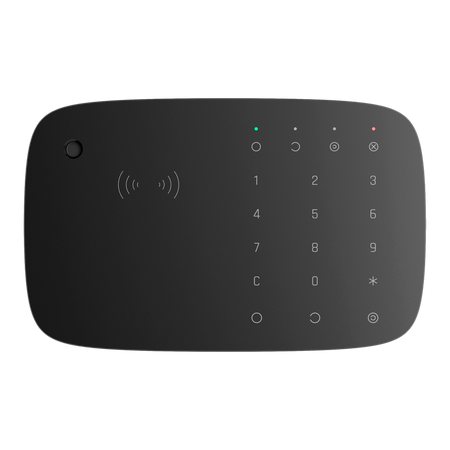

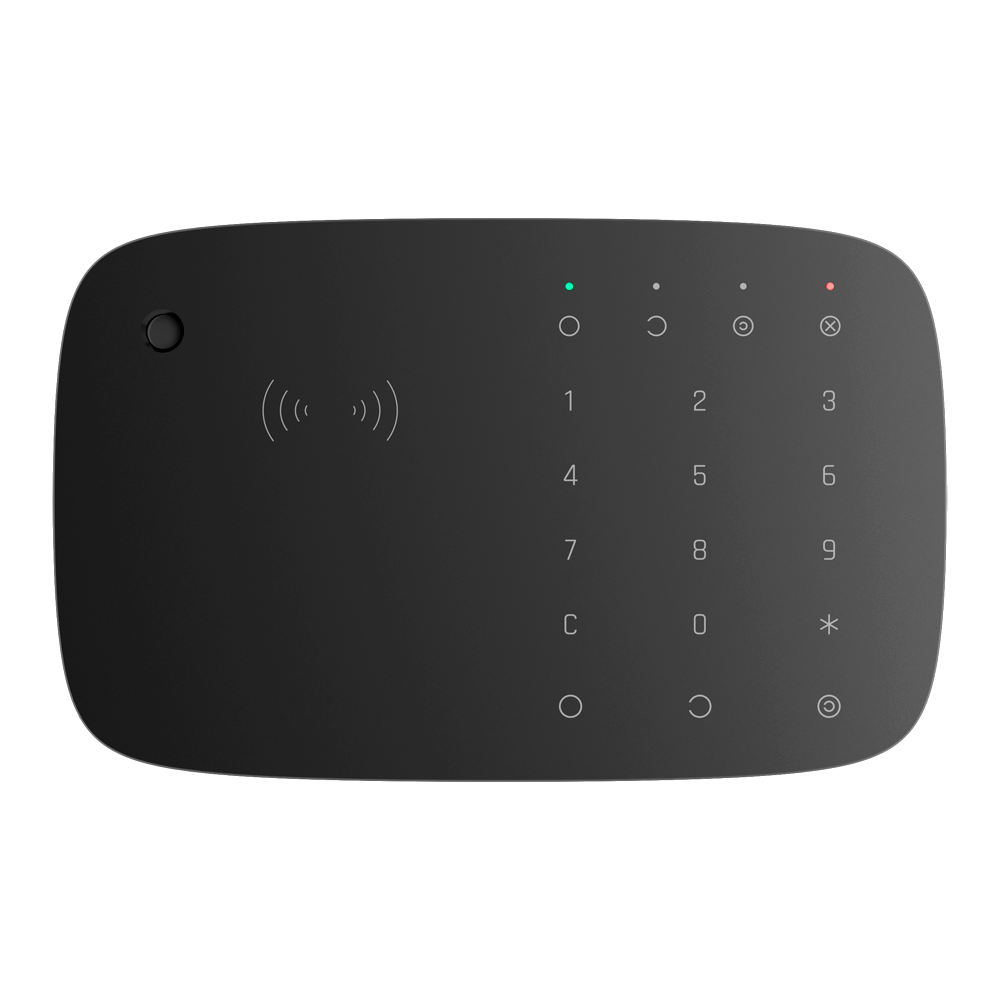

• AJ-KEYPADCOMBI-B keypad with RFID reader and wireless siren
• User manual
