Professional Ajax alarm kit - Ethernet and dual SIM 2G communication - indoor siren and 2 PIRCAM - 3
Professional Ajax alarm kit - Ethernet and dual SIM 2G communication - indoor siren and 2 PIRCAM - 3
Regular price
€1.028,96
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional alarm kit - Grade 2 Certified - Ethernet and dual SIM 2G communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, keypad, indoor siren and 2 PIRCAMs
📋 SPECIFICATIONS:

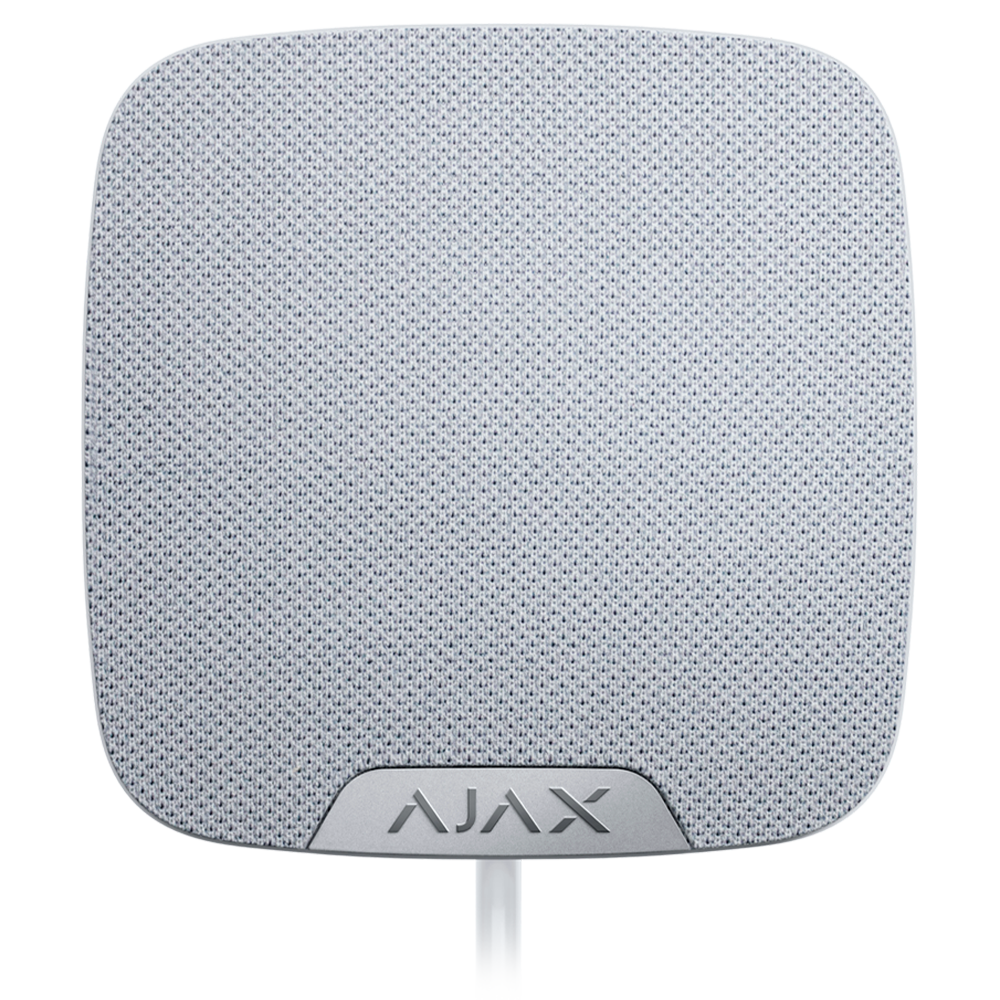

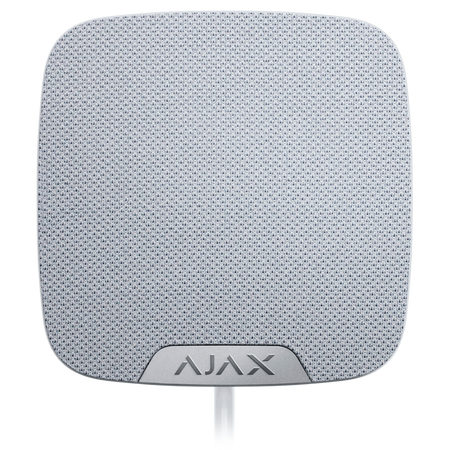

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indications: Alarm signaling and acoustic arming/disarming signal
• Internal security: Tamper protection
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: White

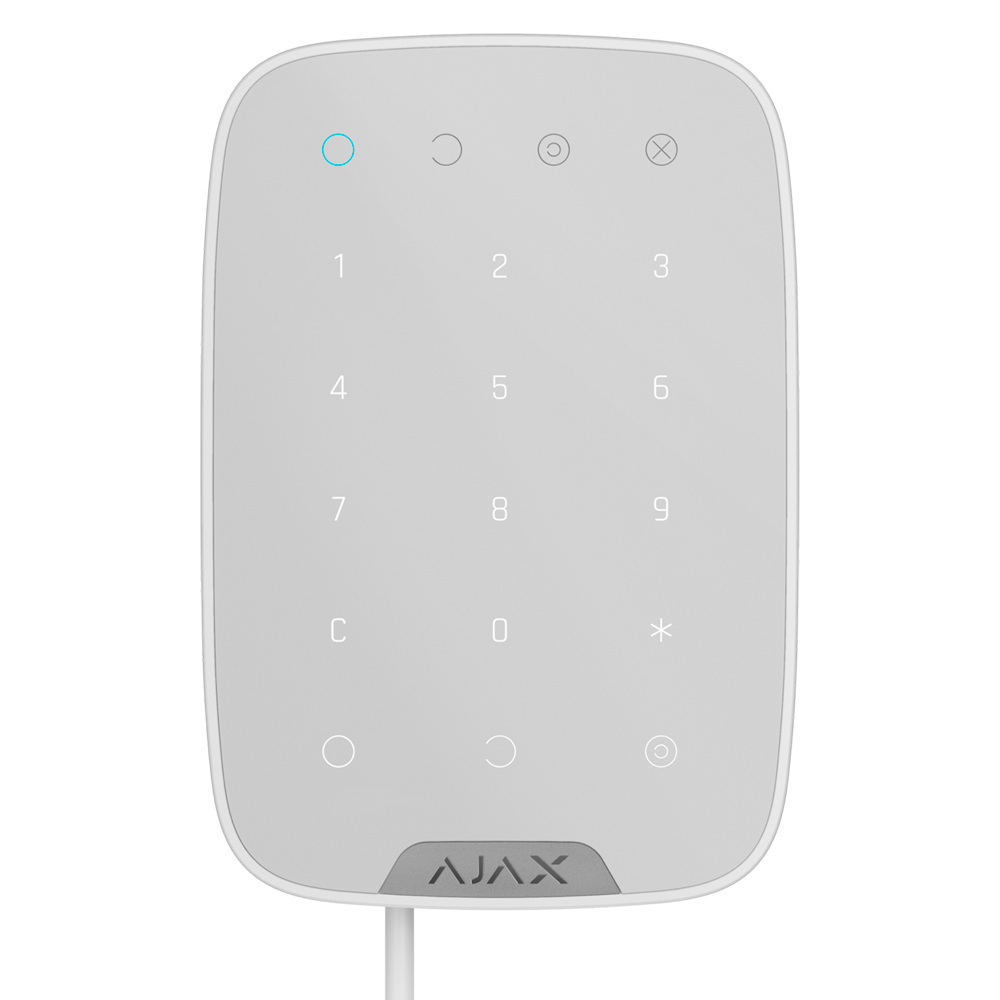

• Brand: Ajax Fibra
• Security grade: Grade 3
• Functions: Arming, disarming, partial arming, and emergency
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable)
• Codes: Up to 49 personal and 1 general
• Power supply: 24 V DC
• Maximum consumption: 230 mW
• Housing material: ABS plastic
• Operating temp: -10ºC to +40ºC
• Dimensions: 150 (W) x 103 (H) x 19 (D) mm
• Color: White

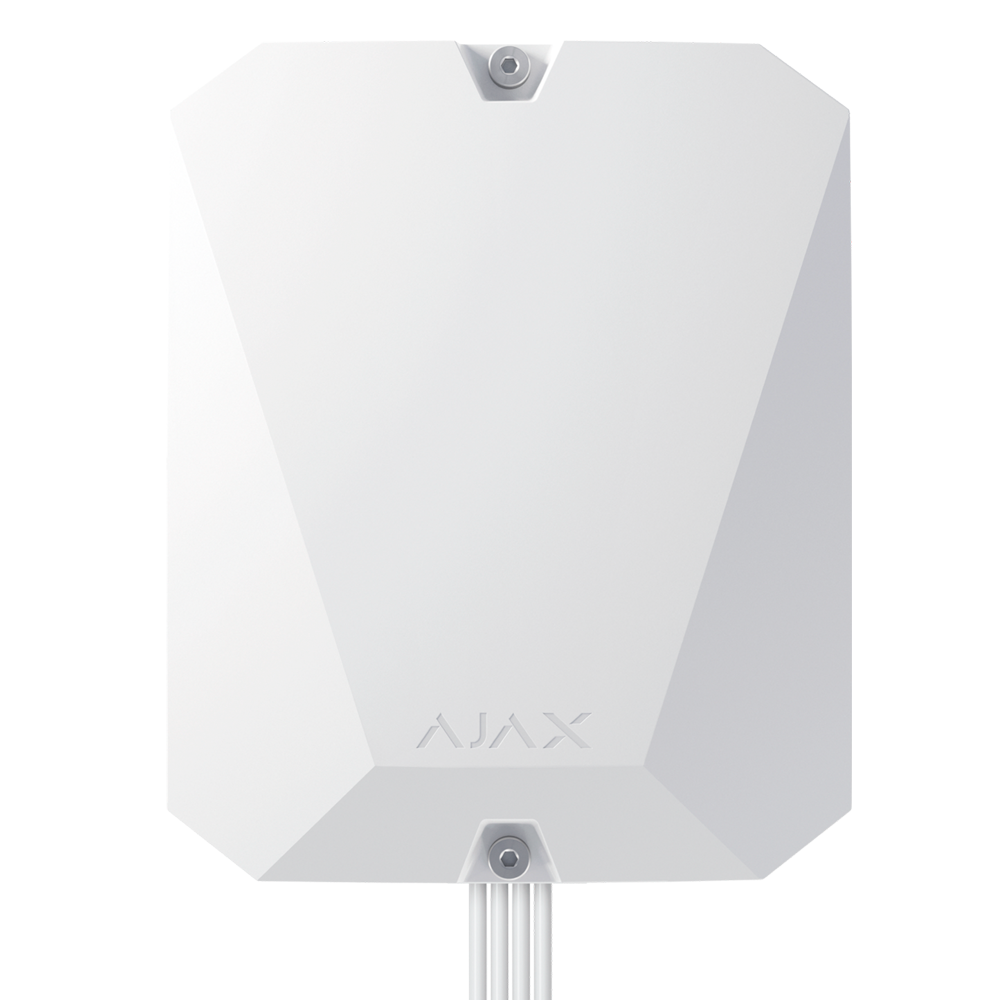

• Brand: Ajax Fibra
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Anti-tamper/opening protection
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 2G (GPRS)
• Device compatibility: Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 sirens and wireless/wired KeyPad TouchScreens)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. OTA (Over-the-air) remote updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery runtime: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp: -10ºC ~ +40ºC
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star, and ring
• Fibra device power supply: 24 V DC (included on board)

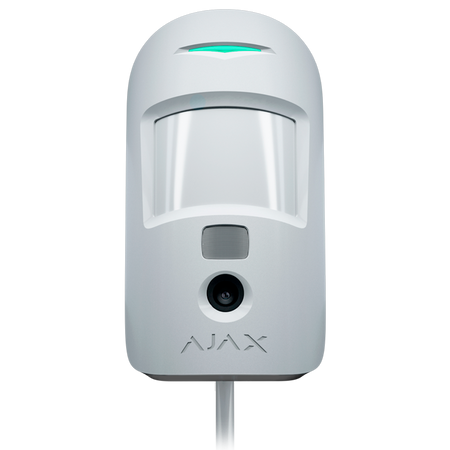

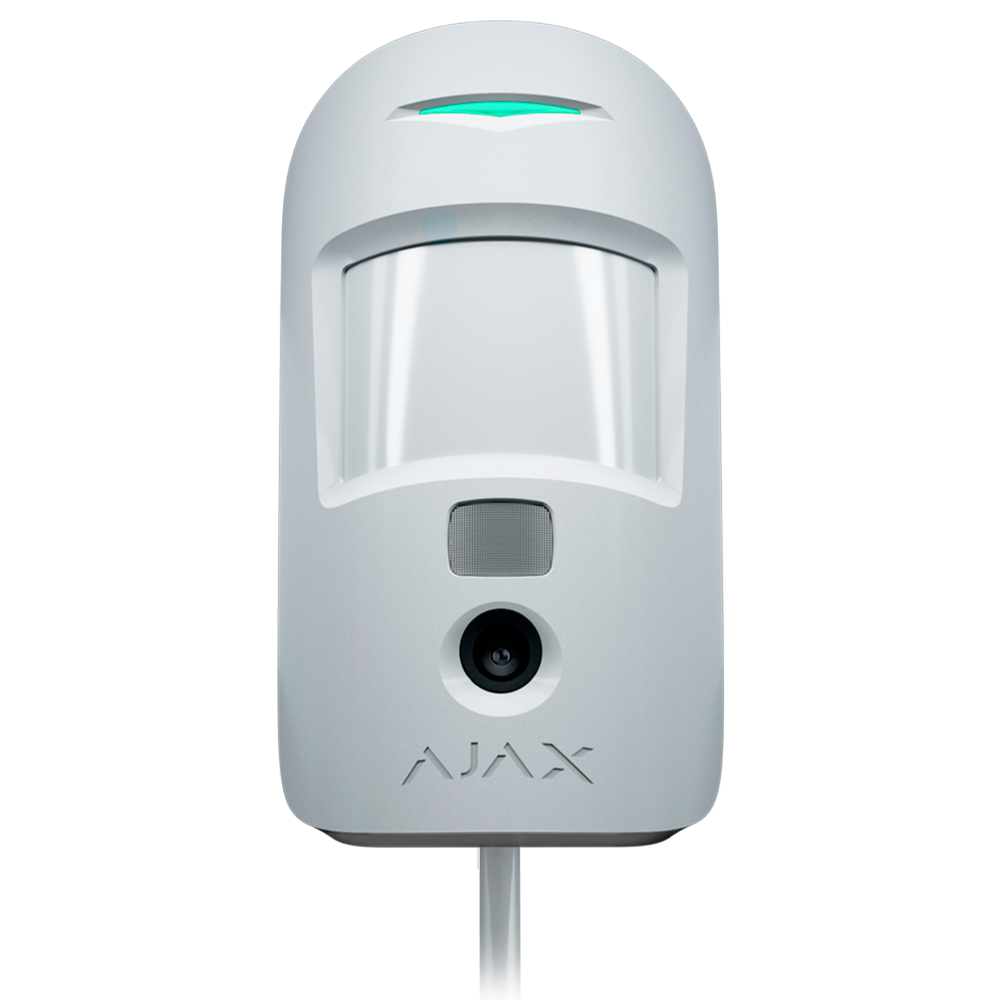

• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium, and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image delivery: Sending and receiving images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and integrated rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrinked)
• Operating temp: -10ºC ~ +40ºC
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: White

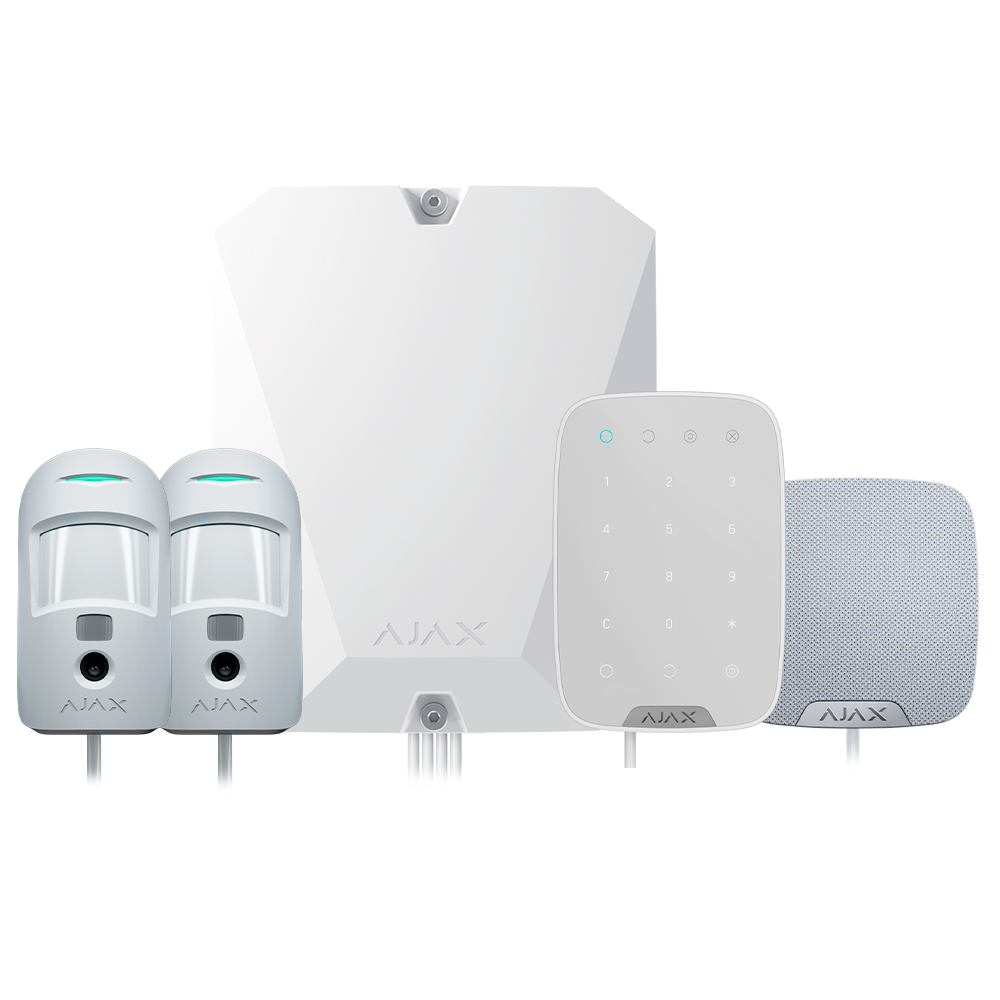

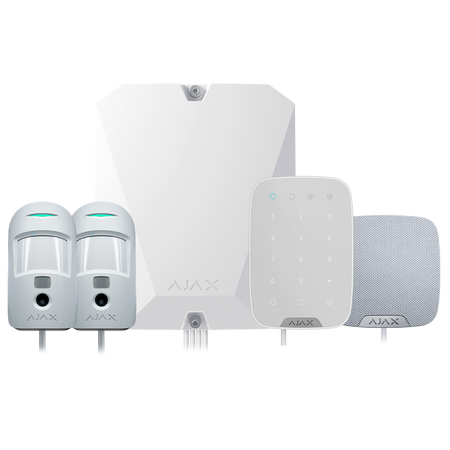

📦 INCLUDED:

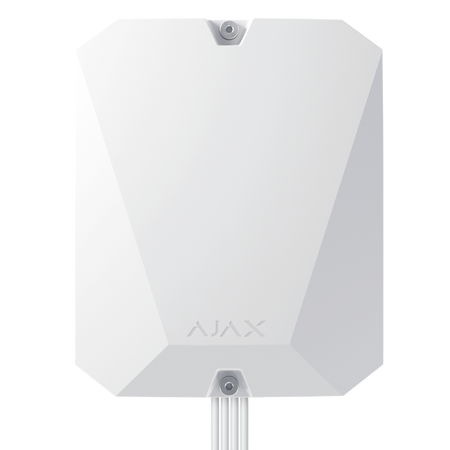

• FIBRA-HUBHYBRID-W control panel
• FIBRA-HOMESIREN-W indoor siren
• 2 FIBRA-MOTIONCAM-W motion detectors with camera

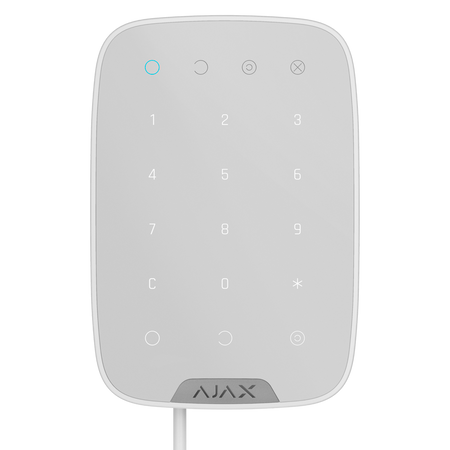

• FIBRA-KEYPAD-W keypad
• User manual
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Volume | 81~105 dB at 1 meter |
| Sound frequency | 3.4 ± 0.5 kHz |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Power supply | 24 V DC |
| Maximum consumption | 390 mW |
| LED indicators | Alarm signaling and arming / disarming acoustic signal |
| Internal security | Tamper-proof |
| Additional LED connection | 3 V DC |
| Operating temperature | -10ºC to +40 ºC |
| Dimensions | 90.5 (W) x 90.5 (H) x 33 (D) mm |
| Color | White |
| Security level | Grade 3 |
| Functions | Arming, disarming, partial arming and emergency |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Codes | Up to 49 personal and 1 general |
| Power supply | 24 V DC |
| Maximum consumption | 230 mW |
| Housing material | ABS plastic |
| Operating temp. | -10º C to +40º C |
| Dimensions | 150 (W) x 103 (H) x 19 (D) mm |
| Color | White |
| Security level | Grade 3 |
| Communication protocols | Jeweller, Wings and Fibra |
| Internal security | Anti-tamper |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Device compatibility | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 wireless and wired (max. 10 between sirens and wireless/wired KeyPad TouchScreen) |
| Video integration | Up to 25 IP cameras or video recorder channels |
| Number of users | Up to 50 |
| Automation scenarios | 32 scenarios |
| Communication with ARC | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Housing material | ABS plastic |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC, 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery) |
| Operating temp. | -10º C ~ +40º C |
| Dimensions | 192 (W) × 238 (H) × 100 (D) mm |
| Color | White |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller range | Up to 2000 m in open space |
| Wings range | Up to 1700 m in open space |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Inputs | 8 independent bus lines |
| Bus connection | 4-wire cable (2 power and 2 data) |
| Connection topologies | Bus, star and ring |
| Fibra device power supply | 24 V DC (included on the plate) |
| NFA2P certification | Available |
| Security level | Grade 2 |
| Technology | Volumetric PIR with camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Installation height | 2.4 meters |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Image sending | Sending and receiving images in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Power supply | 24 V DC and integrated rechargeable battery |
| Maximum consumption | 120 mW |
| Backup battery | LTO AA (shrink-wrapped) |
| Operating temp. | -10º C ~ +40º C |
| Protection | IP 50 |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 66 (D) mm |
| Weight | 150 grams |
| Color | White |
- User manual Link
