Ajax professional alarm kit - Ethernet and dual 2G SIM communication - indoor siren and 2 PIRCAMs
Ajax professional alarm kit - Ethernet and dual 2G SIM communication - indoor siren and 2 PIRCAMs
Regular price
€1.028,96
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional alarm kit - Grade 2 certified - Ethernet and dual 2G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, keypad, indoor siren and 2 PIRCAMs
📋 SPECIFICATIONS:

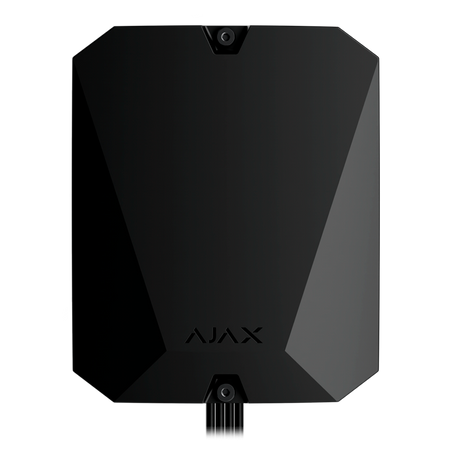

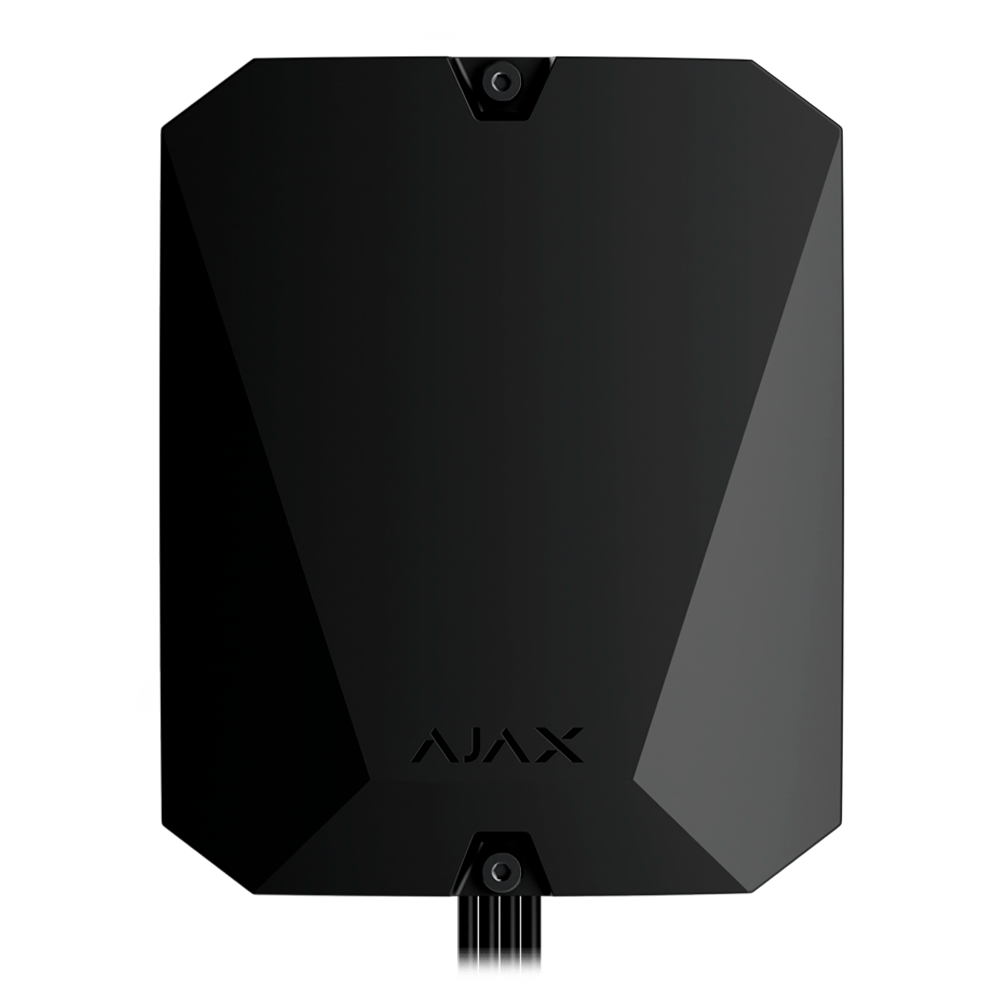

• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Opening tamper
• Internal siren: Not available
• Communication: Ethernet / Dual 2G SIM (GPRS)
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 between wireless and wired sirens and KeyPad TouchScreen)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• Communication with ARC: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: Black
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 for power and 2 for data)
• Connection topologies: Bus, star and ring
• Fibra device power supply: 24 V DC (included on board)

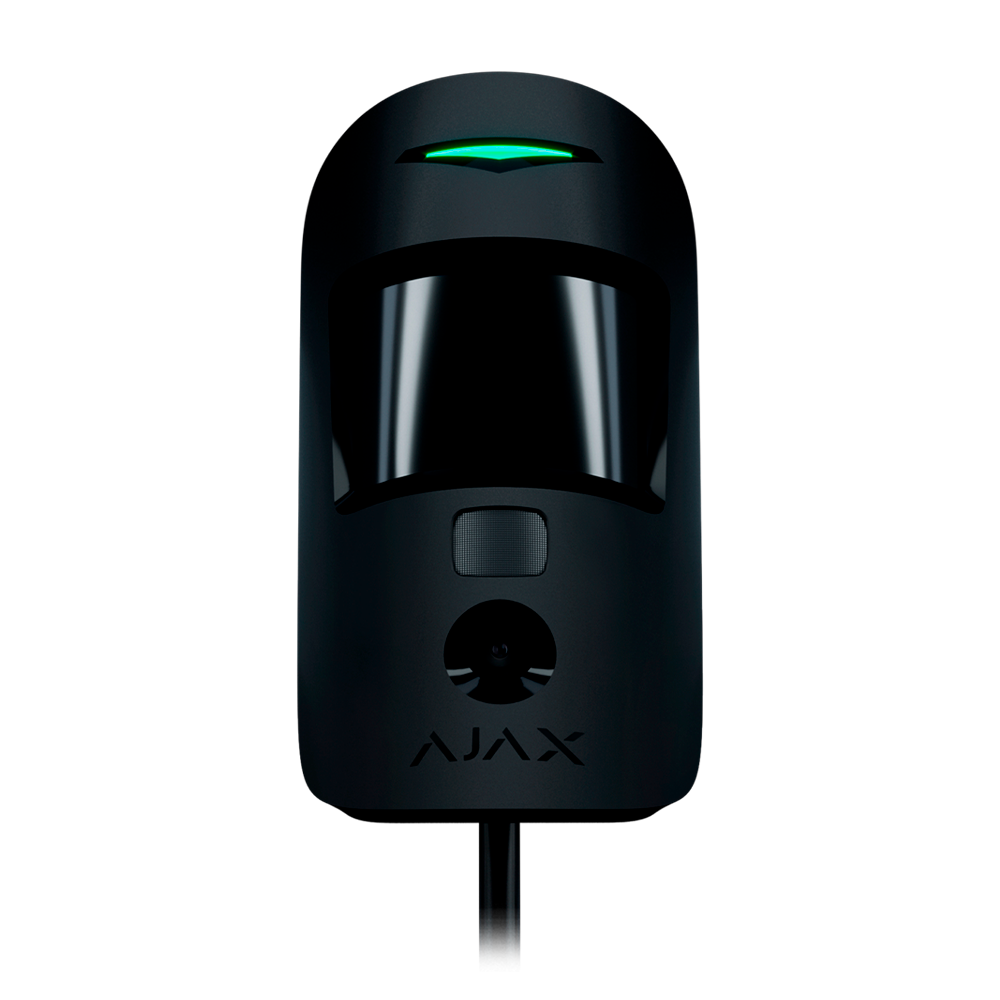

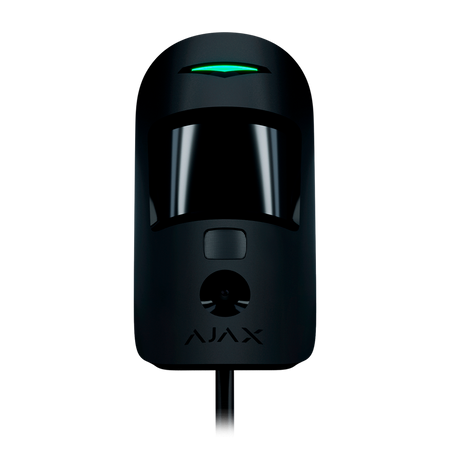

• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 2
• Technology: Volumetric PIR with camera
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º
• Installation height: 2.4 meters
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Sensitivity: Adjustable. 3 levels (low, medium and high)
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image sending: Send and receive images in less than a minute
• Infrared illumination: IR for night mode
• LED indication: Alarm, tamper, signal
• Power supply: 24 V DC and integrated rechargeable battery
• Maximum consumption: 120 mW
• Backup battery: LTO AA (heat-shrink wrapped)
• Operating temp.: -10º C ~ +40º C
• Protection: IP 50
• Housing material: ABS plastic
• Dimensions (without bracket): 135 (W) x 70 (H) x 66 (D) mm
• Weight: 150 grams
• Color: Black

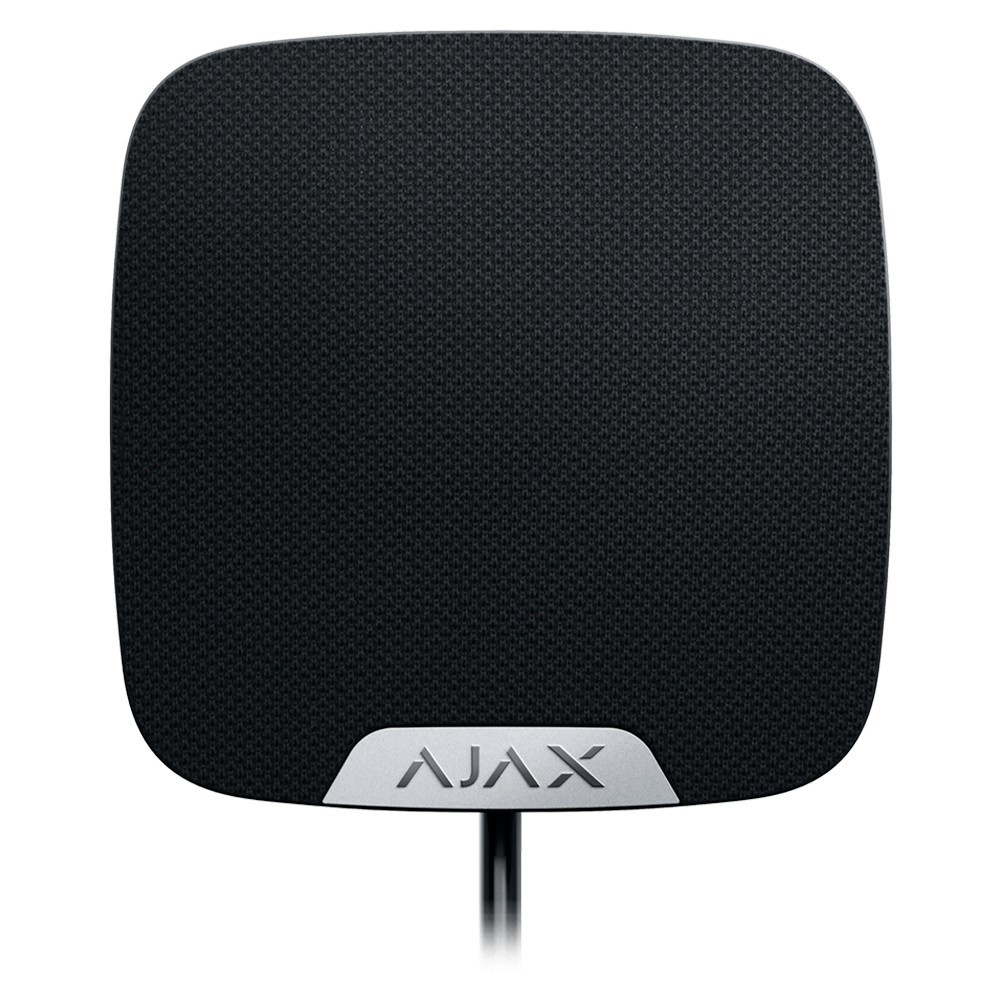

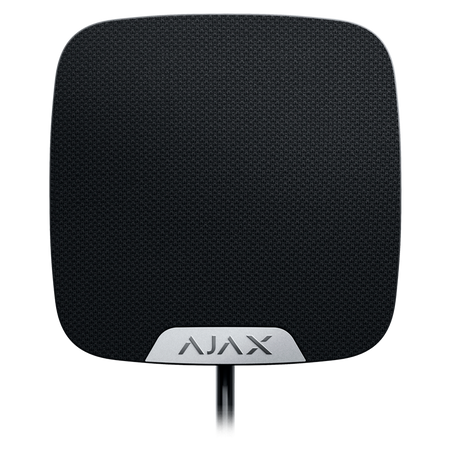

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indications: Alarm signaling and arming / disarming acoustic signal
• Internal security: Tamper against tampering
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40 ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: Black

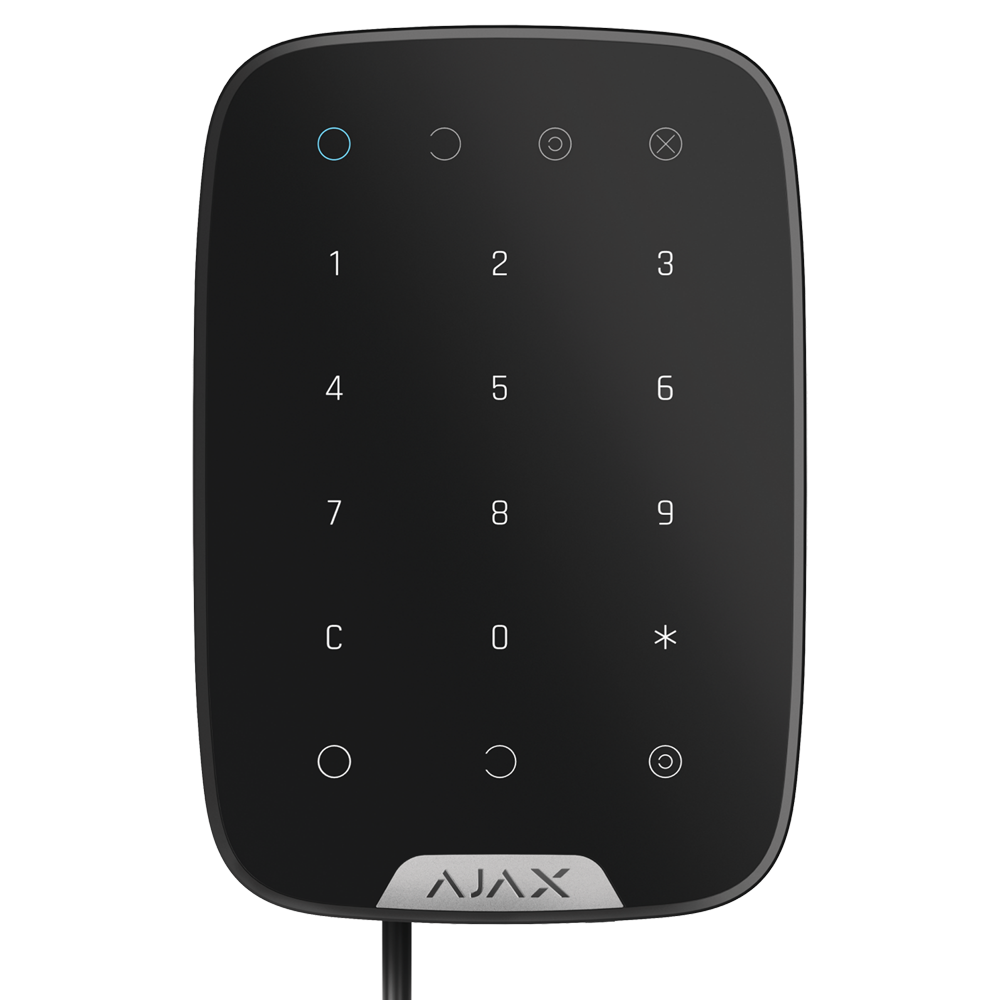

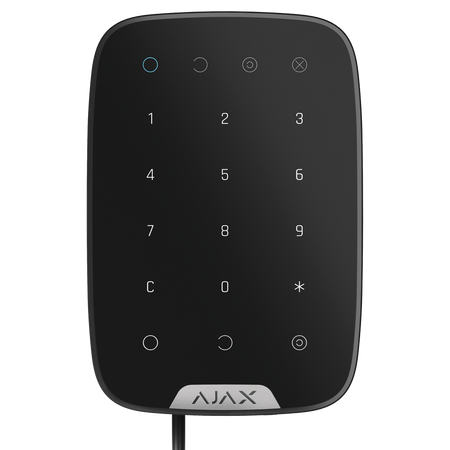

• Brand: Ajax Fibra
• Security grade: Grade 3
• Functions: Arming, disarming, partial arming and emergency
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Codes: Up to 49 personal and 1 general
• Power supply: 24 V DC
• Maximum consumption: 230 mW
• Housing material: ABS plastic
• Operating temp.: From -10º C to +40º C
• Dimensions: 150 (W) x 103 (H) x 19 (D) mm
• Color: Black

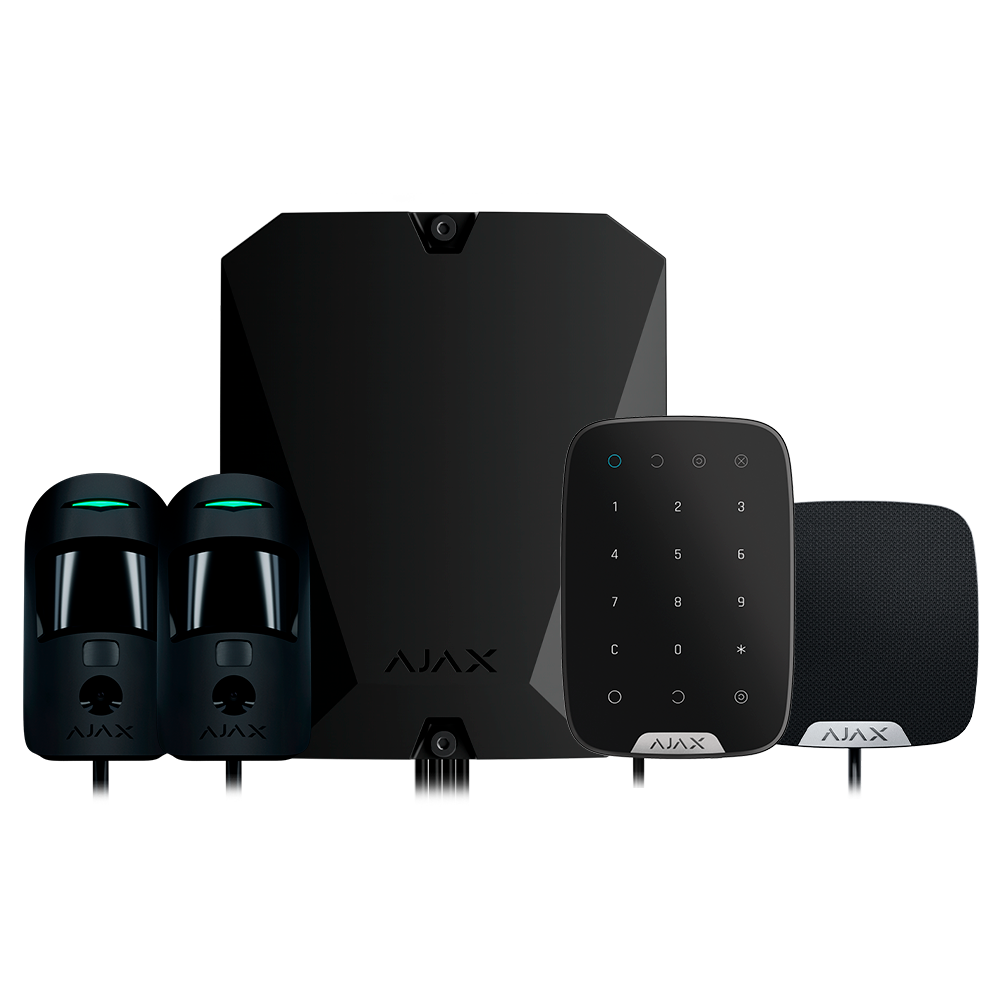

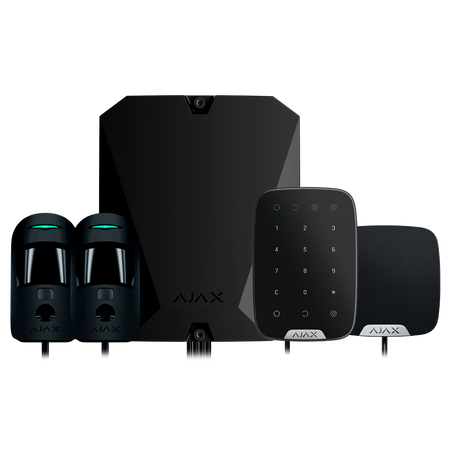

📦 INCLUDED:
• Control panel FIBRA-HUBHYBRID-B• Indoor siren FIBRA-HOMESIREN-B• 2 Motion detectors with camera FIBRA-MOTIONCAM-B• Keypad FIBRA-KEYPAD-B• User manual
| NFA2P certification | Available |
|---|---|
| Security level | Grade 3 |
| Communication protocols | Jeweller, Wings and Fibra |
| Internal security | Anti-opening tamper |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Device compatibility | Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 wireless and wired (max. 10 sirens and KeyPad TouchScreen wireless and wired) |
| Video integration | Up to 25 IP cameras or NVR channels |
| Number of users | Up to 50 |
| Automation scenarios | 32 scenarios |
| Monitoring station communication | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Housing material | ABS plastic |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC, 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery) |
| Operating temp. | -10º C ~ +40º C |
| Dimensions | 192 (W) × 238 (H) × 100 (D) mm |
| Color | Black |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller range | Up to 2000 m in open space |
| Wings range | Up to 1700 m in open space |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Inputs | 8 independent bus lines |
| Bus connection | 4-wire cable (2 power and 2 data) |
| Connection topologies | Bus, star and ring |
| Fibra device power | 24 V DC (included on the plate) |
| NFA2P certification | Available |
| Security level | Grade 2 |
| Technology | Volumetric PIR with camera |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º |
| Installation height | 2.4 meters |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| Image resolution | Up to VGA (640 x 480) |
| Number of images | Up to 5 images per detection |
| Image delivery | Send and receive images in less than a minute |
| Infrared illumination | IR for night mode |
| LED indication | Alarm, tamper, signal |
| Power supply | 24 V DC and integrated rechargeable battery |
| Maximum consumption | 120 mW |
| Backup battery | LTO AA (wrapped in heat-shrink film) |
| Operating temp. | -10º C ~ +40º C |
| Protection | IP 50 |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 135 (W) x 70 (H) x 66 (D) mm |
| Weight | 150 grams |
| Color | Black |
| Security level | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Volume | 81~105 dB at 1 meter |
| Sound frequency | 3.4 ± 0.5 kHz |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Power supply | 24 V DC |
| Maximum consumption | 390 mW |
| LED indications | Alarm signaling and arming/disarming acoustic signal |
| Internal security | Anti-tamper tamper |
| Additional LED connection | 3 V DC |
| Operating temperature | -10ºC to +40 ºC |
| Dimensions | 90.5 (W) x 90.5 (H) x 33 (D) mm |
| Color | Black |
| Security level | Grade 3 |
| Functions | Arming, disarming, partial arming and emergency |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Codes | Up to 49 personal and 1 general |
| Power supply | 24 V DC |
| Maximum consumption | 230 mW |
| Housing material | ABS plastic |
| Operating temp. | From -10º C to +40º C |
| Dimensions | 150 (W) x 103 (H) x 19 (D) mm |
| Color | Black |
