Professional Ajax alarm kit - Ethernet and dual SIM 4G communication - IP54 - White

Professional alarm kit - Grade 3 certified - Ethernet and dual 4G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, keypad, indoor siren, customizable outdoor siren

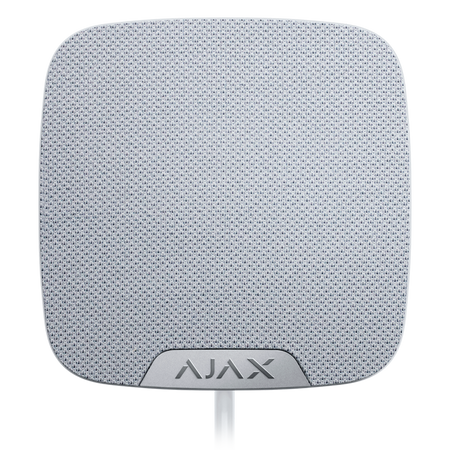

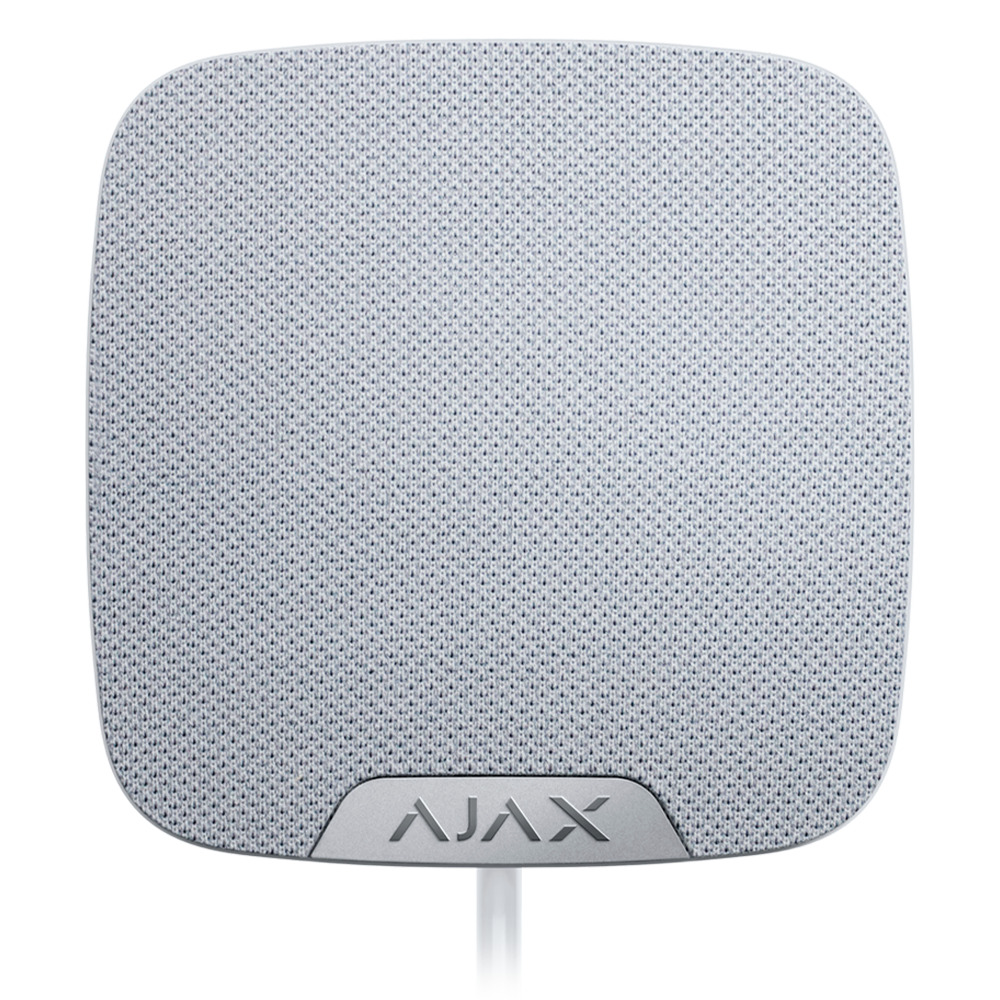

📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indicators: Alarm signaling and arming/disarming acoustic signal
• Internal security: Anti-tamper
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: White

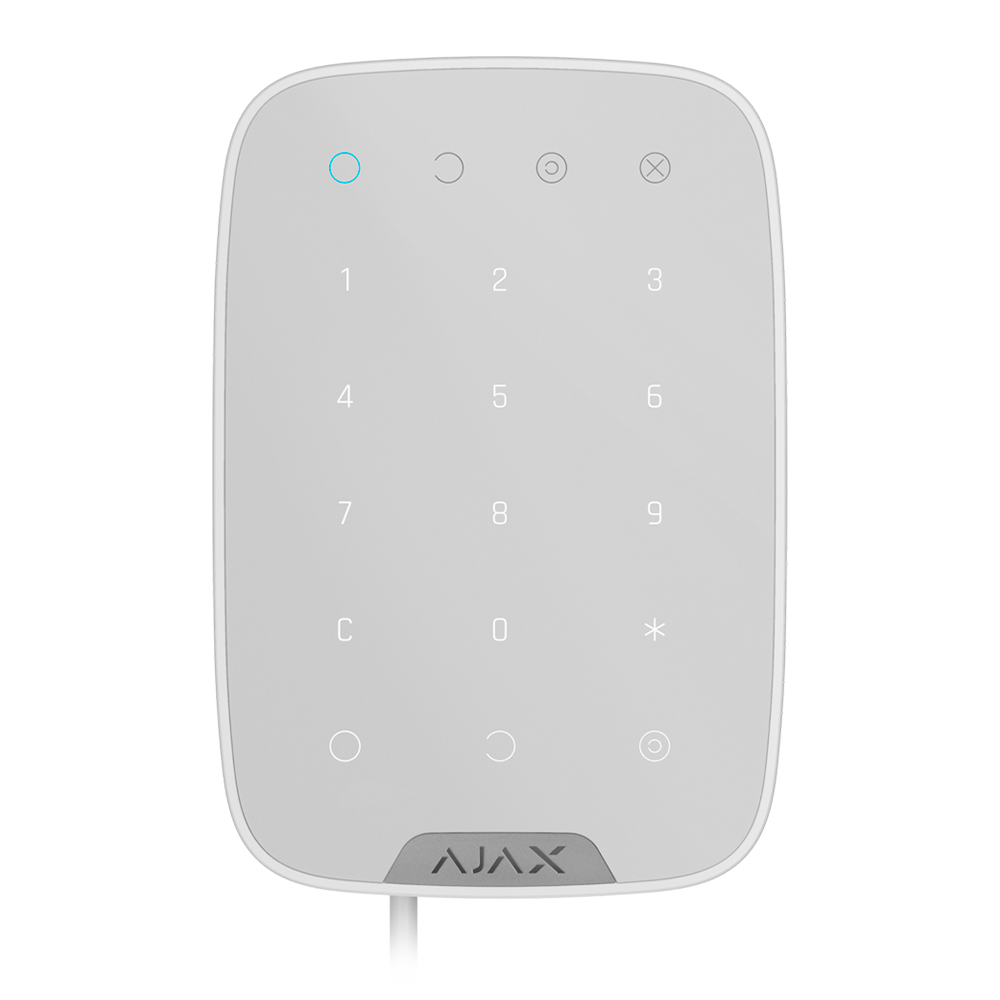

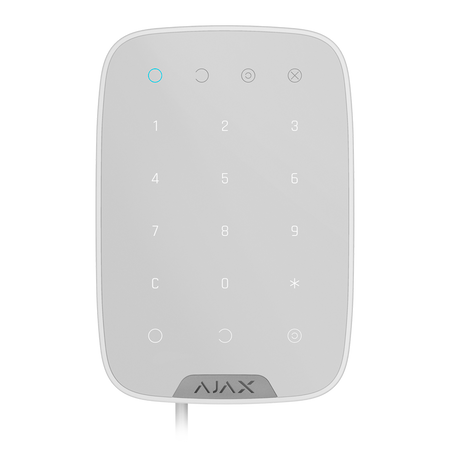

• Brand: Ajax Fibra
• Security level: Grade 3
• Functions: Arming, disarming, partial arming, and emergency
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Codes: Up to 49 personal and 1 general
• Power supply: 24 V DC
• Maximum consumption: 230 mW
• Housing material: ABS plastic
• Operating temp.: From -10ºC to +40ºC
• Dimensions: 150 (W) x 103 (H) x 19 (D) mm
• Color: White

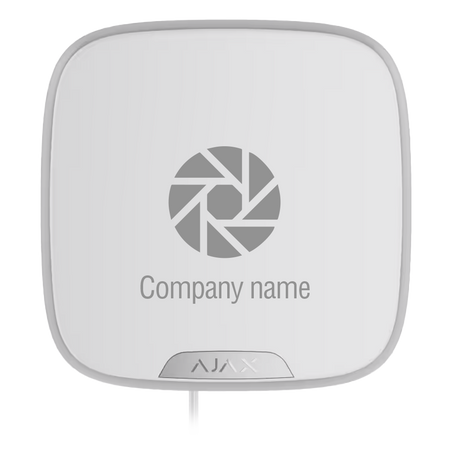

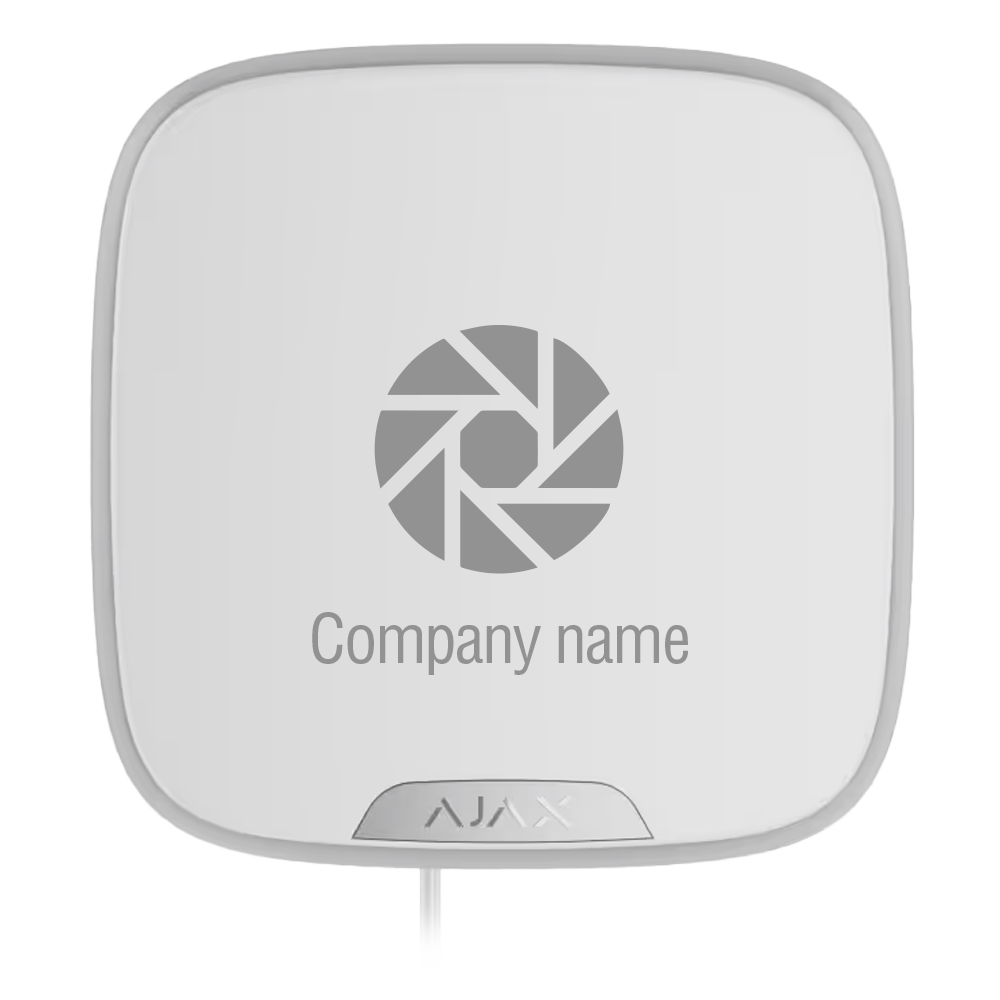

• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 85~113 dB at 1 meter
• Acoustic frequency: 3.5 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• LED indicators: Alarm signaling and arming/disarming acoustic signal
• Internal security: Anti-tamper
• Power supply: 24 V DC (Consumption up to 100 µA)
• Backup battery: LTO 18650 (heat-shrinked)
• Compatibility: Customizable covers 10XAJ-BRANDPLATES-W
• Protection grade: IP54
• Operating temp.: -25ºC ~ +60ºC
• Dimensions: 198.5 (W) x 198.5 (H) x 58 (D) mm
• Color: White

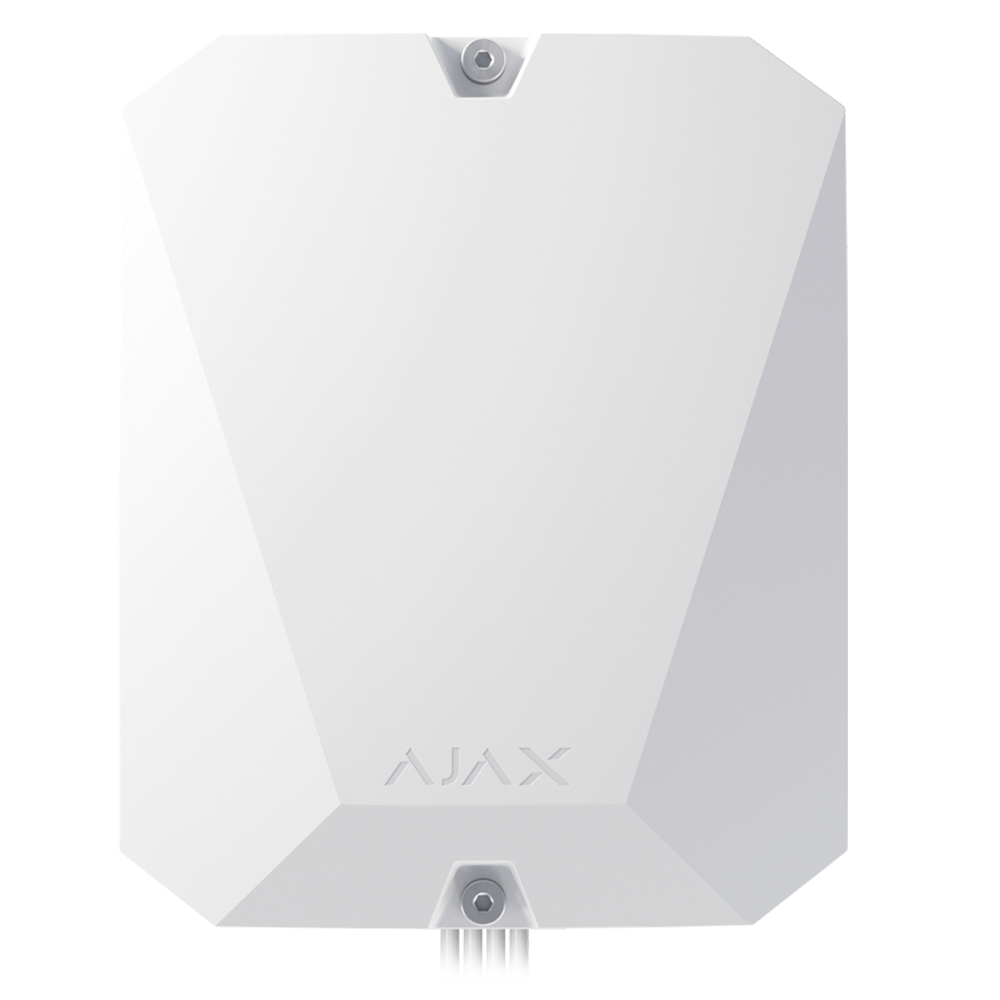

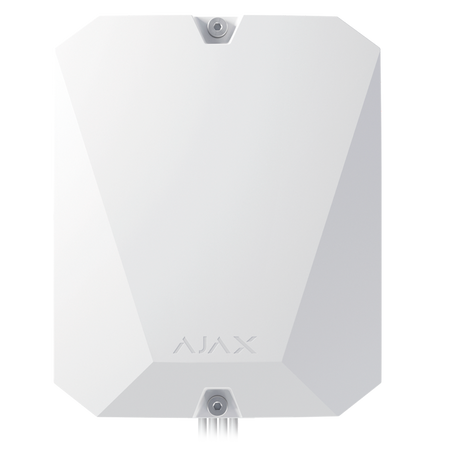

• Brand: Ajax Fibra
• Certification: Available
• Security level: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Opening tamper
• Internal siren: Not available
• Communication: Ethernet / Dual 4G SIM
• Maximum devices: 100 wireless and wired (max. 10 among wireless and wired sirens and KeyPad TouchScreen)
• Video integration: Up to 25 IP cameras or video recorder channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• ARC communication: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10ºC ~ +40ºC
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star, and ring
• Fibra device power supply: 24 V DC (included on board)

📦 INCLUDED:

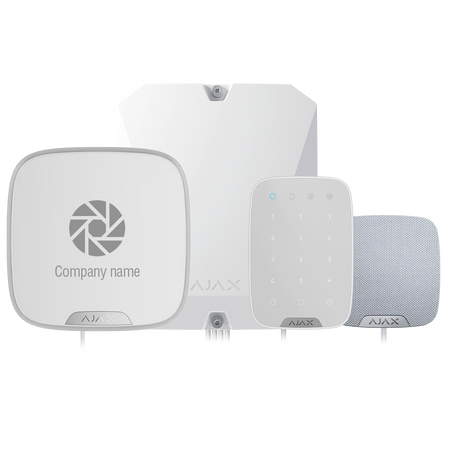

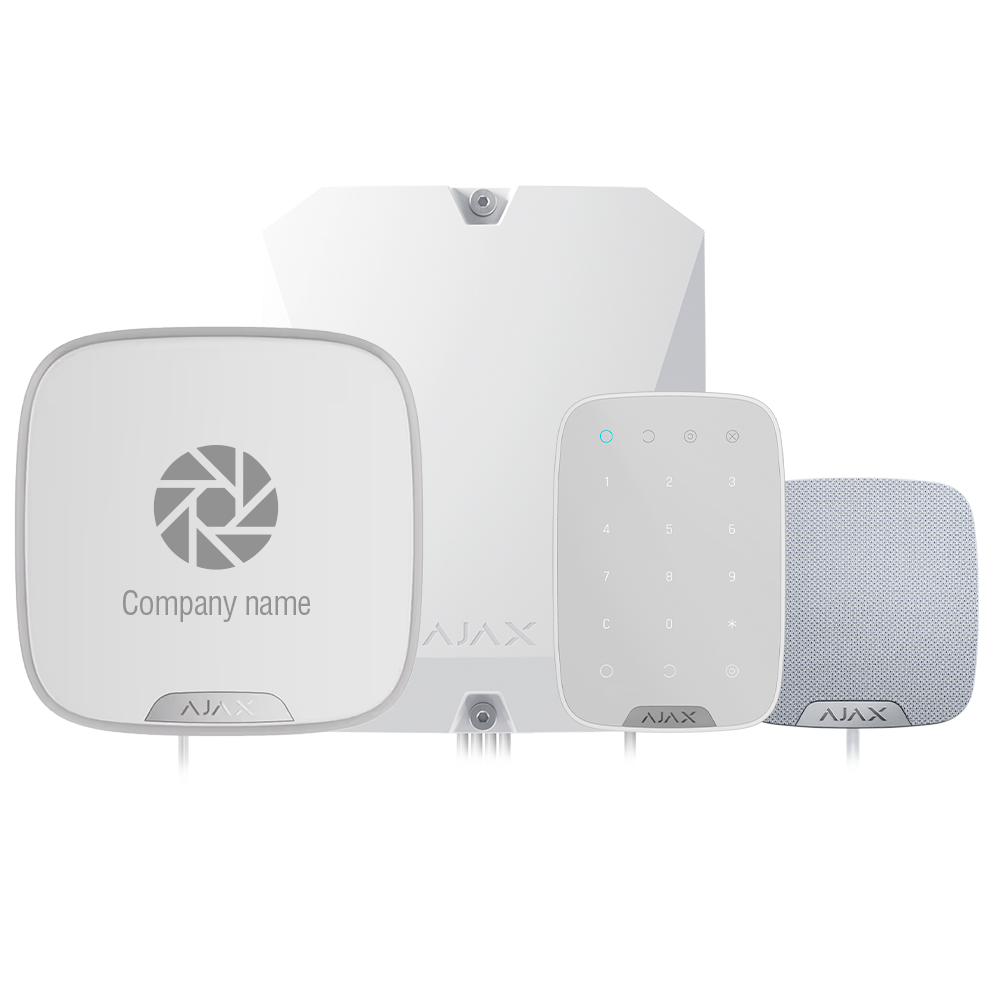

• Control panel FIBRA-HUBHYBRID-4G-W• Indoor siren FIBRA-HOMESIREN-W• Customizable outdoor siren FIBRA-STREETSIRENCUSTOM-W without cover• Keypad FIBRA-KEYPAD-W• User manual
