Ajax professional alarm kit - Ethernet and dual SIM 2G communication - IP54
Ajax professional alarm kit - Ethernet and dual SIM 2G communication - IP54
Regular price
€801,39
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

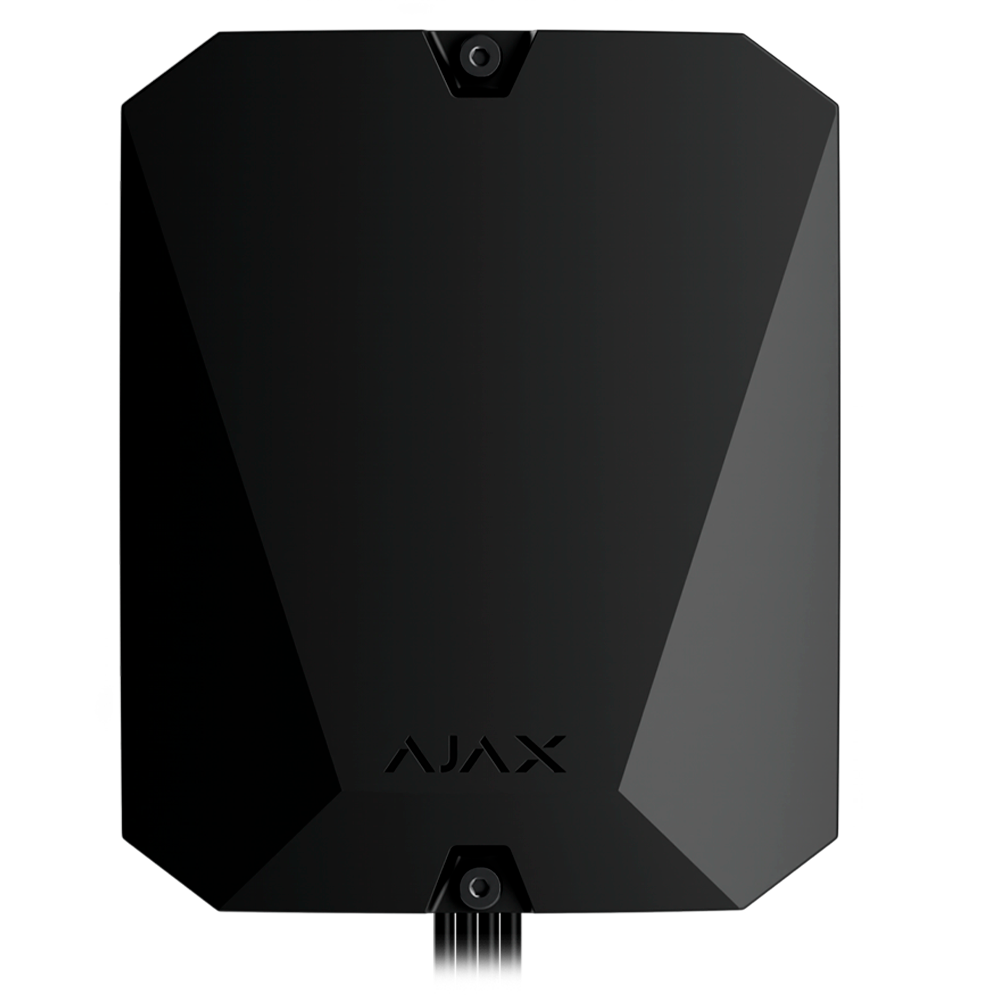

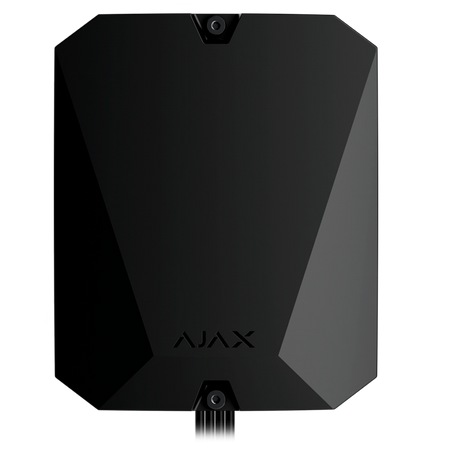

Professional alarm kit - Grade 3 certified - Ethernet and dual 2G SIM communication - Jeweller, Wings and Fibra protocols - Includes: hybrid panel, keypad, indoor siren, customizable outdoor siren
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• NFA2P Certification: Available
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Anti-opening tamper
• Indoor siren: Not available
• Communication: Ethernet / Dual 2G SIM (GPRS)
• Device compatibility: Check compatibility in 'Downloads -- Manuals -- Compatibility table of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 combined wireless/wired sirens and TouchScreen KeyPads)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• ARC communication: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12 V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: Black
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power supply: 24 V DC (included on board)

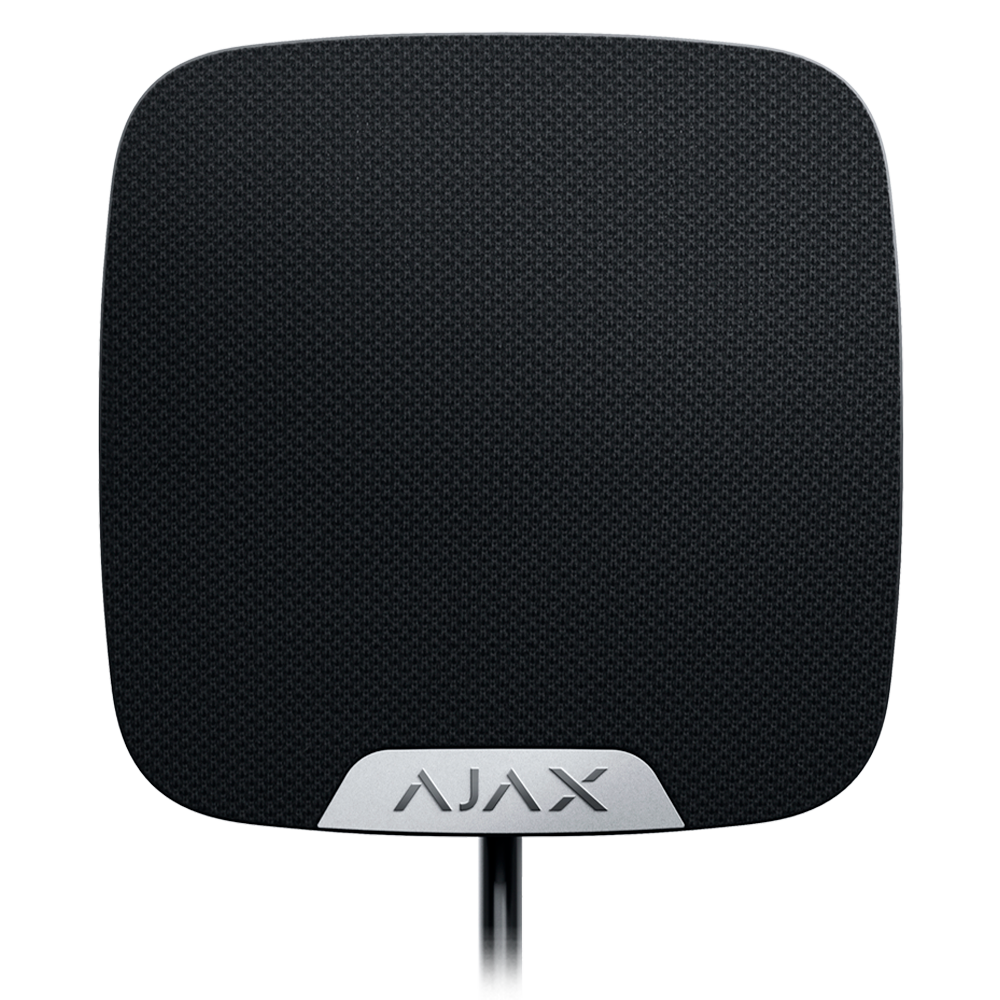

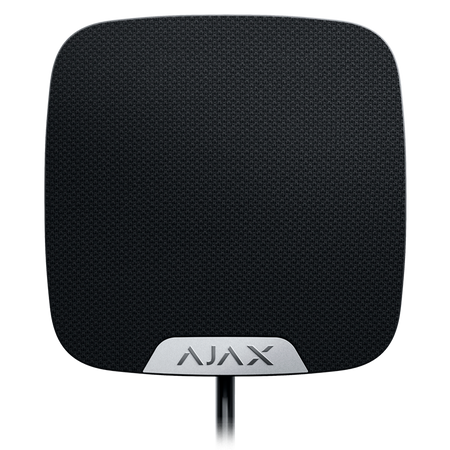

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 81~105 dB at 1 meter
• Acoustic frequency: 3.4 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Power supply: 24 V DC
• Maximum consumption: 390 mW
• LED indicators: Alarm signaling and arming / disarming acoustic signal
• Internal security: Anti-tamper
• Additional LED connection: 3 V DC
• Operating temperature: -10ºC to +40 ºC
• Dimensions: 90.5 (W) x 90.5 (H) x 33 (D) mm
• Color: Black

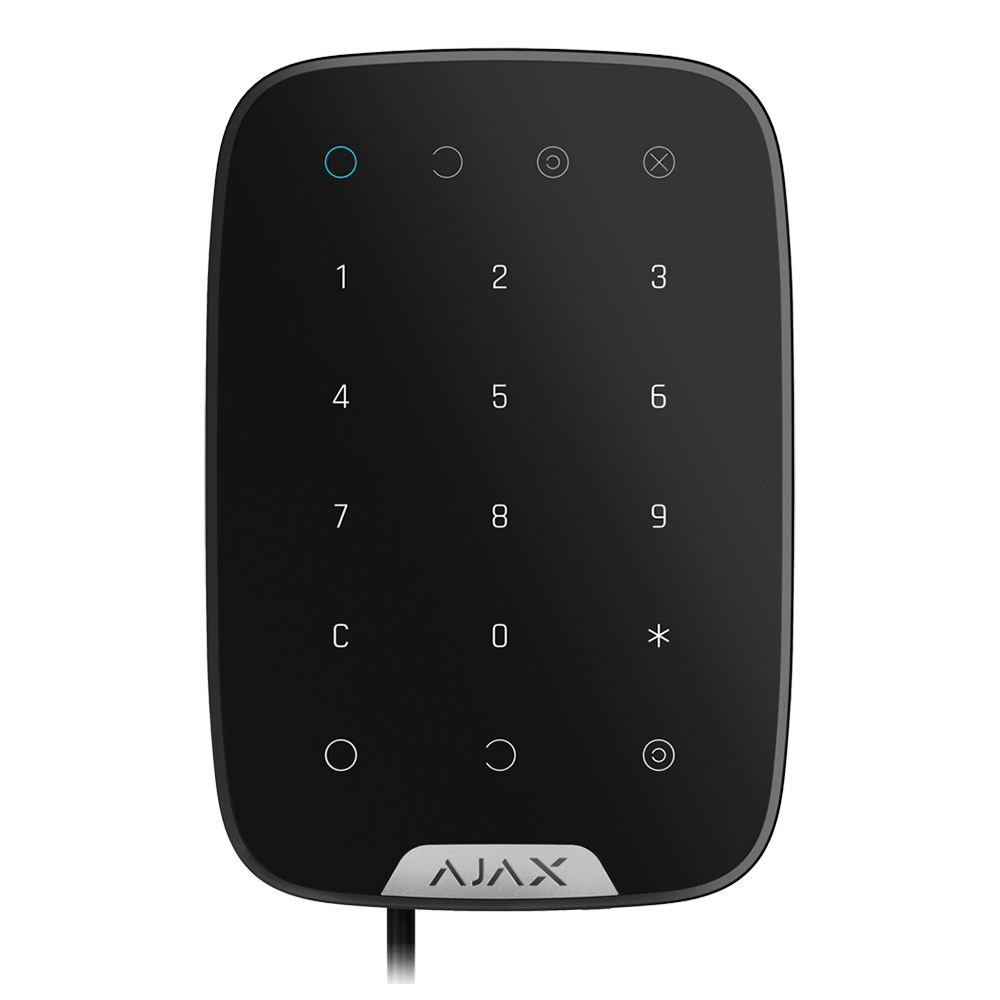

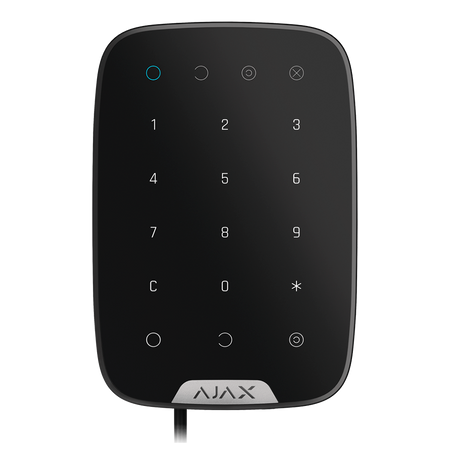

• Brand: Ajax Fibra
• Security grade: Grade 3
• Functions: Arming, disarming, partial arming and emergency
• Bus connection: 4-wire cable
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Codes: Up to 49 personal and 1 general
• Power supply: 24 V DC
• Maximum consumption: 230 mW
• Housing material: ABS plastic
• Operating temp.: From -10º C to +40º C
• Dimensions: 150 (W) x 103 (H) x 19 (D) mm
• Color: Black

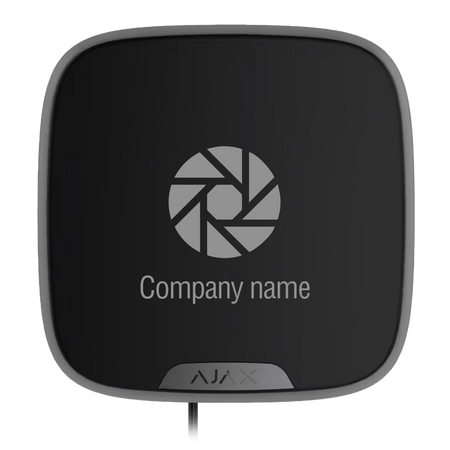

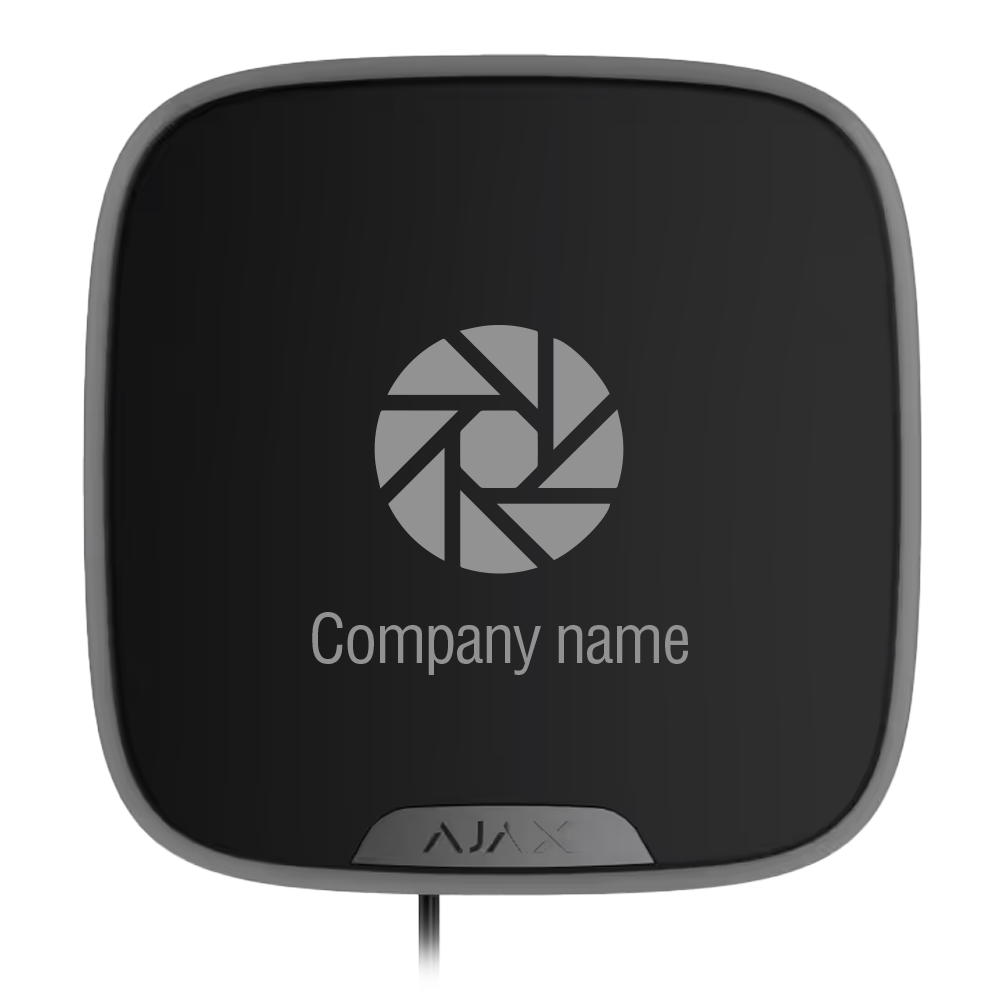

• Brand: Ajax Fibra
• Security grade: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Volume: 85~113 dB at 1 meter
• Acoustic frequency: 3.5 ± 0.5 kHz
• Alarm duration: Configurable between 3 seconds and 3 minutes
• LED indicators: Alarm signaling and arming / disarming acoustic signal
• Internal security: Anti-tamper
• Power supply: 24 V DC (Consumption up to 100 µA)
• Backup battery: LTO 18650 (shrink-wrapped)
• Compatibility: Customizable covers 10XAJ-BRANDPLATES-W
• Protection grade: IP54
• Operating temp.: -25º C ~ +60º C
• Dimensions: 198.5 (W) x 198.5 (H) x 58 (D) mm
• Color: Black
📦 INCLUDED:

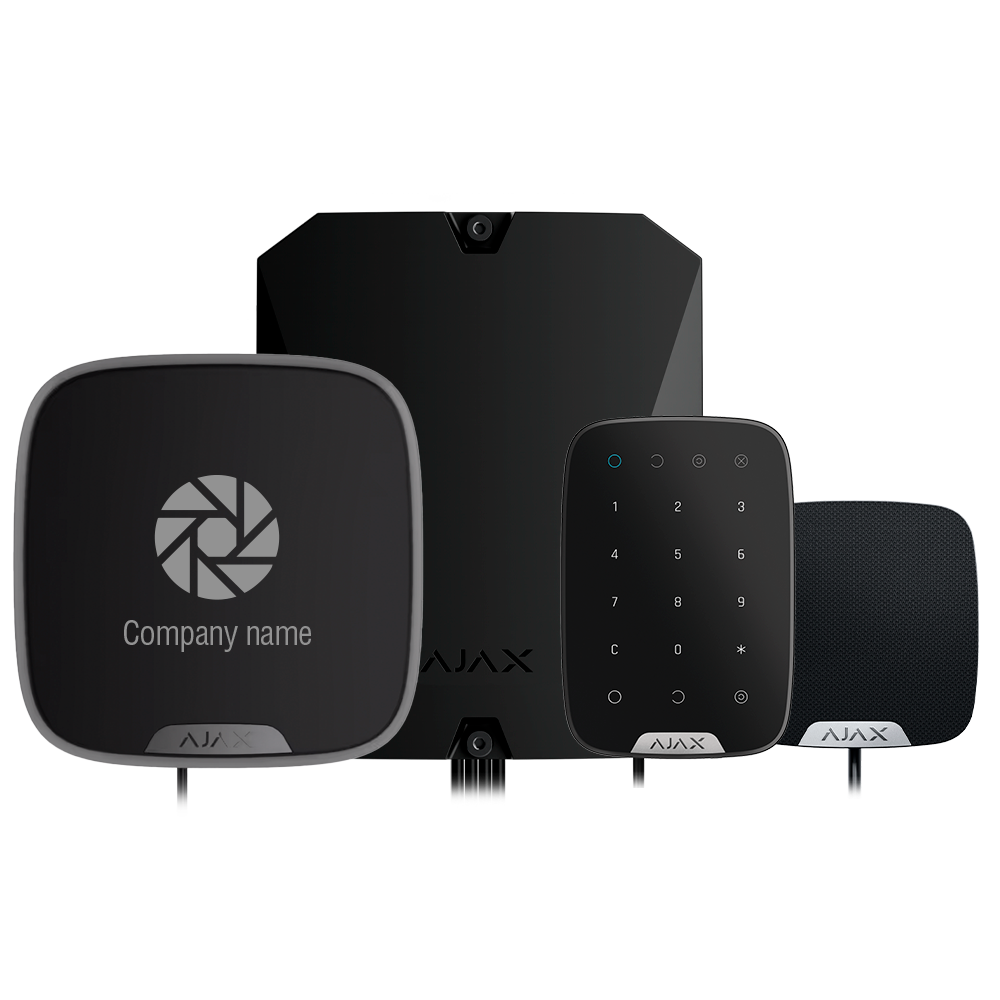

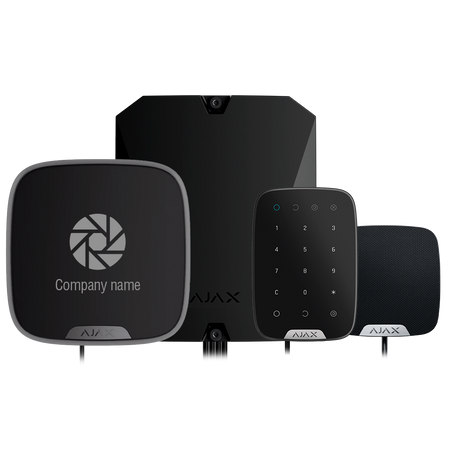

• Control panel FIBRA-HUBHYBRID-B• Indoor siren FIBRA-HOMESIREN-B• Customizable outdoor siren FIBRA-STREETSIRENCUSTOM-B without cover• Keypad FIBRA-KEYPAD-B• User manual
| NFA2P certification | Available |
|---|---|
| Security level | Grade 3 |
| Communication protocols | Jeweller, Wings and Fibra |
| Internal security | Anti-opening tamper |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Device compatibility | Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 wireless and wired (max. 10 among sirens and wireless/wired KeyPad TouchScreens) |
| Video integration | Up to 25 IP cameras or DVR channels |
| Number of users | Up to 50 |
| Automation scenarios | 32 scenarios |
| ARC communication | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Firmware update | Available. Remote OTA (Over-the-air) updates |
| Housing material | ABS plastic |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC, 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery) |
| Operating temp. | -10º C ~ +40º C |
| Dimensions | 192 (W) × 238 (H) × 100 (D) mm |
| Color | Black |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller range | Up to 2000 m in open space |
| Wings range | Up to 1700 m in open space |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Inputs | 8 independent bus lines |
| Bus connection | 4-wire cable (2 power and 2 data) |
| Connection topologies | Bus, star and ring |
| Fibra device power supply | 24 V DC (included on the plate) |
| Security level | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Volume | 81~105 dB at 1 meter |
| Sound frequency | 3.4 ± 0.5 kHz |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Power supply | 24 V DC |
| Maximum consumption | 390 mW |
| LED indications | Alarm signaling and arming/disarming acoustic signal |
| Internal security | Tamper-proof |
| Additional LED connection | 3 V DC |
| Operating temperature | -10ºC to +40 ºC |
| Dimensions | 90.5 (W) x 90.5 (H) x 33 (D) mm |
| Color | Black |
| Security level | Grade 3 |
| Functions | Arming, disarming, partial arming and emergency |
| Bus connection | 4-wire cable |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Codes | Up to 49 personal and 1 general |
| Power supply | 24 V DC |
| Maximum consumption | 230 mW |
| Housing material | ABS plastic |
| Operating temp. | From -10º C to +40º C |
| Dimensions | 150 (W) x 103 (H) x 19 (D) mm |
| Color | Black |
| Security level | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Volume | 85~113 dB at 1 meter |
| Sound frequency | 3.5 ± 0.5 kHz |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| LED indications | Alarm signaling and arming/disarming acoustic signal |
| Internal security | Tamper-proof |
| Power supply | 24 V DC (Consumption up to 100 µA) |
| Backup battery | LTO 18650 (wrapped in heat-shrink film) |
| Compatibility | Customizable covers 10XAJ-BRANDPLATES-W |
| Protection grade | IP54 |
| Operating temp. | -25º C ~ +60º C |
| Dimensions | 198.5 (W) x 198.5 (H) x 58 (D) mm |
| Color | Black |
