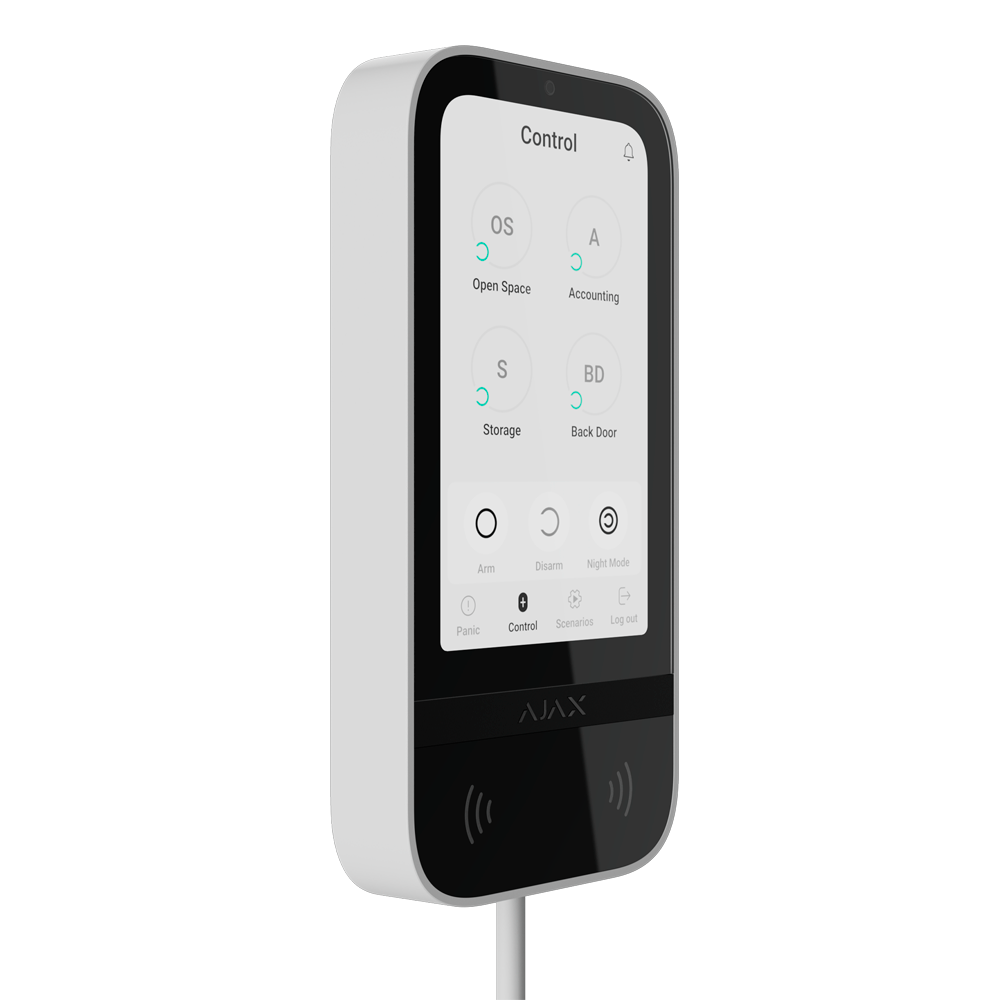

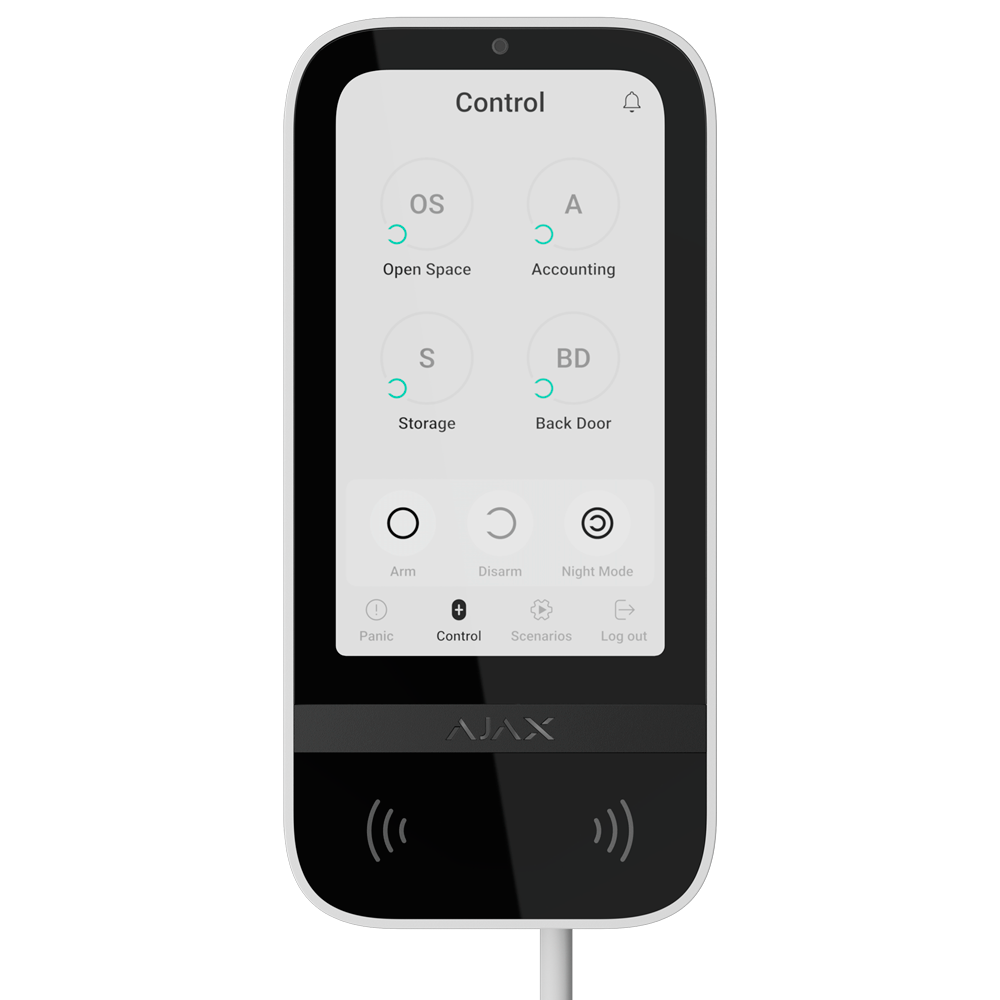

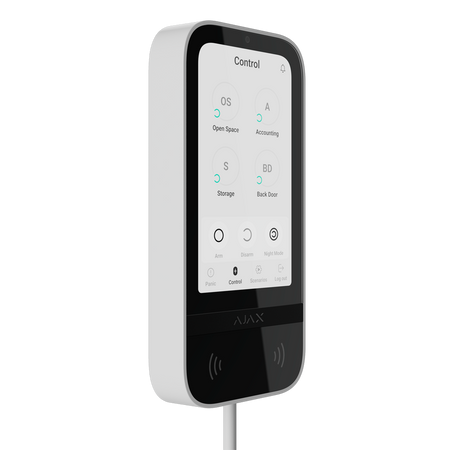

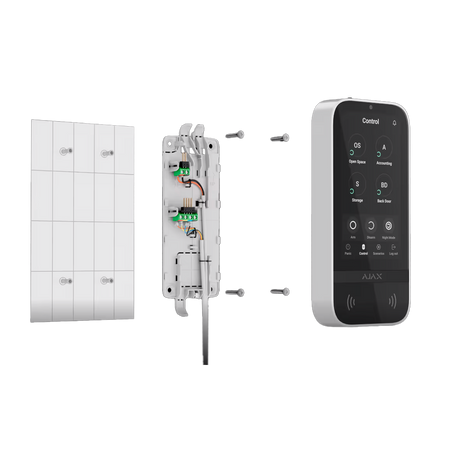

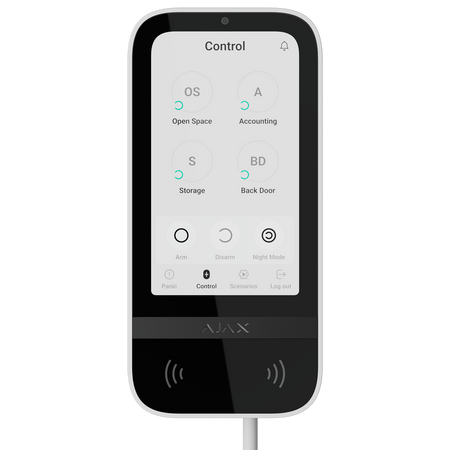

Ajax keypad with IPS touch screen and RFID reader
Ajax keypad with IPS touch screen and RFID reader
Regular price
€410,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Keyboard with IPS touch screen and RFID reader - Full or group arming/disarming - Automation scenario control - Authentication: codes, RFID reader, or Bluetooth - Wired connection and 12VDC external power supply - Grade 3 certified
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable

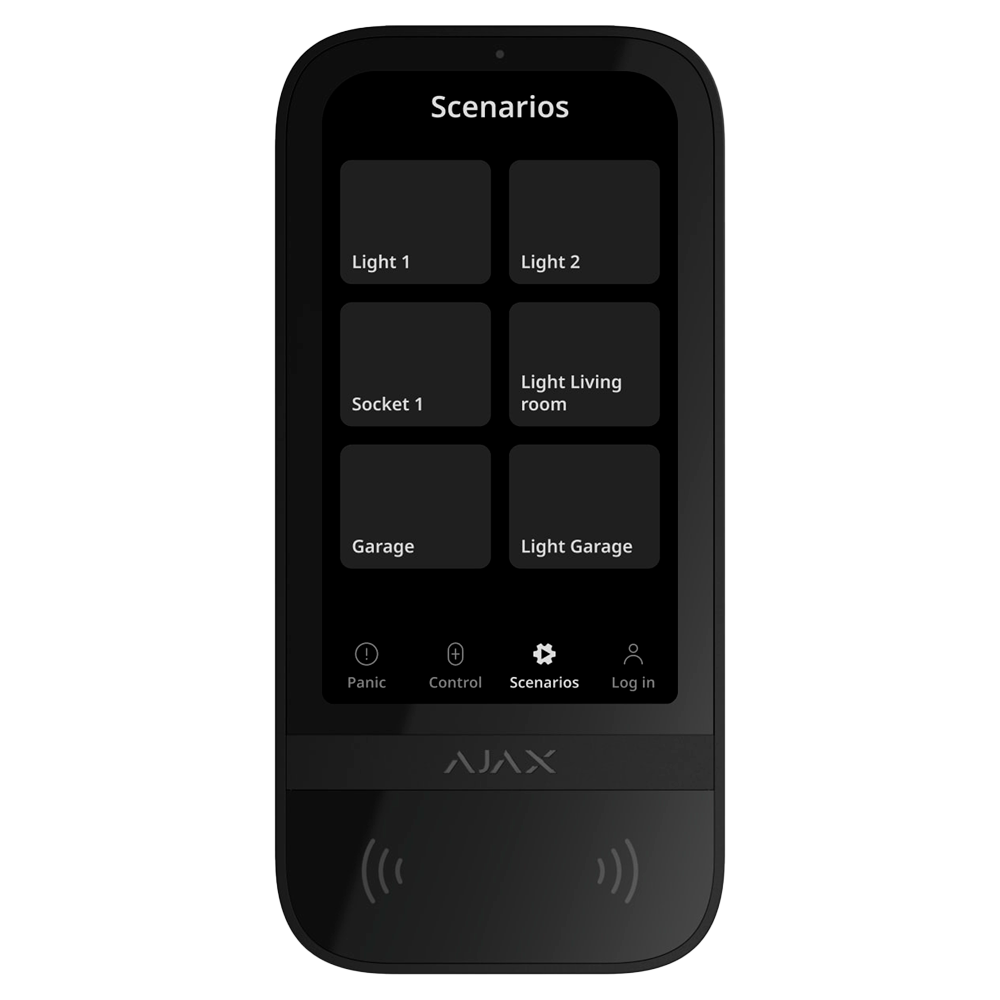

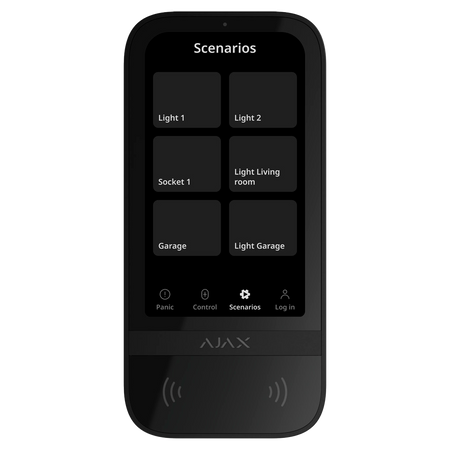

• Functions: Full system arming/disarming; Group arming/disarming; Automation scenario control (maximum 6)
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth
• RFID technology: Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz)
• Power supply: Fibra Bus: 24 V DC; Backup batteries: 2 × LTO AA (pre-installed)
• Maximum power consumption: 1.6 W
• Optional power supply: 12 VDC (always-on display mode)
• External power supply operating voltage: 10.5 - 14 VDC, up to 0.5 A
• Panic button: Configurable: Panic; Fire (silence alarm); Urgent help
• Notifications: Audible notifications for: Delays; Door opening; Alarms; Instant fault notifications
• Anti-sabotage: Tamper; Fastening screw; Automatic lockout in case of unauthorized access
• LED indicator: To indicate security mode status
• Screen: 5-inch IPS touch screen
• Screen resolution: 480 × 854 px
• Interface mode: Day and night
• Hub and range extender compatibility: Compatible with Ajax Hub Hybrid (2G and 4G)
• Available languages: English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese.
• Dimensions: 171 (W) x 82 (H) x 28 (D) mm
• Operating temp.: -10º C ~ 40º C
• Weight: 327 g
• Housing material: ABS plastic
• Color: White
📦 INCLUDED:
• Wired keyboard • Instruction manual
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Functions | - Full system arming/disarming - Group arming/disarming - Automation scenario control (maximum 6) |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth |
| RFID technology | Mifare DESFire® EV1, EV2 (ISO14443-А 13.56 MHz) |
| Power supply | - Fibra bus: 24 V DC - Backup batteries: 2 × LTO AA (pre-installed) |
| Maximum consumption | 1.6 W |
| Optional power supply | 12 VDC (Always-on display mode) |
| External power supply operating voltage | 10.5 - 14 VDC, up to 0.5 A |
| Panic button | Configurable: - Panic - Fire (alarm silence) - Urgent help |
| Notifications | Audible notifications for: - Delays - Door opening - Alarms Instant fault notifications |
| Anti-tamper | - Tamper - Fixing screw - Automatic lockout in case of unauthorized access |
| LED indicator | To indicate the security mode status |
| Screen | 5-inch IPS touch screen |
| Screen resolution | 480 × 854 px |
| Interface mode | Day and night |
| Compatibility with hubs and range extenders | Compatible with Ajax Hub Hybrid (2G and 4G) |
| Available languages | English, Ukrainian, Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Macedonian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Vietnamese. |
| Dimensions | 171 (W) x 82 (H) x 28 (D) mm |
| Operating temp. | -10º C ~ 40º C |
| Weight | 327 g |
| Housing material | ABS plastic |
| Color | White |
