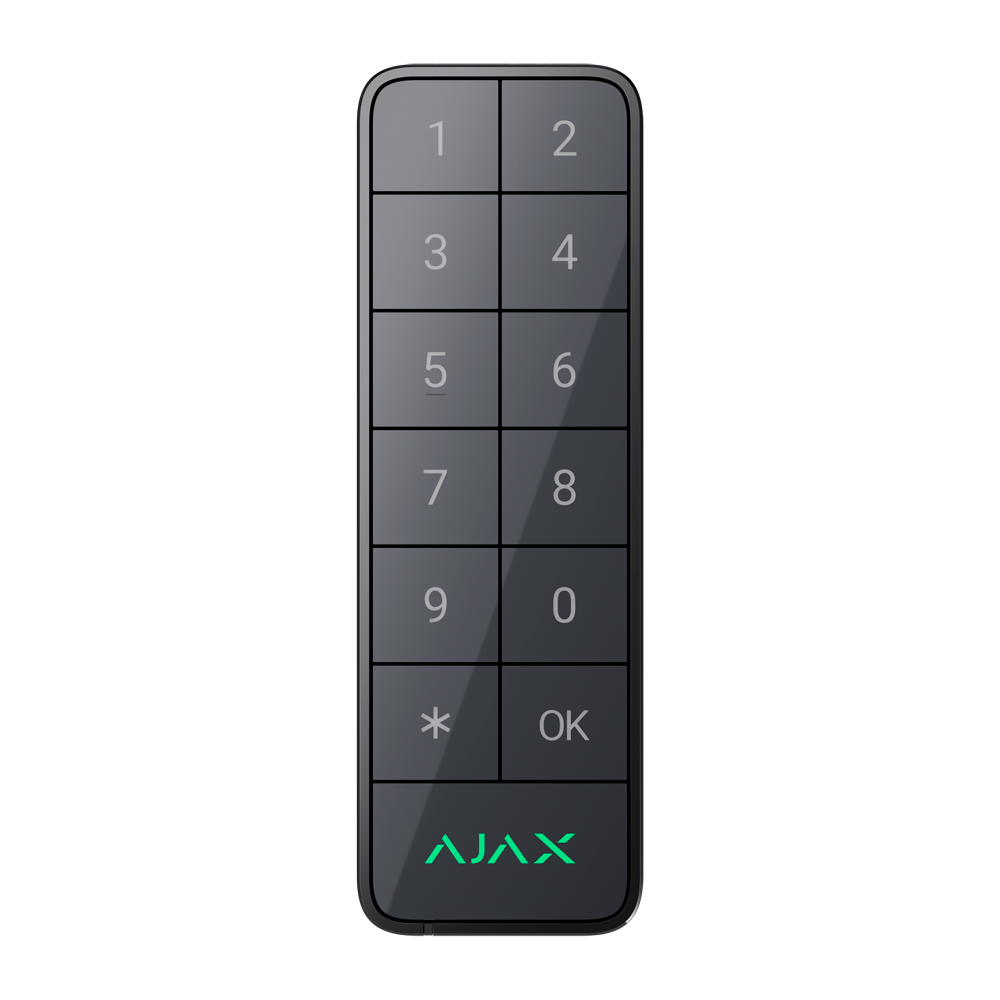

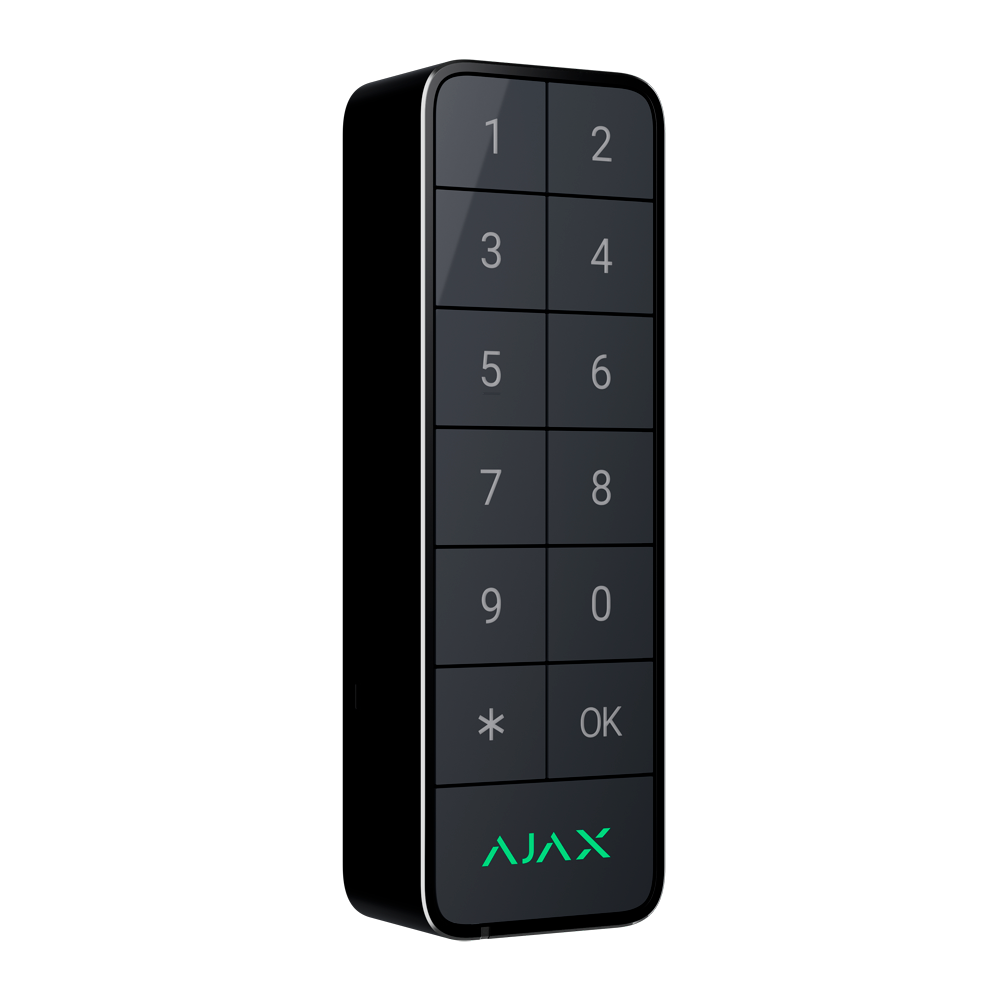

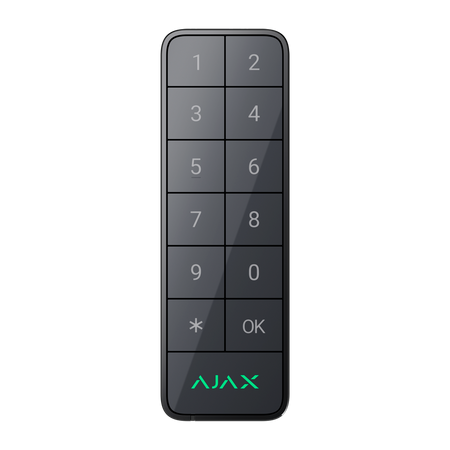

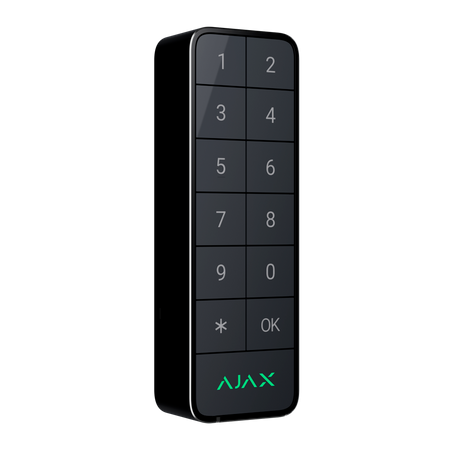

IP66/IK08 outdoor keypad with Ajax RFID reader - Graphite - From -25 °C to +60 °C
IP66/IK08 outdoor keypad with Ajax RFID reader - Graphite - From -25 °C to +60 °C
Regular price
€163,75
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP66/IK08 outdoor keypad with RFID reader - Full or group arming/disarming - Authentication: codes, RFID reader or Bluetooth - Acoustic and LED indication - Automation scenario control - Grade 3 certified
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Bus connection: 4-wire cable
• Functions: Full system arming/disarming; Night mode; Group arming/disarming; Emergency button or for silencing fire alarms
• Authentication control: Codes (keypad or user); RFID reader for Ajax key fobs and cards; Mobile phone via Bluetooth (BLE 4.2 or higher)
• Codes: Up to 49 personal and 1 general; Can be access, duress, or guest codes
• RFID technology: Mifare DESFire® EV1, EV2, EV3 (ISO 14443-А 13.56 MHz)

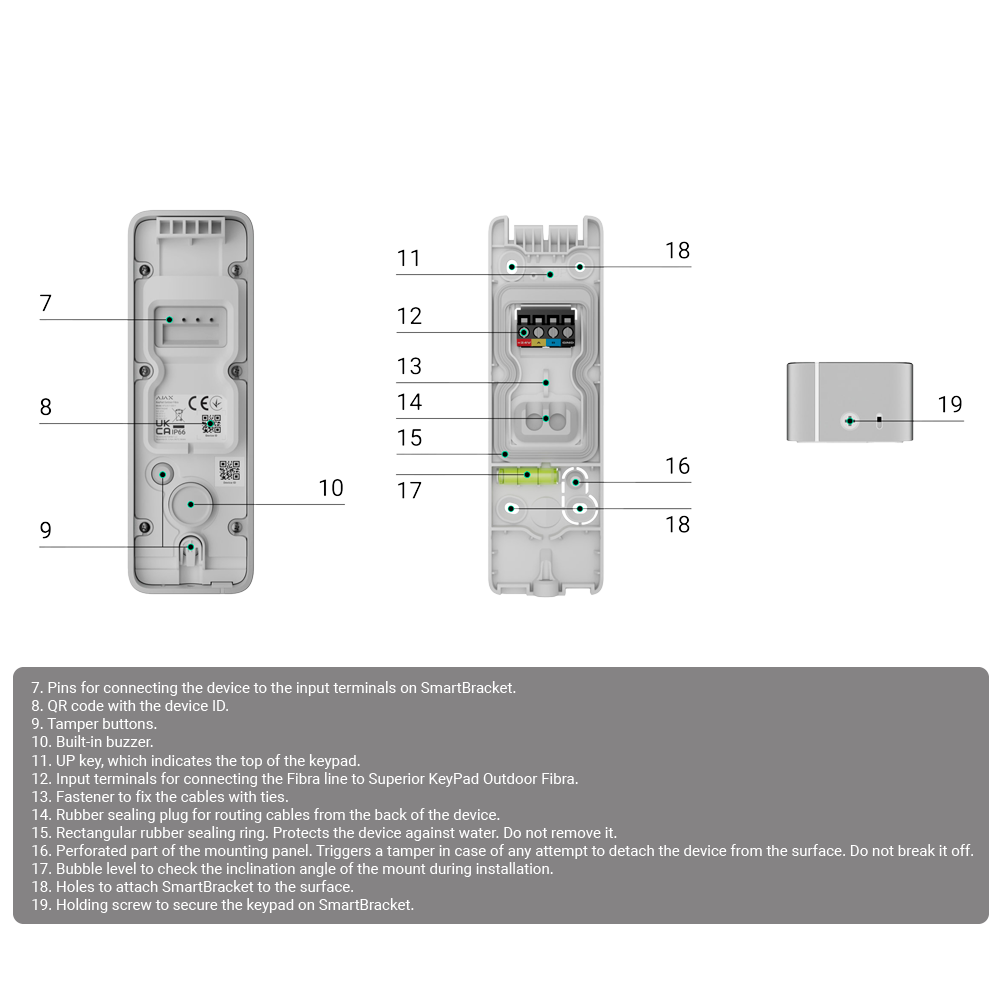

• Anti-tampering: Tamper; Fastening screw; Automatic lockout in case of unauthorized access
• LED indicator: To indicate security mode status
• Power supply: Fibra bus: 24 V DC
• Maximum power consumption: 600 mW
• Control panel compatibility: Compatible with Ajax Hub Hybrid (2G and 4G)
• Housing material: Stainless steel
• Protection rating: IP66
• Impact resistance: IK 08
• Operating temp.: From -25 °C to +60 °C
• Operating humidity: Up to 80%
• Dimensions: 137 (W) x 45 (H) x 28 (D) mm
• Weight: 160 g
• Color: Graphite
📦 INCLUDED:

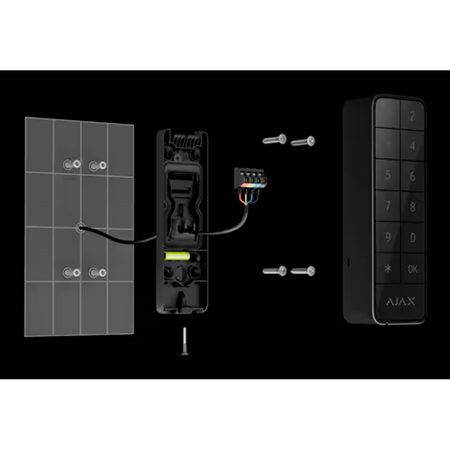

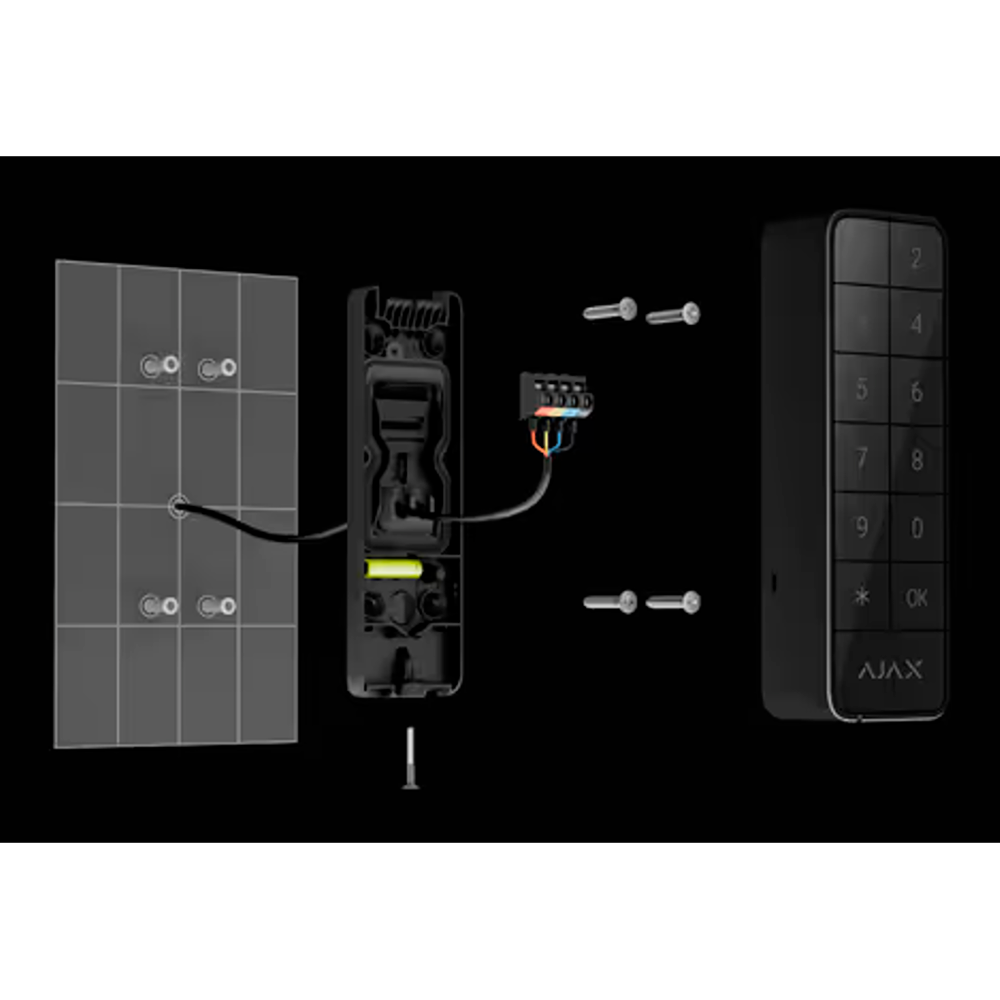

• Wired keypad• SmartBracket• Installation kit• Installation template• Instruction manual
| Security level | Grade 3 |
|---|---|
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Bus connection | 4-wire cable |
| Functions | - Arming/disarming the system - Night mode - Group arming/disarming - Emergency button or fire alarm silencing |
| Authentication control | - Codes (keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth (BLE 4.2 or higher) |
| Codes | Up to 49 personal and 1 general. Can be access, duress, or guest codes |
| RFID technology | Mifare DESFire® EV1, EV2, EV3 (ISO 14443-А 13.56 MHz) |
| Anti-tampering | - Tamper - Fixing screw - Automatic lockout in case of unauthorized access |
| LED indicator | To indicate security mode status |
| Power supply | Fibra bus: 24 V DC |
| Maximum consumption | 600 mW |
| Compatibility with control panels | Compatible with Ajax Hub Hybrid (2G and 4G) |
| Housing material | Stainless steel |
| Protection rating | IP66 |
| Impact resistance | IK 08 |
| Operating temp. | From -25 °C to +60 °C |
| Operating humidity | Up to 80% |
| Dimensions | 137 (W) x 45 (H) x 28 (D) mm |
| Weight | 160 g |
| Color | Graphite |
- User manual Link
