AJAX

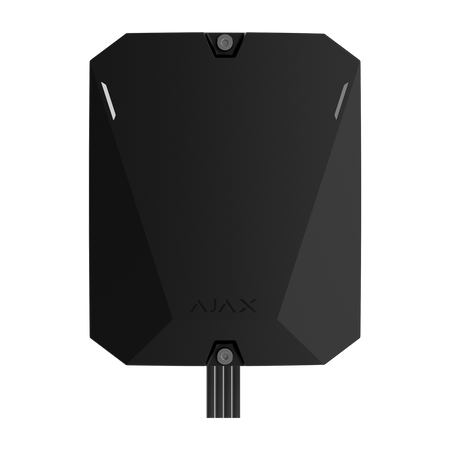

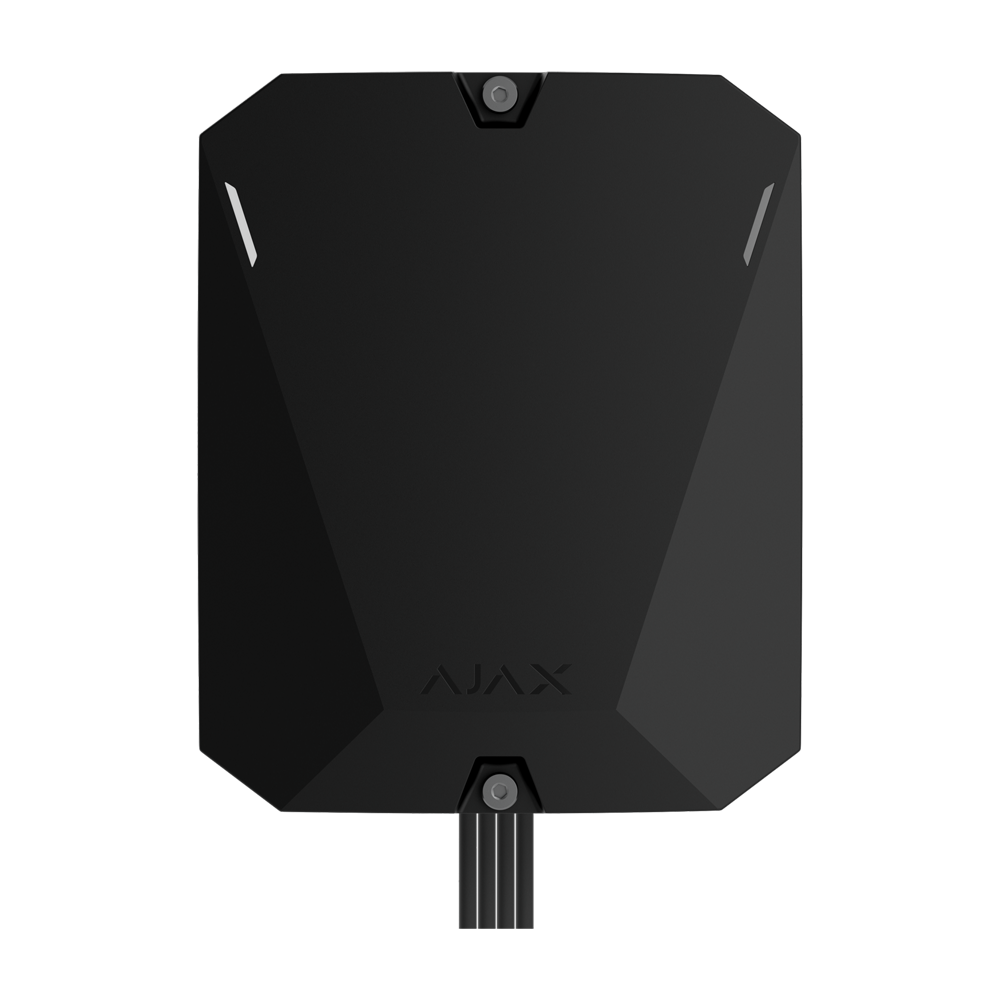

Ajax Grade 3 Alarm Hub - 10º C ~ +40º C - Black

SKU: FIBRA-HUBHYBRID2-B
(0)
Only 2 left
Stock running low: hurry!
€800,25 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Alarm control panel - Grade 3 - Wireless: Superior Jeweller and TurboWings - Wired: Fibra - Ethernet and dual SIM 4G(LTE)/3G/2G communication - Up to 250 wireless and wired devices - 200 users and 25 activation groups

📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security level: Grade 3 (wireless and wired)
• Communication protocols: Wireless: Superior Jeweller and TurboWings; Wired: Fibra; Audio: VoRF
• Firmware update: Available. Remote OTA (Over-the-air) updates
• External antenna compatibility: Available. 1 connector for AJ-EXTERNALANTENNA-B (4G mobile network)
• Internal security: Anti-tamper
• Internal siren: Not available
• Communication: Ethernet and Dual SIM 4G (LTE) / 3G / 2G
• Maximum devices: 250 (wireless and wired); Specifically: 5 ReX / ReX 2 range extenders; 200 wired devices on the same Fibra line
• Video integration: Ajax NVR: up to 36; Ajax cameras: up to 224 via Ajax NVR and up to 492 standalone; Third-party IP cameras: up to 100 RTSP via SDK / up to 224 ONVIF via Ajax NVR
• Number of users: Up to 200 users
• Automation scenarios: 64 scenarios
• Security areas (Partitions): 25 groups
• ARC communication: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz

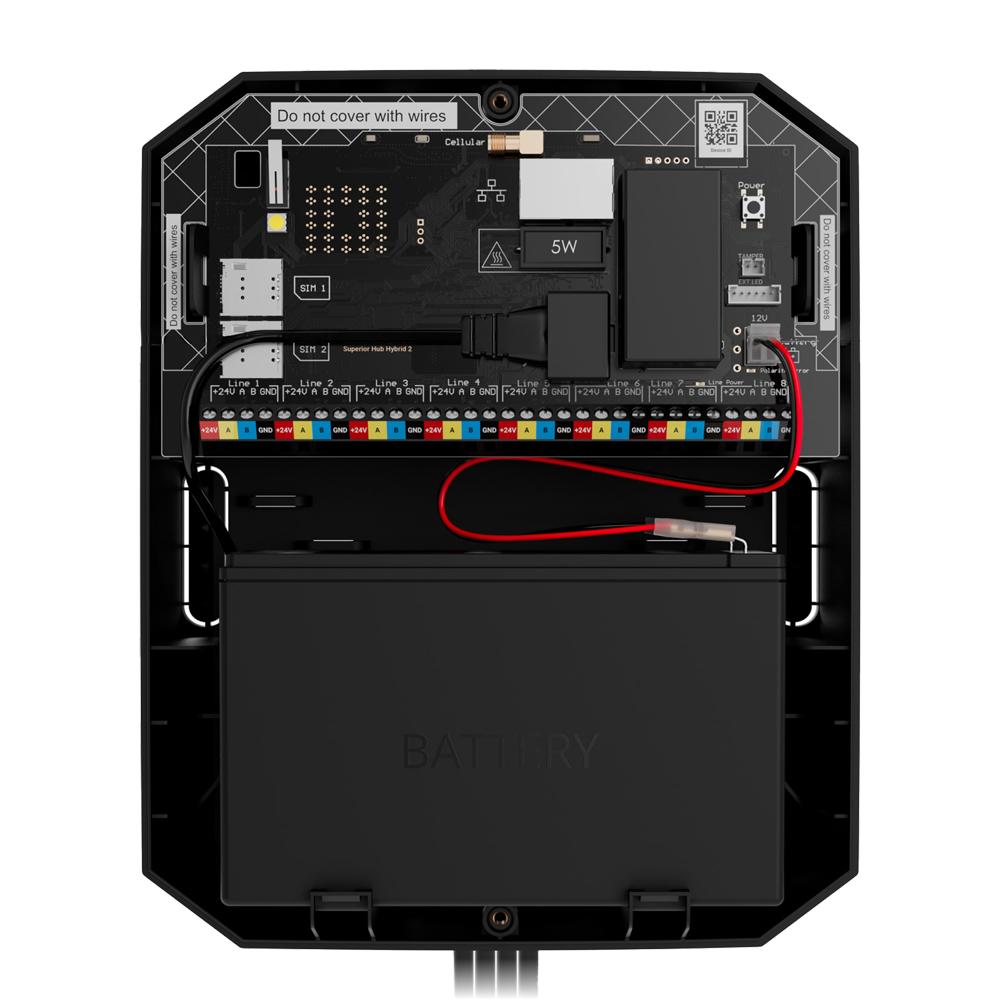

• Backup battery: 12 V DC / 7 Ah (not included)
• Backup battery runtime: Up to 60 hours (15 Fibra devices and 12V DC, 7 Ah battery); Up to 200 hours (battery saving mode)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 240 (H) × 100 (D) mm
• Color: Black
• Communication technology: Superior Jeweller and TurboWings (also supports Jeweller and Wings)
• Superior Jeweller RF frequency: 865.0–868.0 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 869.4–869.65 MHz
• Superior Jeweller range: Up to 3500 m in open space
• TurboWings range: Up to 3000 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)

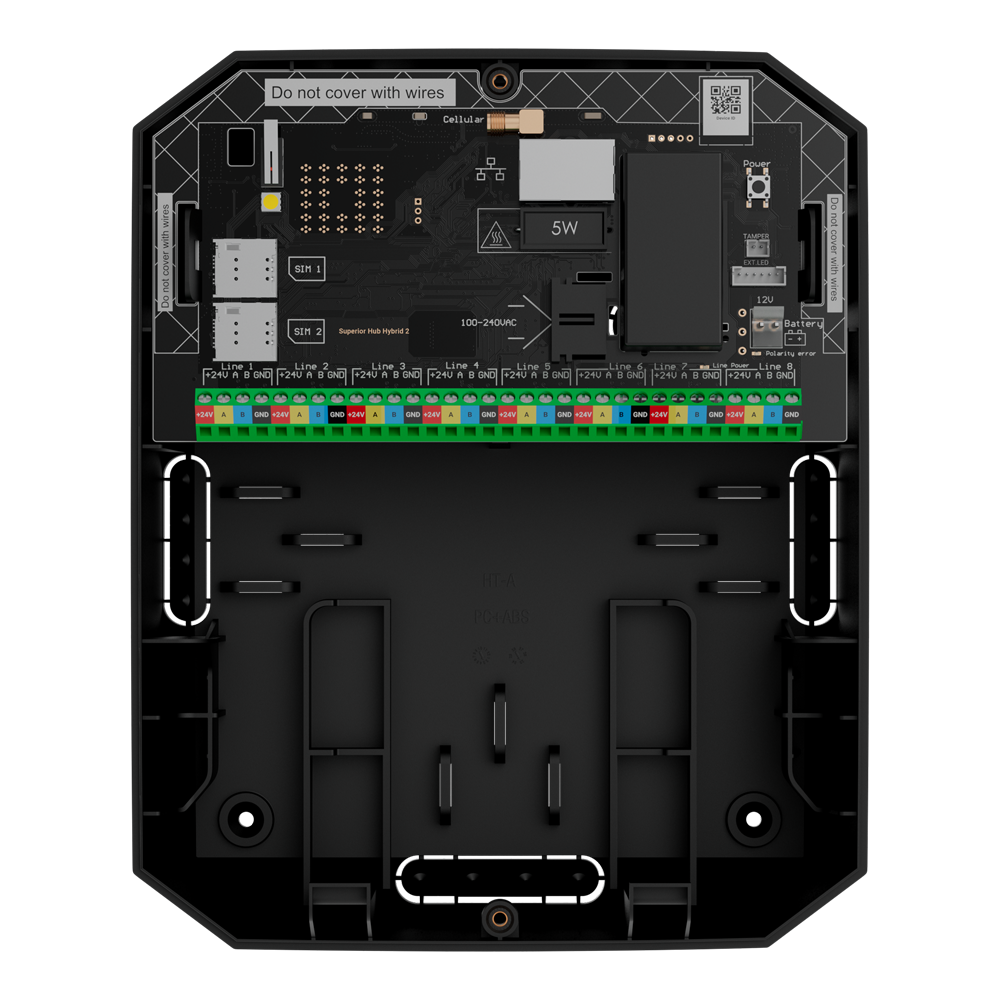

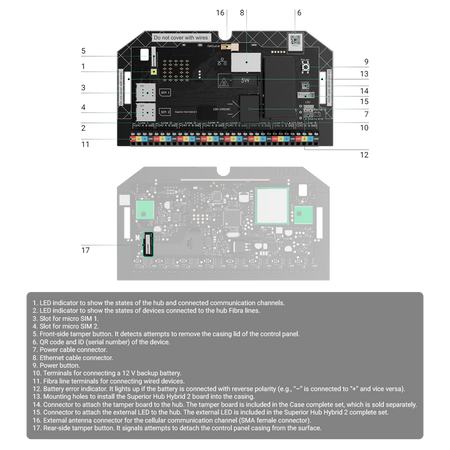

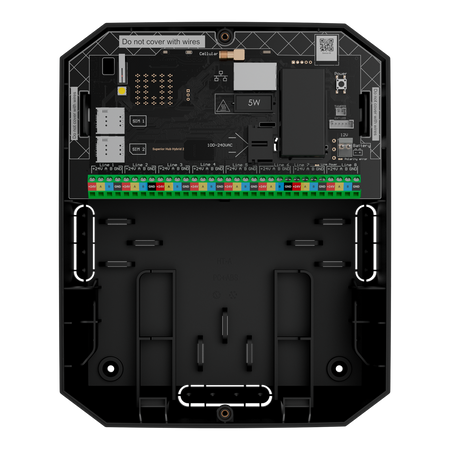

• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star, and ring
• Fibra device power supply: 24 V DC (included on board)

📦 INCLUDED:
• Control panel• Power cable• Ethernet cable• Battery connection cable• 8 resistors of 120 Ω• User manual
Security level Grade 3 (wireless and wired)
Communication protocols Wireless: Superior Jeweller and TurboWings Wired: Fibra Audio: VoRF
Firmware update Available. Remote OTA (Over-the-air) updates
External antenna compatibility Available. 1 connector for AJ-EXTERNALANTENNA-B (4G mobile network)
Internal security Tamper-proof opening
Internal siren Not available
Communication Ethernet and Dual SIM 4G (LTE) / 3G / 2G
Maximum number of devices 250 (wireless and wired) Specifically: - 5 ReX / ReX 2 range extenders - 200 wired devices on the same Fibra line
Video integration Ajax NVR: up to 36 Ajax cameras: up to 224 via Ajax NVR and up to 492 standalone Third-party IP cameras: up to 100 RTSP via SDK / up to 224 ONVIF via Ajax NVR
Number of users Up to 200 users
Automation scenarios 64 scenarios
Security groups (Partitions) 25 groups
Communication with CMS Contact ID / SIA
Compatibility NOT compatible with ocBridge and uartBridge
Housing material ABS plastic
Power supply AC 110~250 V, 50/60 Hz
Backup battery 12 V DC / 7 Ah (not included)
Backup battery life Up to 60 hours (15 Fibra devices and 12V DC, 7 Ah battery) Up to 200 hours (battery saving mode)
Operating temp. -10º C ~ +40º C
Dimensions 192 (W) × 240 (H) × 100 (D) mm
Color Black
Communication technology Superior Jeweller and TurboWings (also supports Jeweller and Wings)
Superior Jeweller RF frequency 865.0–868.0 MHz 868.0–868.6 MHz 868.7–869.2 MHz 869.4–869.65 MHz
Superior Jeweller range Up to 3500 m in open space
TurboWings range Up to 3000 m in open space
Communication technology Fibra
Wired range Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
Inputs 8 independent bus lines
Bus connection 4-wire cable (2 power and 2 data)
Connection topologies Bus, star, and ring
Fibra device power supply 24 V DC (included on the plate)
