AJAX

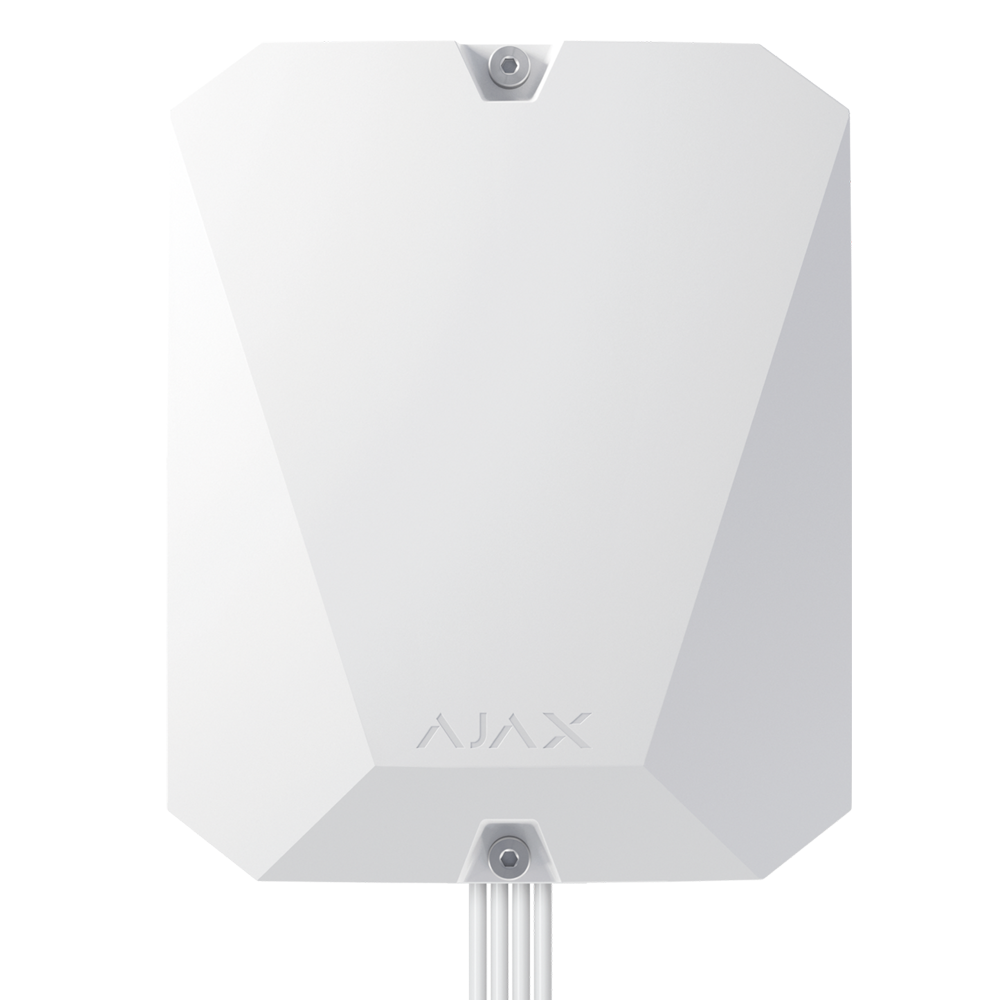

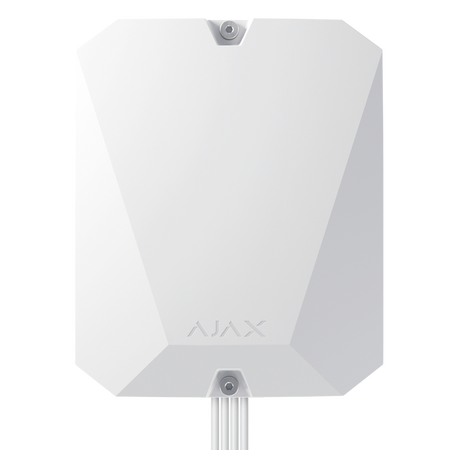

Ajax NFA2P certified Grade 3 alarm hub - Jeweller, Wings and Fibra protocols

SKU: FIBRA-HUBHYBRID-W-NF
(0)
In stock
Usually shipped within 24 hours
€520,33 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Alarm control panel - NFA2P certified and Grade 3 - Jeweller, Wings and Fibra protocols - Ethernet and dual SIM GPRS communication - Up to 9 arming groups - 8 independent bus lines - App and PC software (up to 50 users) -

📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• NFA2P certification: Available
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Anti-tamper
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 2G (GPRS)
• Device compatibility: Check compatibility in 'Download -- Manuals -- Table of compatibility of Ajax devices with control panels'
• Maximum devices: 100 wireless and wired (max. 10 sirens and KeyPad TouchScreen wireless and wired combined)
• Video integration: Up to 25 IP cameras or DVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• ARC communication: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Housing material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines
• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star and ring
• Fibra device power supply: 24 V DC (included on the plate)

📦 INCLUDED:
• Control panel• Power cable• Ethernet cable• Battery connection cable• 8 120 Ω resistors• User manual
NFA2P certification Available
Security grade Grade 3
Communication protocols Jeweller, Wings, and Fibra
Internal security Anti-opening tamper
Internal siren Not available
Communication Ethernet / Dual SIM 2G (GPRS)
Device compatibility Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
Maximum number of devices 100 wireless and wired (max. 10 combined wireless and wired sirens and KeyPad TouchScreens)
Video integration Up to 25 IP cameras or DVR channels
Number of users Up to 50
Automation scenarios 32 scenarios
Communication with ARC Contact ID / SIA
Compatibility NOT compatible with ocBridge and uartBridge
Firmware update Available. Remote OTA (Over-the-air) updates
Housing material ABS plastic
Power supply AC 110~250 V, 50/60 Hz
Backup battery 12 V DC, 4~7 Ah (not included)
Backup battery life Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery)
Operating temp. -10º C ~ +40º C
Dimensions 192 (W) × 238 (H) × 100 (D) mm
Color White
Communication technology Jeweller and Wings
RF frequency 868 MHz
Jeweller range Up to 2000 m in open space
Wings range Up to 1700 m in open space
Communication technology Fibra
Wired range Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
Inputs 8 independent bus lines
Bus connection 4-wire cable (2 power and 2 data)
Connection topologies Bus, star, and ring
Fibra device power supply 24 V DC (included on the board)
