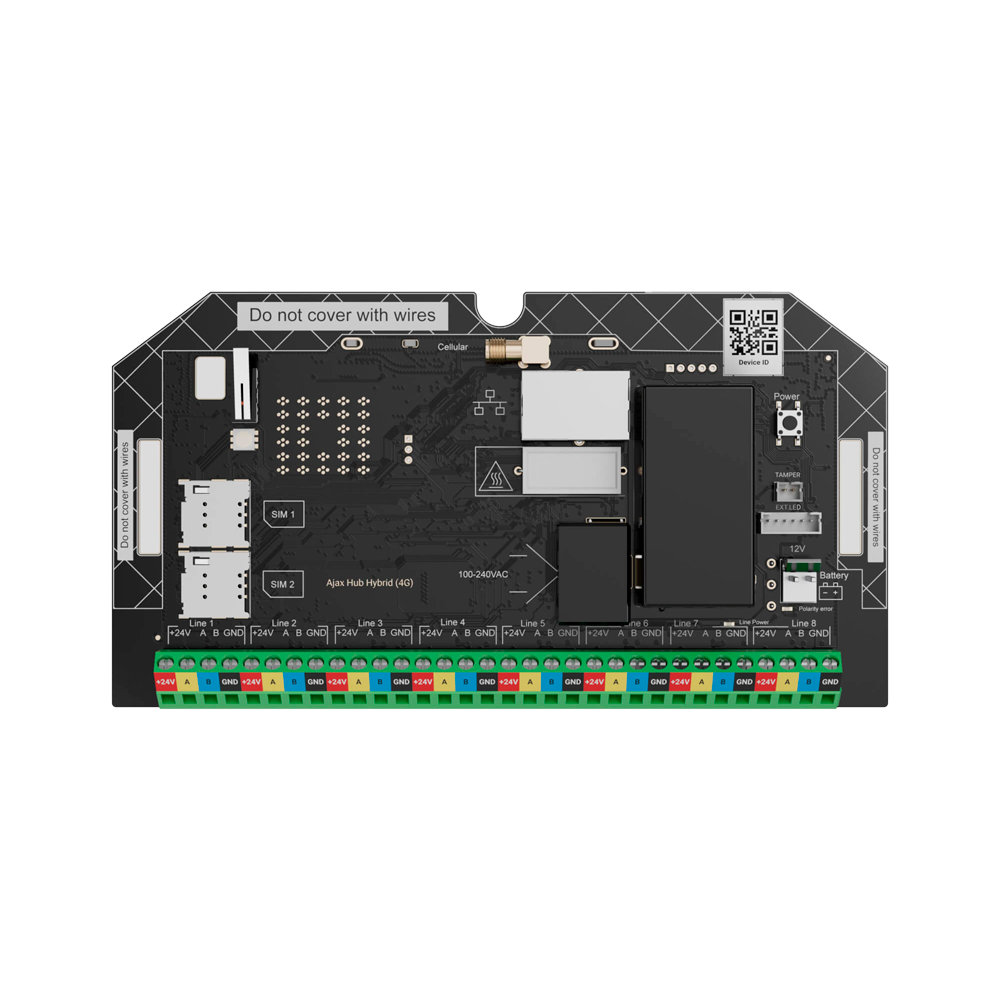

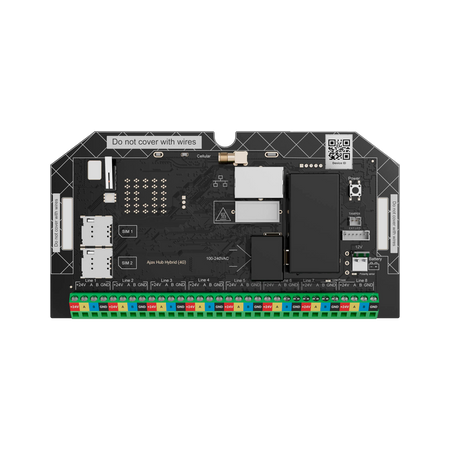

Professional Grade 3 Ajax hybrid alarm control panel - Ethernet and dual 4G SIM communication
Professional Grade 3 Ajax hybrid alarm control panel - Ethernet and dual 4G SIM communication
Regular price
€688,12
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Professional Grade 3 Hybrid Alarm Hub - Wireless (Jeweller/Wings) and wired (Fibra) - Ethernet and dual SIM 4G communication - Up to 9 arming groups - 8 independent bus lines - App and PC Software (up to 50 users)
📋 SPECIFICATIONS:
• Brand: Ajax Fibra
• Security grade: Grade 3
• Communication protocols: Jeweller, Wings and Fibra
• Internal security: Tamper-proof opening protection
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 4G
• Device compatibility: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Maximum devices: 100 wireless and wired (max. 10 combined wireless and wired sirens and TouchScreen KeyPads)
• Video integration: Up to 25 IP cameras or NVR channels
• Number of users: Up to 50
• Automation scenarios: 32 scenarios
• ARC communication: Contact ID / SIA
• Compatibility: NOT compatible with ocBridge and uartBridge

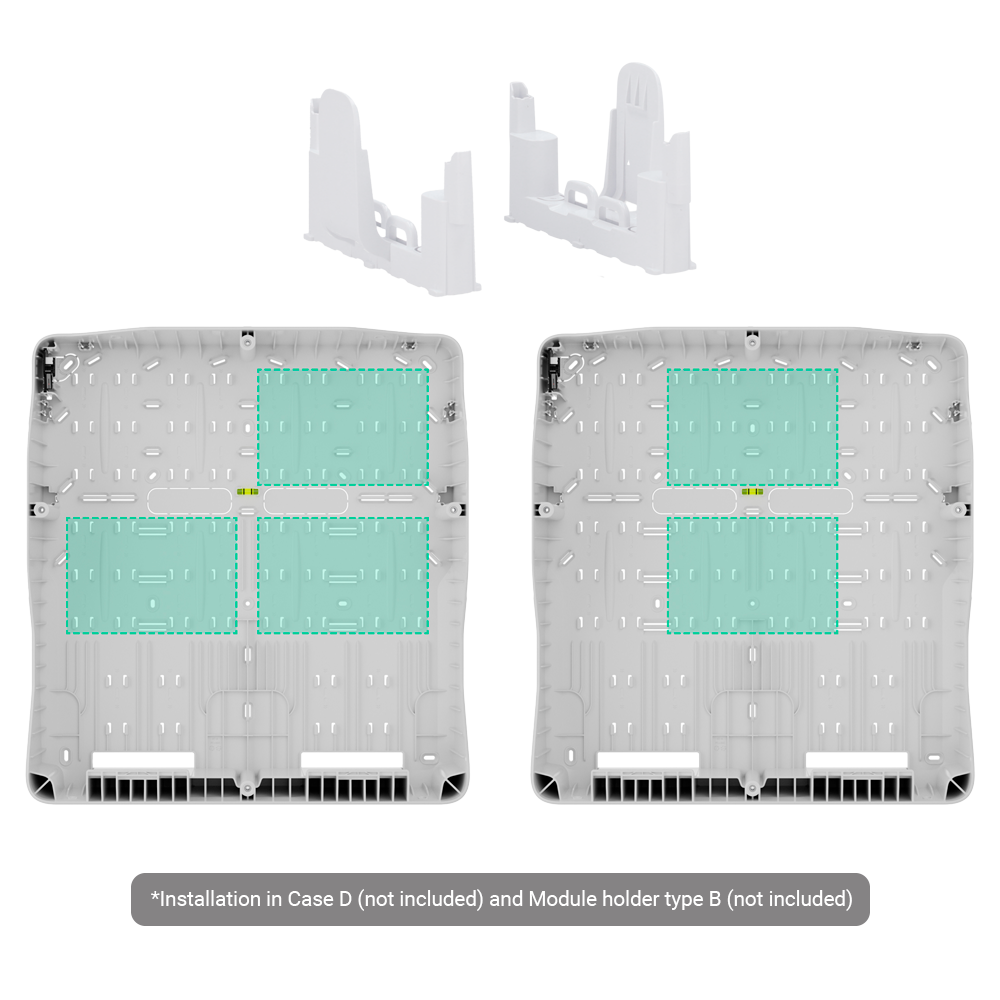

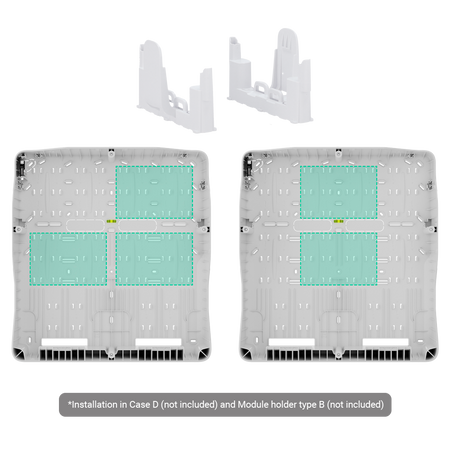

• Compatible enclosures: FIBRA-CASE-D430-W/B and support for the FIBRA-MODULEHOLDER-B-W/B module
• Firmware update: Available. Remote OTA (Over-the-air) updates
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: 12 V DC, 4~7 Ah (not included)
• Backup battery life: Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery)
• Operating temp.: -10º C ~ +40º C
• Dimensions: 192 (W) × 238 (H) × 100 (D) mm
• Color: White
• Communication technology: Jeweller and Wings
• RF frequency: 868 MHz
• Jeweller range: Up to 2000 m in open space
• Wings range: Up to 1700 m in open space
• Communication technology: Fibra
• Wired range: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Inputs: 8 independent bus lines

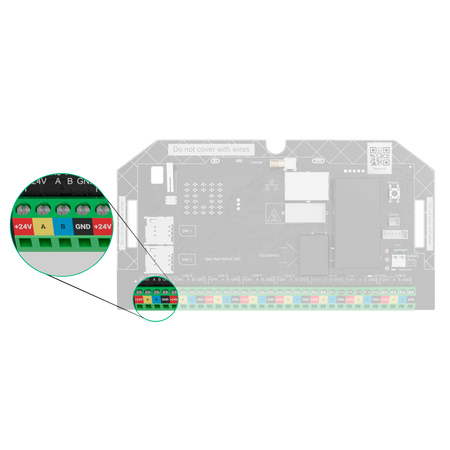

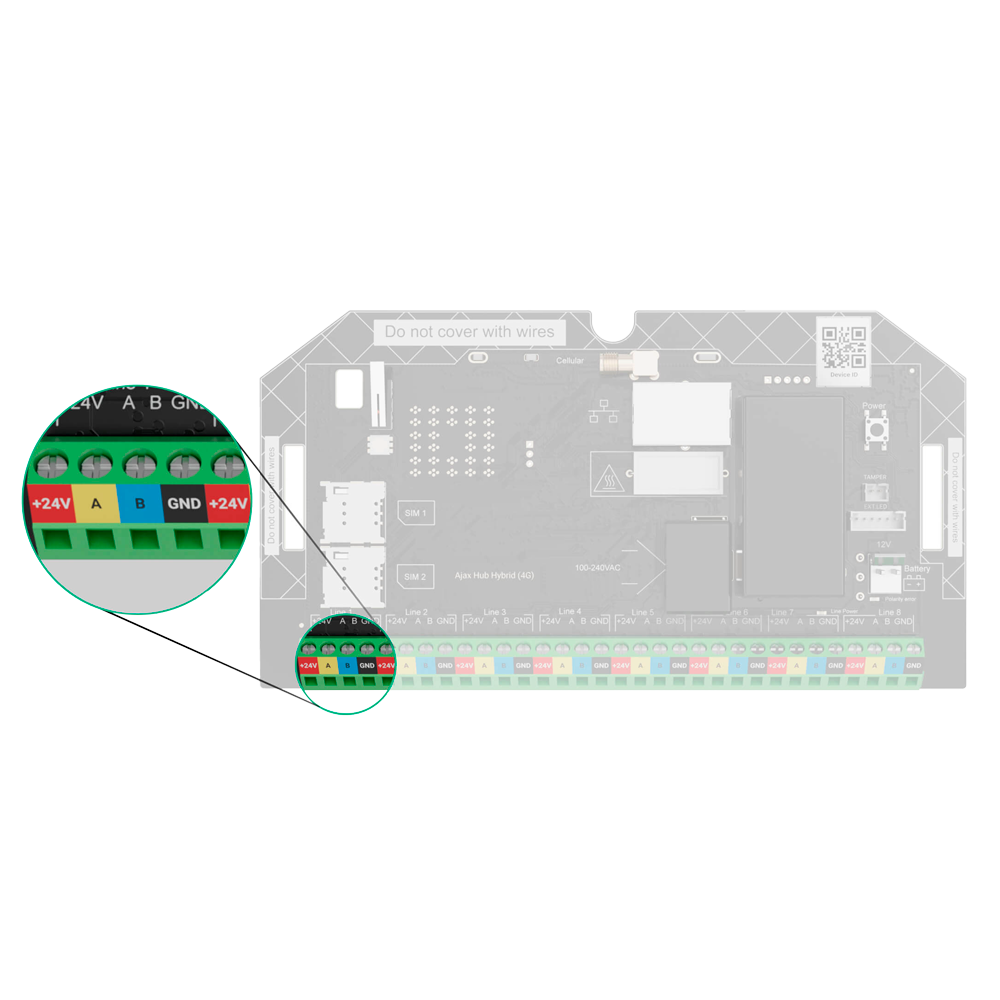

• Bus connection: 4-wire cable (2 power and 2 data)
• Connection topologies: Bus, star, and ring
• Fibra device power supply: 24 V DC (included on the plate)
📦 INCLUDED:
• Control panel without enclosure • Power cable • Ethernet cable • Battery connection cable • 8 120 Ω resistors • User manual
| Security grade | Grade 3 |
|---|---|
| Communication protocols | Jeweller, Wings and Fibra |
| Internal security | Anti-tamper opening |
| Internal siren | Not available |
| Communication | Ethernet / Dual SIM 4G |
| Device compatibility | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Maximum devices | 100 wireless and wired (max. 10 among wireless and wired sirens and KeyPad TouchScreens) |
| Video integration | Up to 25 IP cameras or video recorder channels |
| Number of users | Up to 50 |
| Automation scenarios | 32 scenarios |
| Communication with ARC | Contact ID / SIA |
| Compatibility | NOT compatible with ocBridge and uartBridge |
| Compatible housings | FIBRA-CASE-D430-W/B and support for module FIBRA-MODULEHOLDER-B-W/B |
| Firmware update | Available. OTA (Over-the-air) remote updates |
| Power supply | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC, 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fibra devices and 12V DC, 7 Ah battery) |
| Operating temp. | -10º C ~ +40º C |
| Dimensions | 192 (W) × 238 (H) × 100 (D) mm |
| Color | White |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller range | Up to 2000 m in open space |
| Wings range | Up to 1700 m in open space |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Inputs | 8 independent bus lines |
| Bus connection | 4-wire cable (2 power and 2 data) |
| Connection topologies | Bus, star and ring |
| Fibra device power supply | 24 V DC (included on the plate) |
