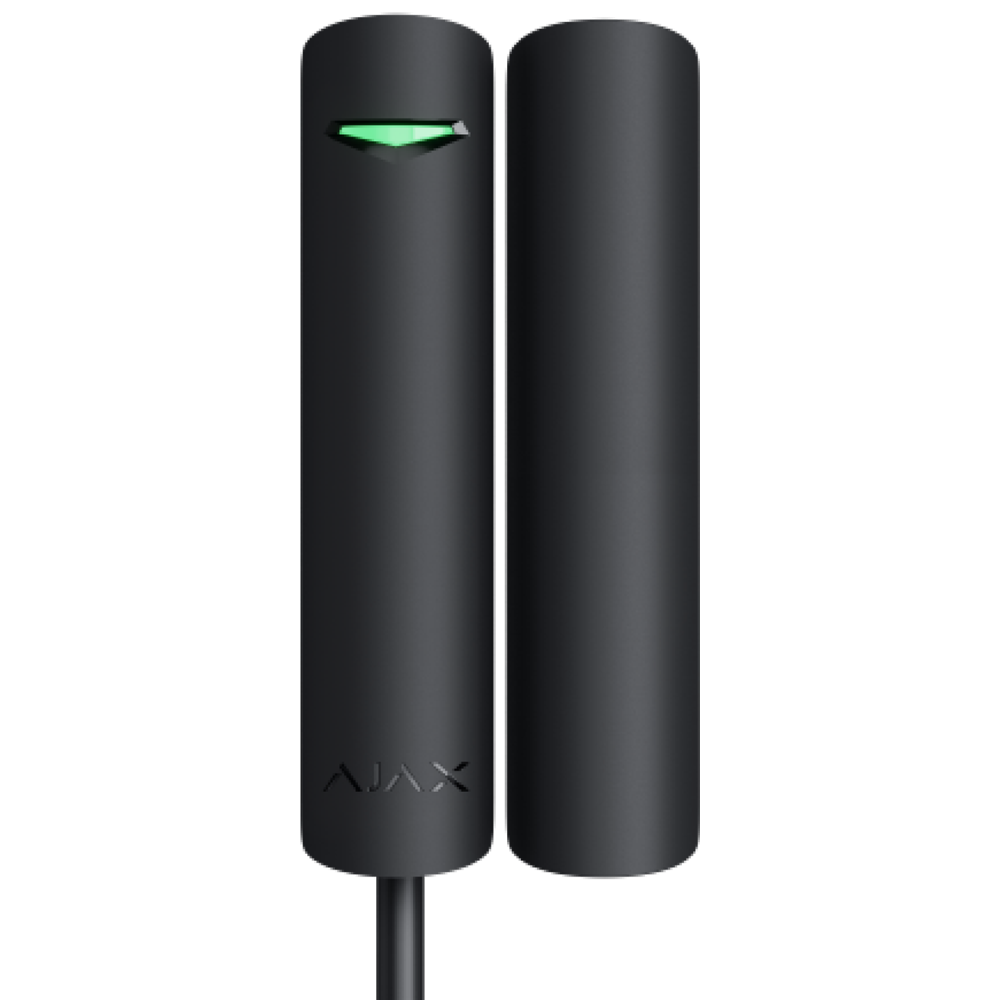

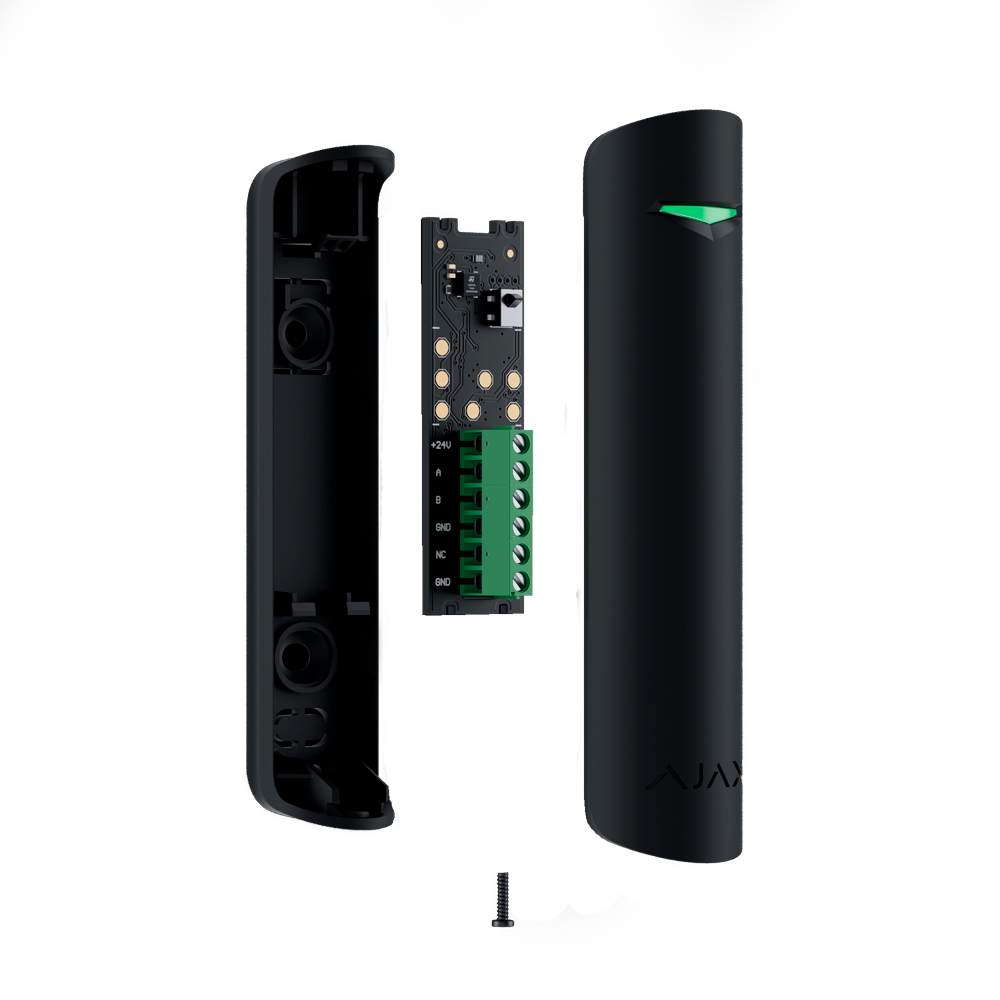

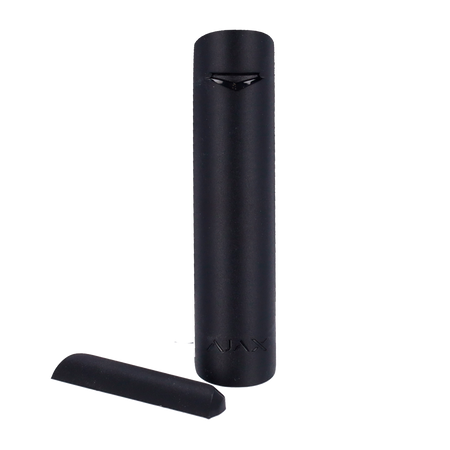

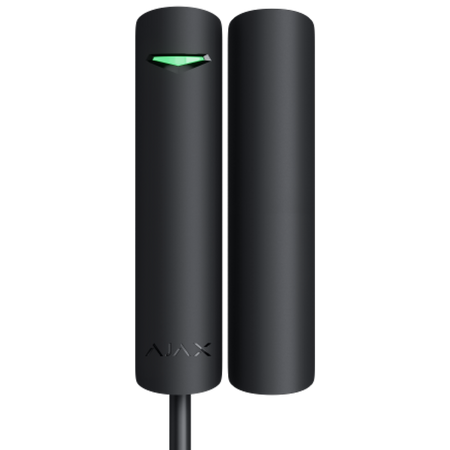

Ajax door/window magnetic contact - Shock and tilt detector - Black
Ajax door/window magnetic contact - Shock and tilt detector - Black
Regular price
€62,92
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Door/window magnetic contact - Grade 2 - Shock and tilt detector - Fibra protocol / Bottom mounting screw - Adapted bracket for easy installation - Wired auxiliary input / Tamper - 2 reed relays: magnet installation on both sides
📋 SPECIFICATIONS:
• Brand: Ajax
• Security grade: Grade 2
• Communication protocol: Fibra
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'
• Bus connection: 4-core cable
• Firmware update: Not available
• Sensors: 1 accelerometer; 2 reed relays: allows magnet mounting on both sides
• Shock sensor sensitivity: 3 levels
• Tilt sensor activation threshold: From 5° to 25°
• Input for third-party wired detector: Wired detectors with Normally Closed (NC) contact and additional Roller shutter mode
• LED indications: Alarm, tamper, signal
• Chime mode: When the system is disarmed, the siren emits a special sound to signal that the opening sensors have been triggered
• Anti-tamper: 1 tamper
• Power supply: 24 V DC
• Standby consumption: 0.043 mA
• Maximum consumption: 6.1 mA
• Bracket: SmartBracket with mounting screw
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection degree: IP50, IK04
• Transmitter dimensions: 90.5 (H) × 21 (W) × 18.5 (D) mm
• Magnet dimensions: 90.5 (H) × 21 (W) × 18.5 (D) mm
• Weight: 15 g
• Color: Black
📦 INCLUDED:
• Magnetic contact • User manual • Mounting material
| Security grade | Grade 2 |
|---|---|
| Communication protocol | Fibra |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Bus connection | 4-wire cable |
| Firmware update | Not available |
| Sensors | - 1 accelerometer - 2 reed switches: allows magnet mounting on both sides |
| Shock sensor sensitivity | 3 levels |
| Tilt sensor activation threshold | From 5° to 25° |
| Input for third-party wired detector | Wired detectors with normally closed (NC) contact and additional Roller shutter mode |
| LED indications | Alarm, tamper, signal |
| Chime mode | When the system is disarmed, the siren emits a special sound to signal that the opening sensors have been triggered |
| Anti-tamper | - 1 tamper |
| Power supply | 24 V DC |
| Standby consumption | 0.043 mA |
| Maximum consumption | 6.1 mA |
| Bracket | SmartBracket with fixing screw |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection degree | IP50, IK04 |
| Transmitter dimensions | 90.5 (H) × 21 (W) × 18.5 (D) mm |
| Magnet dimensions | 90.5 (H) × 21 (W) × 18.5 (D) mm |
| Weight | 15 g |
| Color | Black |
- User manual Link
