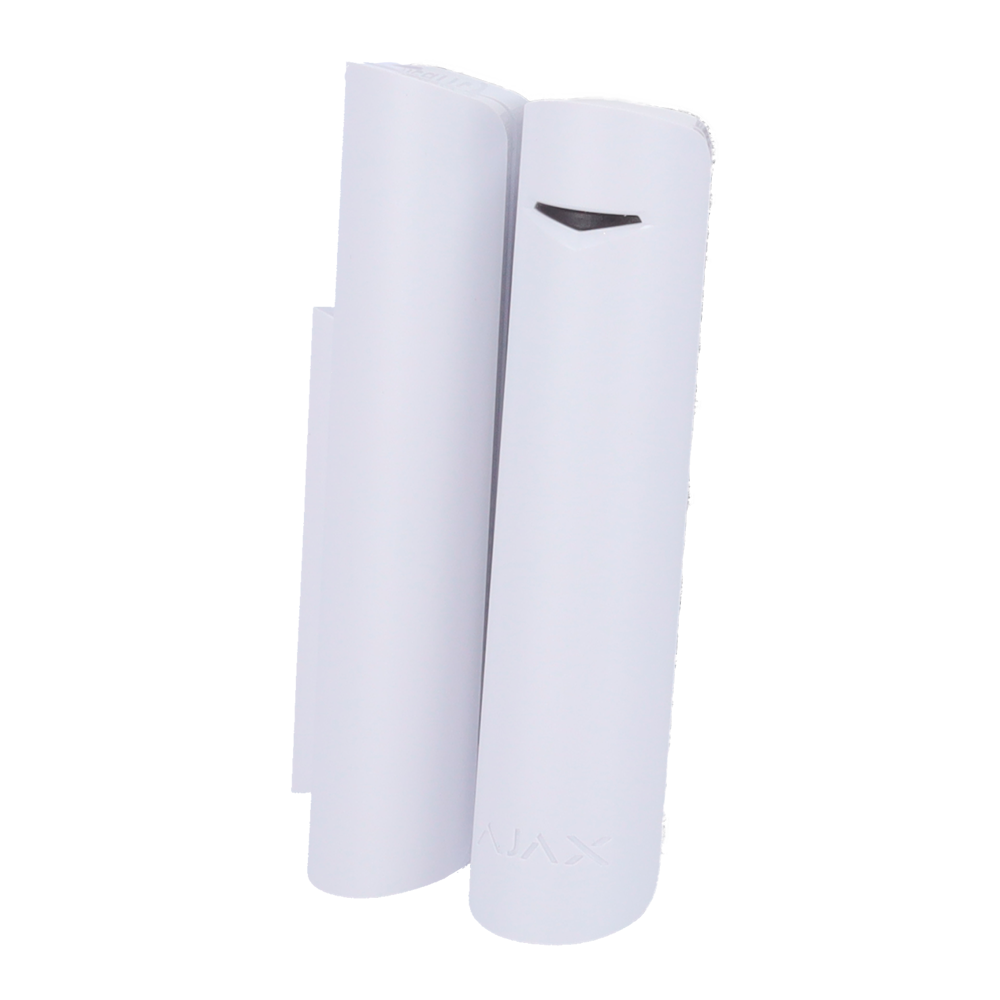

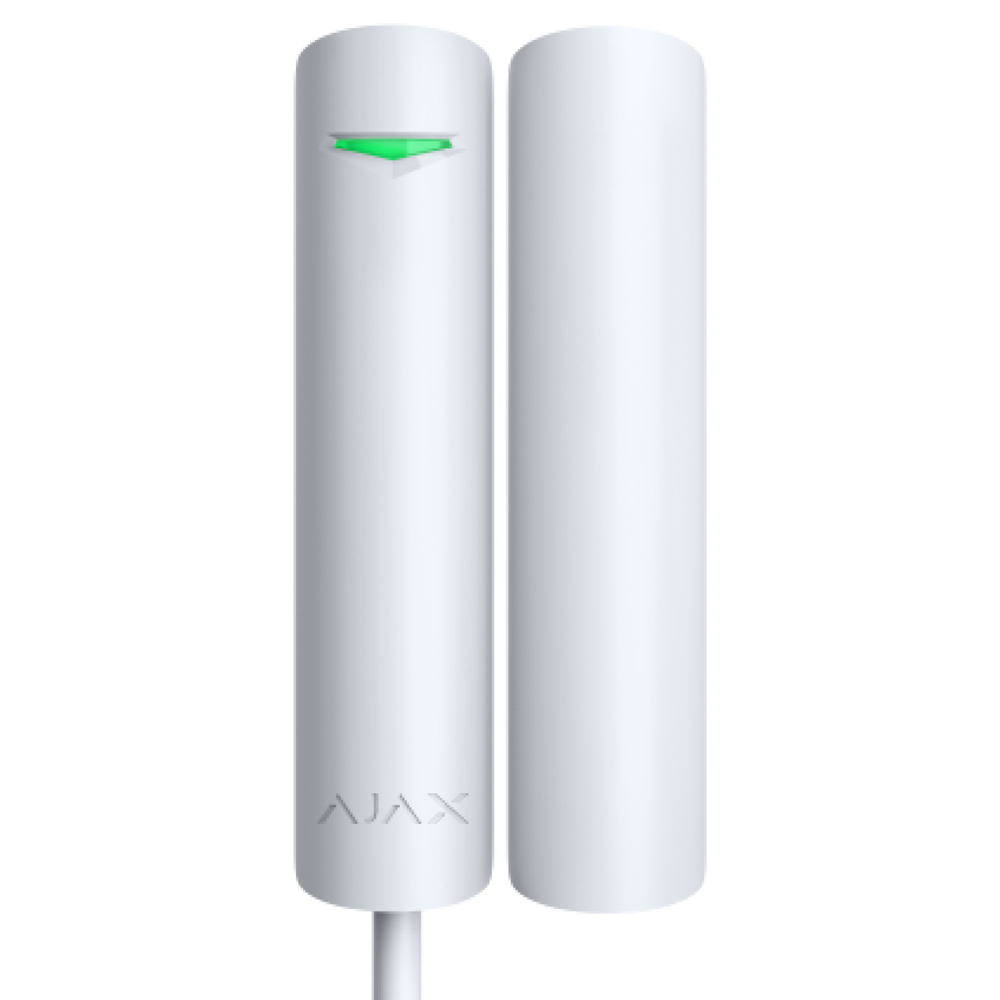

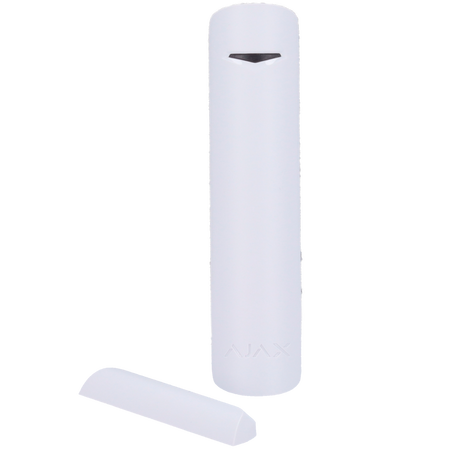

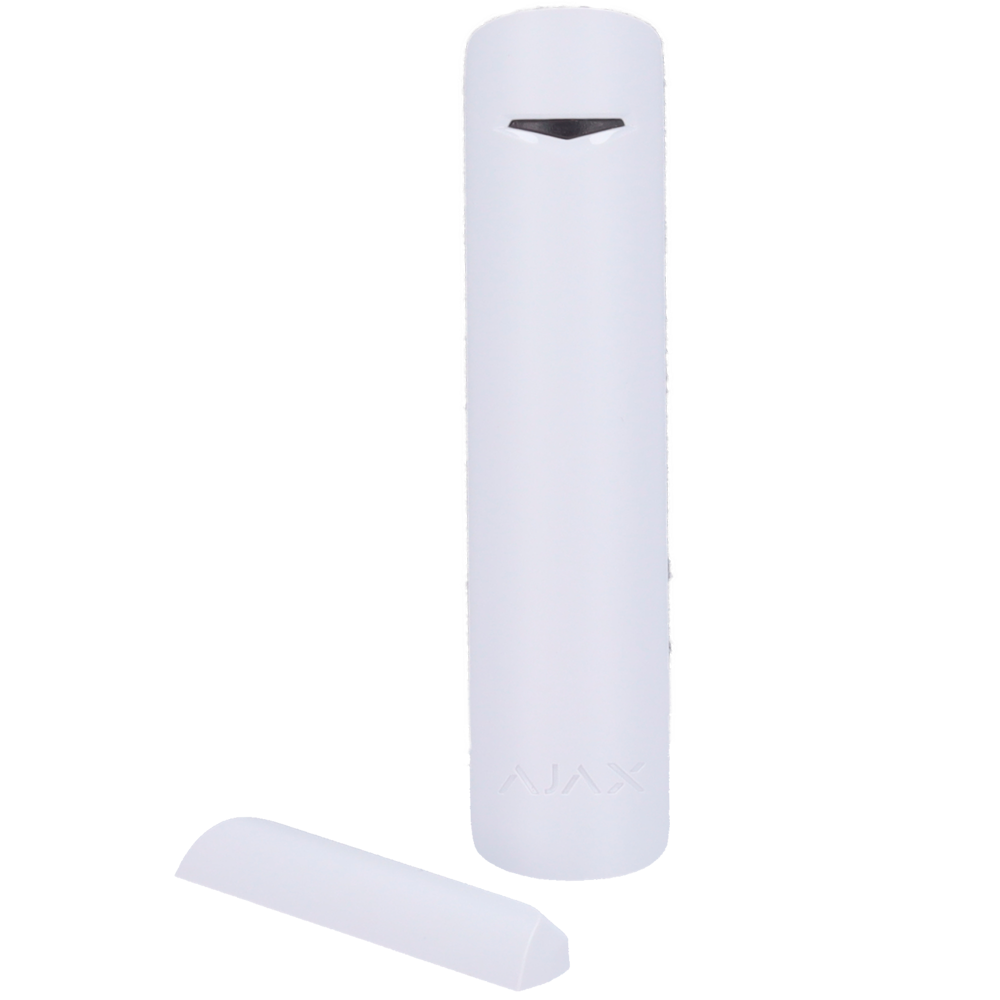

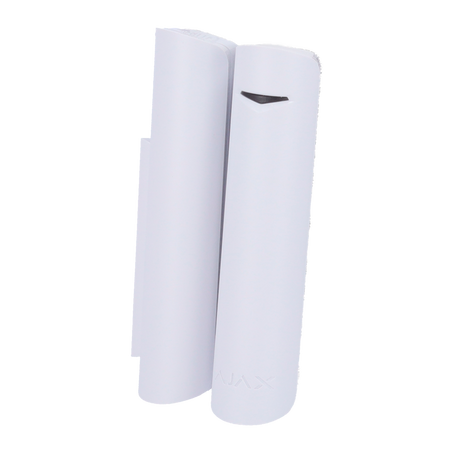

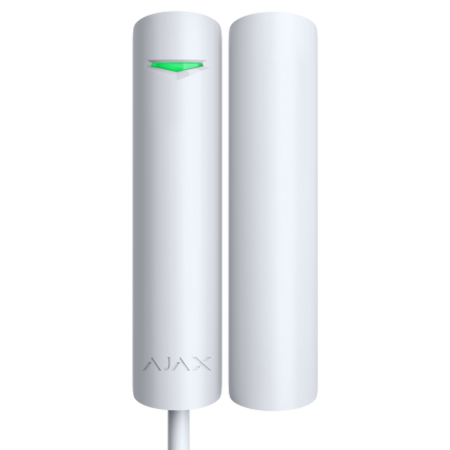

Ajax door/window magnetic contact - Fibra wired protocol - Wired auxiliary input / Tamper
Ajax door/window magnetic contact - Fibra wired protocol - Wired auxiliary input / Tamper
Regular price
€39,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Magnetic door/window contact - Grade 2 - Fibra wired protocol - Adapted support for easy installation - Bottom fixing screw - Wired auxiliary input / Tamper - 2 reed relays: magnet installation on both sides
📋 SPECIFICATIONS:
• Brand: Ajax
• Security level: Grade 2
• Communication protocol: Fibra
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair)
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'

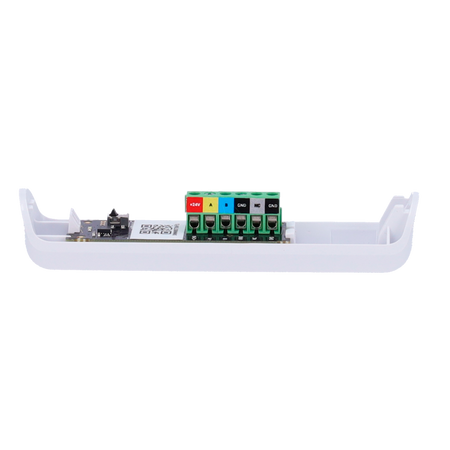

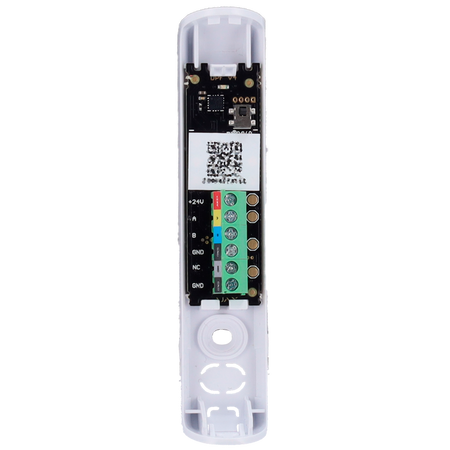

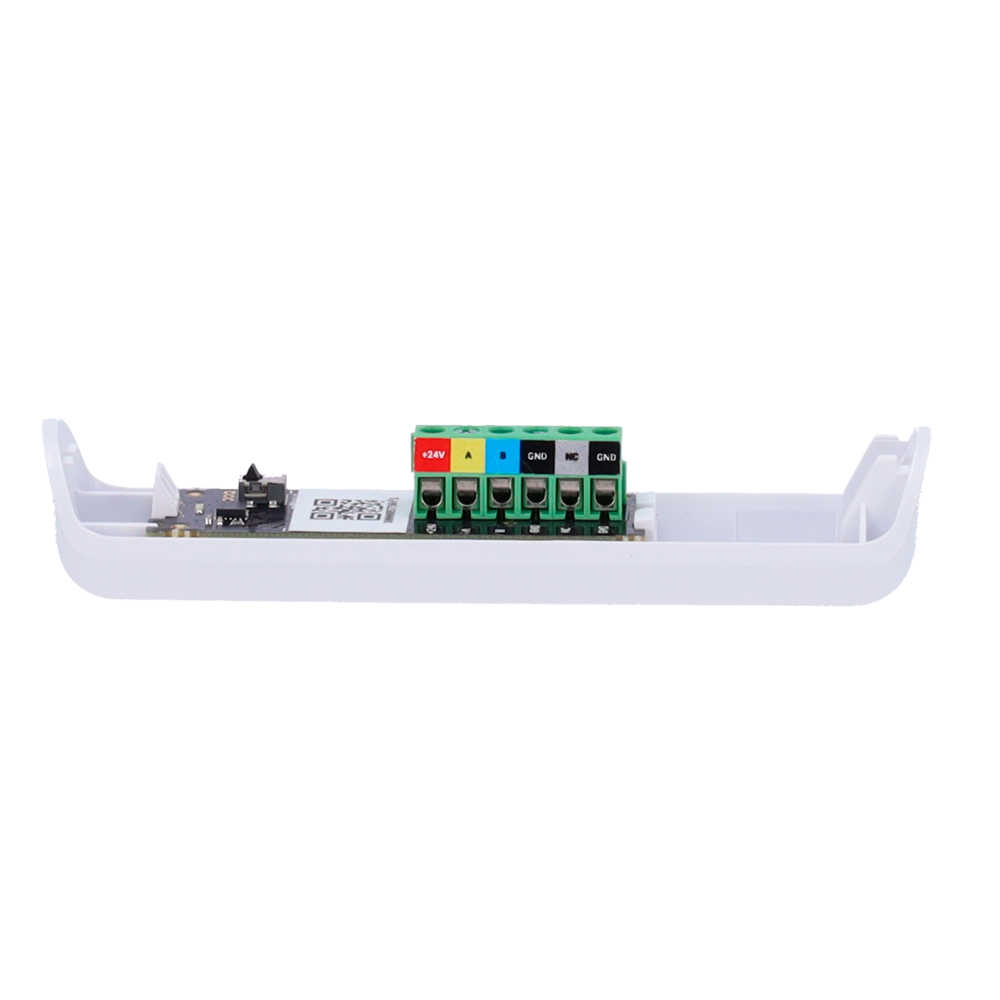

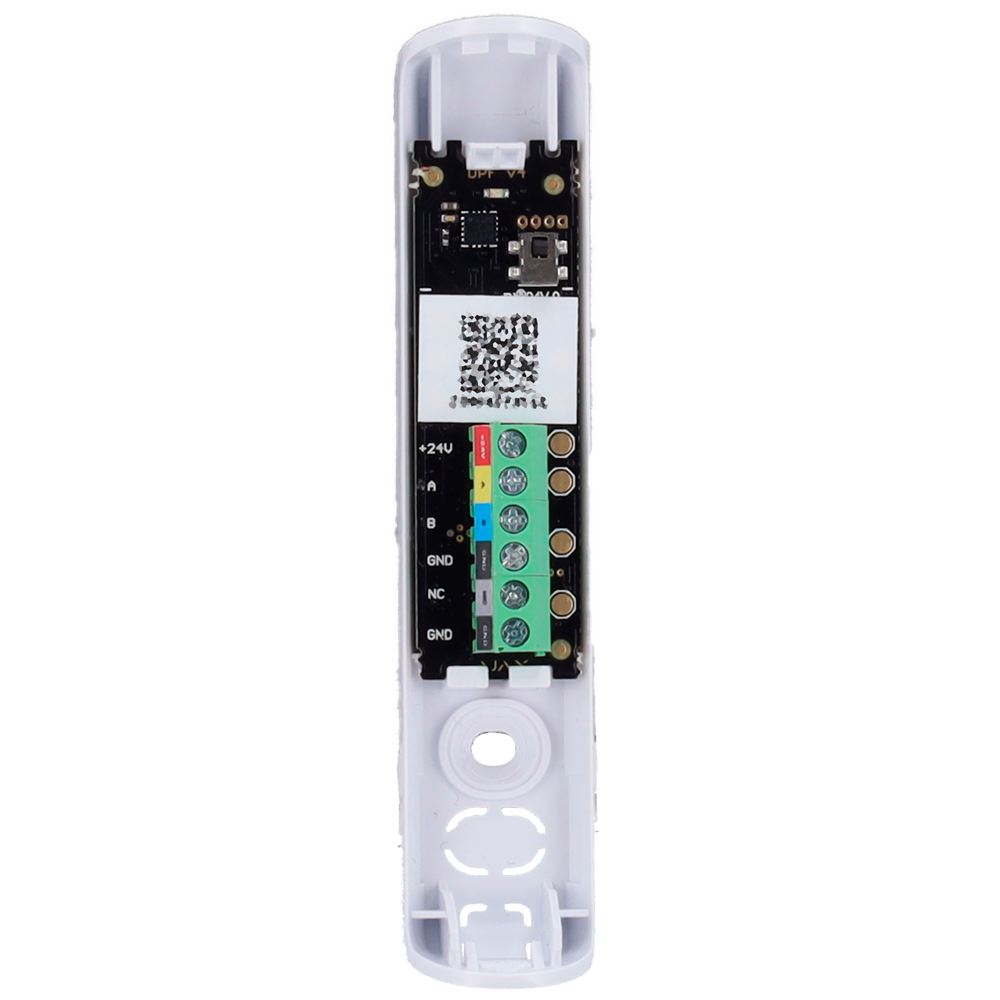

• Bus connection: 4-wire cable
• Firmware update: Not available
• Sensor: 2 reed relays: allows mounting the magnet on both sides
• Input for third-party wired detector: Wired detectors with normally closed (NC) contact
• LED indicators: Alarm, tamper, signal
• Chime mode: When the system is disarmed, the siren emits a special sound signal to indicate that the opening sensors have been triggered
• Anti-tamper: 1 tamper
• Power supply: 24 V DC
• Standby consumption: 0.044 mA
• Maximum consumption: 4.4 mA

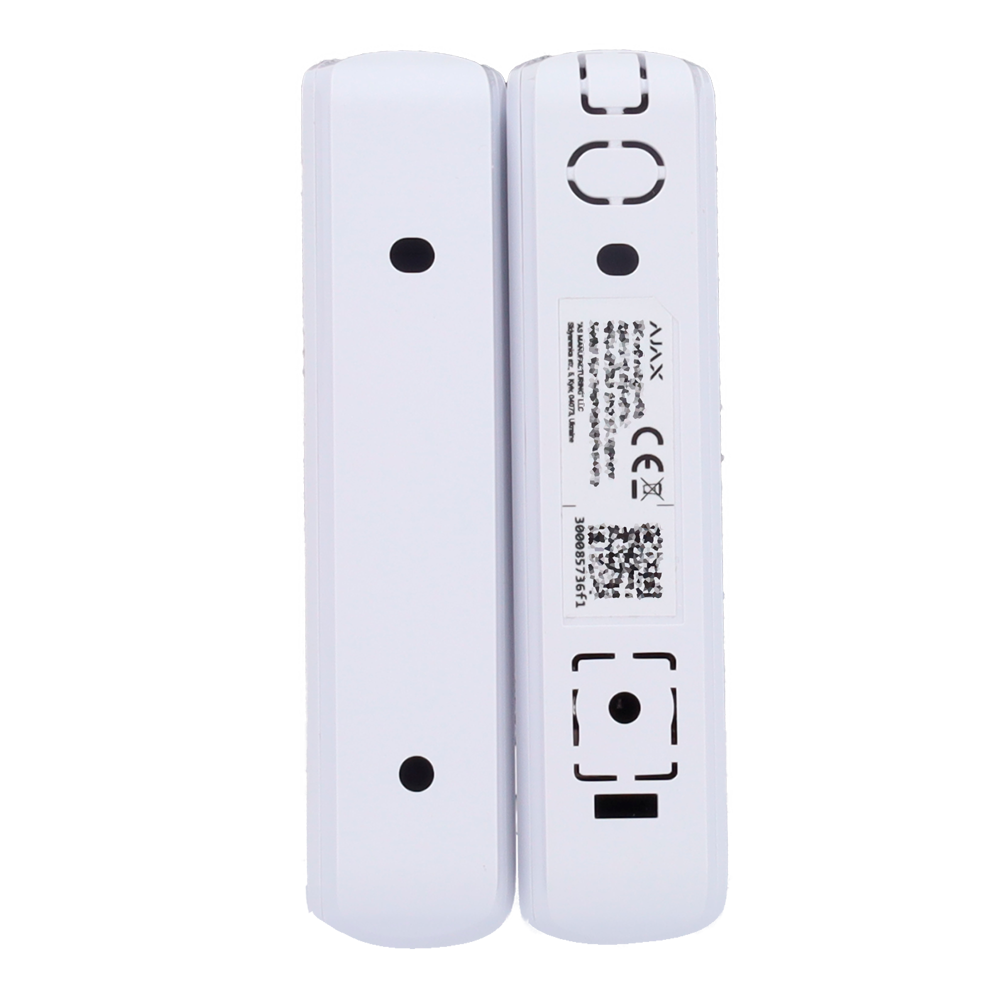

• Bracket: SmartBracket with fixing screw
• Operating temp.: -10º C ~ 40º C
• Operating humidity: Up to 75%
• Protection rating: IP50, IK04
• Transmitter dimensions: 90.5 (H) × 21 (W) × 18.5 (D) mm
• Magnet dimensions: 90.5 (H) × 21 (W) × 18.5 (D) mm
• Weight: 17 g
• Color: White
📦 INCLUDED:
• Magnetic contact • User instructions • Mounting hardware
| Security level | Grade 2 |
|---|---|
| Communication protocol | Fiber |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Compatibility with hubs and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Bus connection | 4-wire cable |
| Firmware update | Not available |
| Sensor | 2 reed relays: allows the magnet to be mounted on either side |
| Input for third-party wired detector | Wired detectors with normally closed (NC) contact |
| LED indications | Alarm, tamper, signal |
| Chime mode | When the system is disarmed, the siren emits a special acoustic signal to indicate that opening sensors have been triggered |
| Anti-tamper | - 1 tamper |
| Power supply | 24 V DC |
| Standby power consumption | 0.044 mA |
| Maximum power consumption | 4.4 mA |
| Bracket | SmartBracket with fixing screw |
| Operating temp. | -10º C ~ 40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP50, IK04 |
| Transmitter dimensions | 90.5 (H) × 21 (W) × 18.5 (D) mm |
| Magnet dimensions | 90.5 (H) × 21 (W) × 18.5 (D) mm |
| Weight | 17 g |
| Color | White |
- User manual Link
