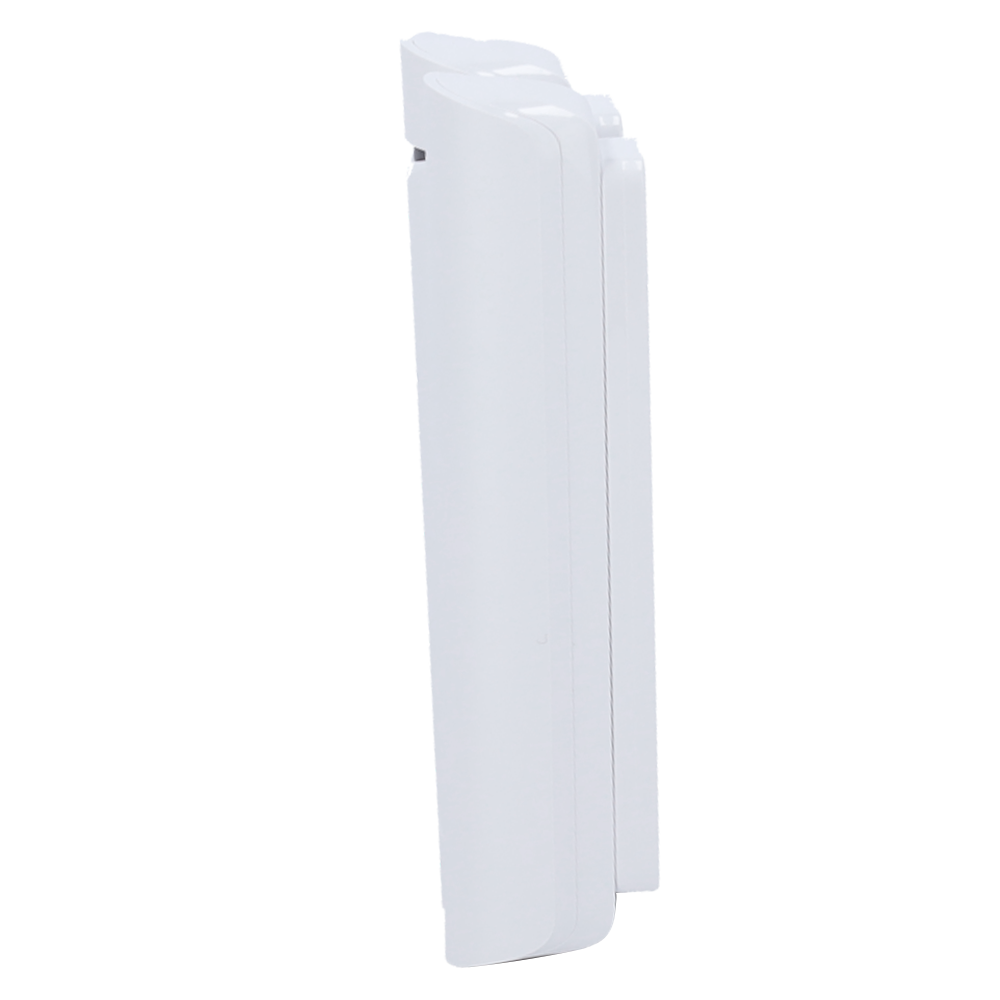

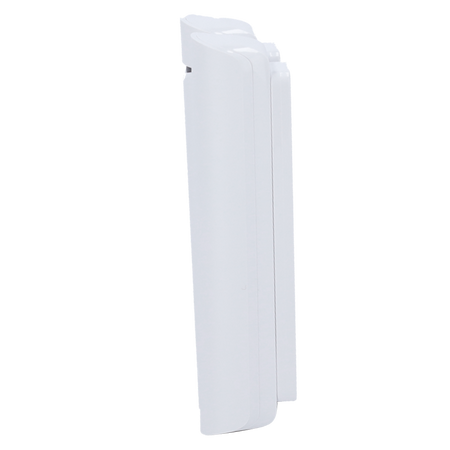

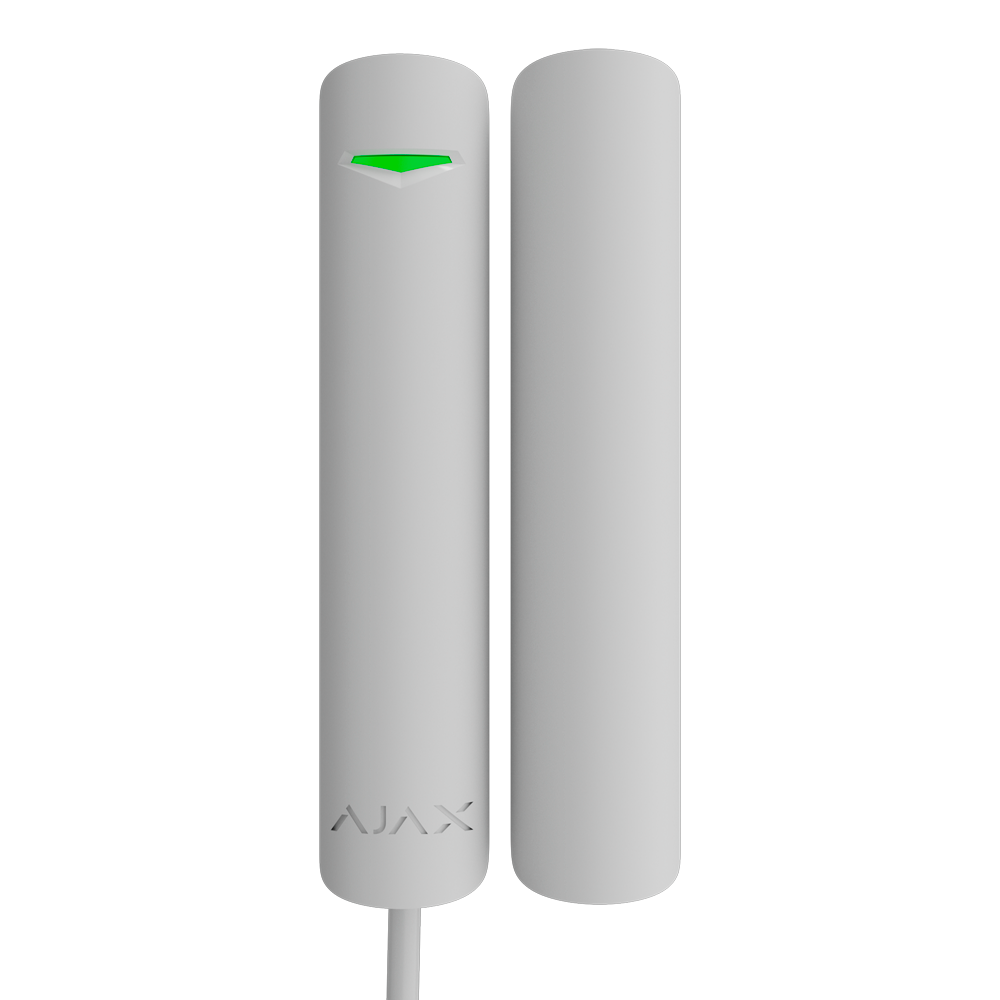

Ajax wired magnetic contact - Vibration, tilt sensor
Ajax wired magnetic contact - Vibration, tilt sensor
Regular price
€69,38
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

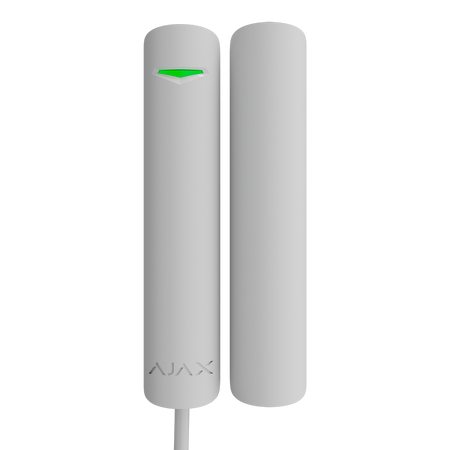

Wired magnetic contact - Grade 3 - Vibration, tilt sensor - Fibra protocol - Magnetic anti-masking - 2 reed relays: magnet installation on both sides - 2 tamper switches
📋 SPECIFICATIONS:
• Brand: Ajax
• Security level: Grade 3
• Communication protocol: Fibra
• Transmission distance: Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair cable)
• Compatibility with hubs and range extenders: Check compatibility in 'Downloads -- Manuals -- Ajax device compatibility table with control panels'

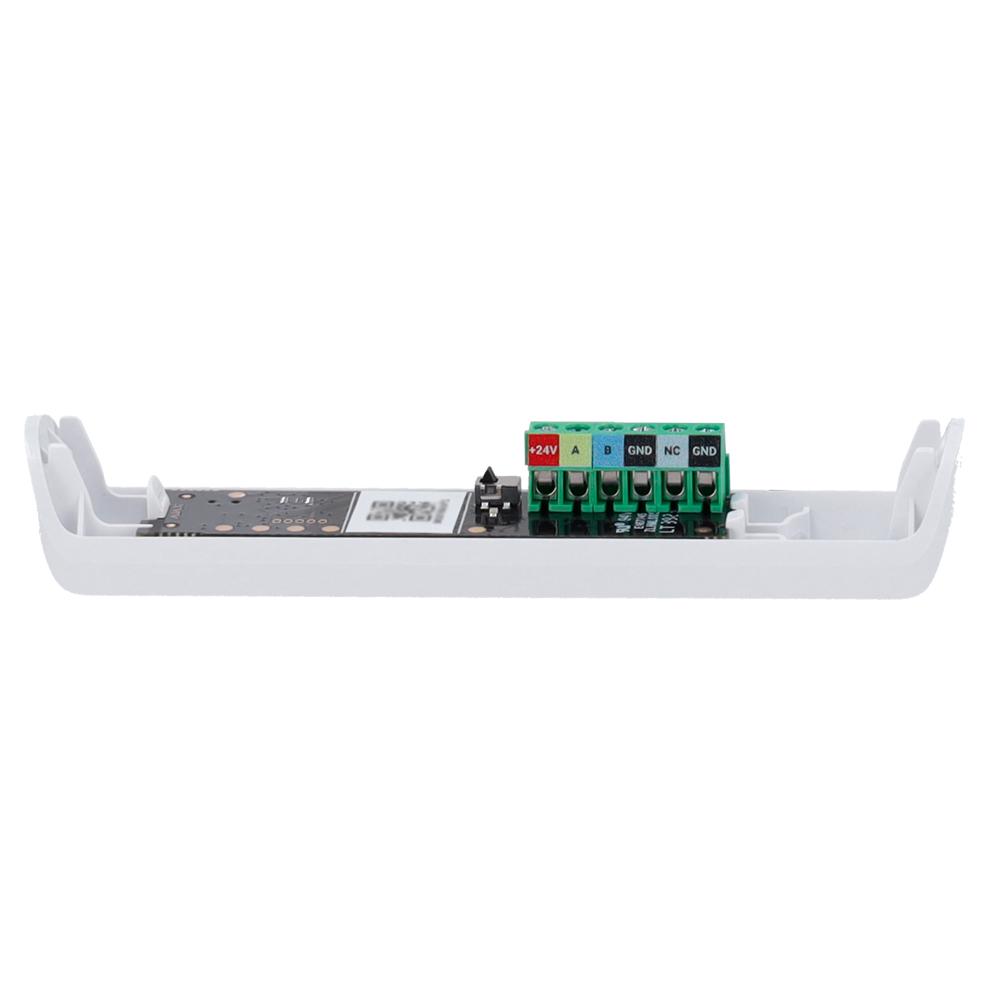

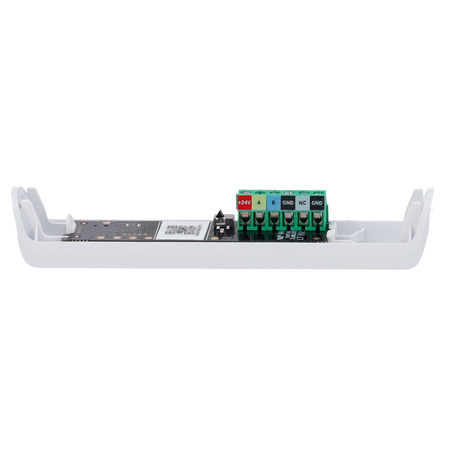

• Bus connection: 4-wire cable
• Firmware update: Not available
• Sensor: 1 accelerometer: tilt and impact; 1 magnetic anti-masking sensor; 2 reed relays: allows magnet mounting on both sides
• Impact sensor sensitivity: 3 levels
• Tilt sensor activation threshold: From 5º to 25º
• Input for third-party wired detector: Wired detectors with normally closed (NC) contact and additional roller shutter mode
• LED indications: Alarm, tamper, signal
• Chime mode: When the system is disarmed, the siren emits a special acoustic signal to indicate that the opening sensors have been triggered
• Spacers for metal surfaces: 2 units
• Tamper protection: 2 tamper switches
• Power supply: 24 V DC
• Standby consumption: 120 μA
• Maximum consumption: 2 mA

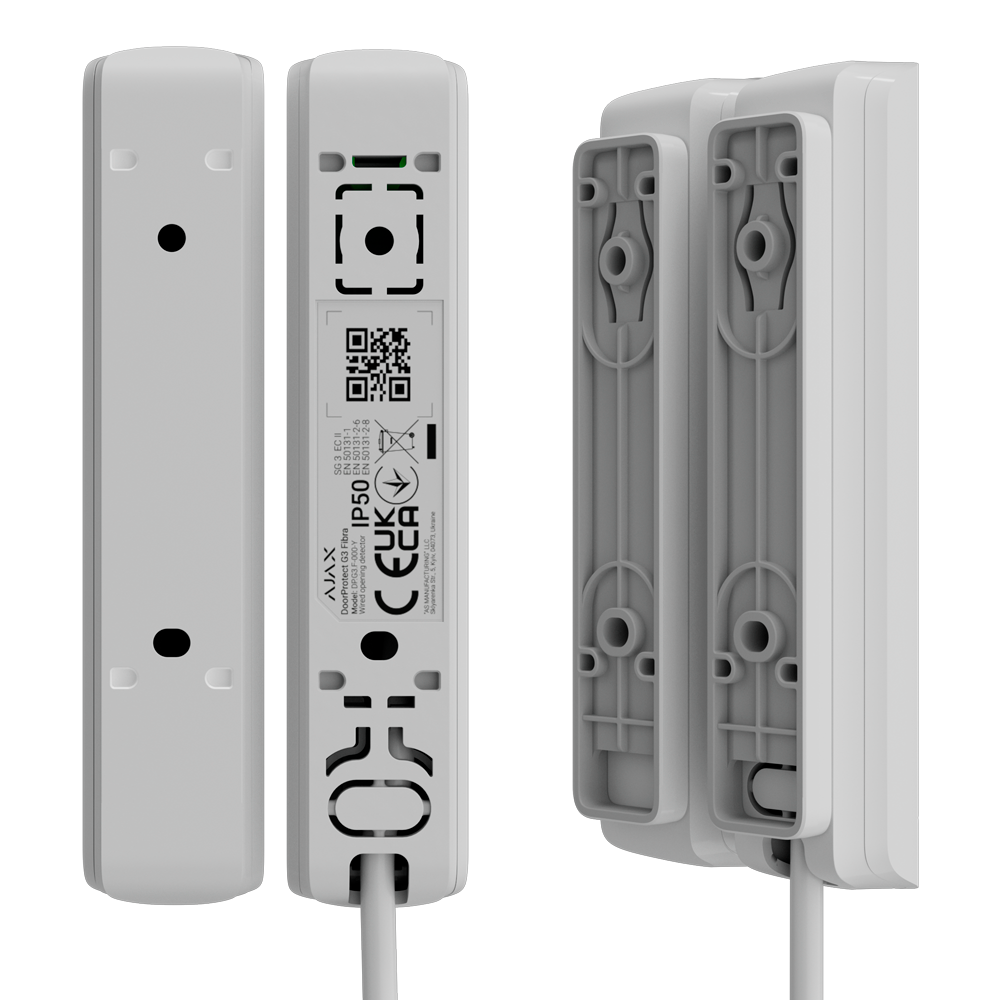

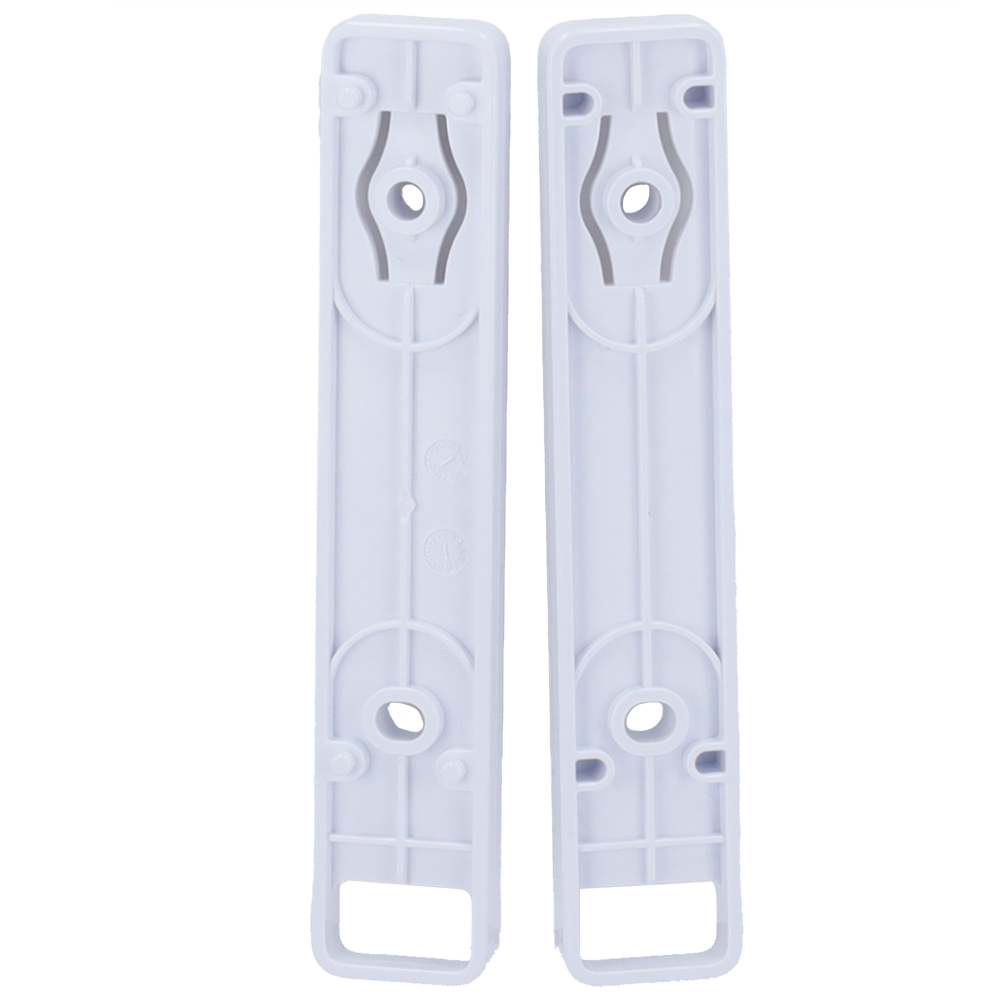

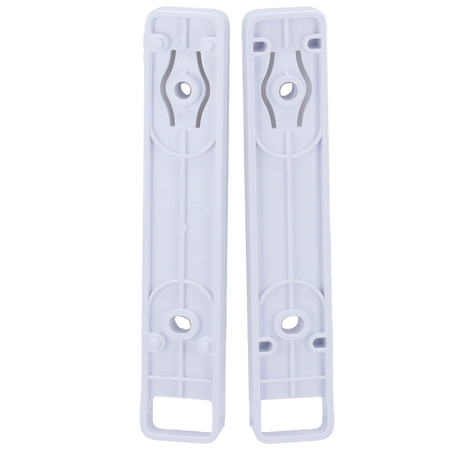

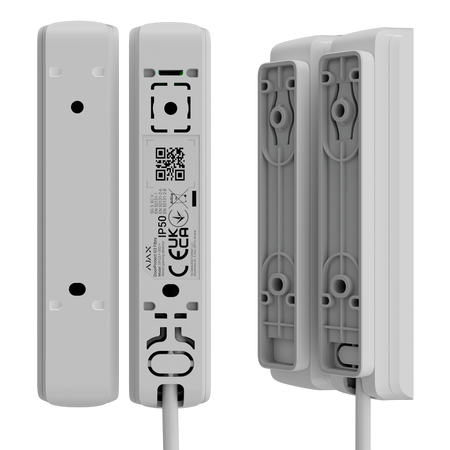

• Bracket: SmartBracket with fixing screw
• Operating temp.: -10º C ~ +40º C
• Operating humidity: Up to 75%
• Protection rating: IP50, IK04
• Transmitter dimensions: 102 (H) × 21 (W) × 19.5 (D) mm
• Magnet dimensions: 102 (H) × 21 (W) × 19.5 (D) mm
• Weight: 68 g
• Color: White
📦 INCLUDED:
• Wired magnetic contact Grade 3• 2 spacers• 2 magnets (large and small)• User manual• Mounting hardware
| Security level | Grade 3 |
|---|---|
| Communication protocol | Fiber |
| Transmission distance | Up to 2000 m (Recommended: U/UTP cat. 5 twisted pair) |
| Compatibility with control panels and range extenders | Check compatibility in 'Download -- Manuals -- Ajax device compatibility table with control panels' |
| Bus connection | 4-wire cable |
| Firmware update | Not available |
| Sensor | - 1 accelerometer: tilt and impact - 1 magnetic anti-masking sensor - 2 reed relays: allows mounting the magnet on either side |
| Impact sensor sensitivity | 3 levels |
| Tilt sensor activation threshold | From 5º to 25º |
| Input for third-party wired detector | Wired detectors with normally closed (NC) contact and additional Roller shutter mode |
| LED indicators | Alarm, tamper, signal |
| Chime mode | When the system is disarmed, the siren emits a special acoustic signal to indicate that the opening sensors have been activated |
| Spacers for metal surfaces | 2 units |
| Anti-tamper | - 2 tampers |
| Power supply | 24 V DC |
| Standby power consumption | 120 μA |
| Maximum power consumption | 2 mA |
| Bracket | SmartBracket with mounting screw |
| Operating temp. | -10º C ~ +40º C |
| Operating humidity | Up to 75% |
| Protection rating | IP50, IK04 |
| Transmitter dimensions | 102 (H) × 21 (W) × 19.5 (D) mm |
| Magnet dimensions | 102 (H) × 21 (W) × 19.5 (D) mm |
| Weight | 68 g |
| Color | White |
