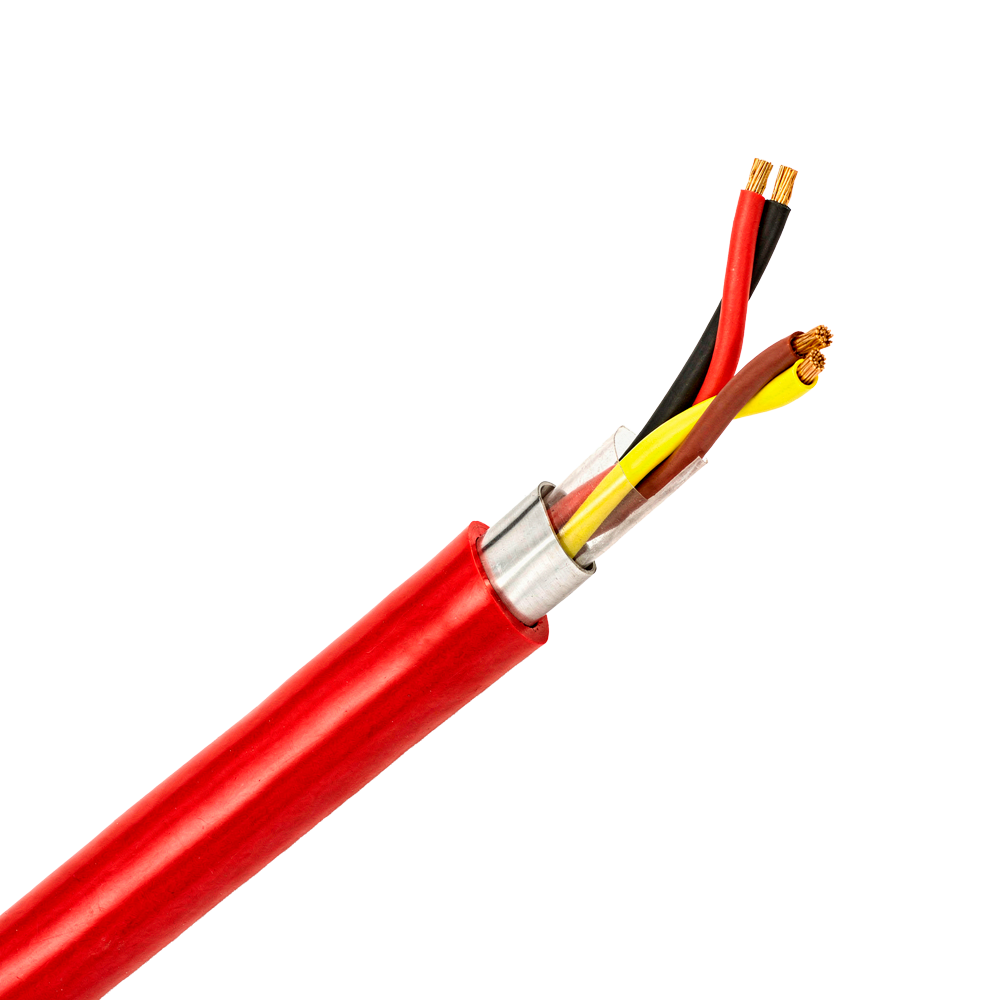

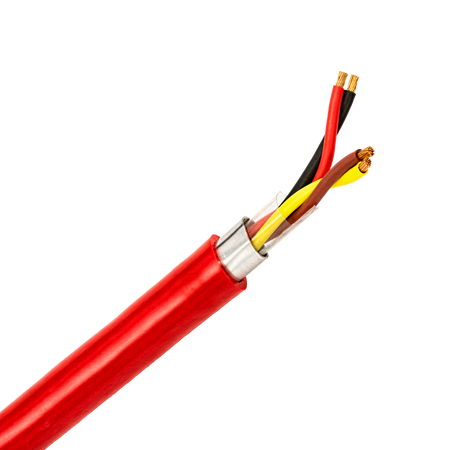

Shielded twisted pair cable coil - 100-meter reel - 2x2x1.5mm2 copper conductor [%VAR%]

SKU: FC2X15-100-C
(0)
In stock
Usually shipped within 24 hours
€276,70 Final price
-8% €300,00 €276,70 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Shielded twisted pair cable coil - 100-meter reel - 2x2x1.5mm2 copper conductor [%VAR%] - CPR: B2ca, -s1a,d0,a1 - Halogen-free -

📋 SPECIFICATIONS:
• Length: 100 m
• Twisted pair: 25 turns/m
• Conductor: Flexible polished copper Class V according to UNE 60228 standard
• Insulation: EVA LSHO polyolefin
• Shield: Aluminum Mylar tape shielding with flexible drain wire (Cu Sn)
• Sheath: Halogen-free polyolefin (Z1) LSH0 color: Red
• Test voltage: 2000V DC > 1 Min
• Working voltage: 500V
• Capacitance: 86 pF/m
• Operating temperature: +20º ~ +70º
• Certification: CPR: B2ca, -s1a,d0,a1, UNE EN 50575/A1:2016, UNE EN 60332-1-2, UNE EN 50399:2012, UNE EN 61034-2, UNE EN 60754-2, IEC 60228, RoHS Directive
• Cross-section: 2x2x1.5mm2

📦 INCLUDED:
• 100m cable reel
Length 100 m
Twist 25 twists/m
Conductor Flexible polished copper Class V according to UNE 60228 standard
Insulation Polyolefin EVA LSH0
Shield Aluminium Mylar tape shielding with flexible drain wire (TC)
Sheath Halogen-free polyolefin (Z1) LSH0, color: Red
Test voltage 2000 V DC > 1 Min
Operating voltage 500V
Capacitance 86 pF/m
Operating temperature +20º ~ +70º
Certification CPR: B2ca, -s1a,d0,a1, UNE EN 50575/A1:2016, UNE EN 60332-1-2, UNE EN 50399:2012, UNE EN 61034-2, UNE EN 60754-2, IEC 60228, RoHS Directive
Cross-section 2x2x1.5mm2
