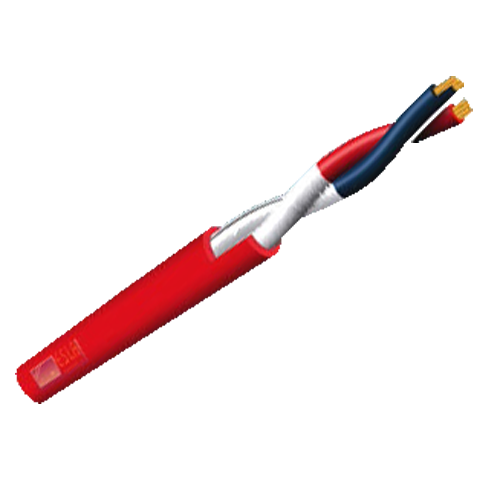

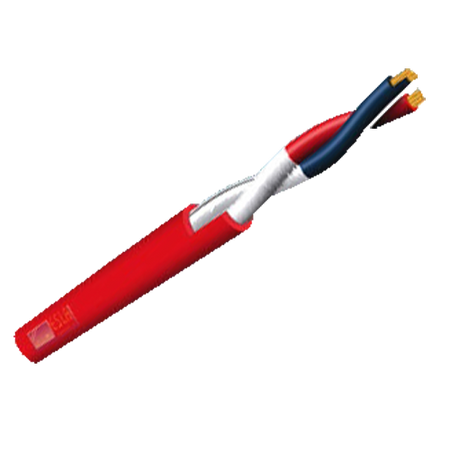

Shielded twisted pair cable reel - 100-meter spool - 2 x 1.0mm2 copper conductor

SKU: FC10-100-C
(0)
In stock
Usually shipped within 24 hours
€101,45 Final price
-6% €108,00 €101,45 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Shielded twisted cable coil - 100-meter reel - 2 x 1.0mm2 copper conductor - CPR Cca-s1b, d1, a1 certified - EN 50575 certified - Resistance 21 Ω/Km

📋 SPECIFICATIONS:
• Length: 100 m
• Conductor: Class 5 flexible bright copper 1.0mm2
• Insulation: Halogen-free 2.8mm
• Colors: Red and black - more than 25 twists/meter
• Shield: Aluminum Mylar tape for assembly / 96% RFI coverage / CuSn drain wire 7x0.20
• Sheath: Halogen-free EVA polyolefin 6.6mm
• Resistance: 21 Ω/Km
• Working voltage: 500V
• Capacitance: 86 pF/m
• Operating temperature: +20º ~ +70º
• Certification: CPR (Cca-s1b, d1, a1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2

📦 INCLUDED:
• Cable coil
Length 100 m
Conductor Class 5 flexible bare copper 1.0mm2
Insulation Halogen-free 2.8mm
Colors Red and black - more than 25 twists/meter
Shield Aluminum Mylar tape assembly / 96% RFI coverage / CuSn drain wire 7x0.20
Jacket Halogen-free EVA polyolefin 6.6mm
Resistance 21 Ω/Km
Operating voltage 500V
Capacitance 86 pF/m
Operating temperature +20º ~ +70º
Certification CPR (Cca -s1b, a1, d1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
