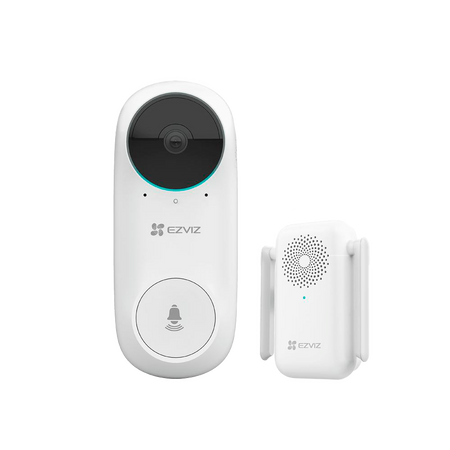

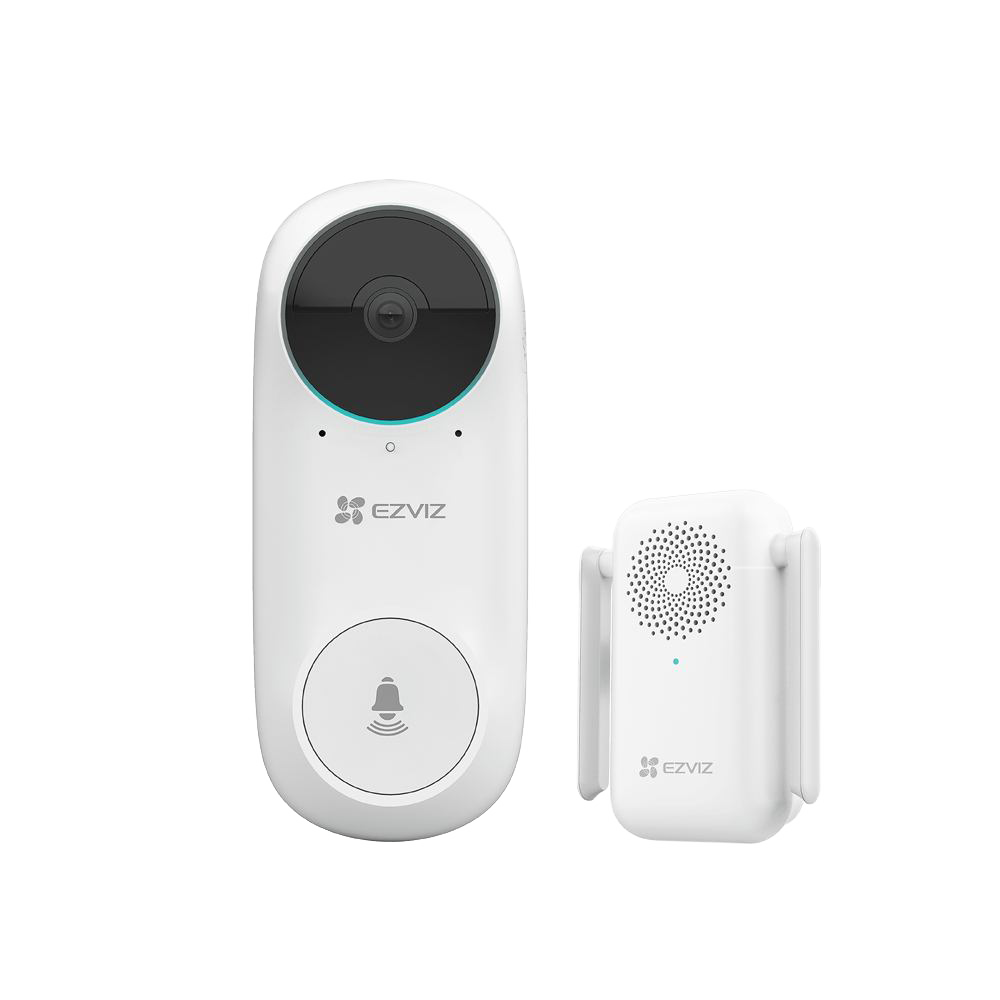

Ezviz WiFi IP video doorbell - 2MP camera / 160º field of view - Audio / Internal chime included - PIR human detection - App monitoring - Ezviz app and P2P connection
📋 SPECIFICATIONS:
• Brand: Ezviz
• Model: CS-DB2C
• Image sensor: 1/2.7" 2 Megapixel CMOS
• Video compression: H.265 / H.264
• Image enhancements: DWDR, 3DNR, BLC, AGC
• Lens: 2.2 mm
• Viewing angle: 160º
• Infrared illumination: 0 Lux / IR LEDs (5 m)
• Keypad: Mechanical call button
• Relay output: Not available / Tamper switch
• Smart detection: Real PIR sensor (100° / 5m) focused on people with adjustable detection range
• Audio: High-quality two-way audio (microphone and speaker) with noise and echo cancellation
• Network interface: WiFi IEEE 802.11 b/g/n 2.4 GHz

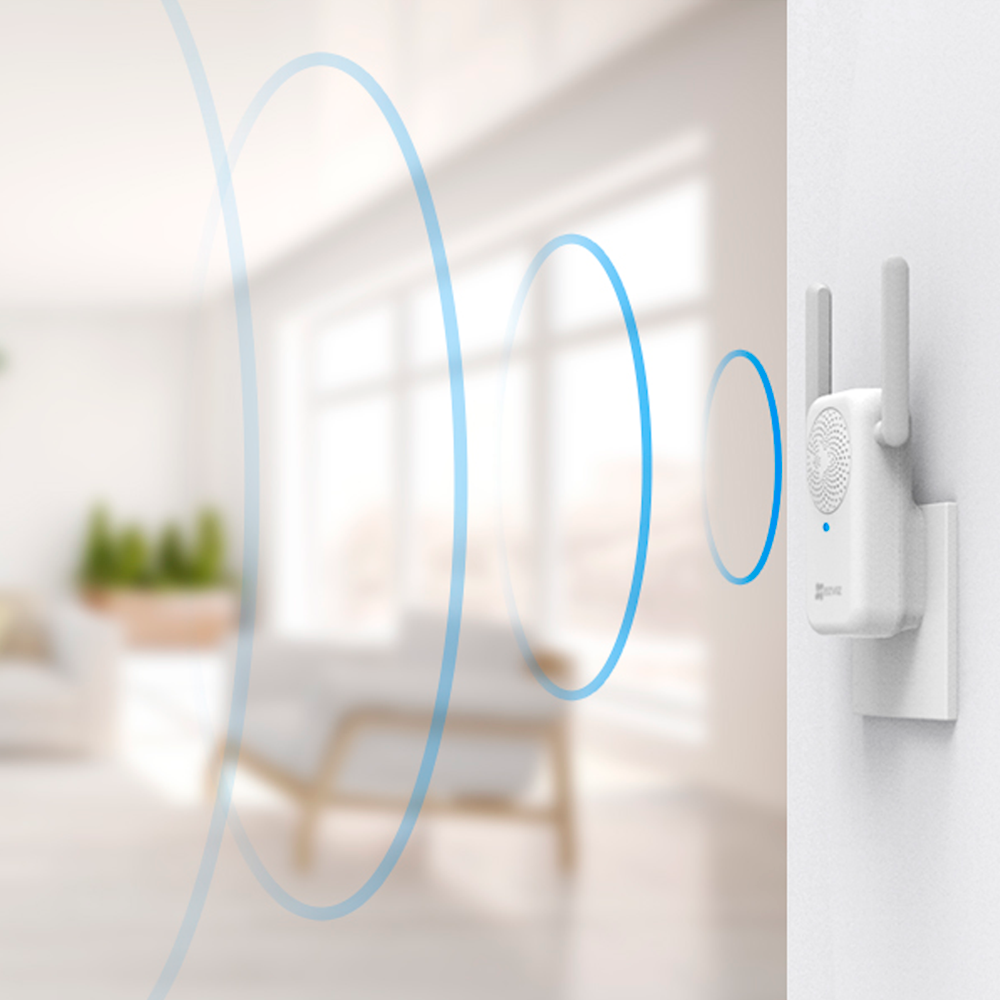

• Indoor chime: WiFi 2.4 GHz / 65 dB / 20 ringtones

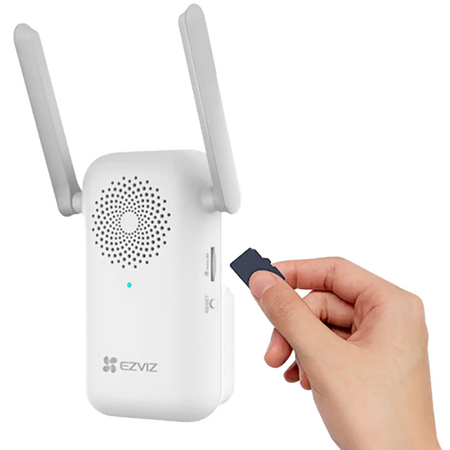

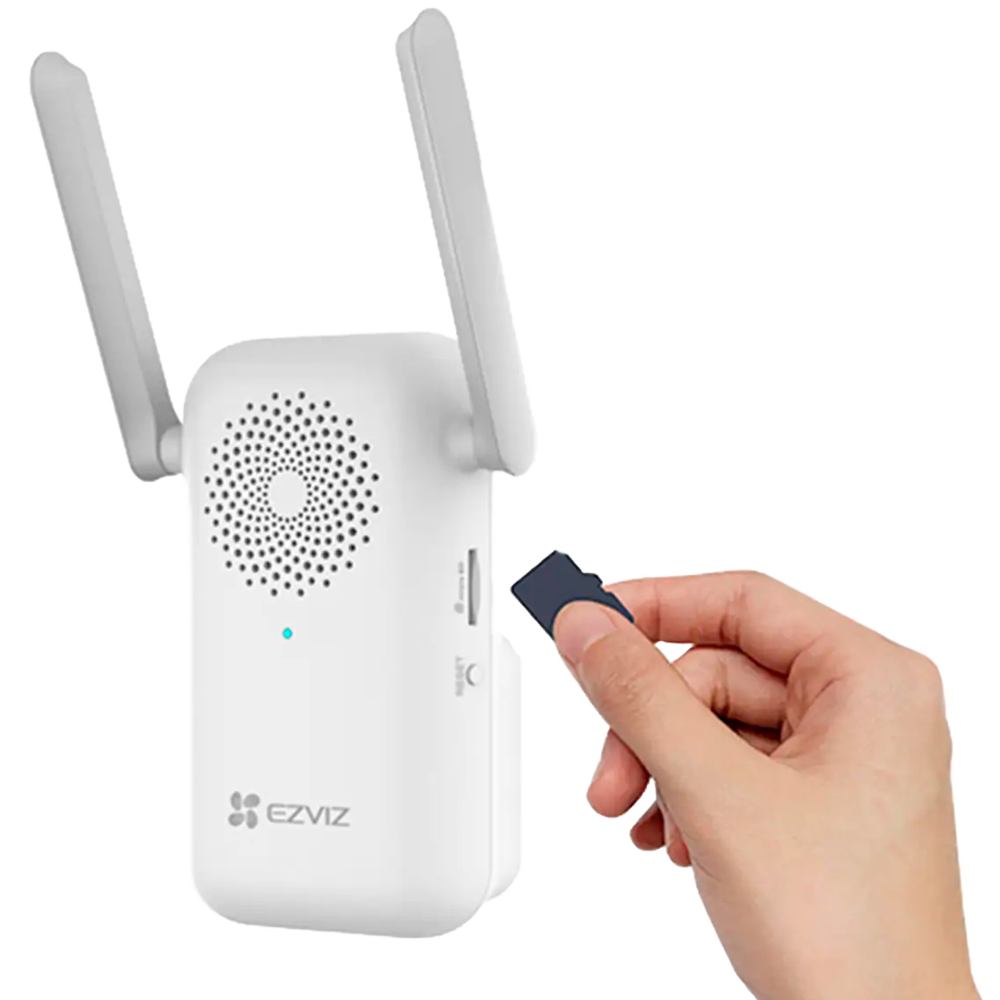

• Internal memory: Supports microSD card (max. 256GB) (not included) in the indoor chime
• External storage: Subscription-based CloudPlay recording
• Remote access: EZVIZ Smartphone / Tablet App and EZ Studio software
• Battery: 5200 mAh rechargeable lithium battery
• Power supply: Video doorbell: DC 5V Max 7.5W / Indoor chime: AC 100~240V
• Protection rating: No IP rating
• Operating temp.: -10º C ~ +45º C
• Dimensions: 146 (H) x 60 (W) x 34 (D) mm
• Weight: 206 g
📦 INCLUDED:
• WiFi doorbell • Indoor chime • Installation material • Quick start guide
| Model | CS-DB2C |
|---|---|
| Optical sensor | 1/2.7" 2 Megapixel CMOS |
| Video compression | H.265 / H.264 |
| Image enhancements | DWDR, 3DNR, BLC, AGC |
| Lens | 2.2 mm |
| Viewing angle | 160º |
| Infrared illumination | 0 Light / IR LEDs (5 m) |
| Keypad | Mechanical call button |
| Relay output | Not available / Tamper switch |
| Smart detection | Real PIR sensor (100° / 5m) oriented towards people with selectable range |
| Audio | High-quality two-way audio (microphone and speaker) with noise and echo cancellation |
| Network interface | WiFi IEEE 802.11 b/g/n 2.4 GHz |
| Indoor chime | WiFi 2.4 GHz / 65 dB / 20 tones |
| Internal memory | Supports microSD card (max. 256GB) (not included) on the indoor chime |
| External storage | CloudPlay recording via subscription. |
| Remote access | EZVIZ App for Smartphone / Tablet and EZ Studio software |
| Battery | 5200 mAh rechargeable lithium battery |
| Power supply | Video doorbell: DC 5V Max 7.5W / Indoor chime: AC 100~240V |
| Protection rating | No IP protection rating |
| Operating temp. | -10º C ~ +45º C |
| Dimensions | 146 (H) x 60 (W) x 34 (D) mm |
| Weight | 206 g |
