SECURITON Range 200m Width 15m
Regular price
€1.910,36
Final price
Regular price
-6%
€2.039,40
Sale price
€1.910,36
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

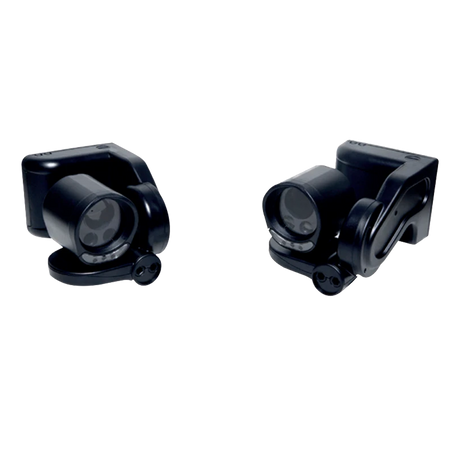

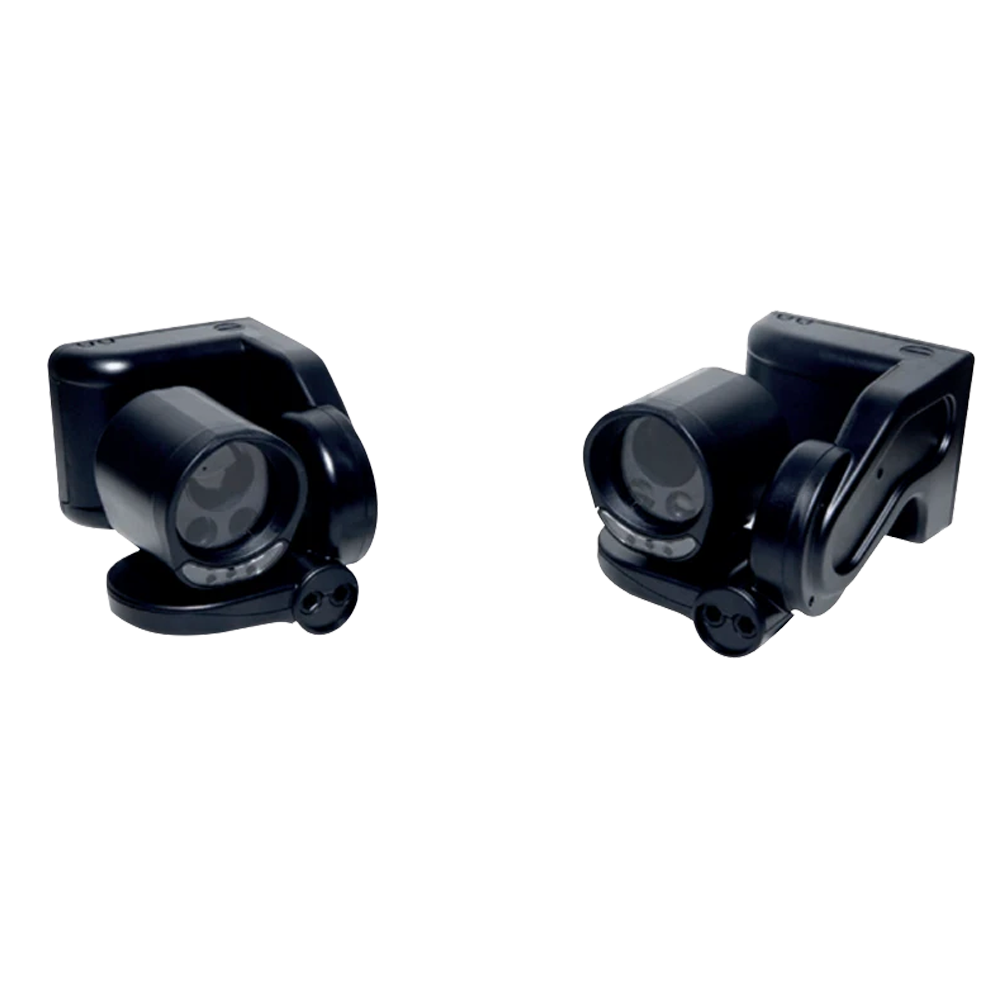

SECURITON - 200m range - 15m opening - Transmitter/receiver system - IP65 protection - EN 54/12, 54/17 AND 54/18
📋 SPECIFICATIONS:
• System type: Linear Transmitter/Receiver barrier (non-reflective)
• Standards / certifications: EN 54‑12 (linear smoke detector), EN 54‑17 (isolator), RoHS
• Operating range: 10–200 m from Tx to Rx
• Coverage: Up to 1,600 m² per detector
• Sensitivity: Adjustable over a wide range via CSRLS; automatic threshold compensation
• Supply voltage: 12/24 V DC (±20%) auto-selectable for ILIA set (Tx, Rx, CSRLS)
• Typical consumption (base system): Approx. 48–100 mA at 24/12 V (control + 1 detector; indicative data sheet values)
• Communication: RS‑485 bus, up to 1,000–1,200 m of cable (1 mm²) between control and detectors
• Number of detectors per unit: Basic configuration 2 detectors; expandable up to 8 via expansion card
• Protection rating: IP65 on Tx, Rx and control unit
• Operating temperature: −20 °C to +65 °C
• Storage temperature: −20 °C to +70 °C
• Housing material: High-impact PPE + PS thermoplastic (Tx and Rx), PS HI for control unit
• Allowed misalignment: ±1° max. on Tx and Rx
• Color: RAL 5004 (dark blue)
• Minimum cable cross-section: 0.5 mm², 4 wires type CEI 20‑22
• Approximate weight: Tx 0.735 kg; Rx 0.775 kg;
📦 INCLUDED:
• IR receiver and transmitter barrier
| System type | Linear beam Transmitter/Receiver (non-reflective) |
|---|---|
| Standards / certifications | EN 54‑12 (line smoke detector), EN 54‑17 (isolator), RoHS |
| Operating range | 10–200 m from Tx to Rx |
| Coverage | Up to 1,600 m² per detector |
| Sensitivity | Adjustable over a wide range via CSRLS; automatic threshold compensation |
| Supply voltage | 12/24 V DC (±20%) auto-selectable for ILIA set (Tx, Rx, CSRLS) |
| Typical consumption (base system) | Approx. 48–100 mA at 24/12 V (control + 1 detector; datasheet indicative values) |
| Communication | RS‑485 bus, up to 1,000–1,200 m of cable (1 mm²) between control and detectors |
| Number of detectors per unit | Basic configuration 2 detectors; expandable up to 8 via expansion card |
| Protection rating | IP65 on Tx, Rx and control unit |
| Operating temperature | −20 °C to +65 °C |
| Storage temperature | −20 °C to +70 °C |
| Housing material | High-impact PPE + PS thermoplastic (Tx and Rx), HI PS for control unit |
| Permissible misalignment | ±1° max. on Tx and Rx |
| Color | RAL 5004 (dark blue) |
| Minimum cable cross-section | 0.5 mm², 4 wires type CEI 20‑22 |
| Approximate weight | Tx 0.735 kg; Rx 0.775 kg; |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
