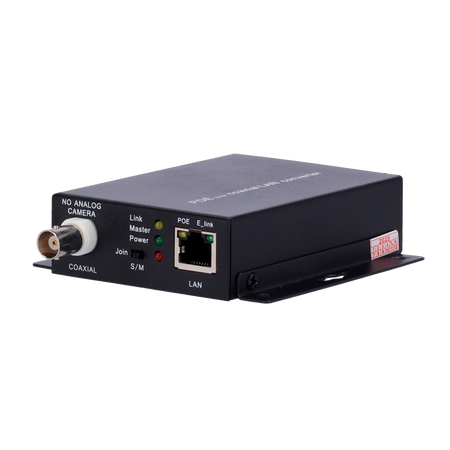

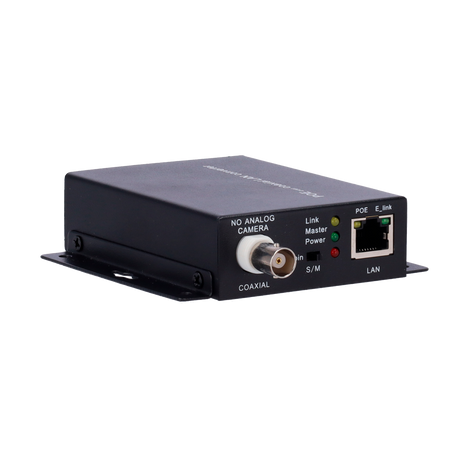

Onv IP extender coaxial cable
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

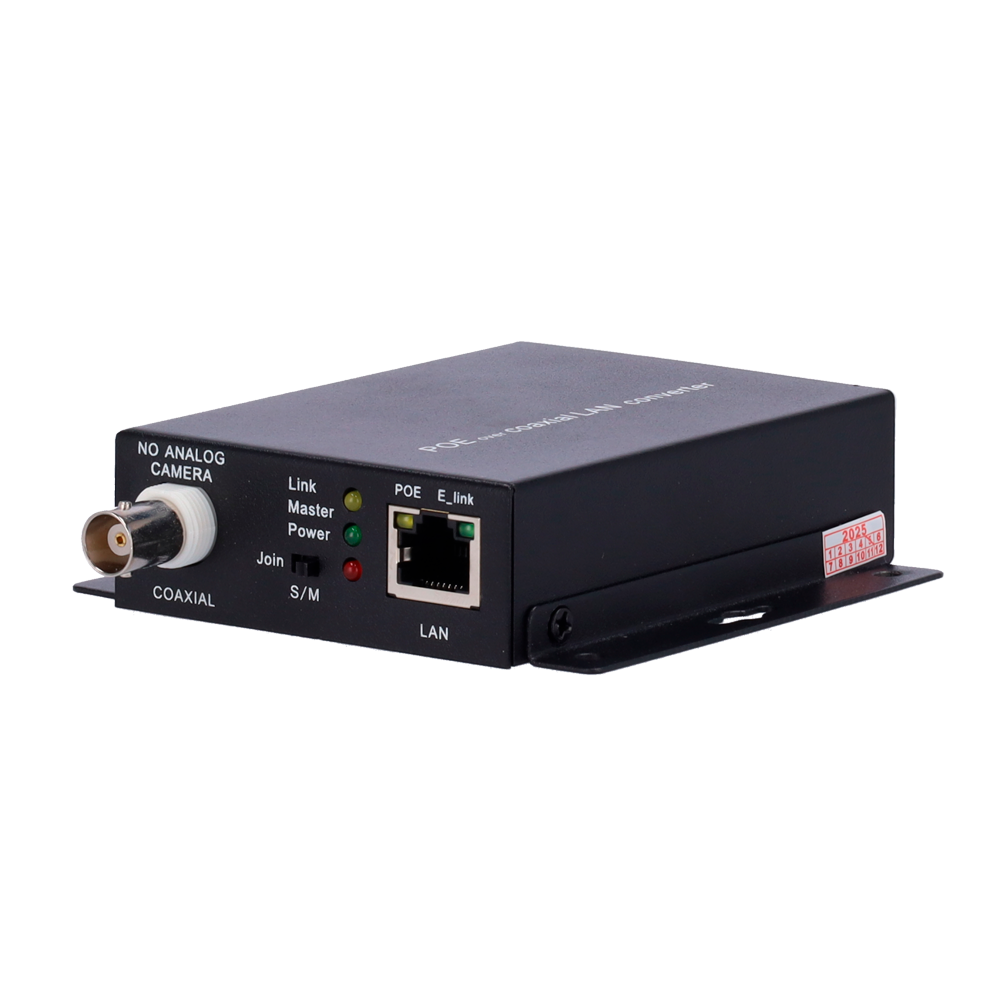

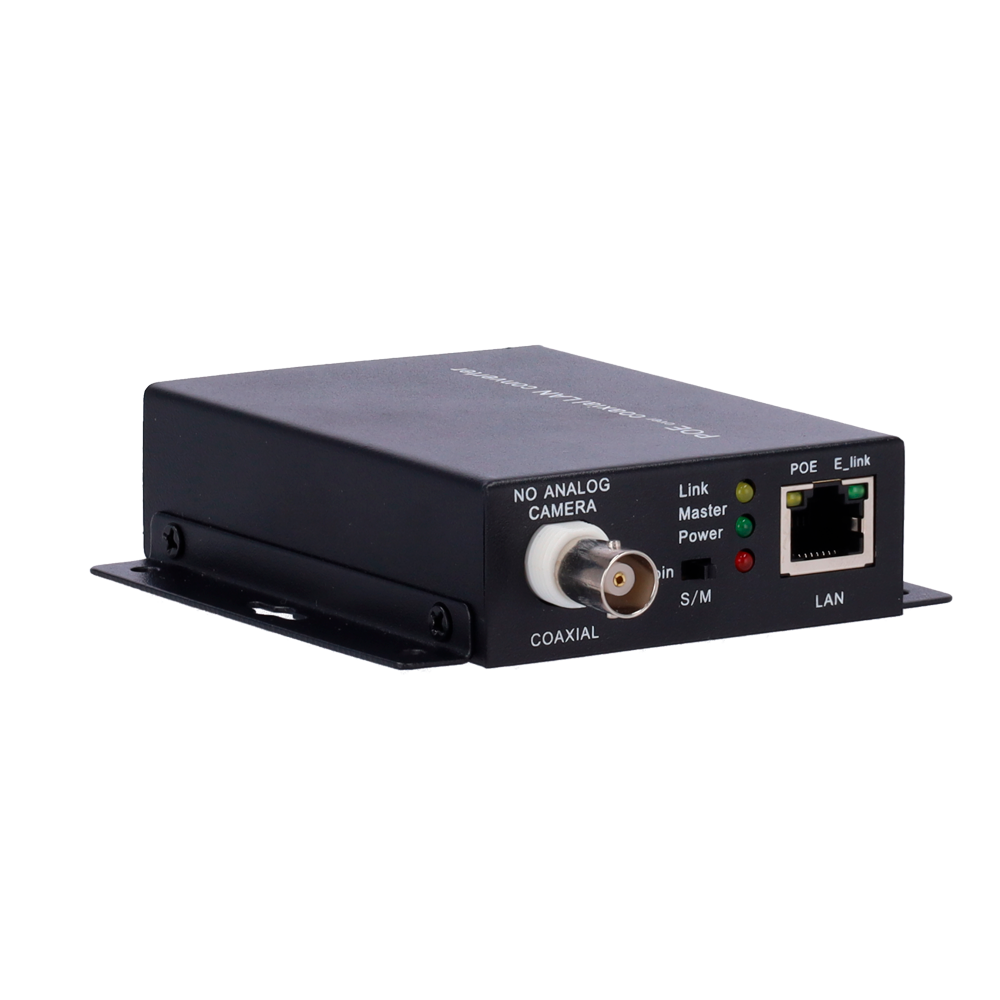

IP | PoE coaxial extender cable - Can function as a transmitter or receiver - Maximum distance 300 m - Bandwidth up to 100 Mbps - 52V 1.25A power supply - 2 extenders required for each installation
📋 SPECIFICATIONS:

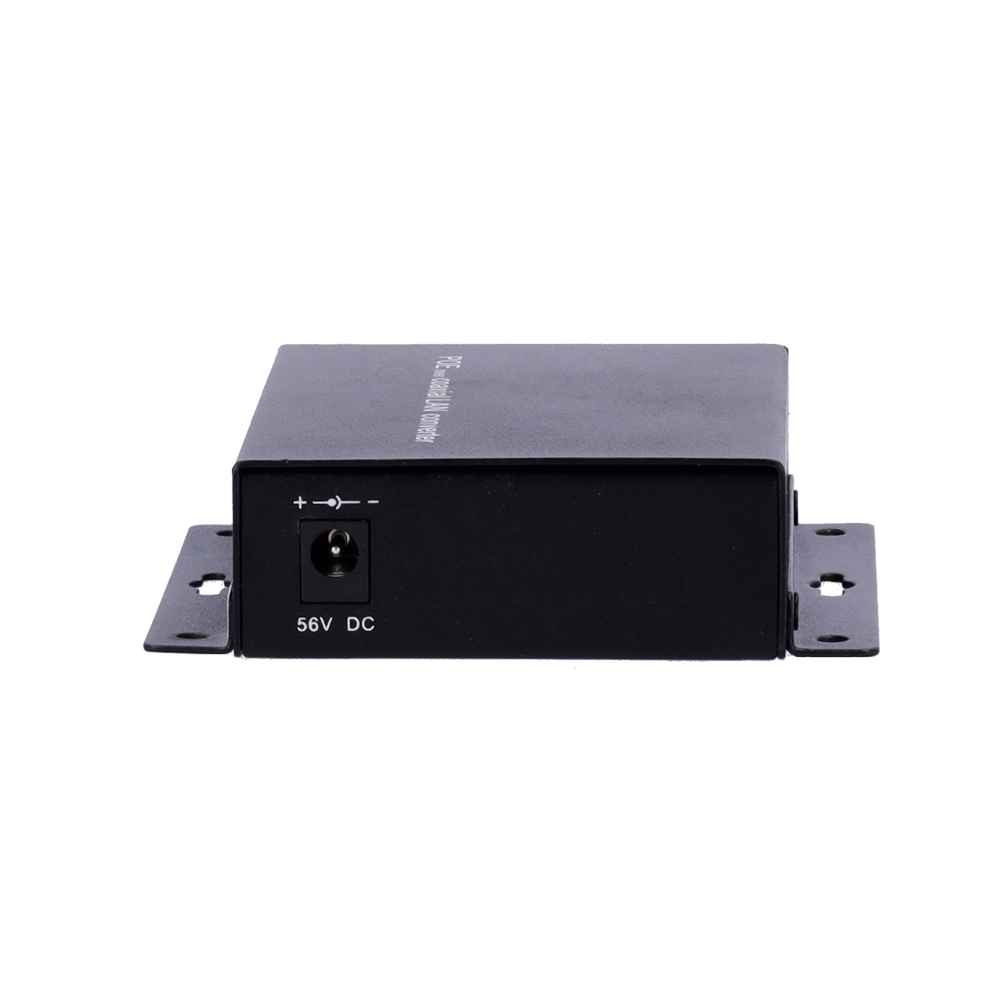

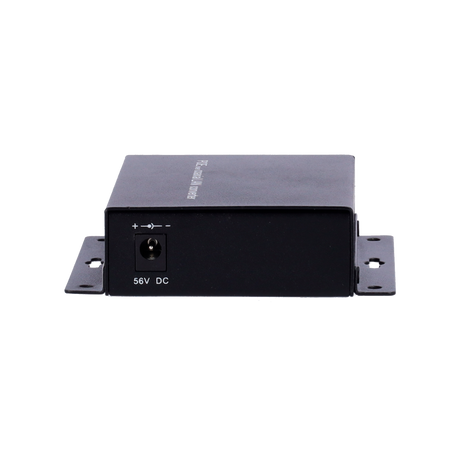

• Power supply: 52V 1.25A power adapter
• PoE: IEEE802.3u, IEEE 802.3af, 802.3at standards;
• Input voltage: 48~57 VDC
• Consumption: < 2 W
• Transmission speed: 10/100 Mbps with DIP switch (Master, Slave)
• Distance over coaxial: 300 m via coaxial cable
• Ethernet connection: RJ45 port
• Ethernet signal: 10/100 Mbps Base T
• Operating mode: Point-to-point; Point-to-Multipoint; Important: The EOC-500-POE-V2 transmitter requires a 52V 1.25A power supply (included in the package) to transmit data and PoE over coaxial cable; the receiver does not require power.

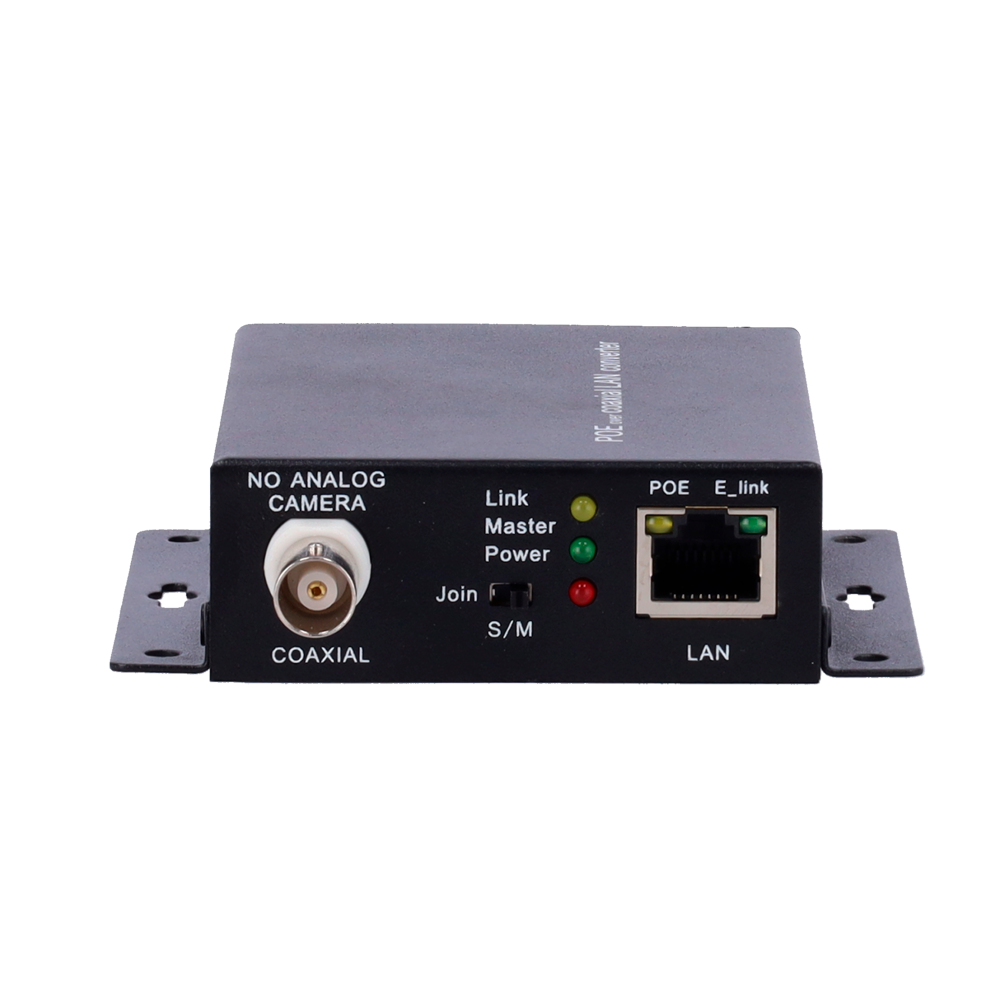

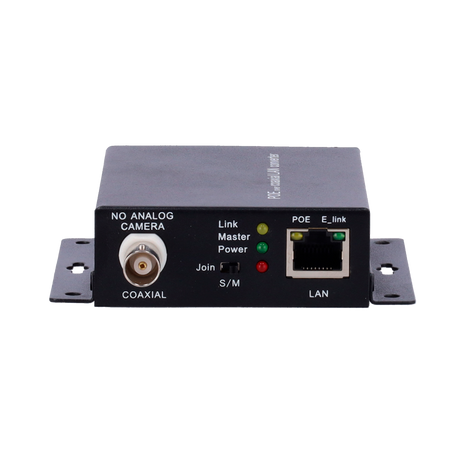

• Status indicators: Yellow: power OK | Green: Ethernet signal transmission OK | Green/yellow: signal transmission OK
• Operating conditions: Temperature -20℃~40℃ | Humidity 95%
• Dimensions: 65 x 78 x 24 mm
📦 INCLUDED:

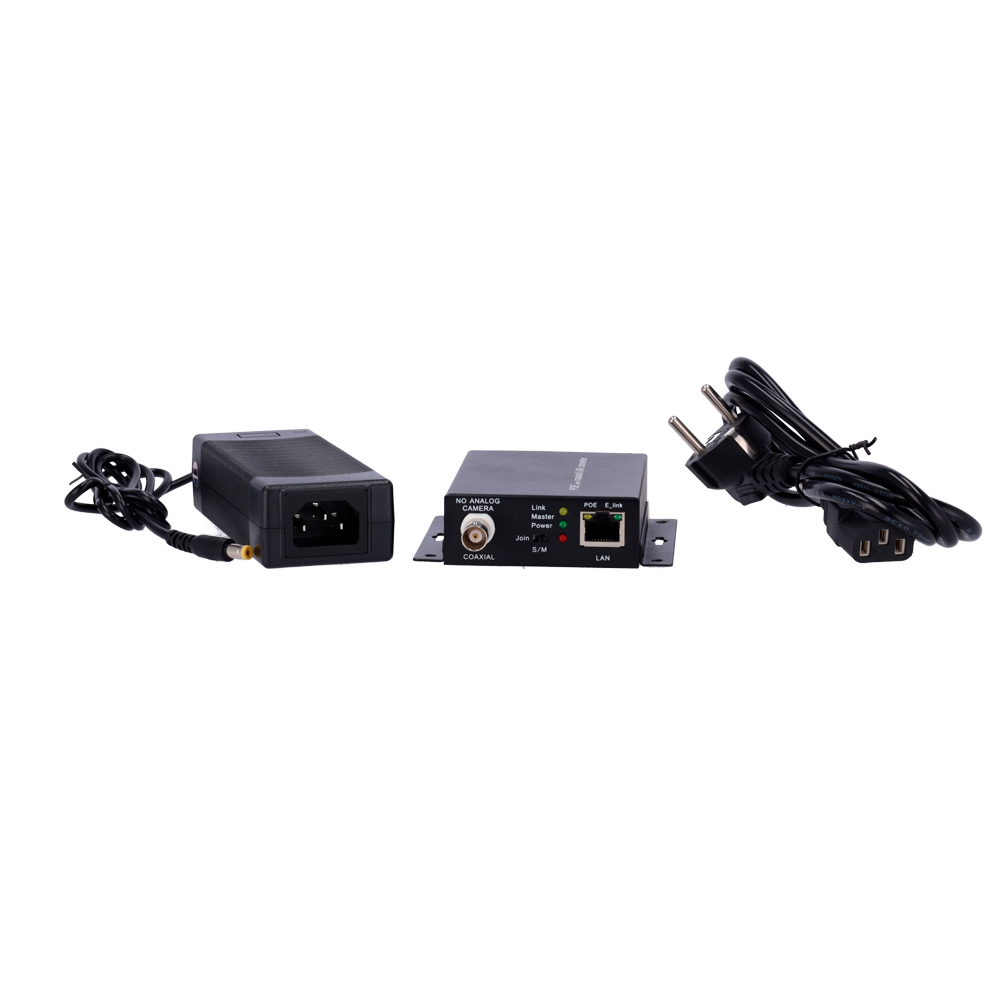

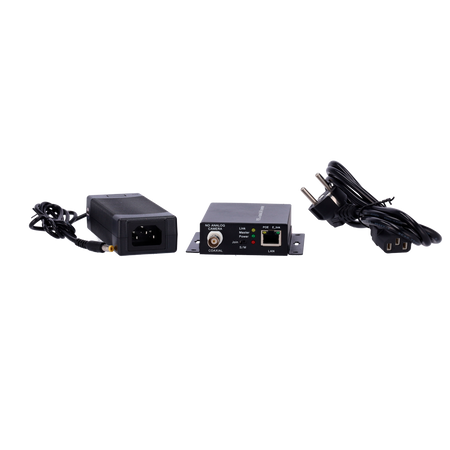

• Extender • 52V 1.25A power supply • Manual
| Power Supply | 52V 1.25A power adapter |
|---|---|
| PoE | IEEE802.3u, IEEE 802.3af, 802.3at standards; |
| Supply voltage | 48~57 VDC |
| Power consumption | < 2 W |
| Transmission speed | 10/100 Mbps with DIP switch (Master, Slave) |
| Distance over coaxial | 300 m via coaxial cable |
| Ethernet connection | RJ45 port |
| Ethernet signal | 10/100 Mbps Base T |
| Operating mode | Point-to-point, Point-to-multipoint. Important: The EOC-500-POE-V2 transmitter requires a 52V 1.25A power supply (included in the package) to transmit data and PoE via coaxial cable; the receiver does not require a power supply. |
| Status indicators | Yellow: Power OK | Green: Ethernet signal transmission OK | Green/yellow: Signal transmission OK |
| Operating conditions | Temperature -20℃~40℃ | Humidity 95% |
| Dimensions | 65 x 78 x 24 mm |
